2000-Sheet Drawer User’s Guide

Table of Contents

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Unpacking the 2000-Sheet Drawer . . . . . . . . . . . . . . . 2

Attaching Stabilizer Feet . . . . . . . . . . . . . . . . . . . . . . . 3

Installing the 2000-Sheet Drawer. . . . . . . . . . . . . . . . . 6

Verifying Installation . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Setting the Paper Type . . . . . . . . . . . . . . . . . . . . . . . 11

Changing the Paper Size . . . . . . . . . . . . . . . . . . . . . . 12

Selecting Paper . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Loading Paper . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Clearing a Paper Jam . . . . . . . . . . . . . . . . . . . . . . . . 20

2000-Sheet Drawer User’s Guide

2000-Sheet Drawer User’s Guide 1

Introduction

The 2000-sheet drawer gives your printer added capacity by allowing you to load

up to four reams (approximately 2,000 sheets) of 20 lb paper.

Your drawer is pre-configured to either letter or A4 paper size. To use a different

paper size, see page 12.

Your printer has an autoconnect feature that recognizes when the 2000-sheet

drawer has been installed. After starting your printer, this option is shown as Tray

2,Tray 3,Tray 4 or Tray 5,depending upon the number of installed paper

sources.

To ensure reliable paper feeding, it is important that you select paper

recommended for use with the 2000-sheet drawer and that you load it properly.

See page 14 for information on paper specifications and page 16 for loading

instructions.

To ensure compatibility with your printer, verify your drawer is labeled with a

colored triangle located on the top left front corner.

Refer to your printer documentation for information pertaining to electronic

emissions, safety, and warranty.

2000-Sheet Drawer User’s Guide

Unpacking the 2000-Sheet Drawer

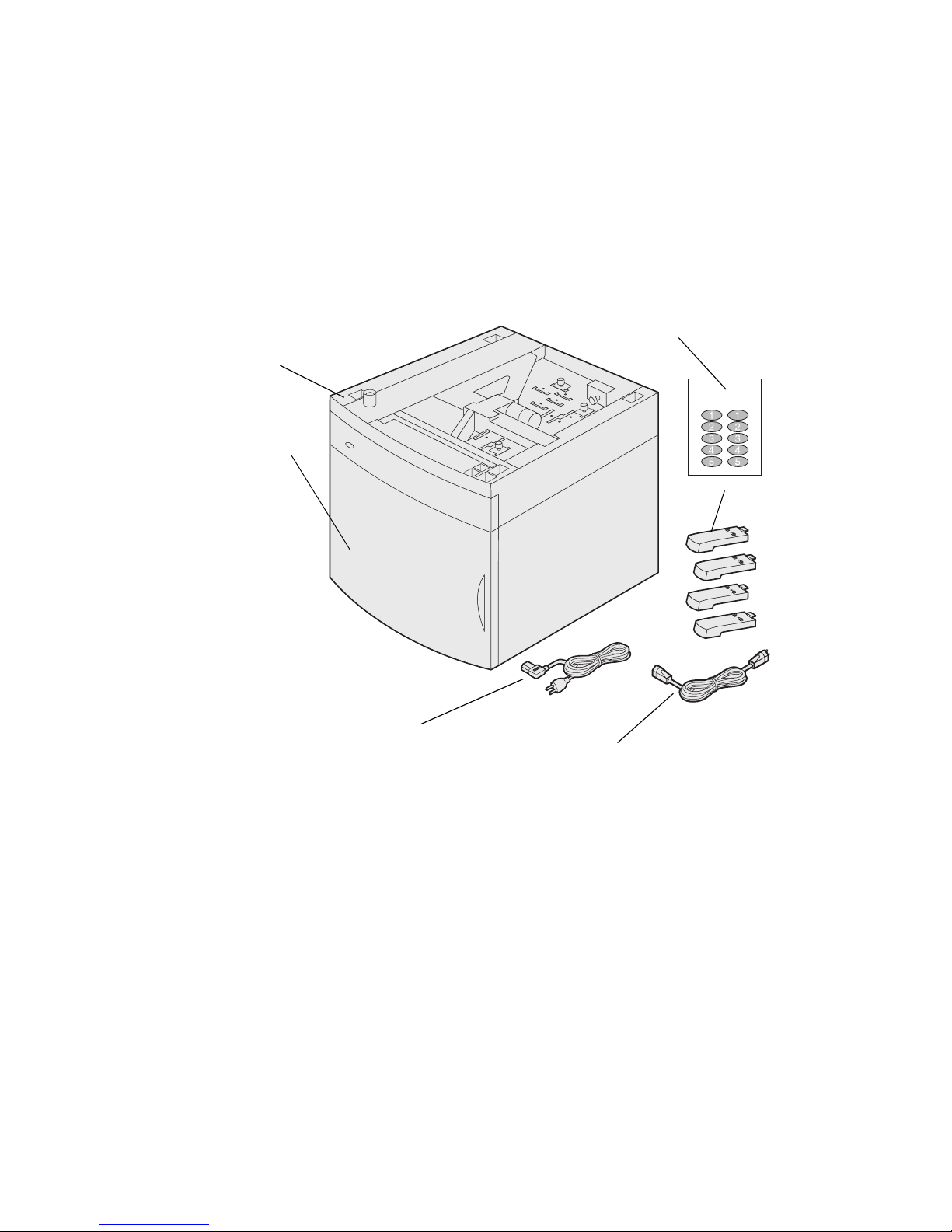

1Remove all items shown in the illustration from the carton. If any items are

missing, contact the place where you bought the 2000-sheet drawer.

Note: The 16 AWG power cord is included only with units

intended to operate at 100 - 127V power.

2Remove all packing material and tape from each item.

Note: Save the carton and packing material in case you

need to repack the 2000-sheet drawer for service or

storage.

3Peel the appropriately numbered decals from the sheet and attach them to

the recessed areas on the drawer. Choose the number that corresponds to

the number of paper options you are attaching, including the standard

input tray.

Stabilizer feet

16 AWG power

Decals

2000-sheet

Jumper cord

Printer compatibility

label (colored triangle)

2000-Sheet Drawer User’s Guide 3

Attaching Stabilizer Feet

CAUTION! If you are not using an optional printer stand, the four stabilizer

feet must be attached to the drawer.

1Carefully invert the 2000-sheet drawer so the bottom faces up.

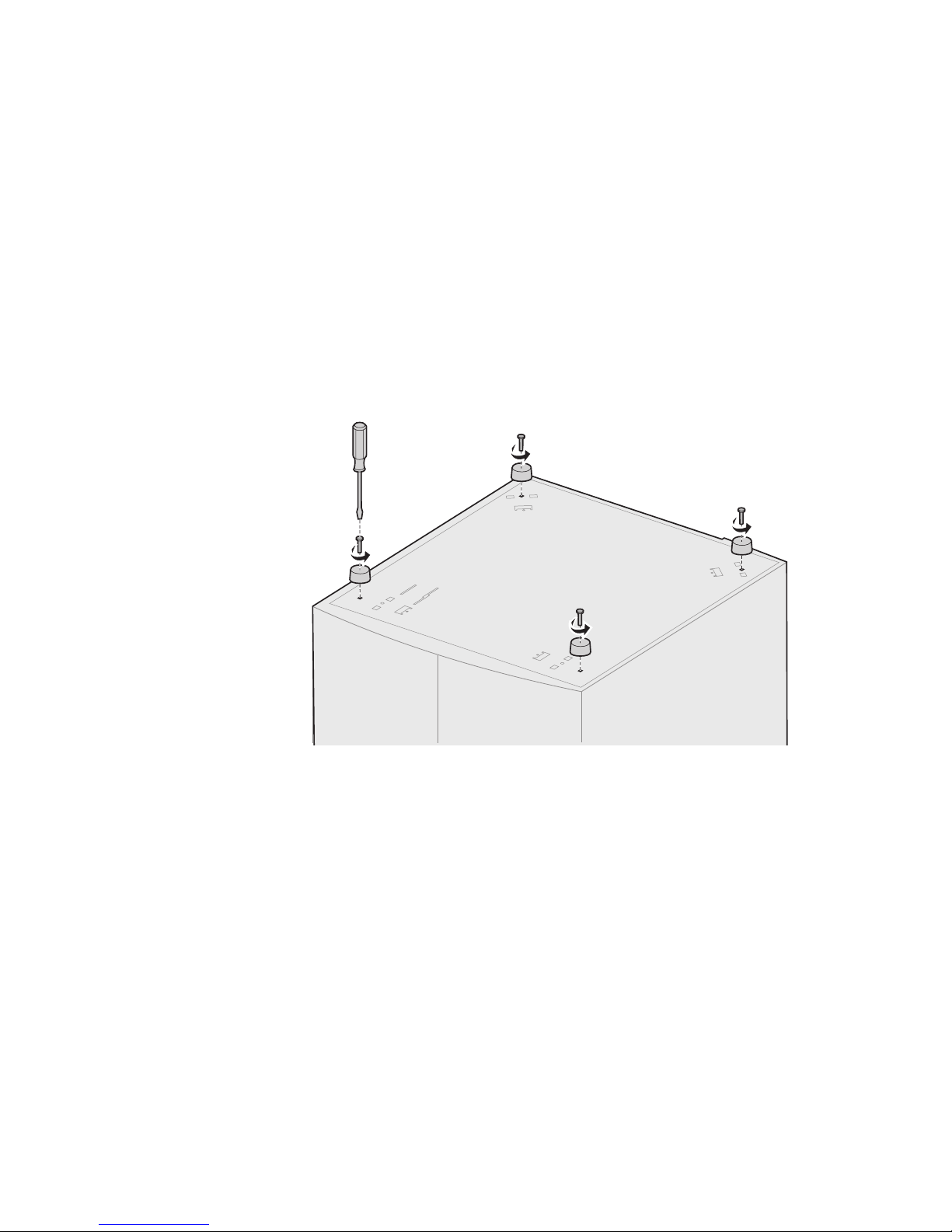

2Remove the screws securing the rubber feet to the drawer. Save the

screws and rubber feet for use in step 5 on page 5.

Note: If you later choose to use the drawer with the printer

stand, you must remove the stabilizer feet and re-

attach the rubber feet.

2000-Sheet Drawer User’s Guide

3Insert the tab on the end of the stabilizer foot into the slot on the bottom of

the drawer. Rotate the stabilizer foot down until it is aligned with the bottom

of the drawer.

4Slide the foot away from the center of the tray until it locks into place.
