Lexmark™ C920

5056-xxx

Lexmark Parts Catalog

The following information is from Lexmark's Service Mnaual.

Lexmark and Lexmark with diamond design are

trademarks of Lexmark International, Inc., registered

in the United States and/or other countries.

The following paragraph does not apply toany country where such provisions are inconsistent withlocal law:

LEXMARK INTERNATIONAL, INC. PROVIDES THIS PUBLICATION “AS IS” WITHOUT WARRANTY OF ANY KIND,

EITHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF

MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. Some states do not allow disclaimer of express or

implied warranties in certain transactions; therefore, this statement may not apply to you.

This publication could include technical inaccuracies or typographical errors. Changes are periodically made to the

information herein; these changes will be incorporated in later editions. Improvements or changes in the products or the

programs described may be made at any time.

Comments may be addressed to Lexmark International, Inc., Department D22A/032-2, 740 West New Circle Road,

Lexington, Kentucky 40550, U.S.A or e-mail at ServiceInfoAndTraining@Lexmark.com. Lexmark may use or distribute any

of the information you supply in any way it believes appropriate without incurring any obligation to you.

Lexmark, Lexmark with diamond design, and MarkNet are trademarks of Lexmark International, Inc., registered in the

United States and/or other countries.

ImageQuick, Optra Forms, and PrintCryption are trademarks of Lexmark International, Inc.

LEXFAX is a service mark of Lexmark International, Inc.

PostScript® is a registered trademark of Adobe Systems Incorporated.

PCL® is a registered trademark of the Hewlett-Packard Company.

Other trademarks are the property of their respective owners.

©

2006 Copyright Lexmark International, Inc.

All rights reserved.

UNITED STATES GOVERNMENT RIGHTS

This software and any accompanying documentation provided under this agreement are commercial computer software and

documentation developed exclusively at private expense.

Parts catalog 7-1

5056-XXX

Parts catalog

How to use this parts catalog

The following legend is used in the parts catalog:

•Asm-index: identifies the assembly and the item in the diagram. For example, 3-1 indicates assembly 3

and the item number 1.

•Part number: identifies the unique number that identifies this FRU.

•Units/mach: refers to the number of units actually used in the machine or product.

•NS: (Not shown) in the Asm-Index column indicates that the part is procurable, but is not pictured in the

illustration.

•PP: (Parts Packet) in the parts description column indicates that the part is contained in a parts packet.

Asm-

Index Part

number Units/

mach Description

7-2 Service Manual

5056-XXX

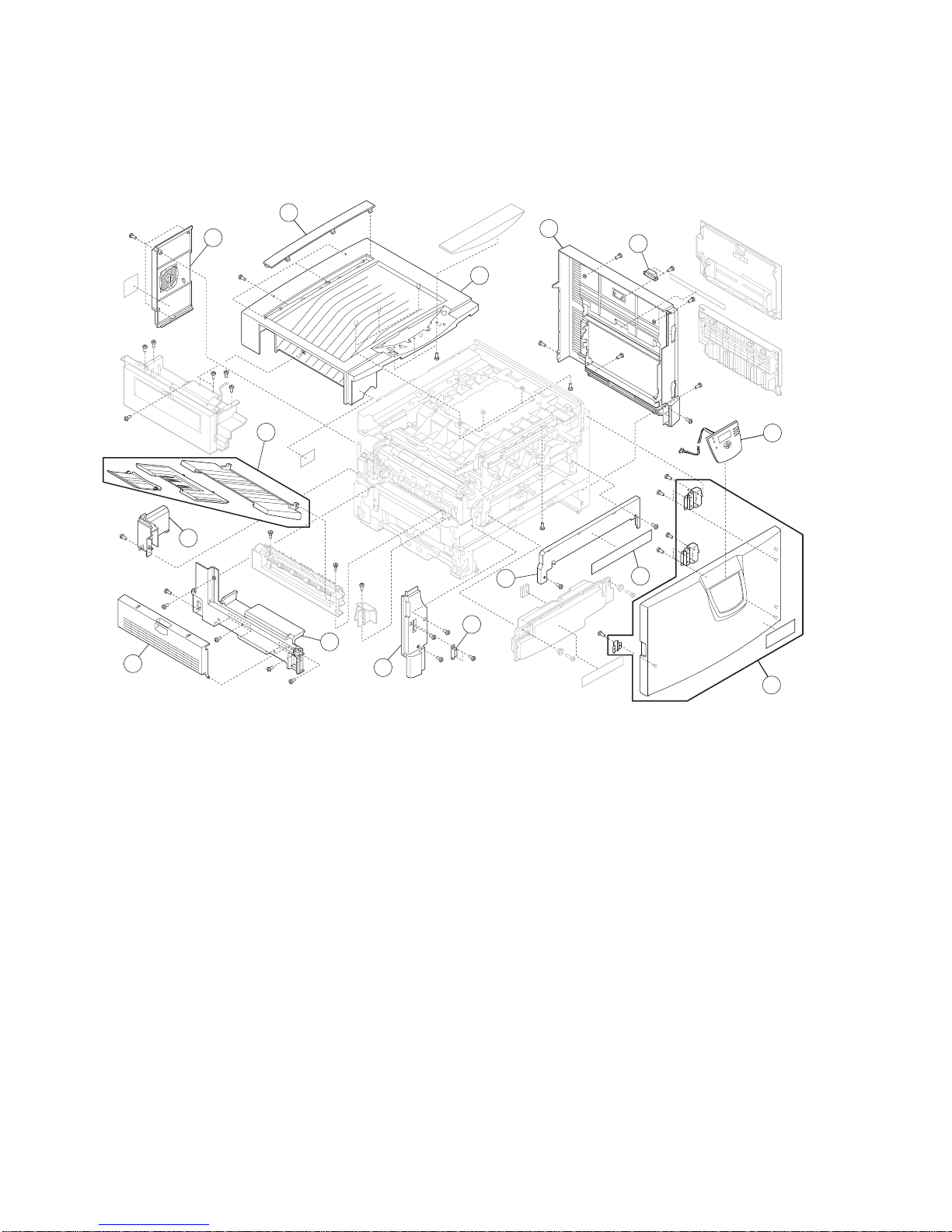

Assembly 1: Covers 1

3

11

7

13

5

9

15

2

10

6

4

12

8

14

1

Parts catalog 7-3

5056-XXX

Assembly 1: Covers 1

Index P/N Units Description

1—1 40X1131 1 Cover, top

1—2 40X1124 1 Cover assembly, right side

1—3 40X1139 1 Magnet, right side latch

1—4 40X1259 1 Operator panel

1—5 40X1123 1 Cover assembly, front

1—6 56P9545 1 Label, operator panel

1—7 40X1132 1 Cover, waste toner bottle

1—8 40X1140 1 Magnet, front cover latch

1—9 40X1129 1 Cover, left front

1—10 40X1126 1 Cover, left side

1—11 40X1127 1 Cover, paper feed

1—12 40X1125 1 Cover, solenoid

1—13 40X1122 1 Tray assembly, exit

1—14 40X1128 1 Cover, rear

1—15 40X1130 1 Cover, adjustment

NS 40X1516 Label, MPT

NS 40X1262 Parts packet

7-4 Service Manual

5056-XXX

Assembly 2: Covers 2

Index P/N Units Description

2 — 1 40X1026 1 Exit assembly, face up

1

Parts catalog 7-5

5056-XXX

Assembly 3: Covers 3

Index P/N Units Description

3 — 1 40X1027 1 Guide assembly, face-down

3 — 2 40X1064 1 Exit roller, face-down

2

1

7-6 Service Manual

5056-XXX

Assembly 4: Covers 4

Index P/N Units Description

4 — 1 40X1242 1 Guide assembly, turn

Parts catalog 7-7

5056-XXX

Assembly 5: Covers 5

Index P/N Units Description

5 — 1 40X1135 1 Feeder assembly, multipurpose

7-8 Service Manual

5056-XXX

Assembly 6: Upper unit

3

11

7

13

18

5

16

9

15

2

10

6

17

4

12

8

14

19

1

20

23

33

28

21

31

26

24

29

22

32

27

25

30

3

3

10

5

6

5

Parts catalog 7-9

5056-XXX

Assembly 6: Upper unit

Index P/N Units Description

6—1 56P9632 1 Shroud, cable

6—2 56P9591 1 Frame, upper

6—3 56P9638 4 Holder, cable

6—4 40X1220 1 Board, printhead controller

6—5 56P9628 2 Pivot, color link

6—6 56P9627 2 Bearing, roller

6—7 56P9624 1 Link, frame

6—8 40X1149 1 Frame, printhead controller

6—9 56P9625 1 Hook, right link

6—10 56P9626 2 Cover, hook

6 —11 40X1118 1 Cable, RFID

6—12 40X1117 1 Assembly, RFID

6—13 40X1145 1 Hook, middle

6—14 40X1147 1 Hook, right

6—15 40X1257 1 Handle, up opening

6—16 40X1143 1 Bracket, front upper

6—17 40X1146 1 Hook, left

6—18 40X1144 1 Rod, interlocking

6—19 56P9630 1 Hook, left link

6—20 40X1142 4 Holder, front hsp

6—21A 40X1133 1 Assembly, LED printhead (K)

6—21B 40X1134 3 Assembly, LED printhead (C)

6—22 56P9611 4 Holder, front printhead

6—23 56P9592 4 Rail, left side

6—24 56P9610 4 Rail, right side

6—25 56P9629 1 Link, frame

6—26 56P9594 4 Cover, eraser

6—27A 40X1028 1 Lamp, M erase

6—27B 40X1029 1 Lamp, C erase

6—27C 40X1030 1 Lamp, Y erase

6—27D 40X1031 1 Lamp, K erase

6—28 56P9593 4 Holder, rear printhead

6—29 56P9609 8 Spring, printhead

6—30 40X1148 1 Bracket, rear upper

6—31 40X1032 1 Fan, upper right

6—32 40X1033 1 Fan, upper left

6—33 56P9621 1 Bracket, fan holder

NS 56P9993 4 Shield, light (used on p/n 56P9594)

NS 40X1263 Parts packet
