Wireless Setup Guide

Edition notice

June 2008

The following paragraph does not apply to any country where such provisions are inconsistent with local law: LEXMARK INTERNATIONAL,

INC., PROVIDES THIS PUBLICATION “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO,

THE IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. Some states do not allow disclaimer of express or

implied warranties in certain transactions; therefore, this statement may not apply to you.

This publication could include technical inaccuracies or typographical errors. Changes are periodically made to the information herein; these

changes will be incorporated in later editions. Improvements or changes in the products or the programs described may be made at any time.

UNITED STATES GOVERNMENT RIGHTS

This software and any accompanying documentation provided under this agreement are commercial computer software and documentation

developed exclusively at private expense.

Contents

Edition notice......................................................................................2

Setting up the printer........................................................................5

Follow these steps to set up your printer......................................................................................................................5

Setting up the printer hardware.......................................................................................................................................6

Choosing a connection method....................................................13

Preparing to connect wirelessly...................................................14

Information you will need to set up the printer on a wireless network..........................................................14

Adding the printer to a network using MAC address filtering............................................................................14

Connecting to a wireless network using Windows...................16

Installing the printer on a wireless network (Windows)........................................................................................16

Connecting to a wireless network using Macintosh.................18

Installing the printer on a wireless network (Macintosh)......................................................................................18

Troubleshooting wireless setup....................................................21

Connecting using a USB cable........................................................32

USB setup and connection...............................................................................................................................................32

Connecting using an Ethernet network......................................33

Wired setup and connection...........................................................................................................................................33

Networking glossary.......................................................................34

Index...................................................................................................36

Contents

Setting up the printer

Follow these steps to set up your printer

Note: Do not connect cables until instructed to do so.

1Set up the printer hardware.

2Decide how you want to connect the printer.

This guide includes three methods:

•Wireless

•Wired (Ethernet)

•Local (USB)

Setting up the printer

Setting up the printer hardware

21kg

(46.2lbs.)

Setup Guide

www.lexmark.com

September2008

21 kg

(46.2 lbs.)

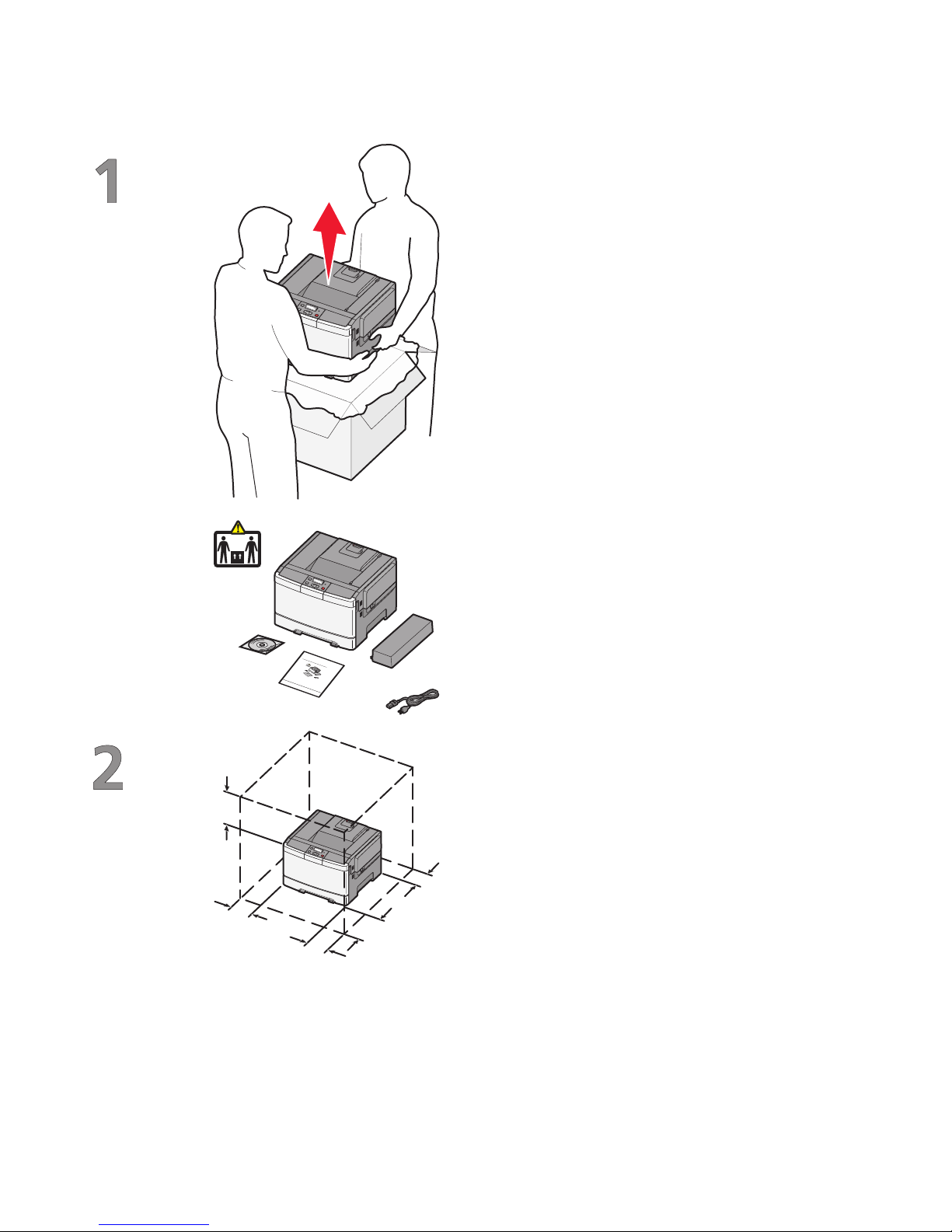

Unpack the printer, cables, and CD.

When the printer is set up, allow clearance around it

as shown.

1304.8 mm (12.0 in.)

2508 mm (20.0 in.)

3304.8 mm (12.0 in.)

4304.8 mm (12.0 in.)

5508 mm (20.0 in.)

Setting up the printer

Grasp the front door at the side handholds, and then

pull it toward you to open it.

CAUTION—HOT SURFACE: The inside of the

printer might be hot. To reduce the risk of injury from

a hot component, allow the surface to cool before

touching.

CMK

YCMK

Open the top door.

CMK

YCMK

Remove the right side cover.

Setting up the printer

CMK

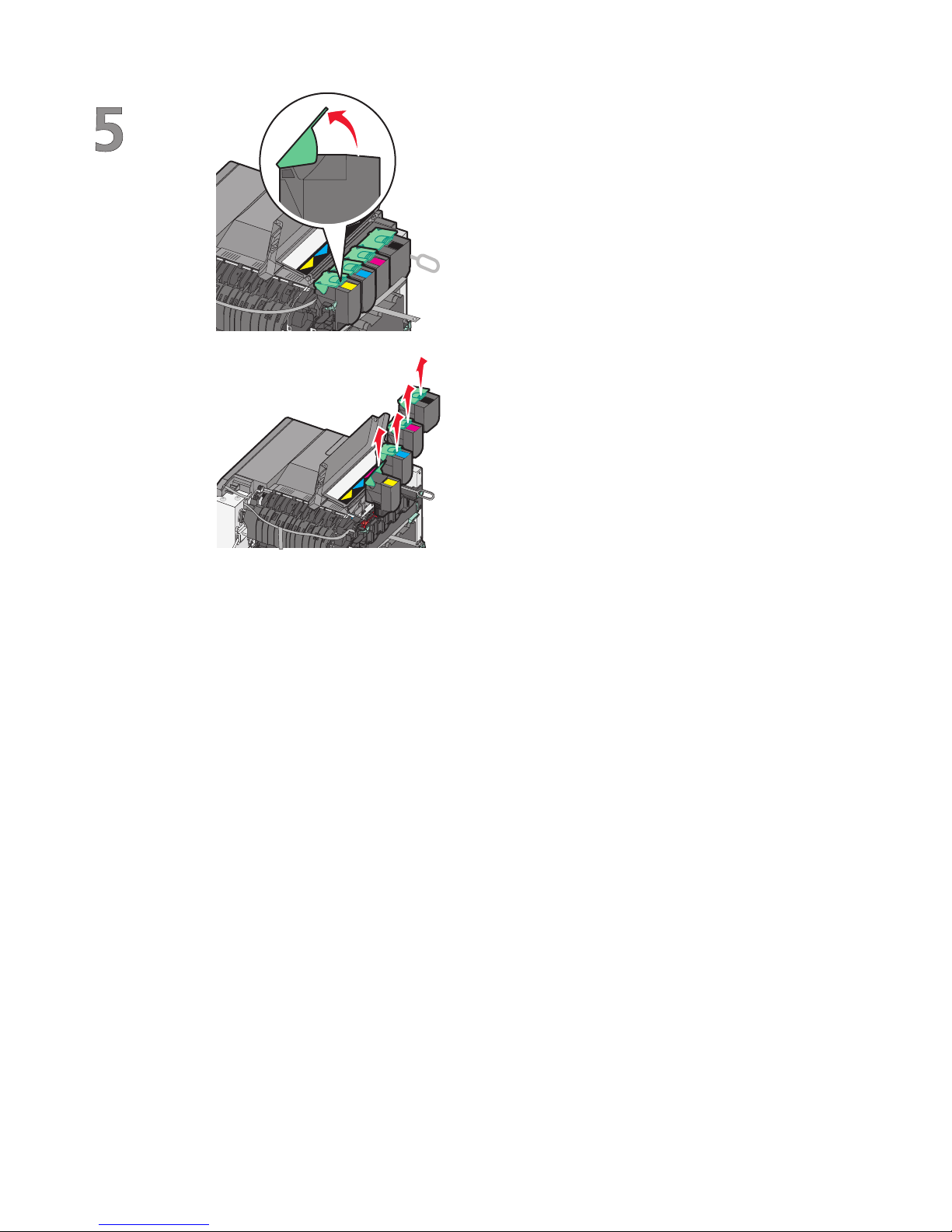

Remove the toner cartridges by lifting the handles,

and then gently pulling away from the imaging kit.

Setting up the printer

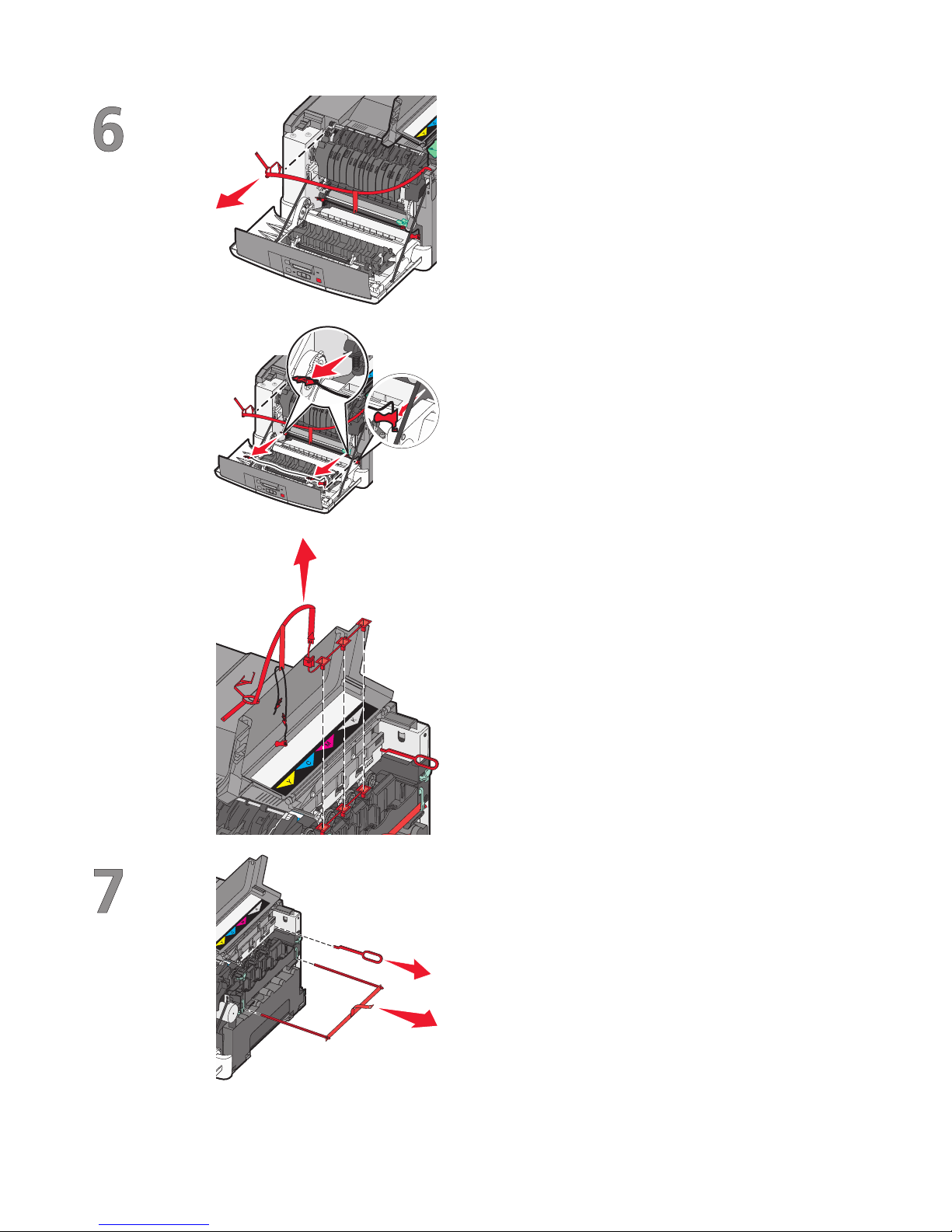

Remove the red packing material.

Remove the packing rods and clips.

Setting up the printer

CMK

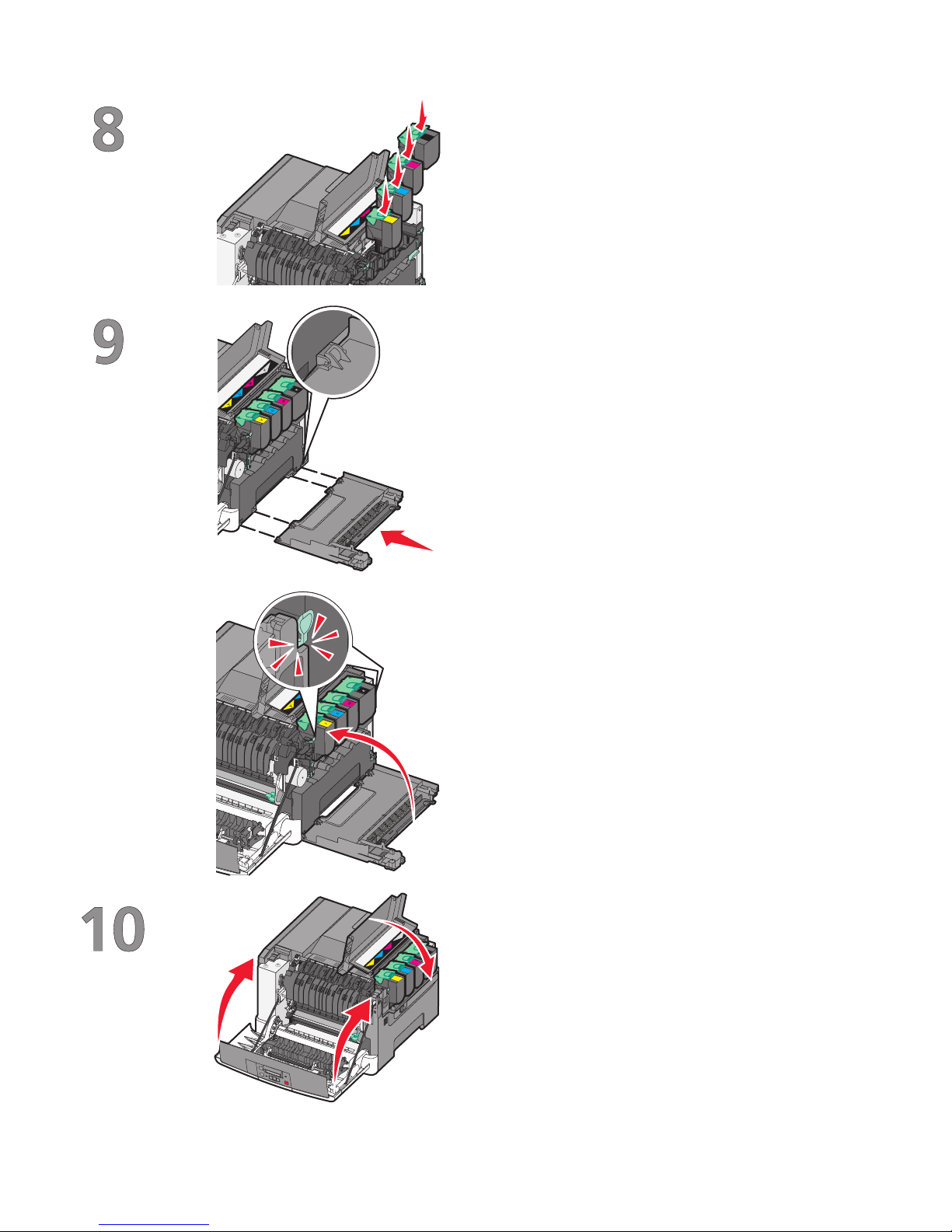

Insert the toner cartridge into the imaging kit by

aligning the rollers on the toner cartridge with the

tracks. Push the toner cartridge until it clicks into

place.

Replace the right side cover.

CMK

Close the front and top doors.

Setting up the printer
