Lexmark Optra Optra E Manuale

OptraTM E

4026-0XX

Extracted From Service Manual

Third Edition (April 1997)

The following paragraph does not apply to the United Kingdom or any country

where such provisions are inconsistent with local law: LEXMARK

INTERNATIONAL, INC. PROVIDES THIS PUBLICATION “AS IS” WITHOUT

WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING, BUT

NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY OR

FITNESS FOR A PARTICULAR PURPOSE. Some states do not allow disclaimer

of express or implied warranties in certain transactions, therefore, this statement

may not apply to you.

This publication could include technical inaccuracies or typographical errors.

Changes are periodically made to the information herein; these changes will be

incorporated in later editions of the publication. Improvements or changes in the

products or the programs described in this publication may be made at any time.

Publications are not stocked at the address given below; requests for publications

should be made to your point of purchase.

Comments may be addressed to Lexmark International, Inc., D22A/035-3,

740 New Circle Road NW, Lexington, Kentucky 40550, U.S.A. Lexmark may use

or distribute any of the information you supply in any way it believes appropriate

without incurring any obligation to you.

Lexmark and Optra are trademarks of Lexmark International, Inc., registered in the

United States and/or other countries.

Other trademarks are the property of their respective owners.

 Copyright Lexmark International, Inc. 1995, 1997

UNITED STATES GOVERNMENT RESTRICTED RIGHTS

This software and documentation are provided with RESTRICTED RIGHTS. Use,

duplication or disclosure by the Government is subject to restrictions as set forth in

subparagraph (c)(1)(ii) of the Rights in Technical Data and Computer Software

clause at DFARS 252.227-7013 and in applicable FAR provisions: Lexmark

International, Inc., Lexington, KY 40550.

4026-0XX

Parts Catalog 6-1

6. Parts Catalog

How To Use This Parts Catalog

•SIMILAR ASSEMBLIES: If two assemblies contain a majority of

identical parts, they are broken down on the same list. Common

parts are shown by one index number. Parts peculiar to one or

the other of the assemblies are listed separately and identified

by description.

•AR: (As Required) in the Units column indicates that the quan-

tity is not the same for all machines.

•NS: (Not Shown) in the Asm-Index column indicates that the

part is procurable but is not pictured in the illustration.

•PP: (Parts Packet) in the parts description column indicates the

part is contained in a parts packet.

•INDENTURE: The indenture is marked by a series of dots

located before the parts description. The indenture indicates the

relationship of a part to the next higher assembly. For example:

INDENTURE RELATIONSHIP OF PARTS

(No dot) MAIN ASSEMBLY

(One dot) o Detail parts of a main assembly

(One dot) o Subassembly of the main assembly

(Two dot) o o Detail part of a one-dot subassembly

(Two dot) o o Subassembly of a one-dot subassembly

4026-0XX

6-2

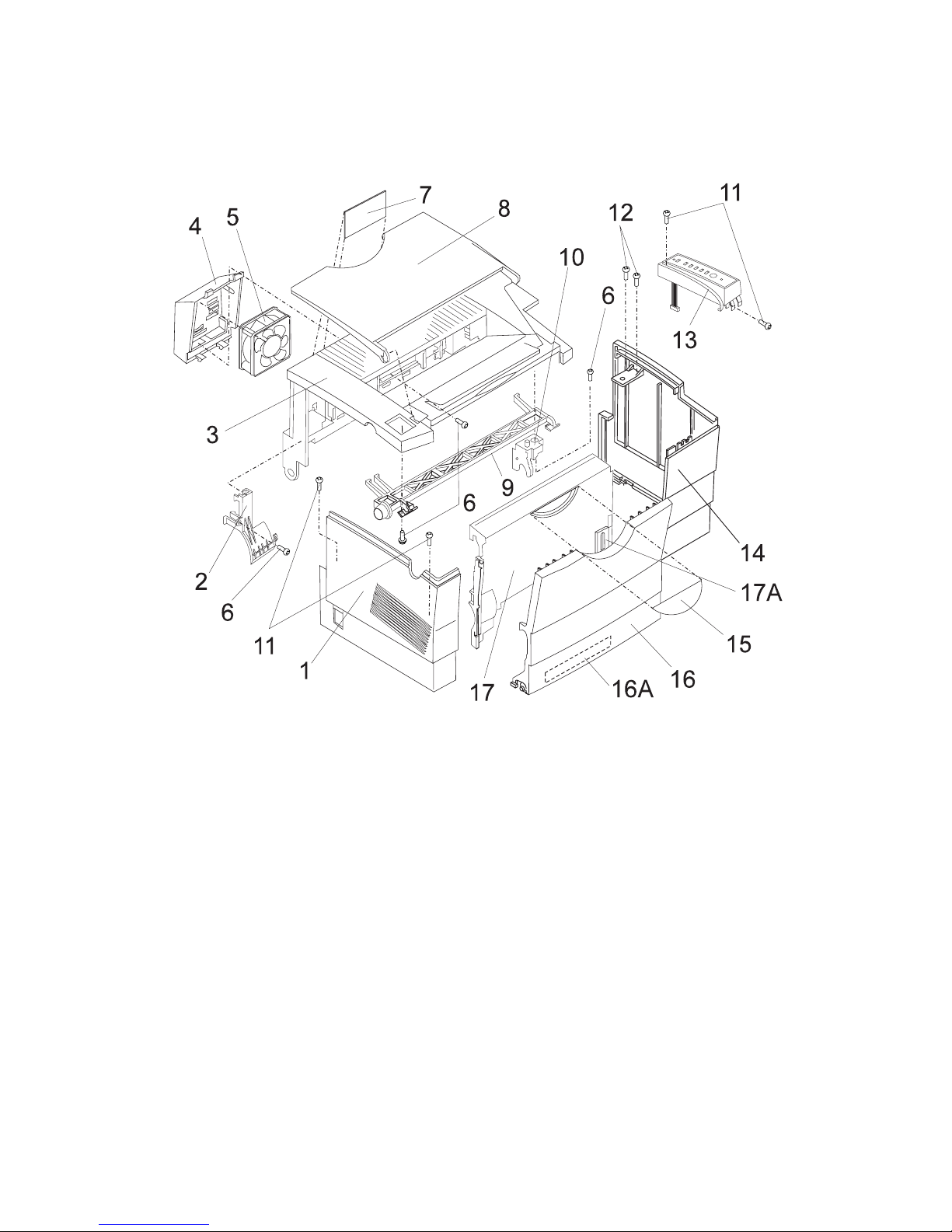

Assembly 1: Covers

Parts Catalog 6-3

Asm-

Index Part

Number Units Description

1-1 69G8341 1 Left Side Cover

1-2 69G9969 1 Cover, Cable 06A/06B/06D/06J/070

1-2 11A7376 1 Cover, Cable 06C/06F/071

1-3 69G8301 1 Top Cover 06A/06B/06D/06J/070

1-3 11A7377 1 Top Cover 06C/06F/071

1-4 69G8306 1 Fan Cover 06A/06B/06D/06J/070

1-4 11A7378 1 Fan Cover 06C/06F/071

1-5 69G8305 1 Fan 06A/06B/06D/06J/070

1-5 11A7379 1 Fan 06C/06F/071

1-6 8 Screw, Type 3704 PP 69G9974

1-7 69G9990 1 Label, S/N Blank

1-8 69G8340 1 Exit Paper Tray

1-9 69G8303 1 Cover Release Assembly

1-10 69G8302 1 Printhead Interlock Actuator

1-11 4 Screw, Type 3504 PP 69G9974

1-12 2 Screw, Type 4011 PP 69G9974

1-13 69G8396 1 Operator Panel Assembly inc. English Overlay

1-13 69G9981 1 Operator Panel Assembly inc. Overlay W.T. Kit

1-13 11A7458 1 Operator Panel Assembly inc. Japanese

Overlay

1-14 69G8342 1 Right Side Cover with shield

1-15 69G9690 1 Logo, Optra E 06A/06B/06J

1-15 11A7443 1 Logo, Optra Ep 06D

1-15 69G9690 1 Logo, Optra Es 06C/06F/071

1-15 11A7759 1 Logo, Optra E+ 070

1-16 69G8344 1 Input Paper Tray

1-16A 11A7463 1 Label, Lever Overlay Sheet U.S.

1-16A 11A7464 1 Label, Lever Overlay Sheet W.T.

1-17 69G8343 1 Front Cover

1-17A 69G8298 1 Input Paper Tray Extended Guide w/screw

NS 11A7758 1 Input Tray Legs, Left and Right Side

NS 11A7757 1 Input Tray Cover Assembly

NS 11A7761 1 Manual Feed Tray Right Paper Guide

4026-0XX

6-4

Assembly 1: Covers (continued)

4026-0XX

Parts Catalog 6-5

Asm-

Index Part

Number Units Description

1-18 69G8337 1 Gear, 15T

1-19 69G8338 2 Bushing

1-20 11A7404 1 Terminal, PWB-R to Fuser Frame

1-21 69G9998 1 Terminal, Paper Feed Exit Shaft to Board

PWB-R

1-21A 11A7403 1 Terminal, Top Cover Ground to PWB-T

1-22 69G9999 1 Board, PWB-R

1-23 69G9971 2 Exit Paper Feed Roller/Clip Assembly

1-24 69G8336 1 Exit Paper Feed Roller/Shaft Assembly 06A/

06B/06D/06J/070

1-24 11A7465 1 Exit Paper Feed Roller/Shaft Assembly 06C/

06F/071

1-25 69G8304 1 Cover, Wiring Harness Cable

4026-0XX

6-6

Assembly 2: Frame

4026-0XX

Parts Catalog 6-7

Asm-

Index Part

Number Units Description

2-1 69G9962 1 Motor, Main Drive 06A/06B/06D/06J/070

2-1 11A7381 1 Motor, Main Drive 06C/06F/071

2-2 69G9691 1 Left Side Plate Motor Bracket 06A/06B/06D/

06J/070

2-2 11A7382 1 Left Side Plate Motor Bracket 06C/06F/071

2-3 2 Screw, Type 1308 PP 69G9974

2-4 1 Screw, Type 3501 PP 69G9974

2-5 3 Screw, Type 3704 PP 69G9974

2-6 2 Screw, Type 3504 PP 69G9974

2-7 69G8345 1 Left Side Plate

2-8 69G8346 1 Guide, photoconductor unit

2-9 69G8347 1 Guide, Toner Cartridge/Photoconductor Unit

2-9A 11A7420 1 Bracket, Printhead Mounting

4026-0XX

6-8

Assembly 2: Frame (continued)
