4023-001

U.S.A. P/N: 12G3978

Parts Catalog 7-1

4023-001

7. Parts Catalog

How To Use This Parts Catalog

•SIMILAR ASSEMBLIES: If two assemblies contain a majority of

identical parts, they are broken down on the same list. Common

parts are shown by one index number. Parts peculiar to one or

the other of the assemblies are listed separately and identified

by description.

•AR: (As Required) in the Units column indicates that the

quantity is not the same for all machines.

•NP: (Non-Procurable) in the Units column indicates that the part

is non-procurable and that the individual parts or the next higher

assembly should be ordered.

•NR: (Not Recommended) in the Units column indicates that the

part is procurable but not recommended for field replacement,

and that the next higher assembly should be ordered.

•R: (Restricted) in the Units column indicates that the part has a

restricted availability.

•NS: (Not Shown) in the Ref column indicates that the part is

procurable but is not pictured in the illustration.

•PP: (Parts Packet) in the Description column indicates that the

part is contained in a parts packet.

•A part reference within a circle indicates an assembly or a bill-

of-material. An assembly is complete. A bill-of-material contains

unassembled parts.

•NA: Not available/not referenced.

Parts Catalog

7-2

4023-001

Assembly 1: Printer Housing

Parts Catalog 7-3

4023-001

Assembly 1: Printer Housing

Ref Part

Number Units Description

1-1 12G2001 1 Cover

-2 12G2002 1 Rear Cover

-3 12G2003 1 Cover

-4 12G2004 1 Cover

-5 12G2005 1 Cover

-6 12G2006 2 Seal

-7 12G2007 1 Top Cover

-8 12G2008 1 Right Cover

-9 12G2009 1 Handle

-10 12G2010 1 Front Cover

-11 12G2011 1 Label

-12 12G2012 1 Cover

-13 12G2013 1 Shield Plate

-14 12G2014 1 Harness

-15 12G2015 1 Harness

-16 12G2016 1 Seal

-17 12G2017 1 Cover

-18 12G2018 1 Cover

-19 12G2019 1 Tray

-20 12G2020 1 Pressure Spring

-21 12G2021 1 Cover

-22 12G2022 1 Cover

-23 12G3520 1 Operator Control Panel

-C 1 Parts Packet 3, PN 12G3402

-D 1 Parts Packet 4, PN 12G3403

-E 1 Parts Packet 5, PN 12G3404

-G 1 Parts Packet 7, PN 12G3406

Parts Catalog

7-4

4023-001

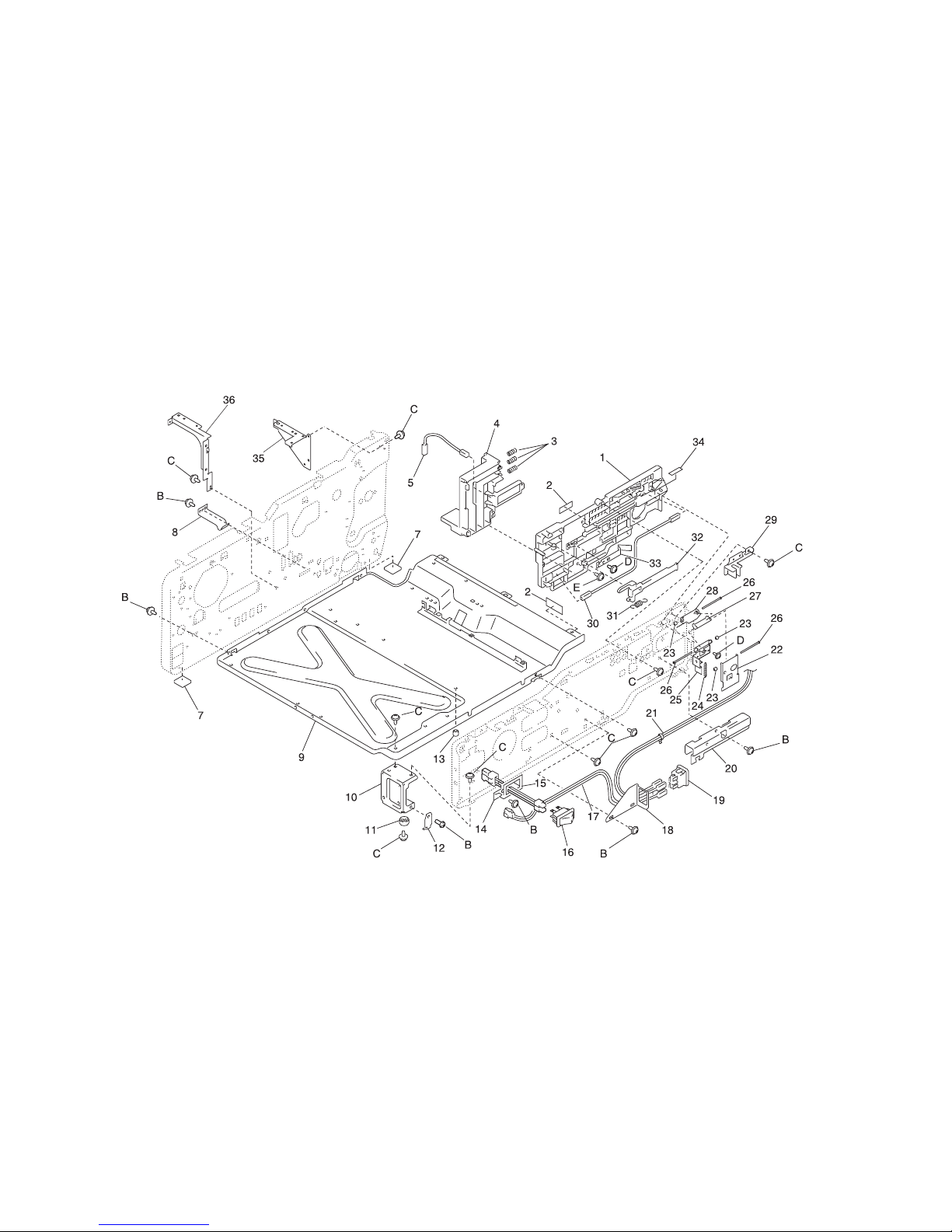

Assembly 2: Printer Frames (A)

Parts Catalog 7-5

4023-001

Assembly 2: Printer Frames (A)

Ref Part

Number Units Description

2-1 12G2031 1 Holder Asm

-2 12G2032 2 Label High Voltage

-3 12G2033 3 Pressure Spring

-4 12G2034 1 Holder Asm

-5 12G2035 1 Harness

-7 12G2037 2 Rubber Foot

-8 12G2038 1 Plate Spring

-9 12G2039 1 Base Frame

-10 12G2040 1 Frame

-11 12G2041 1 Rubber Foot

-12 12G2042 4 Holder

-13 12G2043 1 Collar

-14 12G2044 1 Bracket

-15 12G2045 1 Harness

-16 12G2046 1 Switch, Power, S1 Main SW

-17 12G2047 1 Harness

-18 12G2048 1 Bracket

-19 12G2049 1 Switch, SW# Interlock S3 Right Side Door

-20 12G2050 1 Guide Plate

-21 12G2051 1 Harness

-22 12G2052 1 Lever

-23 12G2053 3 Retaining Ring

-24 12G2054 1 Tension Spring

-25 12G2055 1 Bracket

-26 12G2056 3 Shaft

-27 12G2057 1 Joint

-28 12G2058 1 Lever

-29 12G2059 1 Guide

-30 12G2060 1 Harness

-31 12G2061 1 Tension Spring

-32 12G2062 1 Lever

-33 12G2063 1 Plate Spring

Parts Catalog

7-6

4023-001

Assembly 2 (cont.): Printer Frames (A)

Parts Catalog 7-7

4023-001

Assembly 2 (cont.): Printer Frames (A)

Ref Part

Number Units Description

2-34 12G2064 1 Label

-35 12G2065 1 Bracket

-36 12G2066 1 Bracket

-B 1 Parts Packet 2, PN 12G3401

-C 1 Parts Packet 3, PN 12G3402

-D 1 Parts Packet 4, PN 12G3403

-E 1 Parts Packet 5, PN 12G3404

Parts Catalog

7-8

4023-001

Assembly 3: Printer Frames (B)
