Lexmark S300 Manuale utente

1Unpack printer

Notes:

•Place the printer near the computer

during setup. If you're setting up on

a wireless network, then you may

move the printer after setup is

complete.

•Do not attach the USB cable until

prompted to do so.

•The packaged printhead is shipped

inside the printer.

•Contents may vary by model and

region.

2Remove tape and packing material from all areas of the

printer

Lexmark S300 Series Installation

3Raise paper support

4Raise printer control panel

Lexmark S300 Series Installation

5Open printer and remove packaged printhead from

printer

6If necessary, insert correct (1) language overlay and install

(2) protective cover

Lexmark S300 Series Installation

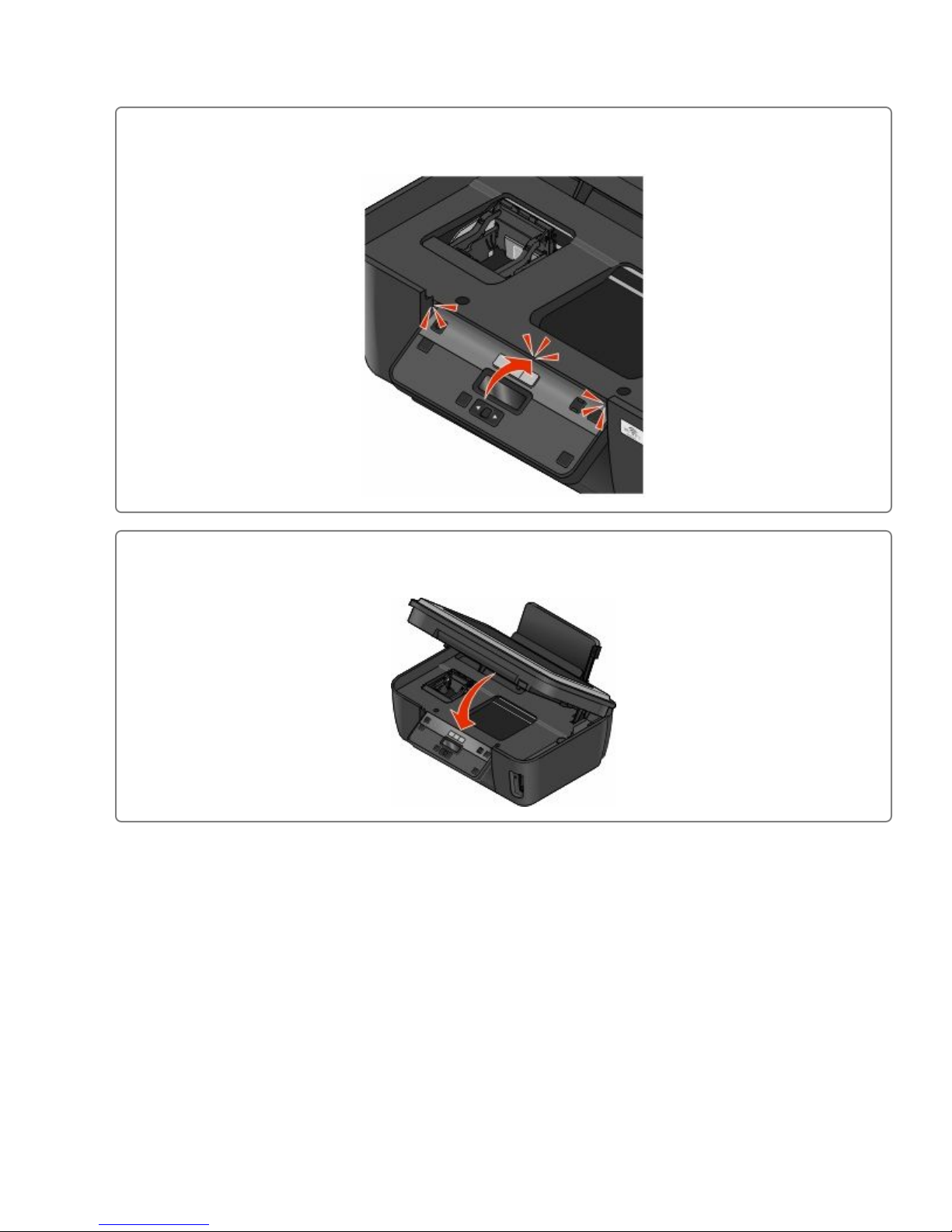

7Lock the protective cover in place

8Close printer

Lexmark S300 Series Installation

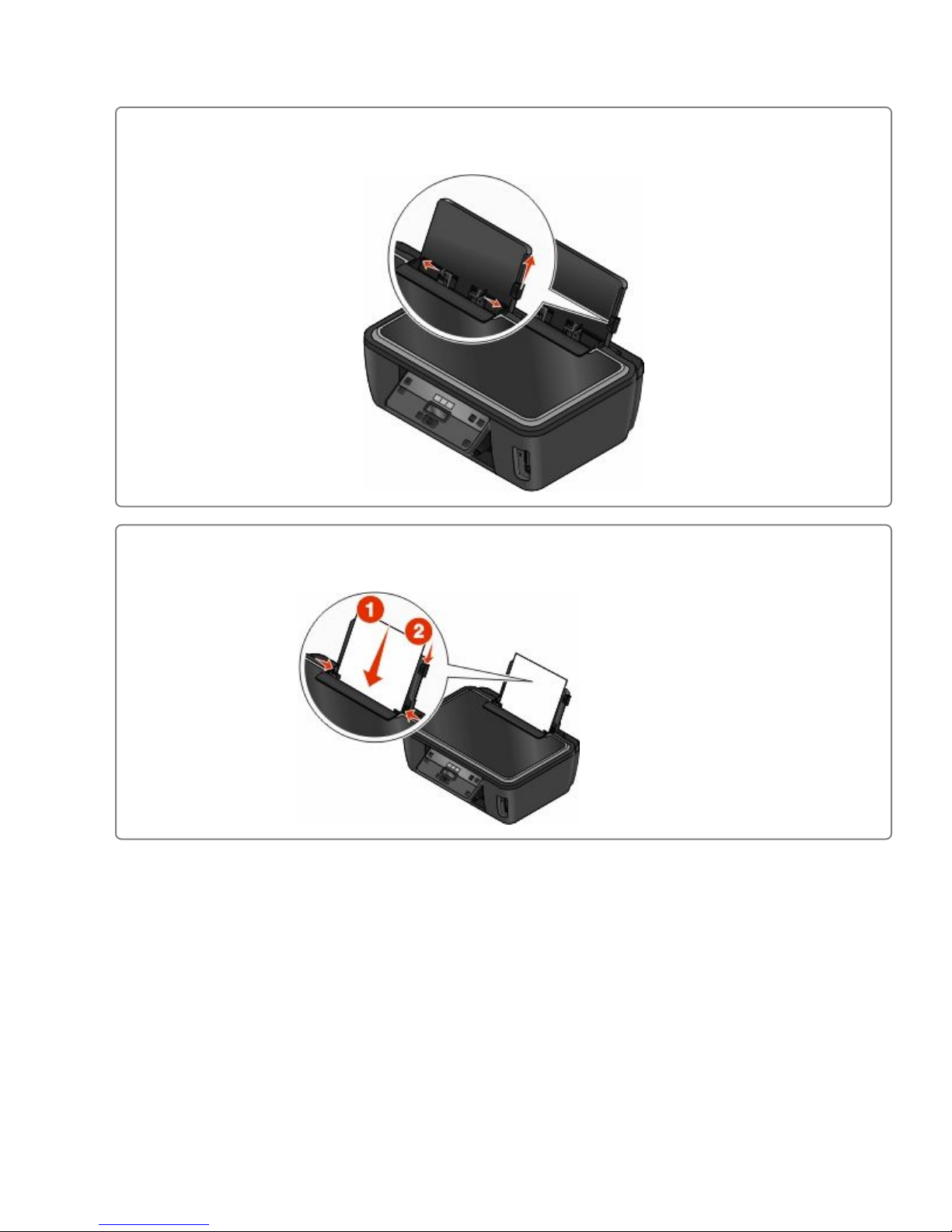

9Use lever to extend paper guides

10 Load paper

Note: Use the lever to adjust the paper

guides.

Lexmark S300 Series Installation

11 Extend paper exit tray

12 Connect power cord only

Note: DO NOT attach the USB cable yet.

CAUTION—POTENTIALINJURY: Read the safety information included with this product before connecting

power or making any cabling connections.

13 Make sure printer is on

Lexmark S300 Series Installation

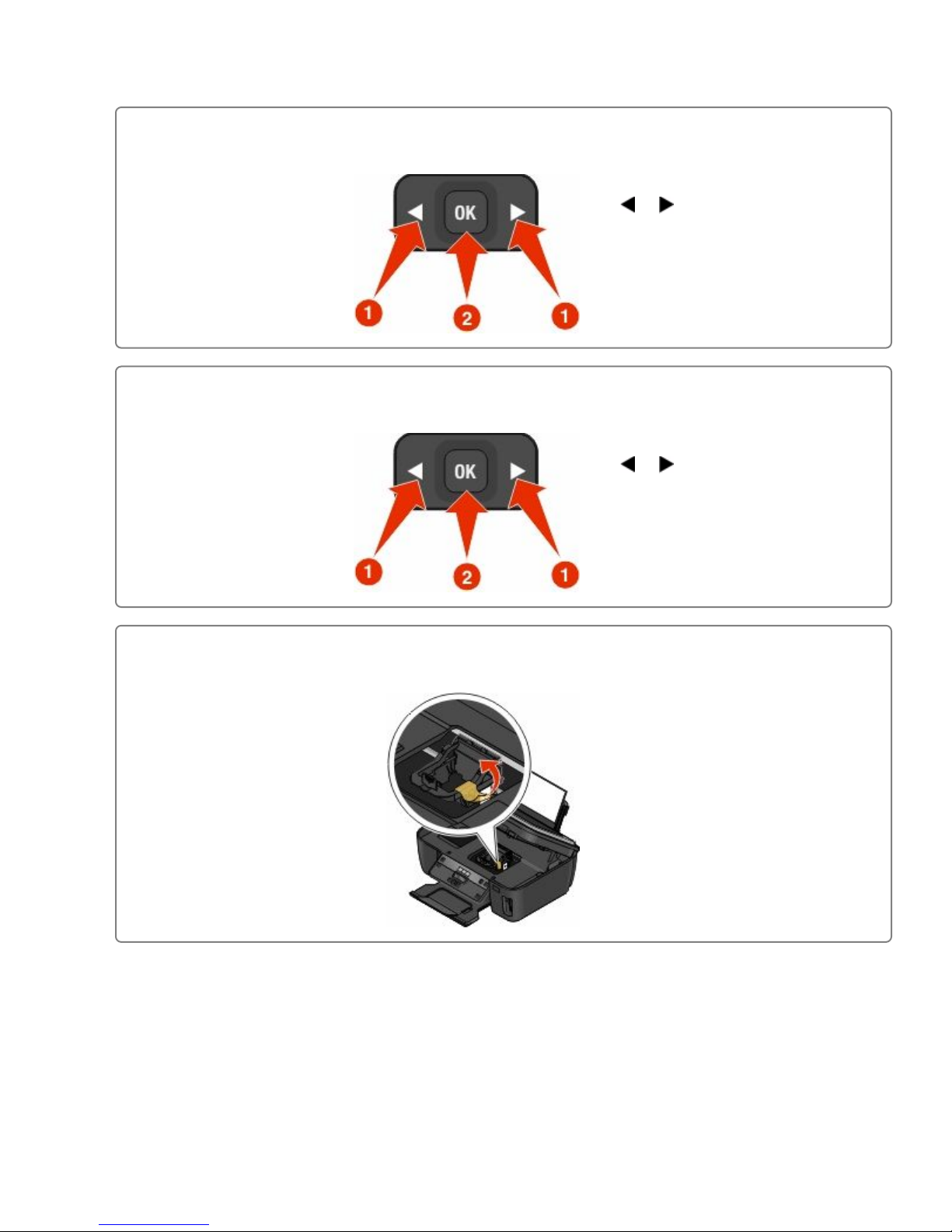

14 Set language

1Using the printer control panel, press

or until the language you want

appears on the display.

2Press OK to save.

15 Set country/region

1Using the printer control panel, press

or until the country or region

you want appears on the display.

2Press OK to save.

16 Open printer and remove any tape from latch

Note: The carriage moves to the

printhead installation position as shown.

Lexmark S300 Series Installation

17 Squeeze and lift latch

18 Remove printhead from disposable container

19 Insert printhead and close latch until it clicks

Lexmark S300 Series Installation

20 Close printer

21 Open printer

Note: The printhead moves to the

cartridge installation position as shown.

Lexmark S300 Series Installation

22 First, insert each color ink cartridge. Then, use two hands

to install black cartridge.

23 Close printer

24 Press OK to print alignment page

Notes:

•Do not remove the page until

printing stops. The alignment page

may take a while to print and will

move in and out during the process.

•Streaks on the alignment page are

normal and not an indication of a

problem.

•The alignment page that prints may

differ from the one shown.

•Recycle the alignment page.

Lexmark S300 Series Installation
