LICENSE

Each model has different licenses. Visit www.lg.com for more information on the license.

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo

are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

The following content is only applied to the monitor which is sold in Europe market and which needs to meet the ErP

Directive:

* This monitor is set to be turned off automatically in 4 hours after you turned on display if there is no adjustment to

display.

* To make this setting be disabled, change the option to ‘Off’ in OSD menu of “Automatic Standby”.

ENG

ENGLISH

ASSEMBLING AND PREPARING

Product Components

Please check whether all the components are included in the box before using the product. If there are missing com-

ponents, contact the retail store where you purchased the product. Note that the product and components may look

different from those shown here.

yAlways use genuine components to ensure safety and product performance.

yThe product warranty will not cover damage or injury caused by the use of counterfeit components.

yIt is recommend that use the supplied components.

yIf you use generic cables not certified by LG, the screen may not display or there may be image noises.

yNote that the components may look different from those shown here.

yWithout prior notice, all information and specifications in this manual are subject to change to improve the

performance of the product.

yTo purchase optional accessories, visit an electronics store or online shopping site or contact the retail store

where you purchased the product.

CAUTION

NOTE

CD / Card

DisplayPort Cable

Stand Base Stand Body

HDMI Cable

( This cable is not included

in all countries. )

( This cable is not included

in all countries. )

Power Cord

Cable Holder 2 Screws

Screw Cover

ENG

ENGLISH

ASSEMBLING AND PREPARING

Supported Drivers and Software

You can download and install the latest version from the LGE website (www.lg.com).

Drivers and Software Installation Priority 24UD58,27UD58

Monitor Driver Recommended O

OnScreen Control Recommended O

Dual Controller Recommended O

ENG

ENGLISH

ASSEMBLING AND PREPARING

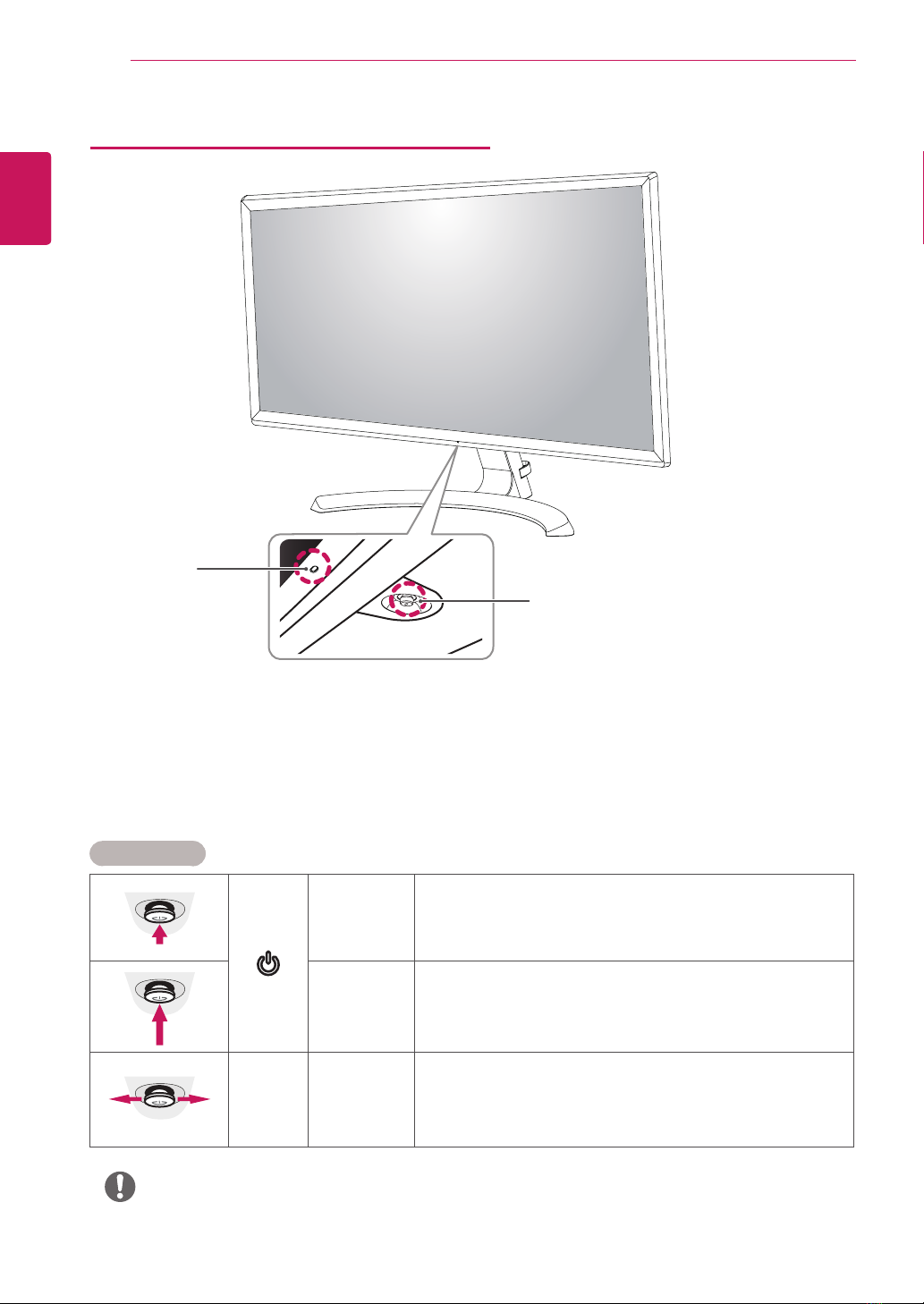

Component and Button Description

Power LED

yOn: power is on

yOff: power is off Joystick Button

How to Use the Joystick Button

You can easily control the functions of the monitor by pressing the joystick button or moving it left/right with your

finger.

Basic Functions

Power on Press the joystick button once with your finger to turn on the

monitor.

Power off Press and hold the joystick button once with your finger to turn off the

monitor.

◄/►Volume

Control You can control the volume by moving the joystick button left/right.

yThe joystick button is located at the bottom of the monitor.

NOTE

ENG

ENGLISH

ASSEMBLING AND PREPARING

Input Connector

ENG

ENGLISH

ASSEMBLING AND PREPARING

Moving and Lifting the Monitor

When moving or lifting the monitor, follow these in-

structions to prevent the monitor from being scratched

or damaged and to ensure safe transportation regard-

less of its shape or size.

yAs far as possible, avoid touching the monitor

screen. This may result in damage to the screen or

some of the pixels used to create images.

yIt is advisable to place the monitor in the original

box or packing material before attempting to

move it.

yBefore moving or lifting the monitor, disconnect

the power cord and all cables.

yHold the top and bottom of the monitor frame

firmly. Do not hold the screen itself.

yWhen holding the monitor, the screen should face

away from you to prevent it being scratched.

yWhen moving the monitor, avoid any strong shock

or vibrations to the product.

yWhen moving the monitor, keep it upright, never

turn the monitor on its side or tilt it sideways.

CAUTION

yIf you use the monitor panel without the stand

base, its joystick button may cause the monitor to

become unstable and fall, resulting in damage to

the monitor or human injury. In addition, this may

cause the joystick button to malfunction.

ENG

ENGLISH

ASSEMBLING AND PREPARING

Installing the Monitor

Assembling the stand base

yTo protect the screen from scratches, cover the

surface with a soft cloth.

CAUTION

1Place the screen face down.

2Check the direction of the stand body (front, back)

and then mount the stand body onto the stand

hinge.

Use a tool to attach the stand body as shown in the

figure.

Stand Body

Stand Base

Screw Cover

Attach the Stand Base to Stand Body.

Tighten the screw to the right.

4Attach the screw cover.

Applying excessive force when tightening the

screws may cause damage to the monitor. Dam-

age caused in this way will not be covered by the

product warranty.

CAUTION

It may hurt your foot off the stand, so be careful.

CAUTION

ENG

ENGLISH

ASSEMBLING AND PREPARING

Detaching the Stand Base

Screw Cover

Stand Body

Stand Base

yTo protect the screen from scratches, cover the

surface with a soft cloth.

CAUTION

Turn the screw to the left.

Pull out the Stand Base.

Place the screen face down

As shown in the illustration, pull Screw Cover out to

separate it from the set.

4Remove the two screws on the back of stand body.

As shown in the illustration, disconnect the stand

body from the stand hinge.

yIllustrations in this document represent typical

procedures, so they may look different from the

actual product.

yApplying excessive force when tightening screws

may cause damage to the monitor. Damage

caused in this way will not be covered by the

product warranty.

yBe careful not to hurt your hand on the edges of

the screw covers.

yDo not carry the monitor upside down by just

holding the base. This may cause the monitor

to fall off the stand and could result in personal

injury.

yWhen lifting or moving the monitor, do not touch

the monitor screen. The force applied to the moni-

tor screen may cause damage to it.

CAUTION

It may hurt your foot off the stand, so be careful.

CAUTION
