Owner's Manual

IPS LED MONITOR

(LED LCD MONITOR)

29EA93

29EB93

Please read the safety information carefully before using the product.

IPS LED Monitor (LED LCD Monitor) Model List

ENGLISH

ENG

ENGLISH

Contents

3LICENSE

4ASSEMBLING AND

PREPARING

4Product Components

5Component and Button Description

7Moving and Lifting the Monitor

7Installing the Monitor

7- Assembling the stand base

9- Detaching the stand base

11 - Installing onto a table

12 - Adjusting the stand height

13 - Adjusting the angle

14 - Tidying cables

15 - Using the Kensington lock

15 - Installing the wall mount plate

16 - Installing to a wall

17 USING THE MONITOR

17 Connecting to a PC

17 - DVI connection

18 - Display port connection

19 - HDMI connection

20 Connecting to AV Devices

20 - HDMI connection

21 Connecting to External Devices

21 - Smartphone (MHL) connection

22 - USB cable-PC connection

23 - Headphone port connection

24 INSTALLING TUSB3410

DRIVER

25 INSTALLING TRUE COLOR

FINDER

27 INSTALLING SCREEN SPLIT

29 CUSTOMIZING SETTINGS

29 Activating the Main Menu

30 Customizing settings

30 - Menu Settings

31 - Ratio Settings

32 - Func. Settings

33 - PIP settings

34 - Picture

35 - Color

36 - Settings

37 TROUBLESHOOTING

39 SPECIFICATIONS

40 Factory support mode

(Preset Mode, DVI-D/HDMI/PC Display

Port)

40 HDMI/MHL Timing (Video)

40 Power Indicator

41 PROPER POSTURE

41 Proper Posture for Using the Monitor

ENG

ENGLISH

LICENSE

Each model has different licenses. Visit www.lg.com for more information on the license.

The terms HDMI and HDMI High-Definition Multimedia Interface, and the

HDMI logo are trademarks or registered trademarks of HDMI Licensing LLC

in the United States and other countries.

VESA, VESA logo, Display Port Compliance Logo and Display Port

Compliance Logo for dual-mode source are all registered trademarks of the

Video Electronics Standards Association.

ENG

ENGLISH

ASSEMBLING AND PREPARING

Product Components

Please check whether all the components are included in the box before using the product. If there are

missing components, contact the retail store where you purchased the product. Note that the product and

components may look different from those shown here.

yAlways use genuine components to ensure safety and product performance.

yThe product warranty will not cover damage or injury caused by the use of counterfeit components.

yNote that the components may look different from those shown here.

yWithout prior notice, all information and specifications in this manual are subject to change to im-

prove the performance of the product.

yTo purchase optional accessories, visit an electronics store or online shopping site or contact the

retail store where you purchased the product.

CAUTION

NOTE

Power Cord

Cable Tie

Audio Cable A-B Type USB 3.0 Cable

User Manual/Card

Stand Base Stand Base

Stand Body

Screw Cover

Two Screws

AC/DC Adapter DVI-D Dual Cable

MHL Signal Cable

29EA93 29EB93

ENG

ENGLISH

ASSEMBLING AND PREPARING

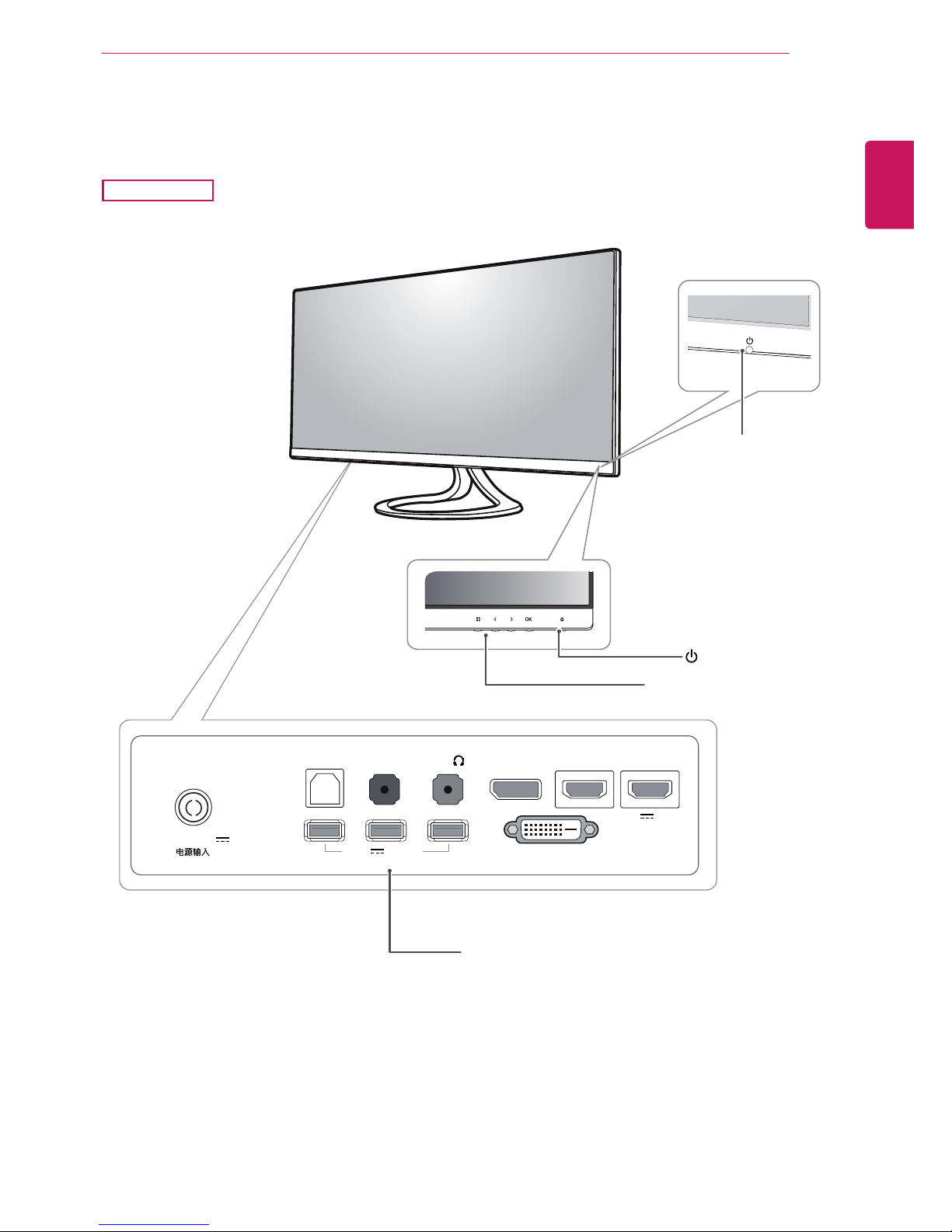

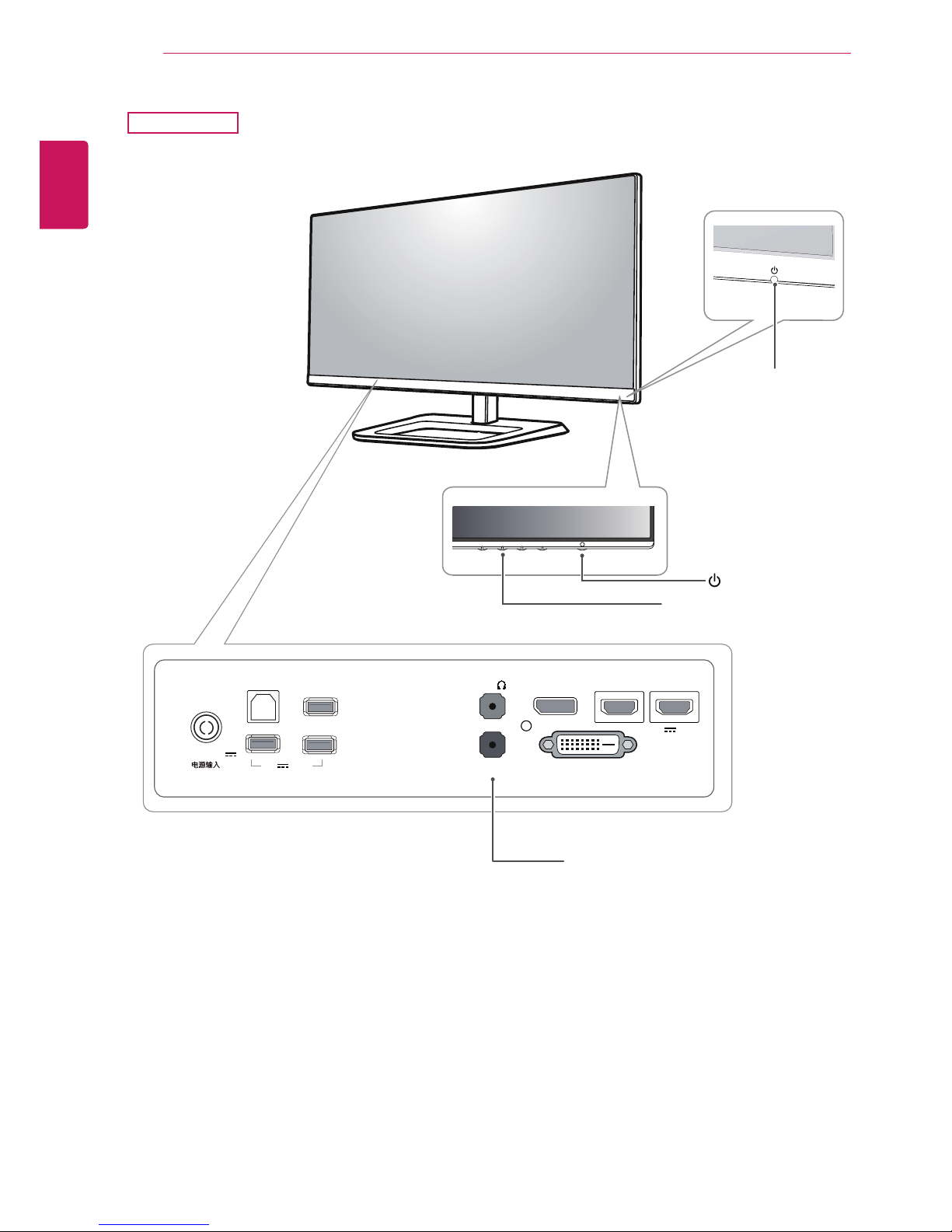

Component and Button Description

DVI-D IN

DP IN HDMI 1 HDMI 2/MHL

USB IN 1 USB IN 2 USB IN 3

H/PAUDIO IN(PC)USB UP

5 V 0.9 A

DC-IN (19.5 V )

Power Indicator

yOn: power is on

yOff: power is off

Touch buttons on the bottom

of the monitor

Ports

(Power Button)

29EA93

ENG

ENGLISH

ASSEMBLING AND PREPARING

DVI-D IN

DP IN HDMI 1 HDMI 2/MHL

USB IN 1 USB IN 2

USB IN 3 H/P

AUDIO IN(PC)

USB UP

5 V 0.9 A

DC-IN (19.5 V )

Power Indicator

yOn: power is on

yOff: power is off

Touch buttons on the bottom

of the monitor

Ports

(Power Button)

29EB93

ENG

ENGLISH

ASSEMBLING AND PREPARING

Installing the Monitor

Assembling the stand base

yTo protect the screen from scratches, cover

the surface with a soft cloth.

CAUTION

3Fix two screws into the back of the stand base

and close the screw cover.

2Check the orientation (front and rear) of the

stand base and mount the stand base to the

stand hinge as shown in the figure.

Stand Base

Stand Hinge

Moving and Lifting the Monitor

When moving or lifting the monitor, follow these

instructions to prevent the monitor from being

scratched or damaged and to ensure safe trans-

portation regardless of its shape or size.

yAs far as possible, avoid touching the moni-

tor screen. This may result in damage to the

screen or some of the pixels used to create

images.

CAUTION

yIt is advisable to place the monitor in the

original box or packing material before at-

tempting to move it.

yBefore moving or lifting the monitor, discon-

nect the power cord and all cables.

yHold the top and bottom of the monitor frame

firmly. Do not hold the panel itself.

yWhen holding the monitor, the screen should

face away from you to prevent it being

scratched.

yWhen moving the monitor, avoid any strong

shock or vibrations to the product.

yWhen moving the monitor, keep it upright,

never turn the monitor on its side or tilt it

sideways.

1Place the screen face down.

29EA93

ENG

ENGLISH

ASSEMBLING AND PREPARING

yTo protect the screen from scratches, cover

the surface with a soft cloth.

CAUTION

Stand Base

1Place the screen face down.

29EB93 3Insert the stand base into the hook of the

stand body.

4Fix by turning the screw to the right with a coin.

Stand Body

2Put the stand body on the monitor aligning

with holes for fixing screws and fix two screws

to the holes to assemble the stand body and

the monitor together.

ENG

ENGLISH

ASSEMBLING AND PREPARING

Detaching the stand base

2Open the screw cover on the back of the stand

base and use a screwdriver to remove the two

screws.

Detach the stand base from the stand hinge

as shown in the figure.

yTo protect the screen from scratches, cover

the surface with a soft cloth.

CAUTION

Stand Base

Stand Hinge

yThe components in the illustrations may dif-

fer from the actual product.

yDo not carry the monitor upside down, as this

may cause it to fall off its stand and result in

damage or injury.

yTo avoid damaging the screen when lifting

or moving the monitor, only hold the stand or

the plastic cover. This avoids putting unnec-

essary pressure on the screen.

CAUTION

1Place the screen face down.

29EA93

ENG

ENGLISH

ASSEMBLING AND PREPARING

Stand Base

Stand Body

yTo protect the screen from scratches, cover

the surface with a soft cloth.

CAUTION

1Place the screen face down.

29EB93

yThe components in the illustrations may dif-

fer from the actual product.

yDo not carry the monitor upside down, as this

may cause it to fall off its stand and result in

damage or injury.

yTo avoid damaging the screen when lifting

or moving the monitor, only hold the stand or

the plastic cover. This avoids putting unnec-

essary pressure on the screen.

CAUTION

2Turn the screw to the left using a coin.

Detach the stand base.

3Remove the two screws from the stand body.
