Make sure to read the Important Precautions before using the product.
Keep the User's Guide(CD) in an accessible place for furture reference.
See the label attached on the product and give the information to your
dealer hen you ask for service.
L226WA
User’s Guide
A1
This unit has been engineered and manufactured to ensure your personal
safety, however improper use may result in potential eletrical shock or fire
hazards. In order to allow the proper operation of all safeguards
incorporated in this display, observe the following basic rules for its
installation, use, and servicing.
On Safety
Use only the power cord supplied with the unit. In case you use another power
cord, make sure that it is certified by the applicable national standards if not being
provided by the supplier. If the power cable is faulty in any way, please contact the
manufacturer or the nearest authorized repair service provider for a replacement.
The power supply cord is used as the main disconnection device. Ensure that the
socket-outlet is easily accessible after installation.
Operate the display only from a power source indicated in the specifications of
this manual or listed on the display. If you are not sure what type of power supply
you have in your home, consult with your dealer.
Overloaded AC outlets and extension cords are dangerous. So are frayed power
cords and broken plugs. They may result in a shock or fire hazard. Call your service
technician for replacement.
Do not Open the Display.
There are no user serviceable components inside.
There are Dangerous High Voltages inside, even when the power is OFF.
Contact your dealer if the display is not operating properly.
To Avoid Personal Injury :
Do not place the display on a sloping shelf unless properly secured.
Use only a stand recommended by the manufacturer.
To Prevent Fire or Hazards:
Always turn the display OFF if you leave the room for more than a short period
of time. Never leave the display ON when leaving the house.
Keep children from dropping or pushing objects into the display's cabinet
openings. Some internal parts carry hazardous voltages.
Do not add accessories that have not been designed for this display.
During a lightning storm or when the display is to be left unattended for an
extended period of time, unplug it from the wall outlet.
Important Precautions
A2
Important Precautions
On Installation
Do not allow anything to rest upon or roll over the power cord, and do not place
the display where the power cord is subject to damage.
Do not use this display near water such as near a bathtub, washbowl, kitchen
sink, laundry tub, in a wet basement, or near a swimming pool.
Displays are provided with ventilation openings in the cabinet to allow the release
of heat generated during operation. If these openings are blocked, built-up heat
can cause failures which may result in a fire hazard. Therefore, NEVER:
Block the bottom ventilation slots by placing the display on a bed, sofa, rug, etc.
Place the display in a built-in enclosure unless proper ventilation is provided.
Cover the openings with cloth or other material.
Place the display near or over a radiator or heat source.
Do not rub or strike the Active Matrix LCD with anything hard as this may scratch,
mar, or damage the Active Matrix LCD permanently.
Do not press the LCD screen with your finger for a long time as this may cause
some afterimages.
Some dot defects may appear as Red, Green or Blue spots on the screen.
However, this will have no impact or effect on the display performance.
If possible, use the recommended resolution to obtain the best image quality for
your LCD display. If used under any mode except the recommended resolution,
some scaled or processed images may appear on the screen. However, this is
characteristic of the fixed-resolution LCD panel.
On Cleaning
Unplug the display before cleaning the face of the display screen.
Use a slightly damp (not wet) cloth. Do not use an aerosol directly on the display
screen because over-spraying may cause electrical shock.
On Repacking
Do not throw away the carton and packing materials. They make an ideal
container in which to transport the unit. When shipping the unit to another
location, repack it in its original material.
On Disposal
The fluorescent lamp used in this product contains a small amount of mercury.
Do not dispose of this product with general household waste.
Disposal of this product must be carried out in accordance to the regulations of
your local authority.
Connecting the Display
A3
Before setting up the monitor, ensure that the power to the monitor, the computer
system, and other attached devices is turned off.

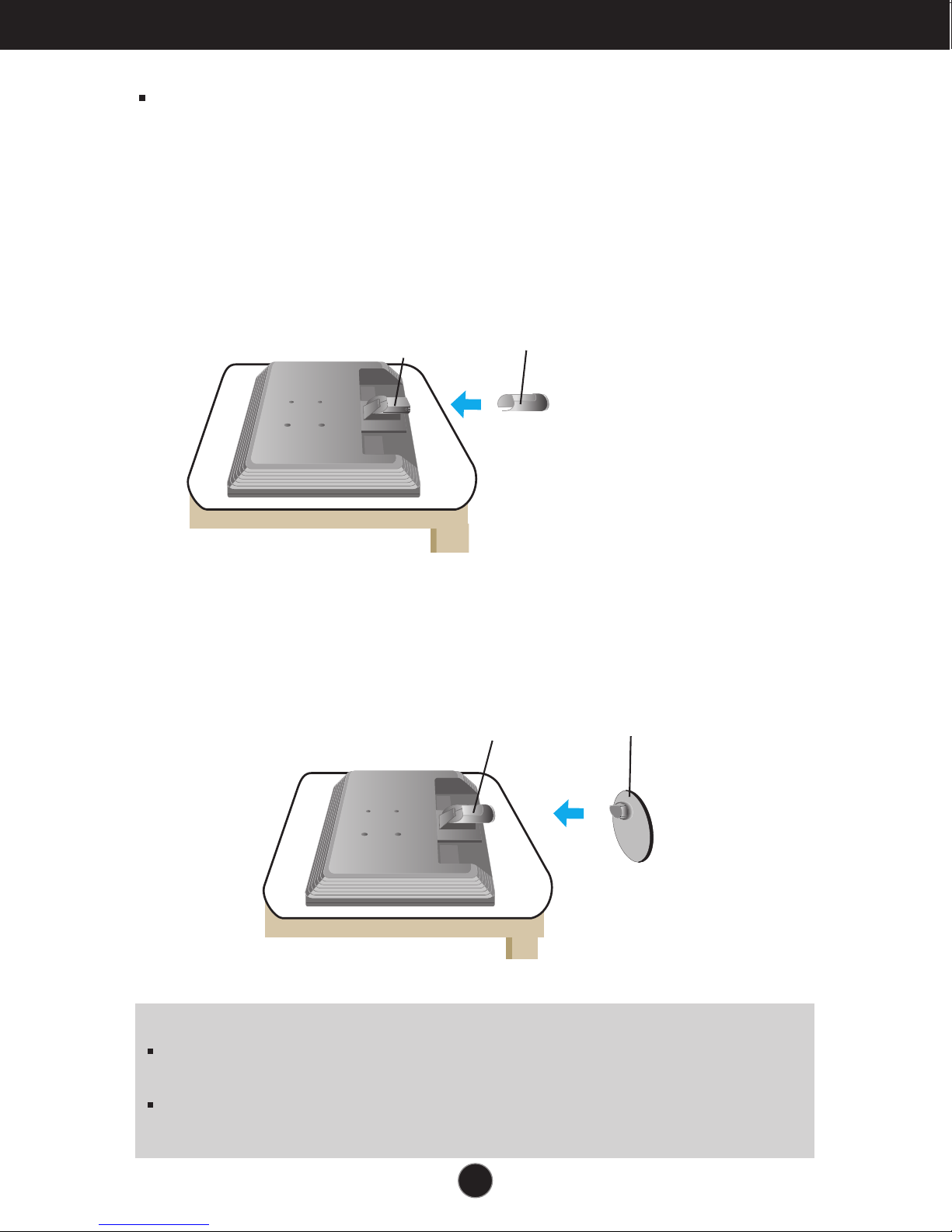

Connecting the stand
1. Place the monitor with its front facing downwardon a soft cloth.
2.Assemble the Stand Body into the product in the correct direction as shown in the
picture. Makesureyoupushituntilyouhearit“click”.
3.Assemble the Stand Base(Front, Rear) into the Stand Body in the correct direction.
4.Once assembled take the monitor up carefully and face the front side
Important
This illustration depicts the general model of connection. Your monitor may differ from
the items shown in the picture.
Do not carry the product upside down holding only the stand base. The product may
fall and get damaged or injure your foot.
Stand Body Stand Base
Stand Body
Hinge Body

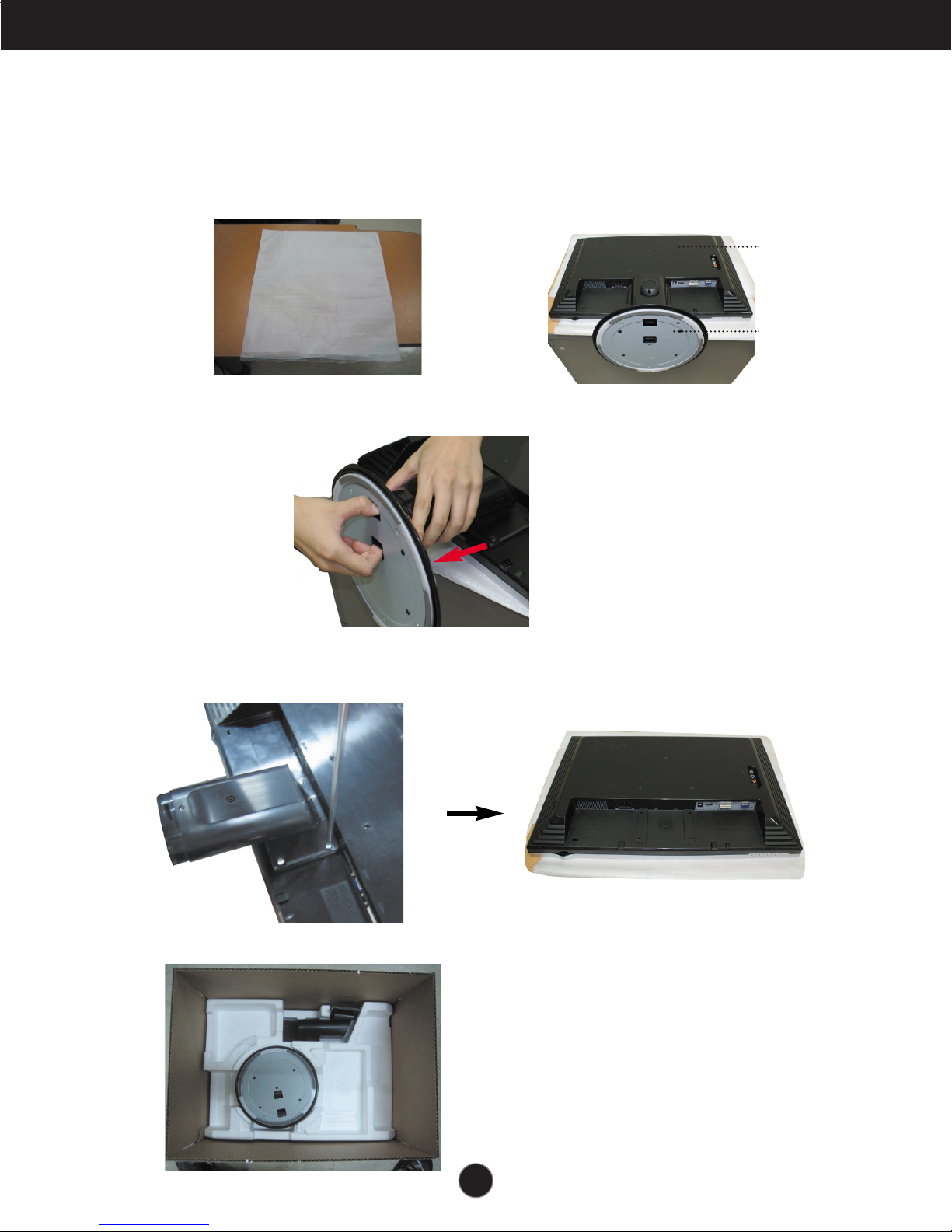

A4
Connecting the Display
1. Put a cushion or soft cloth on a flat surface.
To remove the Stand:
3. Pushing Latch inside, Take the stand base from stand body.
4. eparate the stand using a screwdriver as shown in the picture.
Note: Please keep the 4 screw in an accessible place for future use.
5. Pack up the product as shown in the picture.
The Head part
The tand
base part
2. Place the monitor face down on
the cushion or soft cloth.
Type.A

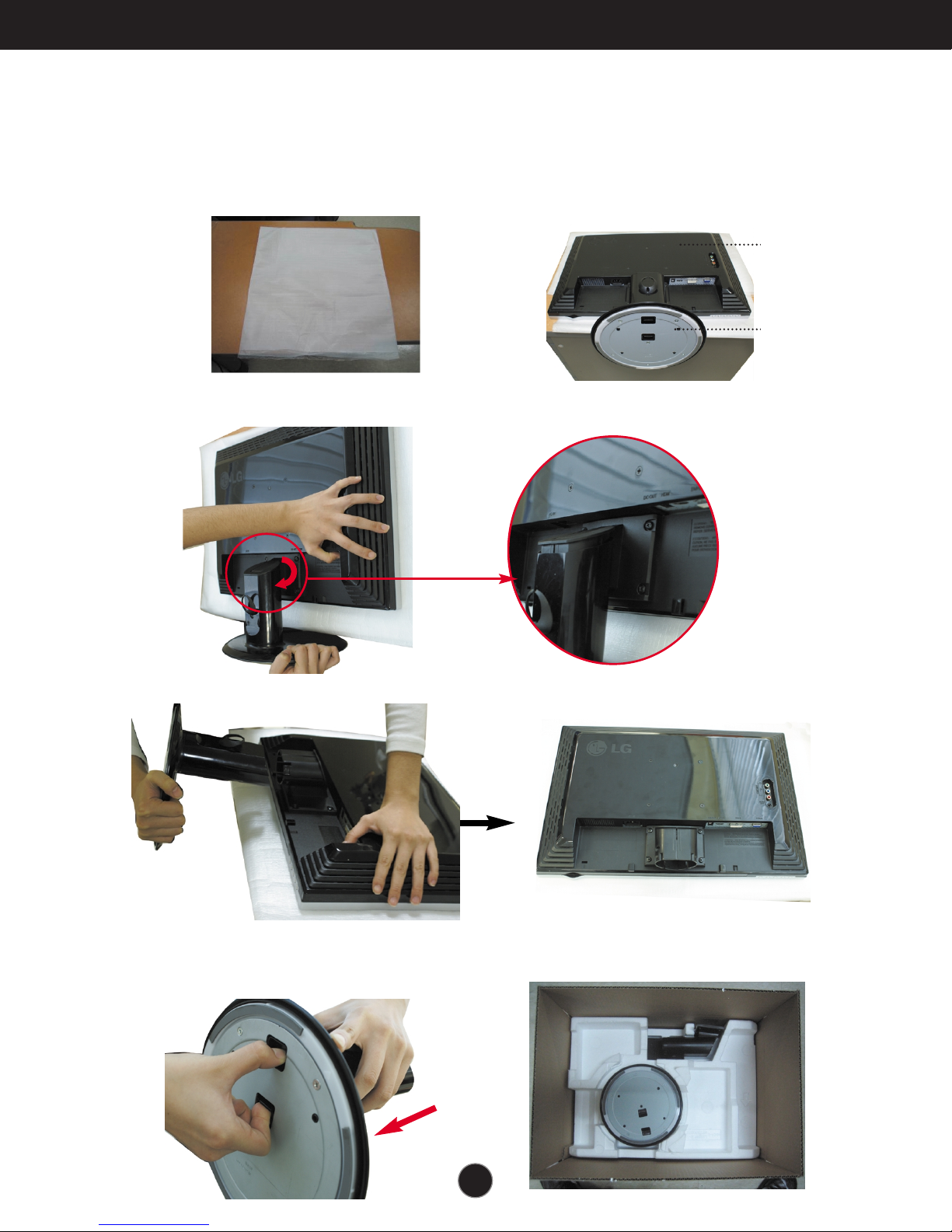

Connecting the Display
A5
1. Put a cushion or soft cloth on a flat surface.
To remove the Stand:
3. Change your hold on the product as it follows and turn the Stand Base in the arrow direction.
5. Pushing Latch inside, Take the stand base
from stand body.
6. Pack up the product as shown in
the picture.
The Head part
The tand
base part
2. Place the monitor face down on
the cushion or soft cloth.
Type.B
4. Pull out the Stand to remove.
A6
Connecting the Display
Before setting up the monitor, ensure that the power to the monitor, the computer
system, and other attached devices is turned off.

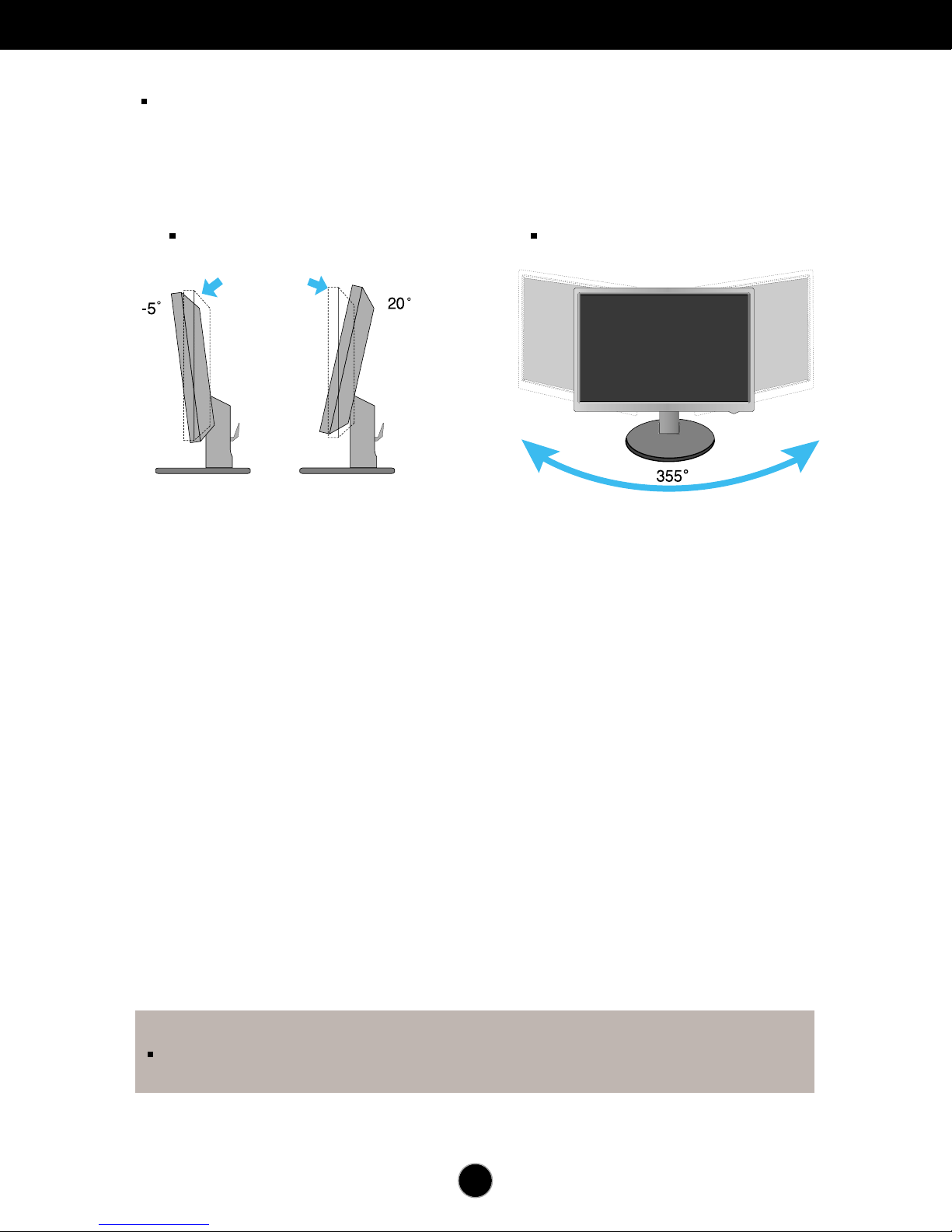

Positioning your display
1. Adjust the position of the panel in various ways for maximum comfort.
Tilt Range : -5˚~20˚ Swivel :355˚
Ergonomic
Itis recommended thatin order tomaintain an ergonomic andcomfortable viewing position,
theforward tilt angleof the monitorshould not exceed 5degrees.
A7

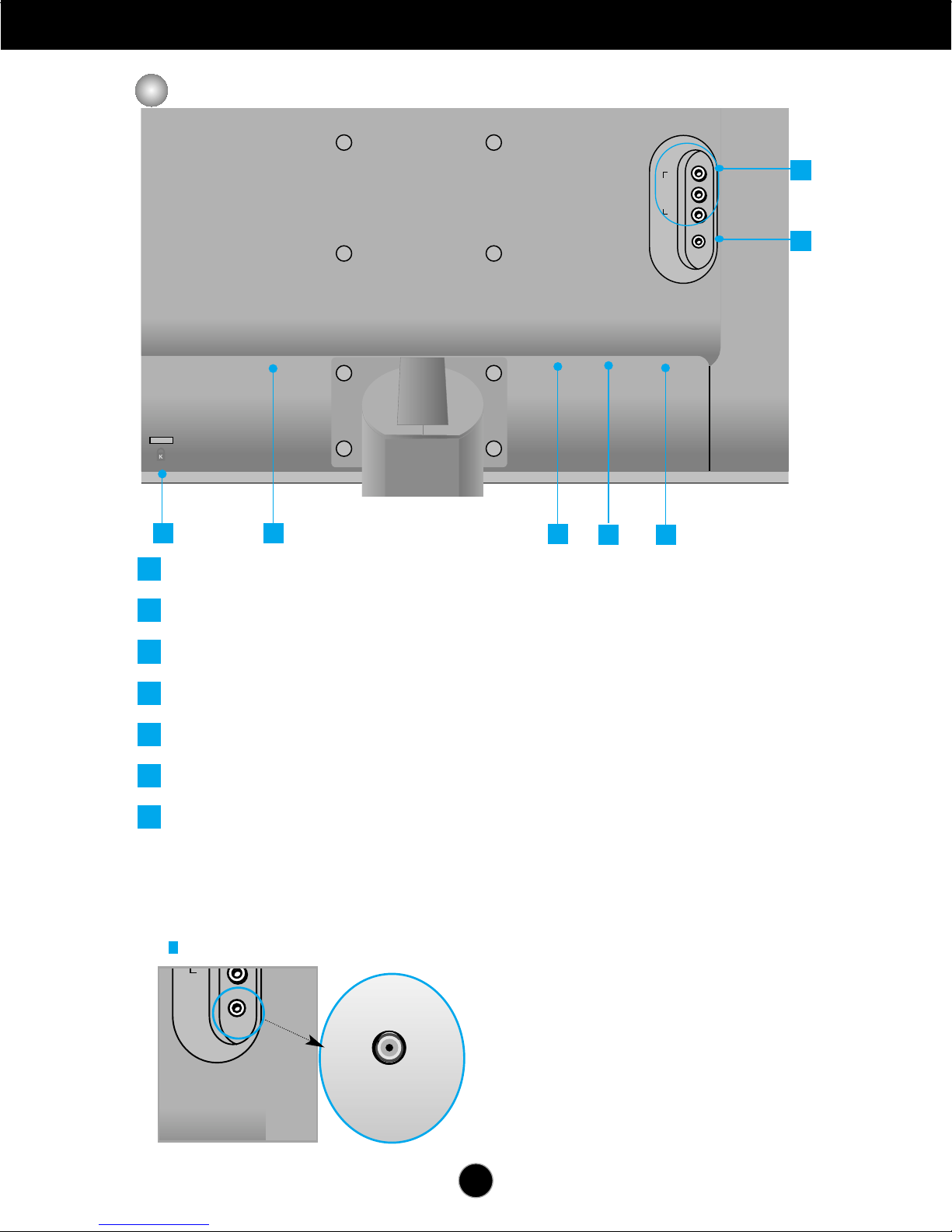

Name and function of the Parts
Rear View
Kensington Security Slot
AC-IN Connector : Connect the Power Cord
HDMI Signal Connector
DVI-D input terminal (digital signal connector)
D-SUB Analogue Signal Connector
COMPONENT Input Terminal
Audio out Jac
(
Headset/Earphone/connecting terminal of the Spea er)
The Left Rear of the Monitor
:
You can use the AUDIO-OUT Jac by connecting earphones or a headset
when using the HDMI configuration.
*AUDIO-OUT is only available with the HDMI input.
(You cannot use it with D-SUB, DVI or any other component.)
HDMI DVI-D
D-SUB
AC-IN
AUDIO
OUT
COMPON NT
Y
PRPB
7
6
34 5
21
1
2
3
4
5
6
7
AUDIO
OUT
P
R
A8

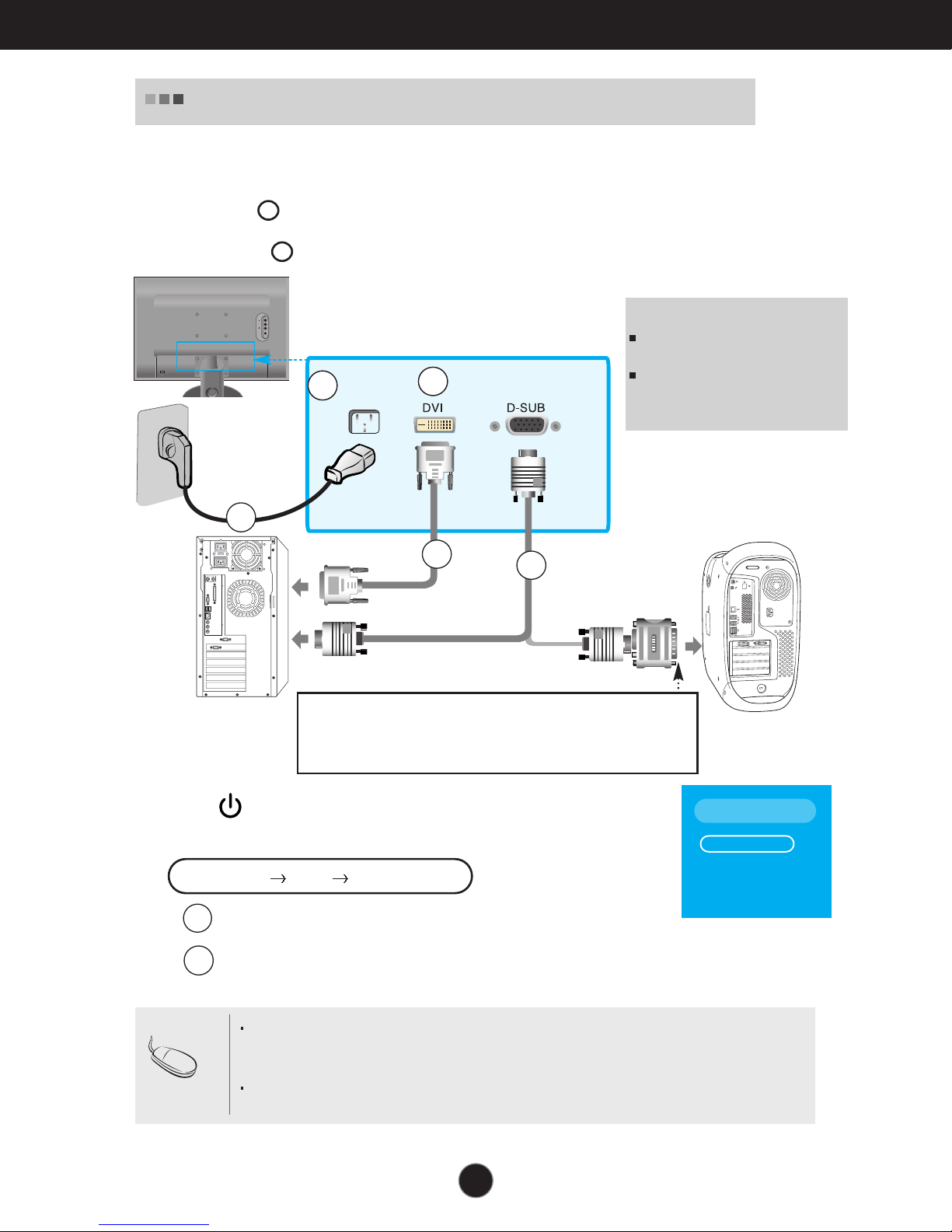

Connecting to External Devices
1. Place the monitor in a convenient, well-ventilated location near your computer.
To adjust height of your monitor, unloc the stand loc on top of the stand.
2. Connect the signal cable. When attached, tighten the thumbscrews to secure the
connection.
3. Connect the power cord into a proper power outlet that is easily accessible and close
to the display.
Wall-outlet type
4. Press button on the front switch panel to turn the power on.
5. Press the
SOURCE
button at the front side of the monitor.
NOTE
This is a simplified representation
of the rear view.
This rear view represents a
general model; your display may
differ from the view as shown.
1
2
PC MAC
Mac adapter
For Apple Macintosh use, a separate plug adapter is needed to change the
15 pin high density (3 row) D-sub V A connector on the supplied cable to a
15 pin 2 row connector.
2
DMI DVI-D
D-SUB
AC-IN
AUDIO
OUT
COMPONENT
Y
P
R
P
B
Power
Cord Signal Cable
Varies according to model.
SOURCE
-
+
AUTO/SET
When connecting with a DVI signal input cable.
• Select DVI :
DVI
digital signal.
When connecting with a D-Sub signal cable.
• Select RGB : D-Sub analogue signal.
B
A
When Connecting to your PC
Note
How to connect to two computers.
Connect the signal cables (DVI and D-Sub) to each computer.
Press the SOURCE button at the front side of the monitor.
Directly connect to a grounded power outlet on the wall or
a power bar with a ground wire.
1
2
2
1
1
1
INPUT
RGB
DVI
DMI
Component
*RGB: To connect 15-pin D-SUB
signal input cable
*DVI: To connect DVI signal
input cable
AUDIO
IN
A9

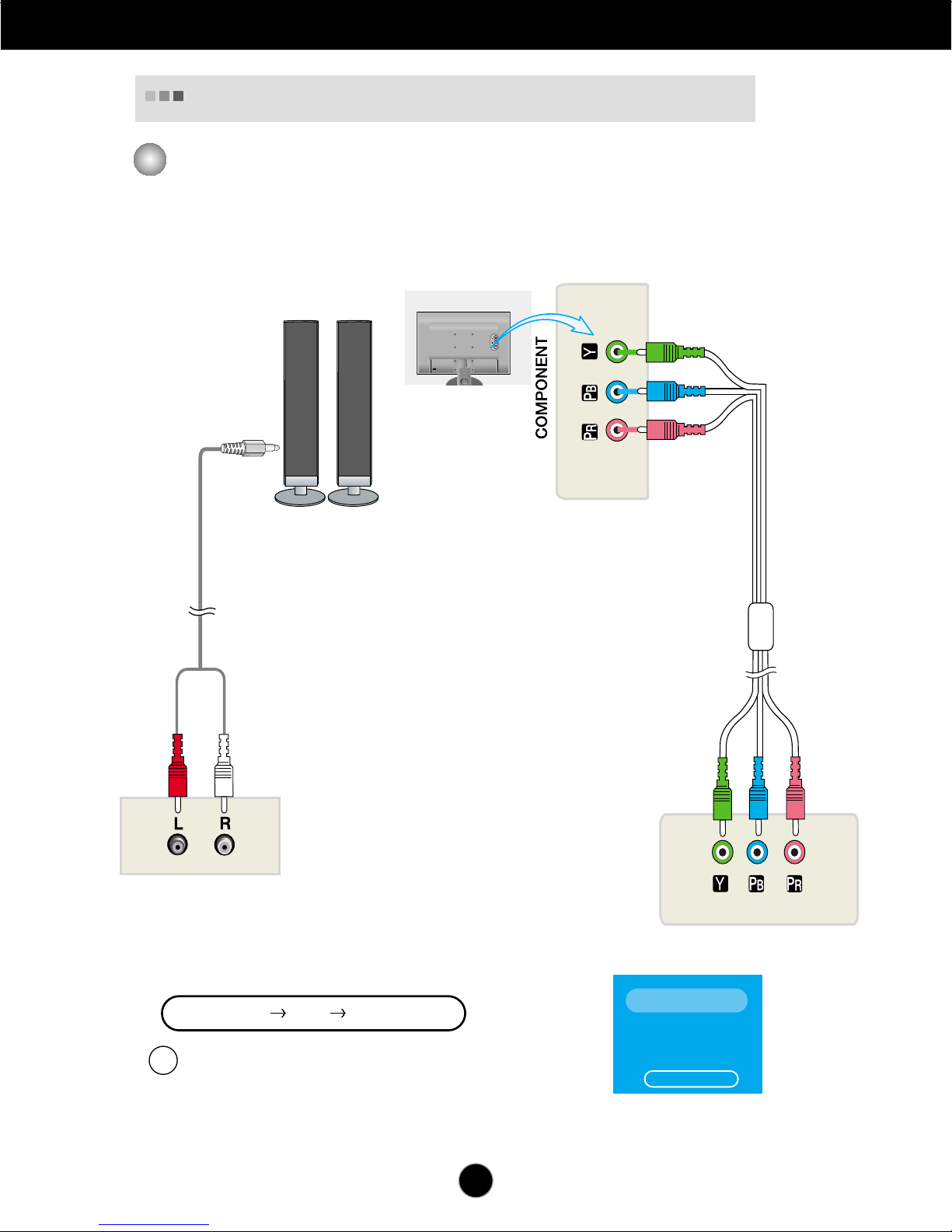

Connecting to External Devices
1.
Connect the Component cables and RCA to Stereo cables properly.
Connect the terminals to the soc ets of the same color.
2.
Connect the power cord.
3. Press the
SOURC
button at the front side of the monitor.
SOURC
-
+
AUTO/S T
When connecting with a Component cable
When Watching DVD/Video/HDTV
When connecting with a Component cable.
• Select Component
HDMI DVI-D
D-SUB
AC-IN
AUDIO
OUT
COMPON NT
Y
P
R
P
B
Monitor
DVD/VID O/HDTV
Component Cable
(not included)
Speaker
(not included)
RCA-Stereo
cable
(not included)
DVD/VID O/HDTV
INPUT
RGB
DVI
HDMI
Component
A
