LG LP-XG2 Manuale utente

LP-XG2

OWNER’S MANUAL

LG LCD PROJECTORLG LCD PROJECTOR

Please read this manual carefully before operating

your set.

Retain it for future reference.

Record model number and serial number of the set.

See the label attached on the bottom of the set and

quote this information to your dealer when you

require service.

Model number :

Serial number :

LCD

PROJECTOR

LCD

PROJECTOR

CONTENTS

INDEX

INTRODUCTION

1Safety Instructions 3

Names of parts 7

INSTALLATION AND

CONNECTION

2Installation and Connection 11

Connecting to a Desktop PC 15

Connecting to a Notebook PC 16

Connecting to a Macintosh Desktop PC

Connecting to a Macintosh PowerBook

Connecting to a Video Source 21

Connecting to a D-TV Settop Box 22

BASIC FUNC-

TIONS

3Operating the Projector 23

Turning on the Projector 25

Function checking 26

Selecting source mode 27

Using Still function 28

SPECIAL

FUNCTIONS

4Selecting language 29

Checking lamp time 30

Using Flip Horizontal / Vertical function

Using Blank function 33

Selecting PC screen size input signal

POSITION-

ING

Using Tracking function 39

Adjusting Video 41

TRACKING/

VIDEO

Using Resize function 36

Adjusting screen display 37

INFORMATION

7Supported Monitor Display 42

Maintenance 43

Memo 44

Specifications 46

Before operating the

unit, please read this

manual carefully.

Safety Instructions

GAlways keep the safety instructions to prevent any potential accident or misuse of the projector.

✶The meanings of symbols in the manual and the unit are as below.

G Take care of danger that may happen under specific condition.

G Take care of electric shock that may happen under specific condition.

G After reading this manual, keep it in the place that the user always can contact easily.

GSafety Instructions have two kinds of information, and each meaning of it is as below.

WARNING The violation of this instruction may cause serious injuries and even death.

NOTES The violation of this instruction may cause light injuries or damage of the projector.

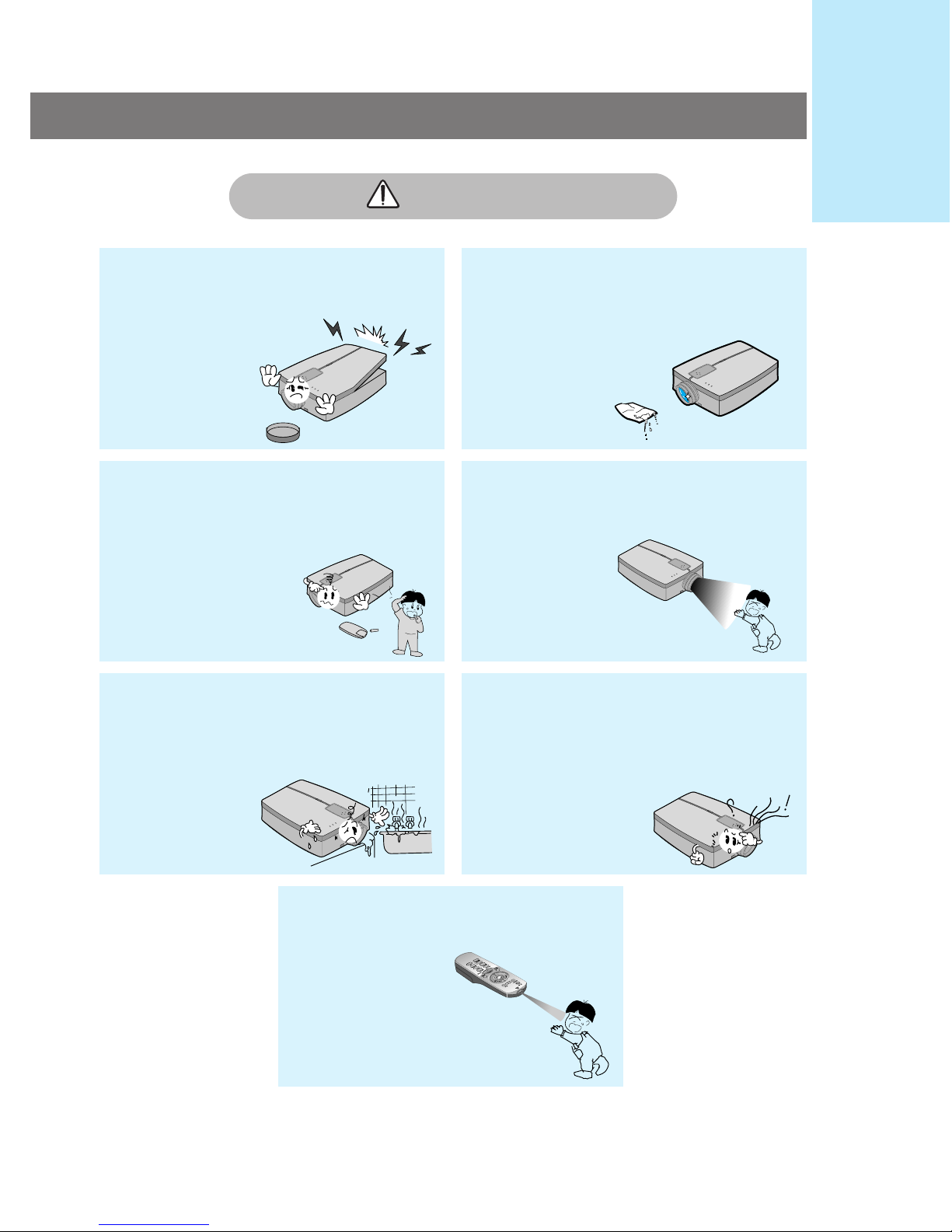

WARNING

PUSH

SOURCEBLANK

ENTER

VOL-VOL+

PUSH

SOURCEBLANK

ENTER

VOL-VOL+

PUSH

SOURCE BLANK

ENTER

VOL- VOL+

Do not attempt to repair or adjust this

equipment. Contact your dealer or Service

center. High risk of electric shock!

Don’t insert any object into the exhaust vent .

This may cause a fire or could give

an electric shock.

Don’t place the projector in direct sunlight

or near a heat source(radiator or heater).

This may cause a fire

or could give an

electric shock.

PUSH

SOURCE BLANK

ENTER

VOL- VOL+

Do not place anything containing liquid on

top of the projector. High risk of Electric

Shock or damage to the projector.

This may cause a fire

or could give an

electric shock.

INTRODUCTION

WARNING

PUSH

SOURCE BLANK

ENTER

VOL- VOL+

Don’t remove any covers (except lens

cover). High risk of Electric Shock!

PUSH

SOURCE BLANK

ENTER

VOL- VOL+

Use an air spray or soft cloth that is wet

with a neutral detergent and water for

removing dust or stains on the projection

lens.

PUSH

SOURCE BLANK

ENTER

VOL- VOL+

Only use the correct type of batteries for

the remote control. Dispose of used batter-

ies carefully.

This may cause a fire

or could give an

electric shock.

PUSH

SOURCEBLANK

ENTER

VOL-VOL+

Don’t look directly onto the lens when the

projector is in use. Eye damage may occur!

PUSH

SOURCEBLANK

ENTER

VOL-VOL+

Don’t use the projector in damp place such

as a bathroom or any place where it is like-

ly to get wet. Serious damage could occur

or risk of Electric Shock!

PUSH

SOURCEBLANK

ENTER

VOL- VOL+

Don’t use the projector if there is smoke

or unusual smell from the projector.

Disconnect from the mains and contact

the service center. Risk of fire!

Don’t look at laser beam directly as it may

cause eye damage.

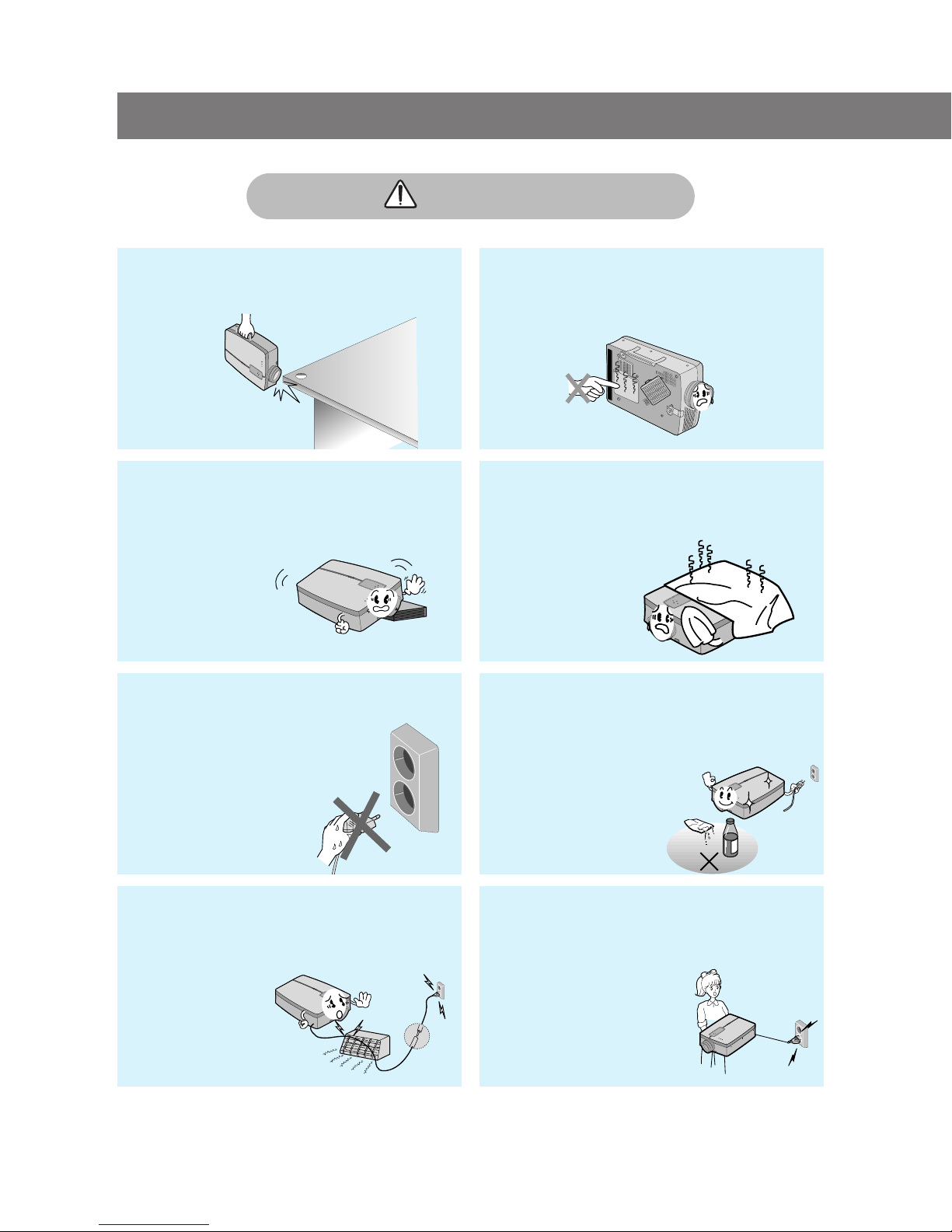

Safety Instructions

NOTES

PUSH

SOURCEBLANK

ENTER

VOL- VOL+

Only use the projector on a level and sta-

ble surface.

It may fall down

or be upset.

PUSH

SOURCE BLANK

ENTER

VOL- VOL+

Don’t cover the project when in use.

It makes internal temperature increase

and causes a fire.

PUSH

SOURCEBLANK

ENTER

VOL-VOL+

No impact on the lens while moved. No contact while working, or right after the

lamp is off since the exhaust port and the

lamp lid generate heat.

PUSH

SOURCEBLANK

ENTER

VOL-VOL+

Disconnect from the mains and remove all

connections before moving.

Damage of cords may cause

a fire or electric shock.

Never touch the power plug with wet hand.

It may cause electric shock.

PUSH

SOURCEBLANK

ENTER

VOL- VOL+

Don’t use alcohol, benzene, or thinners to

clean any plastic parts of the projector.

Never use industrial chemicals or deter-

gents.

PUSH

SOURCEBLANK

ENTER

VOL- VOL+

Ensure the power lead doesn’t trail across

any hot objects like a heater.

It may make covering

parts melted

and cause a fire

or electric shock.

INTRODUCTION

NOTES

PUSH

SOURCE BLANK

ENTER

VOL- VOL+

Don’t touch the lens of the projector. It may

cause damage of it.

PUSH

SOURCE BLANK

ENTER

VOL- VOL+

Don’t use any sharp tools on the projector

as this will damage the casing.

PUSH

SOURCEBLANK

ENTER

VOL-VOL+

If the projector requires cleaning inside con-

tact the service centre. Accumulated dust

can cause mechanical failure.

PUSH

SOURCEBLANK

ENTER

VOL-VOL+

Place the projector where people will not

trip or tread on the power lead.

Use the indicated type of power source on

the projector. If you are not sure of the type

of power available, consult your dealer or

customer service center.

PUSH

SOURCEBLANK

ENTER

VOL- VOL+

Don’t place the projector or the remote

control on a heater or use in a heated car.

PUSH

SOURCEBLANK

ENTER

VOL-VOL+

Don’t use the projector when the power

cord or the plug is damaged or the con-

necting part of wall socket is loose.

It may cause electric shock

or a fire.

PUSH

SOURCE BLANK

ENTER

VOL- VOL+

Be sure to unplug when you don’t use

the projector for a long period or you are

absent.

Accumulated dust may

cause a fire,

electric shock from

deterioration,

or electric leakage.

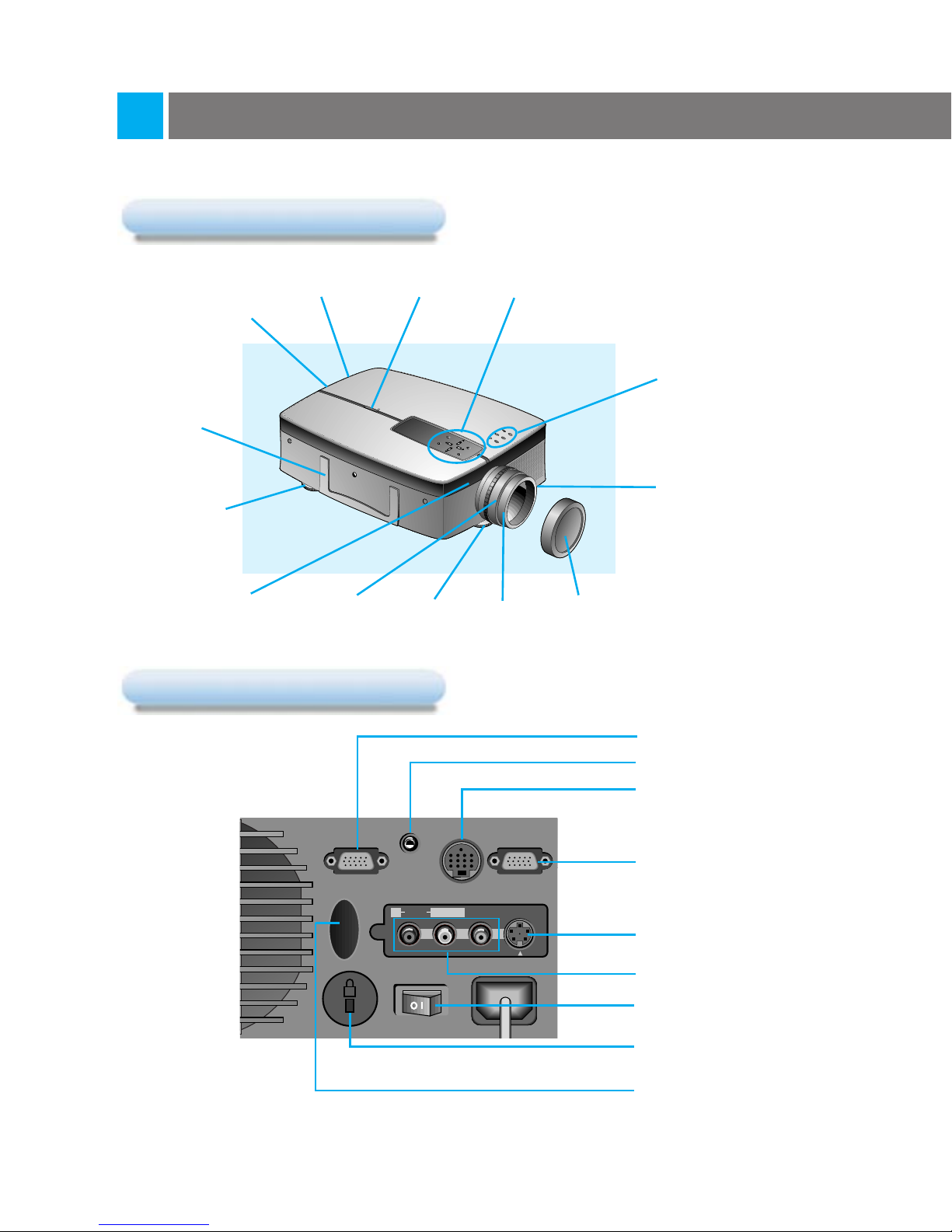

Names of parts

POWER

SOURCE BLANK

ENTER

VOL- VOL+

Computer Out

Computer In

Mouse

Computer

Audio

Audio Video S-VideoR L/MONO

Main Body

Rear Connecting Part

Rear remote

control sensor

Handle

Foot adjusting

button

Indicators

Front remote

control sensor

Horizontal

leveler

Focus ring Lens cover

Foot

Computer Audio

Computer Out

Computer In

Audio / Video

Main power button

Kensington Security

System Connector

(Refer to page 12)

Rear remote control sensor

Mouse

S-Video

Zoom ring

Power buttonSpeaker Control panel

INTRODUCTION

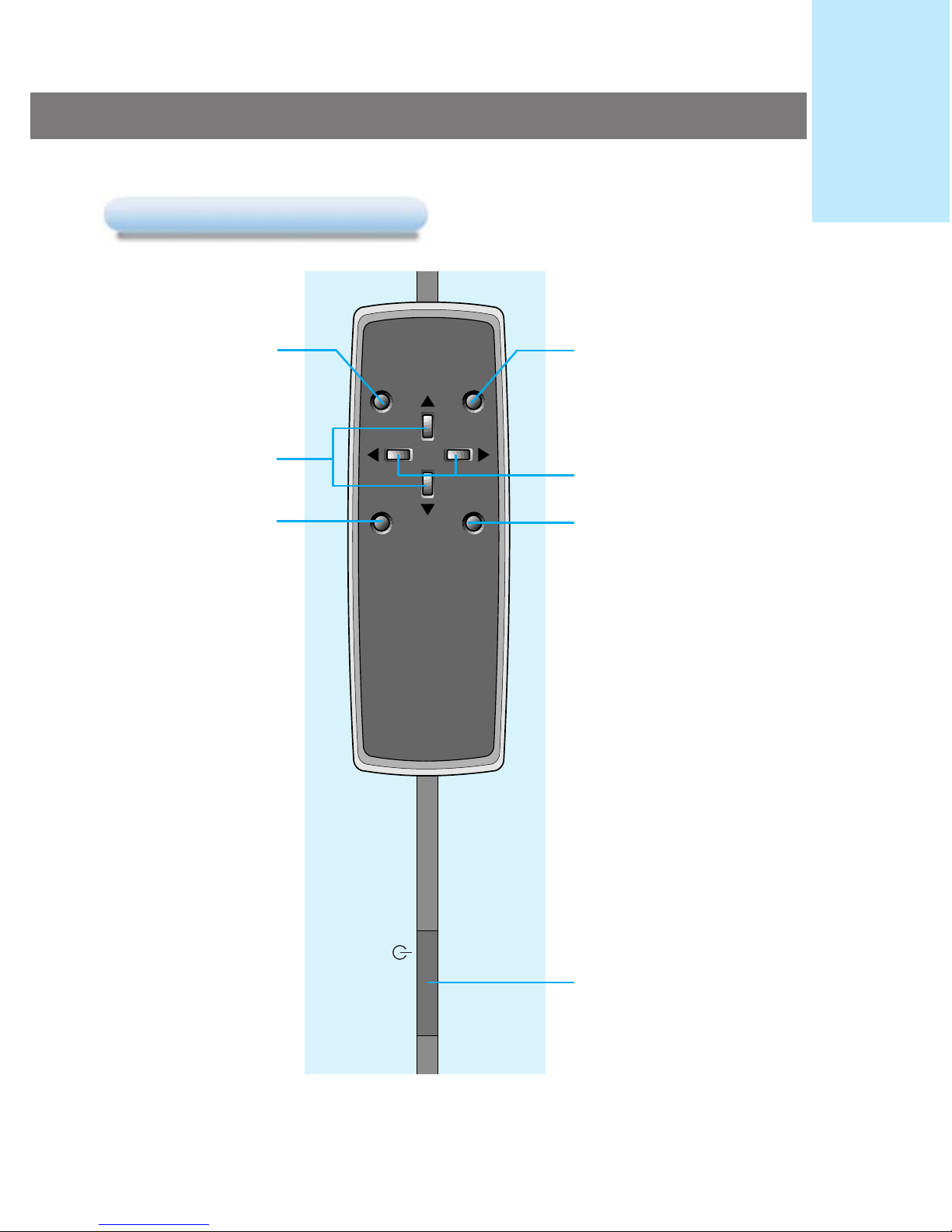

Control Panel

SOURCE

BLANK

ENTER

VOL

POWER

POWER Button

D , EButton

Selects menus and

items in the menus.

MENU Button

Selects or closes

menus.

SOURCE Button

Switches to PC or

AV mode.

VOLUME Button

Adjusts volume level and

functions of menus.

ENTER Button

Checks present mode and

saves the change of functions.

BLANK Button

Names of parts

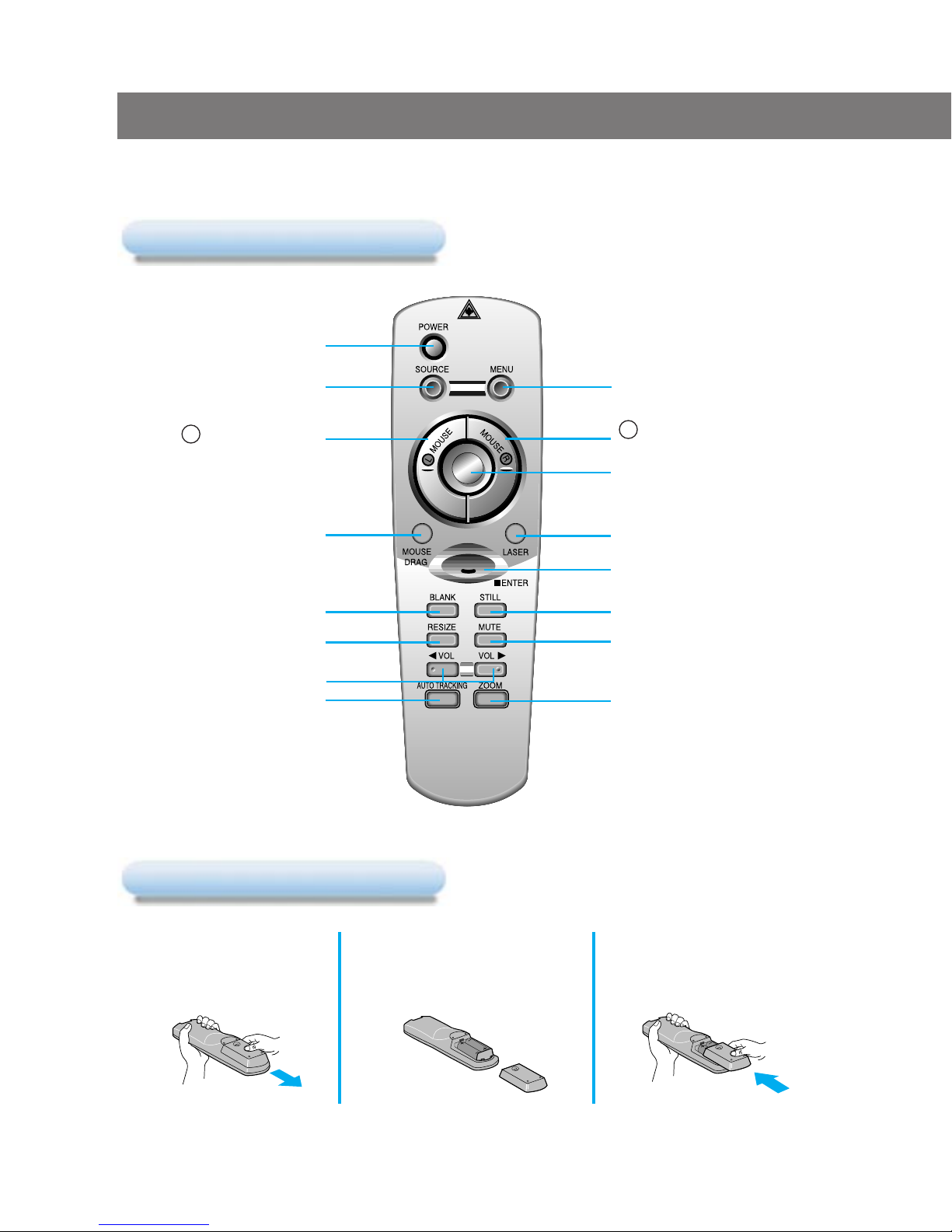

Remote Control

Inserting the batteries

POWER Button

SOURCE Button

L MOUSE Button

(Zoom-out Button)

MOUSE DRAG Button

BLANK Button

RESIZE Button

AUTO TRACKING Button

Slide the battery cover

in the direction of the

arrow to remove.

VOLUME Button

MENU Button

R MOUSE Button

(Zoom-in Button)

ENTER Button

LASER Button

POINTER Button

STILL Button

MUTE Button

ZOOM Button

Insert the batteries with

correct polarity.

Replace the battery

compartment cover to

the arrow direction.
