LG Fridge-Freezer Manuale utente

P/No. 3828JS8032T

3828JD8178C(O/M)˙¥` 02.3.154:46PM ˘ ` 1

FRIDGE-FREEZER

User's Guide

Please read this User's Guide carefully before

operating and keep it handy for reference at all times.

REFRIGERATEUR-

CONGELATEUR

Manuel de l’utilisateur

Lisez avec attention ce Manuel de l’utilisateur

avant d’utiliser le réfrigérateur et gardez-le

toujours pour toute référence.

FRIGORIFICO-

CONGELADOR

Instrucciones de uso

Lea estas instrucciones de uso con atención antes de poner

el aparato en funcionamiento y manténgalo siempre a mano

para que pueda consultarlo en cualquier momento.

3828JD8178C(O/M)˙¥` 02.3.154:45PM ˘` 1

Electrical Connections

The wires in this mains lead are coloured in accordance

with the following code:

GREEN AND YELLOW:EARTH

BLUE:NEUTRAL

BROWN:LIVE

This appliance must be earthed

As the colours of the wires in the mains lead of this

apparatus may not correspond with the coloured

markings identifying the terminals in your plug, proceed

as follows:

The wire which is coloured Green and Yellow must be

connected to the terminal in the plug which is marked

with the letter E or by the earth symbol(b) or coloured

Green or Green and Yellow.

The wire which is coloured Blue must be connected to

the terminal which is marked with the letter N or

coloured Black.

The wire which is coloured Brown must be connected to

the terminal which is marked with the letter L or coloured

Red.

If a 13 amp(BS 1363) plug is used, fit a 13 amp BS 1362

fuse.

(In the UK Only)

Important

Fuse

Cord

grip

Green and Yellow(Earth)

Brown(Live)

Blue(Neutral)

3828JD8178C(O/M)¿ ‡»` 02.3.154:46PM ˘`2

Registration

Important Safety Instruction

Identification of Parts

Installation

Starting

Temperature Control

Quick Freeze

Vacation

Self Test

Door Alarm

Ice Making

Defrosting

Storing Food

General Information

Lamp Replacement

Cleaning

Trouble Shooting

Table of Contents

Introduction

Installation

Operation

Suggestion On

Food storage

Care and

Maintenance

Trouble Shooting

3828JD8178C(O/M)¿ ‡»` 02.3.154:46PM ˘`3

Introduction

The model and serial number are found on the rear of

this unit. This number is unique to this unit and not

available to others. You should record requested

information here and retain this guide as a permanent

record of your purchase. Staple your receipt here.

Date of Purchase :

Dealer Purchased From :

Dealer Address :

Dealer Phone No. :

Model No. :

Serial No. :

Important Safety Instruction

This fridge-freezer must be properly installed and

located in accordance with the Installation

Instruction before it is used.

Never unplug your fridge-freezer by pulling on the

power cord. Always grip plug firmly and pull straight out

from the outlet.

When moving your appliance away from the wall,

be careful not to roll over or damage the power

cord.

After your fridge-freezer is in operation, do not

touch the cold surfaces in the freezer compartment,

particularly when hands are damp or wet. Skin may

adhere to these extremely cold surfaces.

Registration

Introduction

Precaution

3828JD8178C(O/M)¿‡»` 02.3.154:46PM ˘` 4

This appliance is not intended for use by persons (including

children) with reduced physical, sensory or mental capabilities,

or lack of experience and knowledge, unless they have been

given supervision or instruction concerning use of the appliance

by a person responsible for their safety.

Children should be supervised to ensure that they do not play

with the appliance.

CAUTION

3828JD8178C(O/M)¿ ‡»` 02.3.154:46PM ˘`5

Introduction

Identification of Parts

If you found some parts missing from your unit,

they may be parts only used in other models.

Note

3828JD8178C(O/M)¿ ‡»` 02.3.154:46PM ˘`6

Egg Tray(1 or 2)

Freezer Temperature

Control

Removable

Glass Shelf(2 or 3)

Lamp

Multi-air Flow Duct

Fresh Zone

(optional)

Fridge Temperature

Control

Vegetable Drawer

Used to keep fruits

and Vegetable, etc

fresh and crisp.

Ice Cube Tray

Storage

Drawer

Removable

Plinth

Rotatable

Door Basket

Utility Corner

(movable)

Bottle Holder

2 Bottle

Door Basket

Leveling Screw

Installation

1. Select a good location.

Place your fridge-freezer where it is easy to use.

2. Avoid placing the unit near heat sources,

direct sunlight or moisture.

3. There must be proper air circulation around your

fridge-freezer to keep it operating efficiently.

4. To avoid vibration, the unit must be leveled.

If required, adjust the leveling screws to compensate

for the uneven floor.

The front should be slightly higher than the rear to aid

in door closing.

Leveling screws can be turned easily by tipping the

cabinet slightly.

Turn the leveling screws counterclockwise( ) to

raise the unit, clockwise( ) to lower it.

5. Clean your fridge-freezer thoroughly and wipe off all

dust accumulated during shipping.

6. Install accessories such as ice cube box, etc., in their

proper places.They are packed together to prevent

possible damage during shipment.

7. Connect the power supply cord (or plug) to the outlet.

Don't double up with other appliances on the same

outlet.

When your fridge-freezer is installed, allow it 2-3 hours to

stabilize at normal operating temperature prior to filling

it with fresh or frozen foods.

If power plug is disconnected, allow 5 minutes delay

before restarting.

Your fridge-freezer is now ready for use.

Installation

Starting

3828JD8178C(O/M)¿ ‡»` 02.3.154:46PM ˘ ` 7

To ensure proper air circulation around the fridge-freezer,

please maintain sufficient space on both the sides as well

as top and maintain at least 2 inches (5 cm) from the

rear wall.

Operation

Your fridge-freezer has two controls that let you regulate

the temperature in the fridge and freezer compartments.

• Initially set the TEMP. CONTROL

at "4". Then adjust the

compartment temperature

according to your desire.

• If you want an inside temperature

slightly less cold or colder, turn the

knob towards COLD or WARM, respectively.

When the surrounding temperature is low, adjust the

TEMP. CONTROL 'WARM'.

• Freezer temperature control is on the top of the fridge-

freezer. Initially set the Freeze Temp at mid-point. By

pressing the Freezer Temp button, you can adjust the

temperature of the Freezer as indicated by the numbers

of lamps lit.(the setting is composed of five steps,

5 lamps lit indicates coldest.)

• When you starting the Fridge-Freezer or connecting the

power plug to the outlet, temperature setting is

automatically set to the mid-point.

• This function is used when

you want to freeze the foods

quickly. Press the 'QUICK

FREEZE' button once, and

then the quick freeze

operation starts with the

lamp lit.

The quick freeze operation

takes about 3 hours.

When its operation ends,

it automatically returns to the normal state.

If you want to stop the quick freeze operation, press

the 'QUICK FREEZE' button once more, the lamp goes

out, and the quick freeze operation stops and the

refrigerator returns to the normal state.

Temperature Control

Fridge

Freezer

Quick Freeze

TEMP. CONTROL

COLD

WARM

FREEZE TEMP

VACATION QUICK FREEZE

QUICK FREEZE

3828JD8178C(O/M)¿ ‡»` 02.3.154:47PM ˘ ` 8

Operation

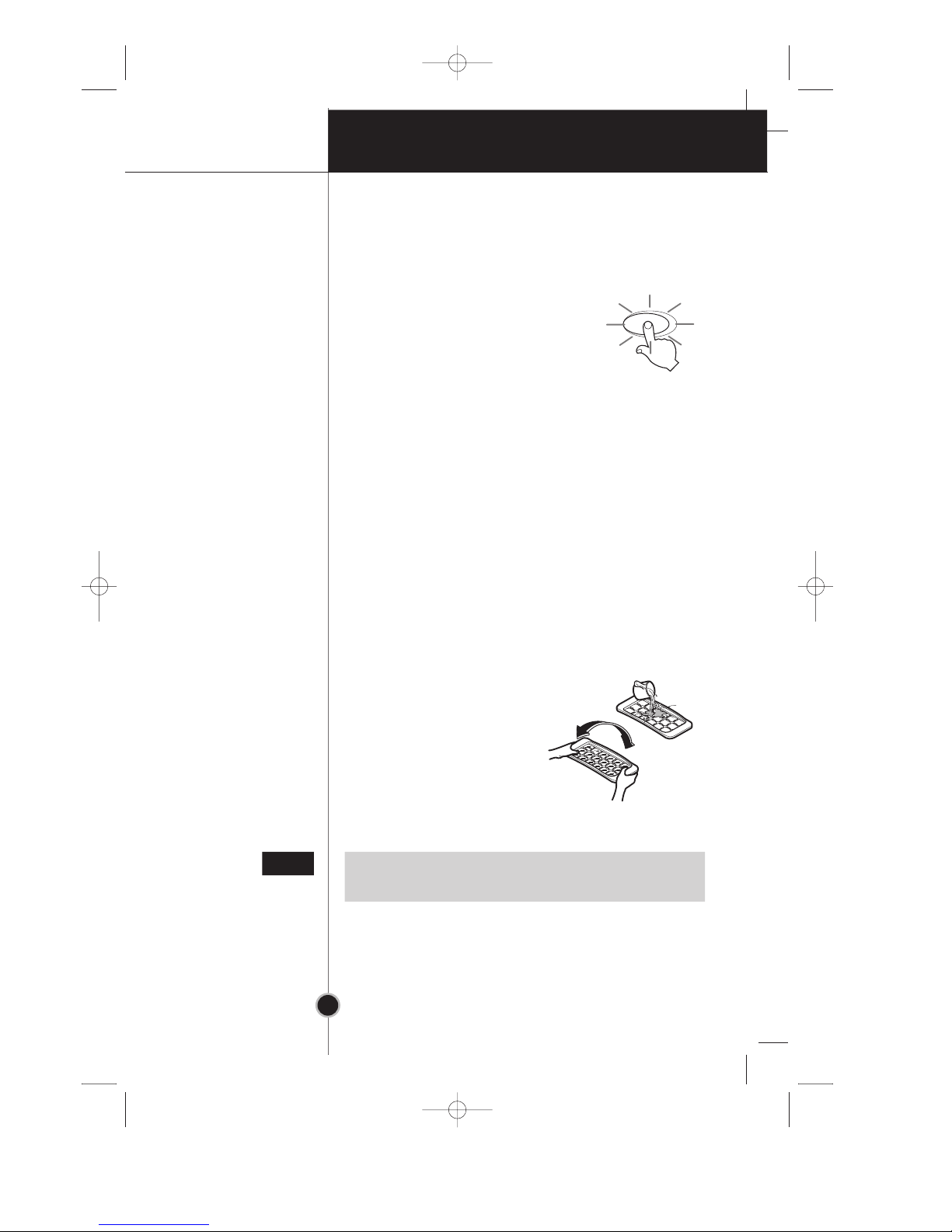

This function makes the fridge-freezer

work in a power saving mode which is

useful for when you are away on

holiday, by reducing energey

consumption as much as possible.

Pressing 'VACATION' starts operation

with lamp ON and pressing it again

stops the operation.

For better functioning, you should set

the TEMP. CONTROL to "WARM".

This function allows you to check for operational

problems. If you think you have a problem with your

fridge-freezer, then press the temperature control button:

- If the indicate lights move up or down, then there is no

problem with your fridge-freezer.

- If the indicate lights do not move up or down, then

please leave the power connected and call your nearest

service agent.

When the door of the fridge is left opened for a while,

the alarm sounds.

• To make ice cubes, fill the

ice tray to the water level

and place it in the freezer.

• If ice cubes are required

fast, press the 'QUICK

FREEZE' button.

• To remove ice cubes,

hold the tray at its ends and twist gently.

Defrosting takes place automatically.

The defrosting water flows down to the evaporating tray

and is evaporated automatically.

Vacation

Self Test

Door Alarm

Ice Making

Defrosting

VACATION

To remove ice cubes easily, run water on the tray

before twisting.

Tip

3828JD8178C(O/M)¿ ‡»` 02.3.154:47PM ˘ ` 9
