LG GL-C362RLBN Manuale utente
ENGLISH FRENCH ARABIC
REFRIGERATOR
OWNER'S MANUAL
Copyright © 2017-2018 LG Electronics Inc. All Rights Reserved.
MFL62227221
Rev.29_08032018
www.lg.com
Identification of parts .................................................................
Important Safety Information ......................................................
Warning ......................................................................................
Caution .......................................................................................
Installation ...................................................................................
Features ..................................................................................
Power Cut Evercool (Optional).....................................................
Identification of Control ................................................................
Operating Procedure ...................................................................
Disposal of Your Old Appliance ....................................................
LED Replacement .........................................................................
Suggestions on Food Storage ..................................................
Suggestions ...............................................................................
Before Calling for Service ...........................................................
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
3
4
4-7
8
8
9-11
11
12
12
12
13
13-15
15
16
CONTENTS
2
Page No.
Identification of Parts
NOTE
Due to continuous improvements at LG, specifications of refrigerator are subject to change without prior notice.
If you find out some parts which are not in your unit, the parts are applied to other models.
Except during transportation & maintenance, the shelves must be considered as fixed when in normal use.
Freezer Door Basket
Egg Store Shelf
Door Basket
Evercool (Optional)
Freezer Shelf
Double twist Ice Tray
Ice Bank
Deodorizer (Optional)
Shelves
Refrigerator
Temperature Knob
Humidity Controller
Tray Vegetable
Freezer Knob Setting
Cell fresh crisper Reed Switch
3
F PCM (Optional)
Important Safety Information
power cord
WARNING
This is the safety alert symbol. It alerts you to safety messages that inform you of hazards that may kill or
hurt you or others or cause damage to the product. All safety messages will be preceded by the safety alert
symbol and the hazard signal word DANGER, WARNING or CAUTION. These words mean:
Power supply cord should not be bent or
pressed under heavy object.
power supply cord.
This appliance contains a small amount of isobutane refrigerant (R600a), natural gas with high
environmental compatibility, but it is also combustible. When transporting and installing the appliance,
care should be taken to ensure that no parts of the refrigerating circuit are damaged. Refrigerant squirting
out of the pipes could ignite or cause an eye injury. If a leak is detected, avoid any naked flames or potential
sources of ignition and ventilate the room in which the appliance is installed for several minutes.
Never Start up an appliance showing any signs of damage. If any doubt, consult your dealer.
Natural Gas (Isobutane, R600a)is an environment-friendly refrigerant, even a small amount (30~90g) is
combustible. When the gas is leaked due to severe damage during delivering, installing or using the
refrigerator, any spark may cause fire or burn.
4
loosen

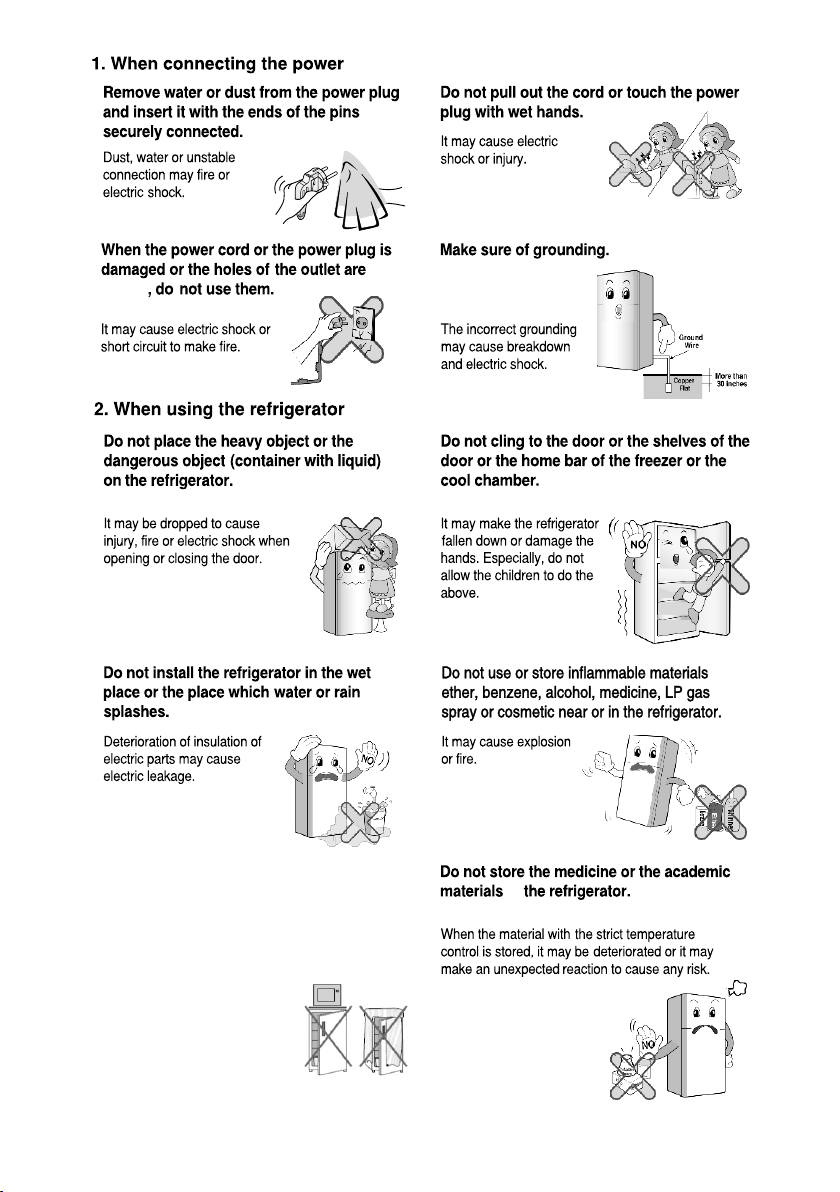

Do not keep any other electrical appliance
on top and inside of refrigerator such as TV,
Cooler, Temple, Decoration Lighting, Harmful
Chemicals, Cloth Top etc.
It may cause explosion or fire.
in
5
It may cause explosion
or fire.
top and inside
remove the
door gasket
Avoid the heating devices near the refrigerator.
6
This appliance is not intended for use by
persons (including children) with reduced
physical, sensory or mental capabilities,
or lack of experience and knowledge, unless
they have been given supervision or
instruction concerning use of the appliance
by a person responsible for their safety.
Do not use mechanical devices or other
means to accelerate the defrosting process,
other than those recommended by the
manufacturer.
Children should be supervised to ensure that
they do not play with the appliance.
If the supply cord is damaged, it
must be replaced by the manufacturer, its
service agent or similarly qualified persons
in order to avoid a hazard.
Do not damage the refrigerant circuit.
Do not use electrical appliances inside the
food storage compartments of the appliance,
unless they are of the type recommended by
the manufacturer.
Keep the ventilation openings, in the
appliance enclosure or in the built - in
structure, clear of obstruction.
This appliance is intended to be used in
household and similar applications such as
staff kitchen areas in shops, offices and
other working environment;
farm houses and by clients in hotels, motels
and other residential type environment;
bed and breakfast type environment;
catering and similar non-retail applications.

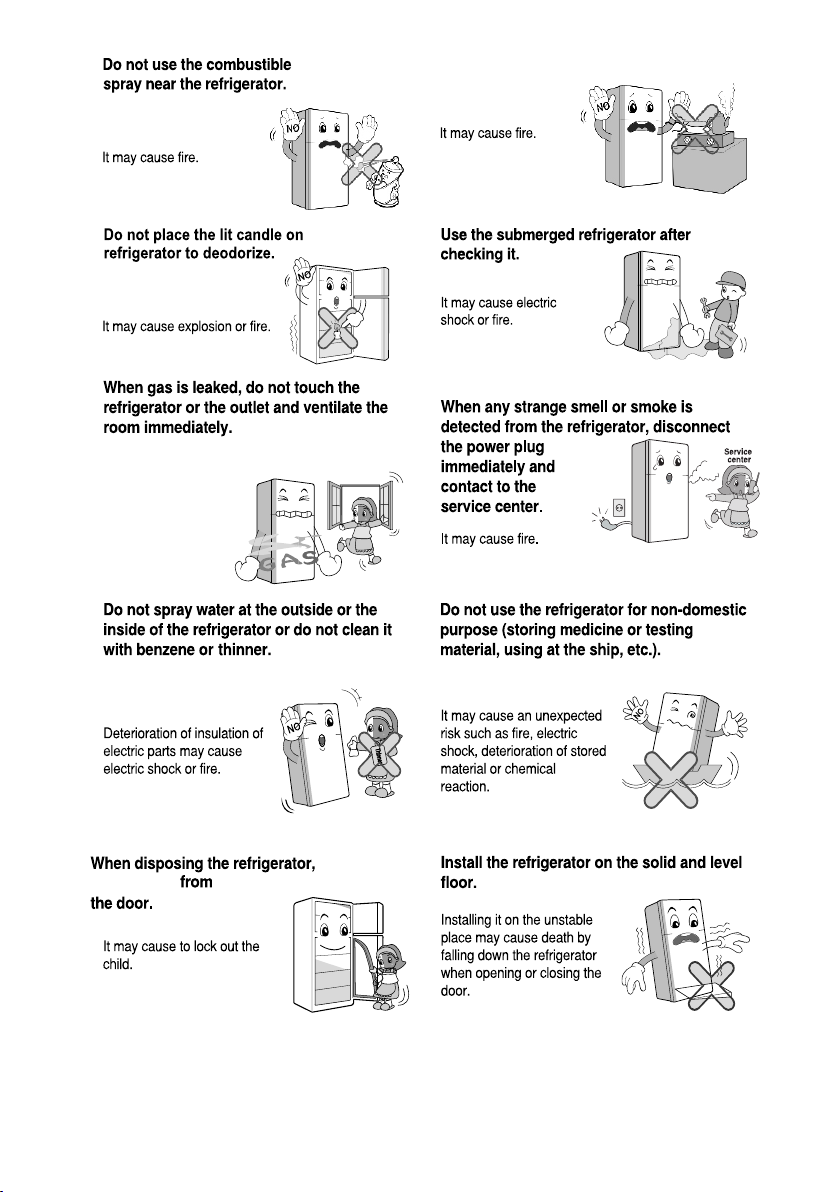

Do not store explosive substances
such as aerosol cans with a flammable
propellant in this appliance.
When you want to dispose the refrigerator,
contact to the down-block office.
Customer Care
Centre
When you want to dispose
the large living waste such
as electric home appliance
and furniture, you should
better contact the local
down-block ofce.
If the appliance is equipped with a lock (some
countries only), keep the key out of reach of
children.
7
CAUTION
It may cause death of that
living animal.
Refrigerator should be
lo ca te d pr op er ly in
ventilated area.
Levelling of refrigerator should be
done with front leg. Refrigerator
should be levelled with front to back
inclination for base.
Installation
Front Leg
Do not install refrigerator where the front surface area is higher than back surface area by 2 deg.
10
30cm 30cm
30cm
Carry the refrigerator from bottom of
the front and the top of the rear.
Violating this direction may cause injury or damage house or furniture. Please always be careful.
Because opening or closing the door of the
refrigerator may cause injury to the person
around it. Please be careful.
Do not put Glass bottle in the freezer.
Inverter-On feature (Optional)
Minimum Requirement: UPS / Inverter should be in ON condition having minimum 600 VA capacity along
with minimum 120Ah capacity battery connected with the refrigerators power supply socket.
Always remove Gasket when discarding
Refrigerator.
As marked for 2 Star Section, only store
Item which need temperature or minimum
-12 deg. C of warmer temperature.
Do not move the refrigerator in running
condition.
Do not place glass containers, bottles or cans
(especially those containing carbonated drinks)
in the freezer compartment,
shelves or ice bin that will be
exposed to temperatures
below freezing.
8
After installing the appliance, connect the power plug into a socket outlet. Before moving and discarding the appliance,
disconnect the plug from the socket outlet.
Dimensions and Clearances
Too small of a distance from adjacent items may result in degradation of freezing capability and increased electricity
costs. Allow over 50mm clearance from each adjacent wall when installing the appliance.
Ambient Temperature
The appliance is designed to operate within a limited range of ambient temperatures, depending on the climate zone.
Do not use the appliance at a temperature exceeding the limit.
The internal temperatures could be affected by the location of the appliance, the ambient temperature, the frequency
of door opening and so on.
*Product dimensions may differ.
Features
Inverter-On Feature (Optional)
1. While using this feature, the refrigerator will work on basic energy requirement as required by the product.
2. The results of the Inverter-On feature may vary depending on the number of appliances that are running on inverter.
3. For optimum running of refrigerator during Inverter-On Mode,it is recommended to switch off the other appliances
which are not in use.
4. It is recommended to confirm the quality of food items before consumption.
5. Ice cream etc. may get soften during the use of this feature. If situation arises so, it is recommended to change the
setting as per one's choice.
The climate class can be found on the rating label.
Climate Class Ambient Temperature
Range ºC
SN (Extended
Temperate) +10 - +32
N (Temperate) +16 - +32
ST (Subtropical) +16 - +38
T (Tropical) +16 - +43 / +10 - +43*
*Australia, India, Kenya
Note: The appliances rated from SN to T are intended to be used at an ambient temperature between
10°C and 43°C.
9
Omega 3
585
1675
703
55
614
648
1025
991
Omega 4 Omega 5
585 585 585
1575 1475 1475
703 703 669
55 55 55
614 614 614
648 648 614
1025 1025 1025
991 991 991
Omega 5 Recess
A
B
C
D
E
F
G
H
When the door of refrigerator is opened for 1 minute (* 20 Seconds for
Evercool Models), an alarm will sound.
Door Alarm (Optional)
Egg-cum-Ice Tray
It is used for storing the eggs. It can also be used for making the ice.
Keeps your items cooler even when there is power off condition
in freezer compartment.
Evercool (Optional)
+
Door Cooling (Optional)
Don't try to remove the deodorizer cover, as you may break the catalyst.
How to use
As Deodorizer is located in cooling air path for circulating air in fresh food compartment, there is no need
for any handling.
Do not prick the cooling air inlet with a sharp tip because Deodorizer may be damaged.
When storing food with a strong odour, wrap it or store it in a container with a lid because odour may be
passed on to other foods.
Re-Using of Deodorizer
Keep distance as odour is strong,
Deodorizer can be revived and re-used.
Separate Deodorizer in ceiling of refrigerator
compartment, using hair drier to remove
moisture or odour and oxidize under sunlight
to decomposing odour by ultraviolet rays.
If foreign substances enter the cool air vent while cleaning, efficiency will be lowered. In addition, if gasket is
damaged, efficiency may be lowered due to the escape of cool air. So care should be taken during cleaning.
Cool air vent is placed on the refrigerator Inner Case
to provide cool air to the Door Shelves.
For better effectiveness deodorizer is placed on return path of air in Refrigerator Compartment.
Deodorizer (Optional)
bad odour molecule
By using a catalyst, deodorizing performance is guaranteed.
Unpleasant odour of food in fresh food
compartment is deodorized with no harm to
you and the food.
10
