LG GL-H682HLHL Manuale utente

P/NO : MFL67477514

FRENCH

PORTUGUESE

ENGLISH

Rev.01_010720

Starting

Before Setting The Temperature

Door Alarm

Self Test

Controls For Freezer Compartment

Controls For Refrigerator Compartment

Express Freeze

Child Lock (Optional)

Wi-Fi

Door Cooling+

Vegetable Drawer

Defrosting

Deodorizer

Ice Making

Hygiene Fresh (Optional)

Water Dispenser (Optional)

Smart Functions (Only for applied models)

Lamp Replacement

Vacation Time

G*-*4**/ G*-*5**

IMPORTANT SAFETY INFORMATION ............3

INSTALLATION...............................................10

INNER PARTS ................................................11

OPERATIONS.................................................13

SUGGESTIONS ON FOOD STORAGE .........23

CLEANING .....................................................24

GENERAL INFORMATION.............................25

IMPORTANT WARNINGS ..............................26

BEFORE CALLING FOR SERVICE ...............27

WARNING

Keep ventilation openings, in the appliance enclosure or in

the built-in-structure, clear of obstruction.

Do not use mechanical devices or other means to accelerate

the defrosting process, other than those recommended by the

manufacturer.

Do not damage the refrigerant circuit.

Do not use electrical appliances inside the food storage

compartment, unless they are recommended by the

manufacturer.

The refrigerant and insulation blowing gas used in the

appliance requires special disposal procedures. When

disposal, please consult with services agent or a similarly

qualified person.

This symbol alerts you to flammable materials that can ignite and

cause a fire if you do not take care.

This appliance contains a small amount of isobutane refrigerant

(R600a), but it is also combustible. When transporting and

installing the appliance, care should be taken to ensure that no

parts of the refrigerating circuit are damaged.

If a leak is detected, avoid any naked flames or potential sources of ignition and

air the room in which the appliance is standing for several minutes. In order to

avoid the creation of a flammable gas air mixture if a leak in the refrigerating

circuit occurs, the size of the room in which the appliance is used should

correspond to the amount of refrigerant used. The room must be 1 m in size for

every 8 g of R600a refrigerant inside the appliance.

When positioning the appliance, ensure the supply cord is not trapped or

damaged.

Do not locate multiple portable socket-outlets or portable power supplieds at

the rear of the appliance.

Risk of Fire and Flammable Materials

Do not use or store

inflammable materials like

ether, benzene, alcohol,

medicine, LP gas, spray or

cosmetics

near or in the

refrigerator.

It may cause

explosion or fire.

Install in places away from the fire

such as the place

where flammable

gas is leaked.

It may cause fire.

If there is a gas leakage (isobutane, propane,

natural gas, etc.), do not touch the appliance

or power plug and ventilate the area

immediately. This appliance uses a refrigerant

gas (isobutane,R600a). Although it uses a

small amount of the gas,

it is still combustible

gas. Gas leakage

during appliance

transport, installation

or operation can

cause fire,

explosion or injury if sparks are caused

like gasket

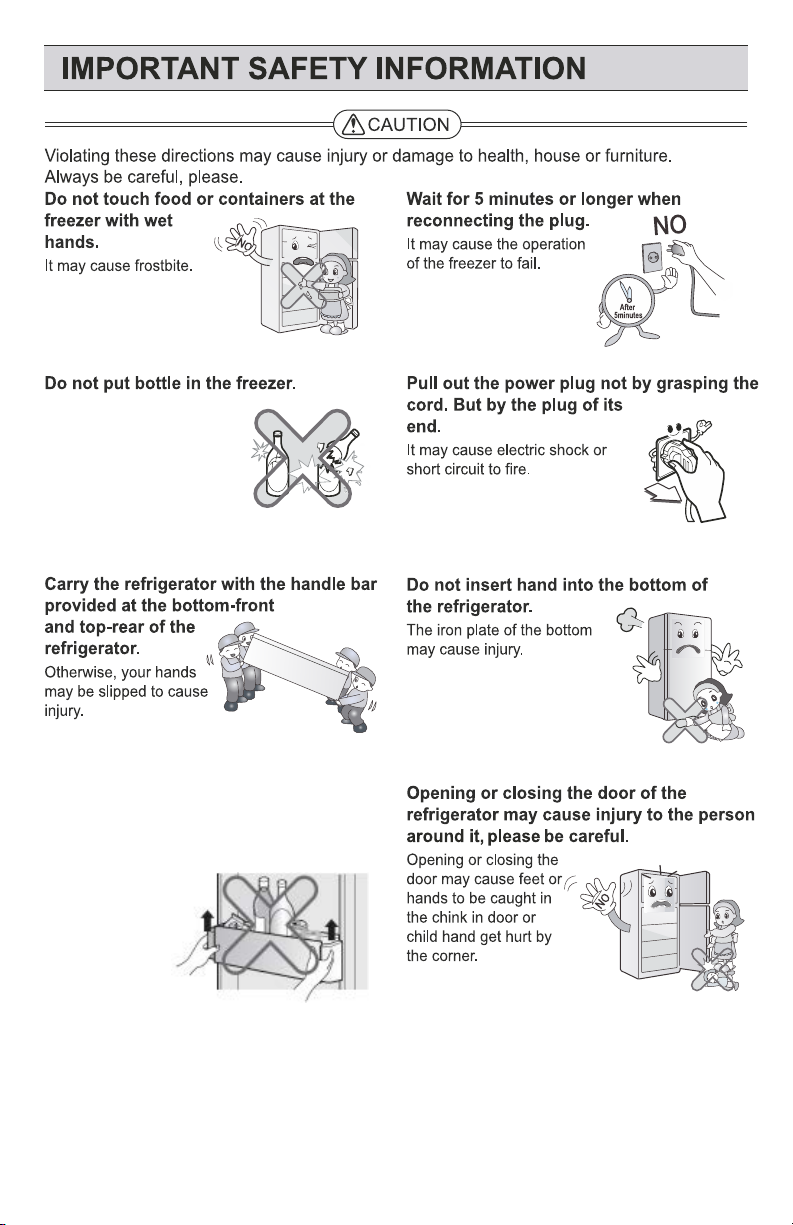

Completely empty inside before taking

out the container from the door.

Do not place glass containers,

bottles or cans (especially

those containing carbonated

drinks) in the freezer

compartment, shelves or ice

bin that will be exposed to

temperatures below freezing.

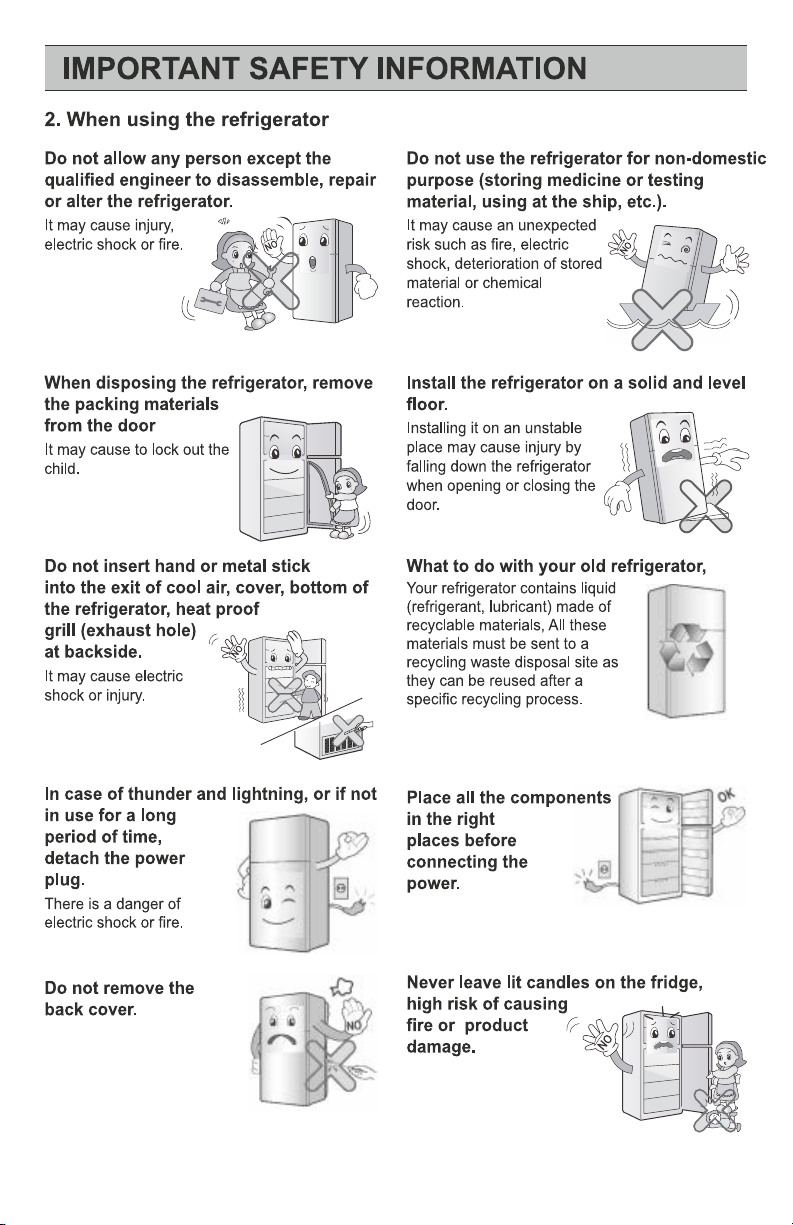

Please do not use a dishwasher to clean the lower drawers; the high temperature may cause

damage to the baskets which make them unusable.

If the appliance is equipped with a lock (some countries only), keep the key out of reach of children.

This appliance is intended to be used in household and similar applications such as

- staff kitchen areas in shops, offices and other working environments;

- farm houses and by clients in hotels, motels and other residential type environments;

- bed and breakfast type environments;

- catering and similar non-retail applications.

Inverter-On feature (Optional)

Minimum requirement: UPS/ Inverter should be in ON condition having minimum 600VA

capacity along with minimum 120Ah capacity battery connected with the refrigerator’s

power supply socket.

5. After installing the appliance, connect the

power plug into a socket outlet. Before

moving and discarding the appliance,

disconnect the plug from the socket outlet.

Dimensions and Clearances

Too small of a distance from adjacent items

may result in degradation of freezing capability

and increased electricity costs. Allow over

50mm clearance from each adjacent wall when

installing the appliance.

Ambient Temperature

The appliance is designed to operate within a

limited range of ambient temperatures,

depending on the climate zone. do not use the

appliance at a temperature exceeding the limit.

The internal temperatures could be affected by

the location of the appliance, the ambient

temperature, the frequency of door opening

and so on.

The climate class can be found on the rating

label.

Climate Class

Ambient Temperture Range C

SN (Extended Temperate)

+10 - +32

N (Temperate)

+16 - +32

ST (Subtropical)

+16 - +38

T (Tropical)

+16 - +43/+10 - +43*

*Australia, India, Kenya

NOTE

The appliances rated from SN to T are intended

to be used at an ambient temperature between

0 0

10 C and 43 C

Image for representation purpose only

G*-*5**

G*-*4**

700

1780

1680

730

660

715

1035

1200
