LG GR-K20SVZ Manuale utente

MODEL: GR-K16SLQ

GR-K18SLQ

GR-K20SVZ

CAUTION! Before evaluating or servicing this product,

read the safety and operation rules in this manual.

Kimchi Storage

SVC Technical Manual

Safety Regulations

1. Make certain the storage does not present and electrical hazard.

2. Always unplug the storage before repairing it.

3. When testing the storage with the power on, use insulated gloves for safety.

4. Make certain instruments, such as a volt meter, are set for the appropriate

voltage range.

5. Do not allow water or moisture to get into the mechanical or electrical parts of the

storage.

6. Remove all foods, dishes, racks, etc. from the refrigerator before tilting it during

repairs to avoid spills.

7. Refer all repairs of the sealed system to an Authorized servicer who has the

appropriate refrigerant recovery equipment. Escaping refrigerant could cause injury,

pollute the air, or cause other environmental concern.

Contents

1. Safety Warnings and Cautions........................................................................... 3

2. Product Specifications........................................................................................ 6

3. Product Installation Method ............................................................................... 9

4. Circuit Diagram .................................................................................................. 10

5. MICOM Function and Description of Circuit ................................................... 14

6. Warnings for Disassembling Product.............................................................. 45

7. Exploded View and Part List............................................................................. 46

Safety Warnings and Cautions

Chapter 1

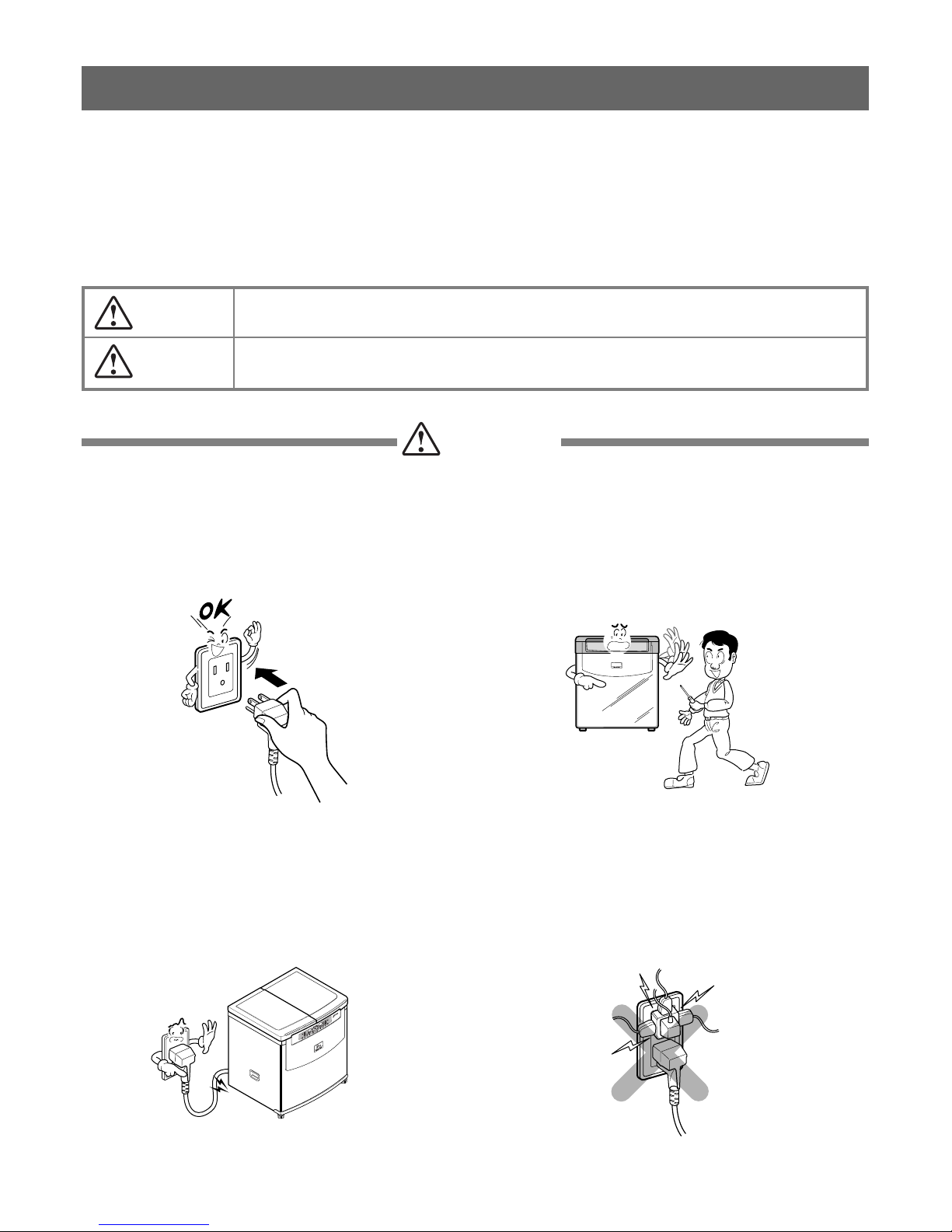

Chapter 1 Safety Warnings and Cautions

■Always observe SAFETY WARNINGS and CAUTIONS, which are intended to ensure safety while

repairing or operating the product.

■Hazards are separated into Warnings and Cautions, as explained below.

WARNING means a dangerous condition which could result in significant

damage, injury, or death if the instructions are NOT followed.

CAUTION means condition which could result in damage or injury if

instructions are not followed.

Warning

Caution

Warning

Use Caution to prevent electric shock.

• The control board (Main PCB) uses 310 V.

When replacing PCB parts, wait at least 3

minutes after unplugging. Always unplug the

storage before repairing.

Make sure that the power plug is not

pressed by the back of the storage.

• Power plug may be damaged and cause a fire

or electric shock.

Do not allow the consumer to repair,

disassemble, or modify the storage.

• There is a risk of damage, injury, electric

shock, or death.

Use a dedicated circuit.

• This storage should be installed on a dedicated

circuit. Overloading circuits or outlets could

cause a fire.

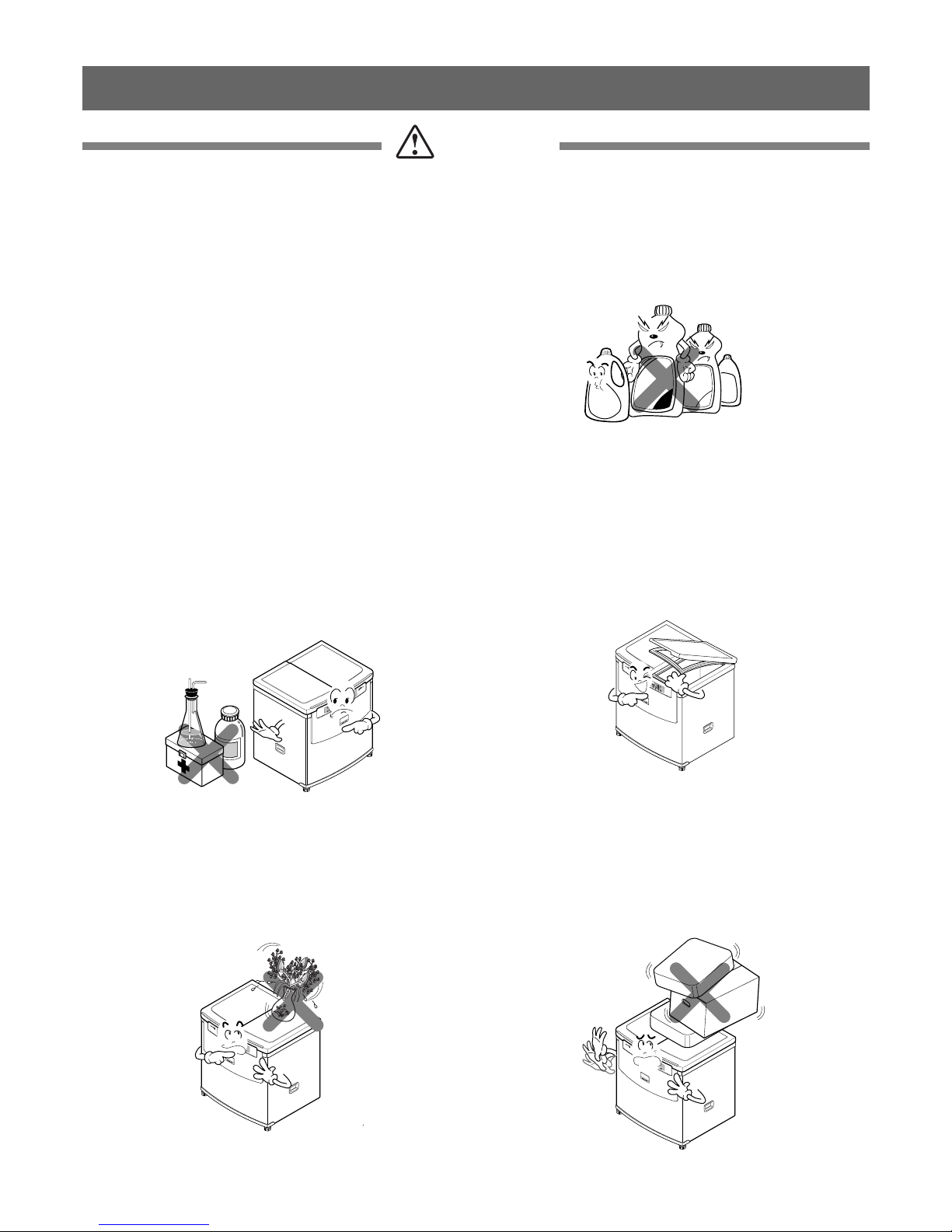

Safety Warnings and Cautions

Warning

This product should always be grounded.

• The product is equipped with a 3-wire

grounding cord which should be plugged into a

properly wired outlet. If you don't have the

proper outlet or are in doubt of the voltage or

grounding, we recommend consulting a

qualified electrician.

Do not store flammable liquids or gases in

the storage.

• Storing gasoline, ether, benzene, alcohol, etc.

can create the possibility of fire or explosion.

Use this product for its intended purpose.

• This storage is for making and storing kimchi.

Do not use it as a substitute for a precisely

controlled environment (as for storing

medications, documents, etc.) or for any other

purpose.

Use caution when disposing of a storage.

• Remove the door and do not leave it where

children may play in or around it. There is a risk

of child entrapment.

Do not set items, particularly flowers or

containers of liquid, on top of the storage.

• Spillage could result in safety, slippage, or

electrical shock hazards.

Do not store items on the storage. Use the

containers and racks included with your

storage.

• Items stored on the storage could fall and

cause injury.

Ether

Benzene

Alcohol

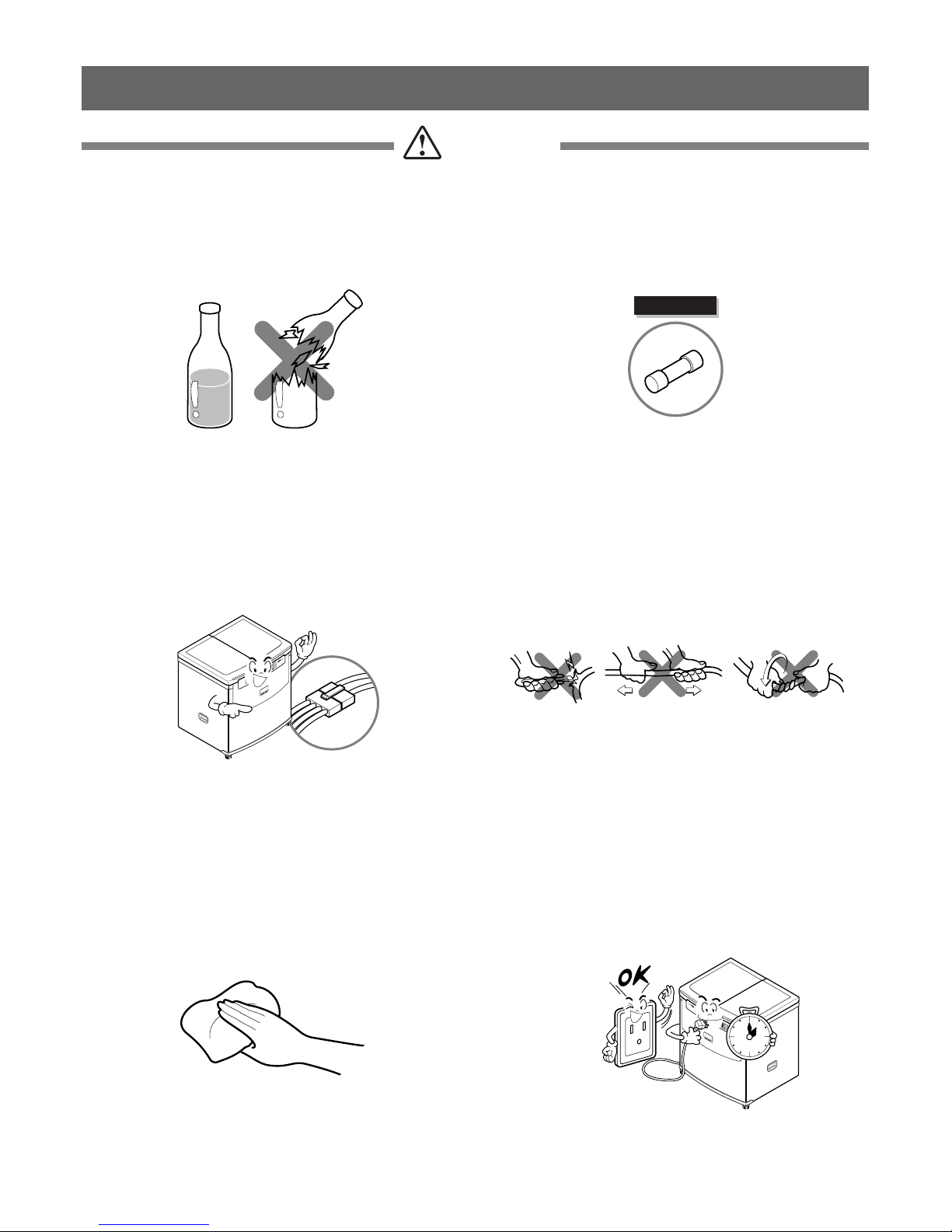

Safety Warnings and Cautions

Caution

Do not place bottles or cans in the storage.

•There is a possibility they could freeze, causing

the container to burst. This could present a

hazard in the form of broken glass or sharp

edges.

Always use exact replacement parts.

•Make certain replacement parts are the correct

part by part number and model number.

Ensure that voltage, current, and temperature

ratings are correct for the application.

During repairs, be sure all connectors are

tight and wires are properly routed.

•Loose wires could be damaged, causing shock

or fire hazards.

Be sure the power cord is undamaged.

•Do not bend, twist, pull, or damage the cord. It

could result in fire or electrical shock.

During repairs, remove all dust and foreign

materials from the work area.

•Keeping these areas clean makes work easier

and will prevent problems like overheating, fire,

and short circuits.

Allow time for resetting if you unplug the

storage.

•If you unplug the storage during repair, wait 5

minutes before plugging it in and restarting it.

Otherwise, you might cause compressor

failure.

5 min5 min

Rated Parts

Specifications

Chapter 2

Chapter 2 Product Specifications

1. GR-K16SLQ

Compressor

Evaporator

Refrigerant

Oil

PTC

Overload protection device

Fan motor for compressor cooling

Left compartment ripening heater

Right compartment ripening heater

Condensation heater

Capacitor (running)

Capacitor (starting)

ITEM SPEC

Usable Volume

Left compartment

Right compartment

Width

Depth

Height

Volume

158 l(5.58 ft3.)

92 l(3.25 ft3.)

66 l(2.33 ft3.)

817 mm (32.2 inches)

694 mm (27.3 inches)

878 mm (34.6 inches)

62 kg (137 lbs.)

210 W

Direct cooling

Manual Defrost

Polyurethane Foam

6 pcs.

2 pcs.

KX56LACH

PIPE ON SHEET

R134a (135 g)

FREOL @15 G (280 cc)

P6R8MB

4TM314TFB

Ø110 fan adhesion

115 V 80 W

115 V 60 W

115 V 17 W

250 Vac 10µF

160 Vac 100µF

Outside

Dimensions

Cold Cycle

Electrical Part Rating

Total weight

Motor power consumption

Cooling method

Defrost method

Insulation material

BASKET

Kimchi storage container

Low crystal deodorant system

Specifications

2. GR-K18SLQ

Compressor

Evaporator

Refrigerant

Oil

PTC

Overload protection device

Fan motor for compressor cooling

Left compartment ripening heater

Right compartment ripening heater

Condensation heater

Capacitor (running)

Capacitor (starting)

ITEM SPEC

Usable Volume

Left compartment

Right compartment

Width

Depth

Height

Volume

184 l(6.50 ft3.)

92 l(3.25 ft3.)

92 l (3.25 ft3.)

921 mm (36.3 inches)

694 mm (27.3 inches)

878 mm (34.6 inches)

67 kg (148 lbs.)

285 W

Direct cooling

Manual Defrost

Polyurethane Foam

6 pcs.

2 pcs.

KX56LACH

PIPE ON SHEET

R134a (140 g)

FREOL @15 G (280 cc)

P6R8MB

4TM314TFB

Ø110 fan adhesion

115 V 80 W

115 V 18 W

250 Vac 10µF

160 Vac 100µF

Outside

Dimensions

Cold Cycle

Electrical Part Rating

Total weight

Motor power consumption

Cooling method

Defrost method

Insulation material

BASKET

Kimchi storage container

Low crystal deodorant system

3. GR-K20SVZ

Compressor

Evaporator

Refrigerant

Oil

PTC

Overload protection device

Fan motor for compressor cooling

Left compartment ripening heater

Right compartment ripening heater

Condensation heater

Capacitor (running)

Capacitor (starting)

ITEM SPEC

Usable Volume

Left compartment

Right compartment

Width

Depth

Height

Volume

198 l(6.99 ft3.)

132 l(4.66 ft3.)

66 l(2.33 ft3.)

970 mm (36.2 inches)

698 mm (27.5 inches)

879 mm (34.61 inches)

70 kg (154 lbs.)

285 W

Direct cooling

Manual Defrost

Polyurethane Foam

10 pcs.

2 pcs.

KX56LACH

PIPE ON SHEET

R134a (145 g)

FREOL @15 G (280 cc)

P6R8MB

4TM314TFB

Ø110 fan adhesion

115 V 100 W

115 V 60 W

115 V 19 W

250 Vac 10µF

160 Vac 100µF

Outside

Dimensions

Cold Cycle

Electrical Part Rating

Total weight

Motor power consumption

Cooling method

Defrost method

Insulation material

BASKET

Kimchi storage container

Low crystal deodorant system

Specifications

Product Installation Method

Chapter 3

Chapter 3 Product Installation Method

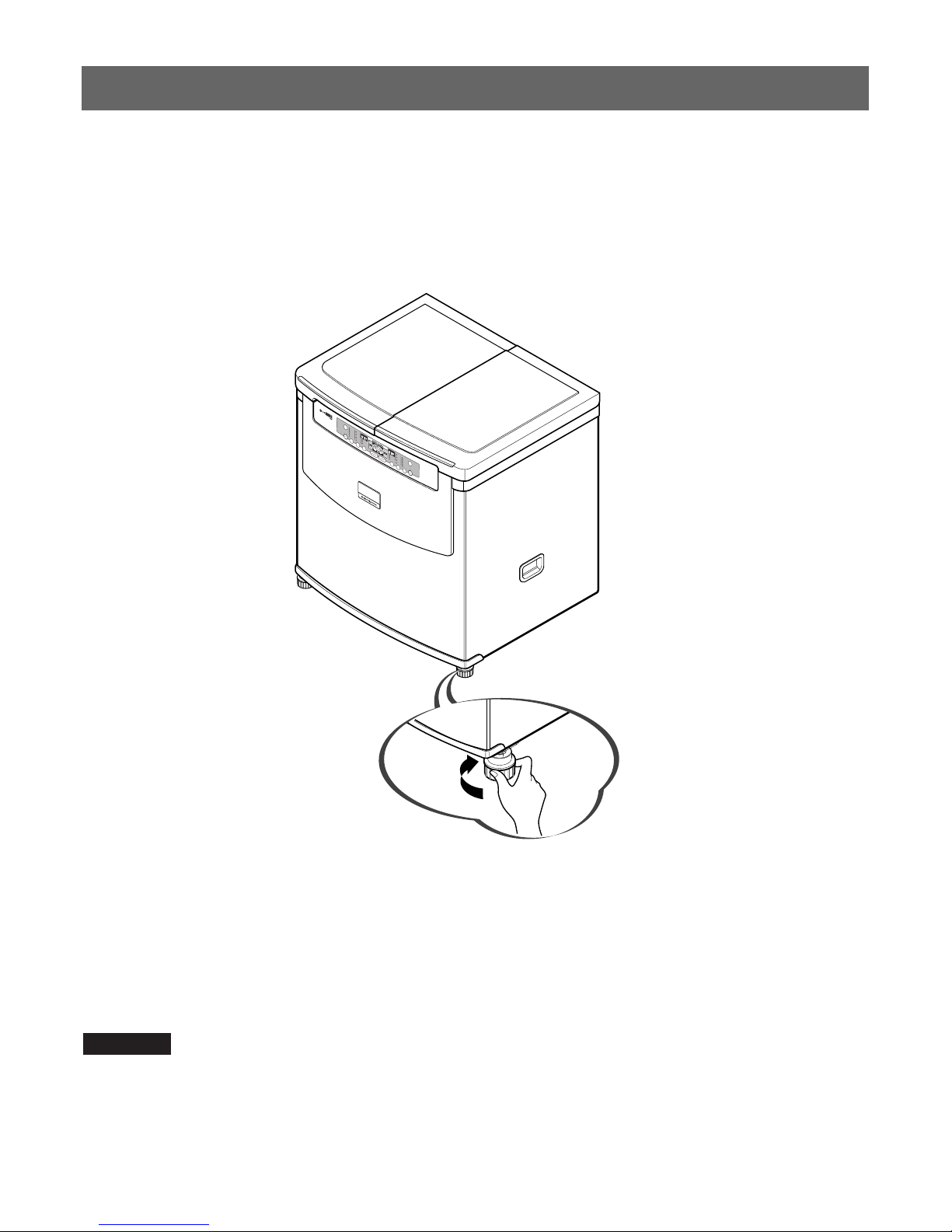

1. Method to adjust height of storage

■Adjust the level of storage.

(If the floor is uneven, the storage may vibrate or cause noise.)

➲Adjust the front to be level by turning the height adjutsment screws under the front corners.

Tilting the unit backward slightly to take the weight off the adjusting screws may make this

task easier.

2. Grounding method

Plug the cord into a 115 V grounded outlet. If you are unsure of the voltage or grounding integrity,

consult a qualified electrician.

➲ Take care not to ground the circuit at one of the following places:

1. Water pipe: If there is plastic piping within the system, the ground may not be valid.

2. Gas pipe: There is the danger of fire or explosion.

3. Phone line or lightning rod: If lightning strikes, dangerous voltage may be induced

in the circuit.

CAUTION!

Circuit Diagram

Chapter 4

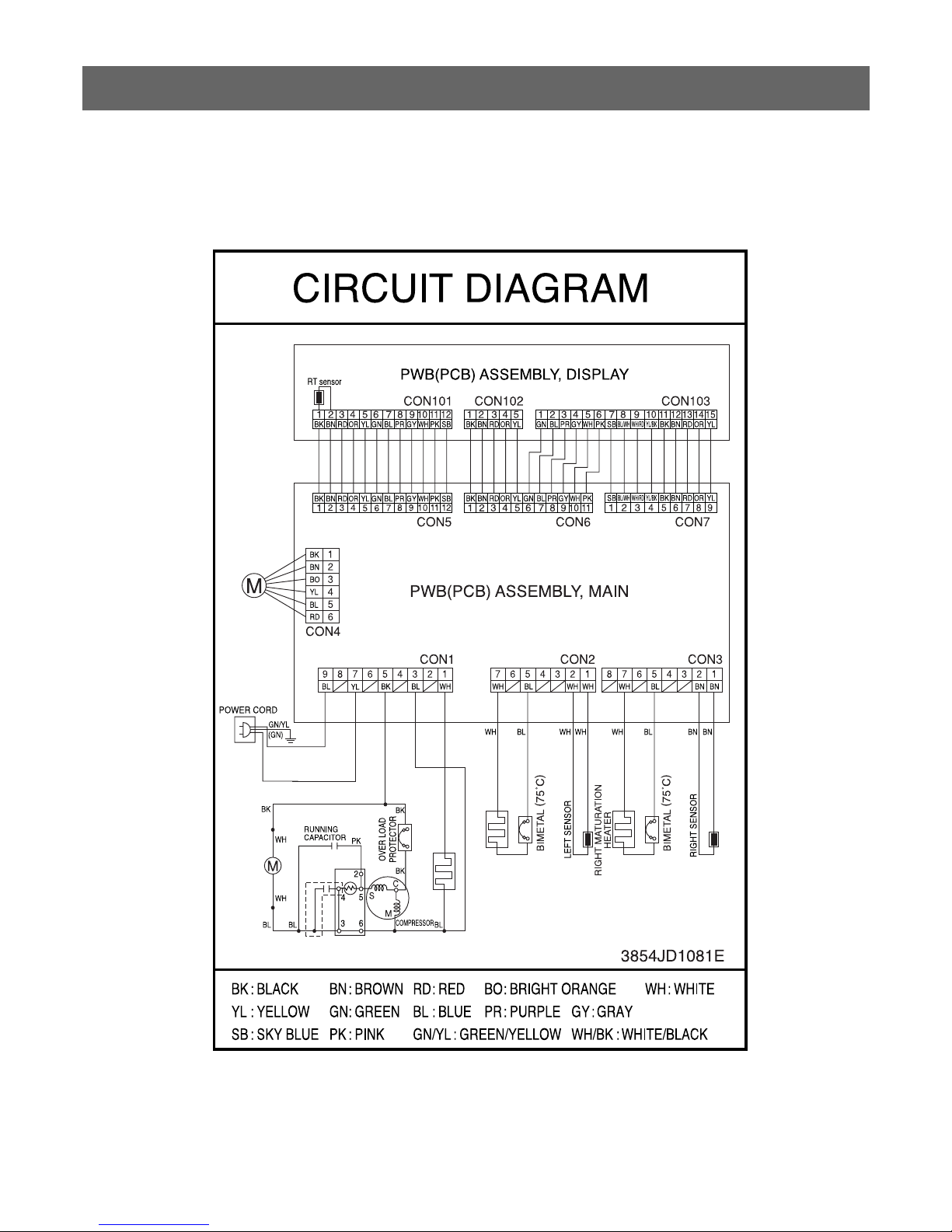

Chapter 4 Circuit Diagram

1. GR-K16, K18SLQ (LED MODULE TYPE)

3-WAY VALVE

MOTOR

PTC

STARTER

Mechanical Area

FAN MOTOR

LEFT MATURATION

HEATER

CONDENSATION

HEATER
