OWNER’S MANUAL

FRENCH DOOR

REFRIGERATOR

Please read this guide thoroughly before operating and

keep it handy for reference at all times.

LFC28768**

www.lg.comP/No.: MFL63264274

ENGLISH FRANÇAIS ESPAÑOL

IMPORTANT SAFETY INFORMATION

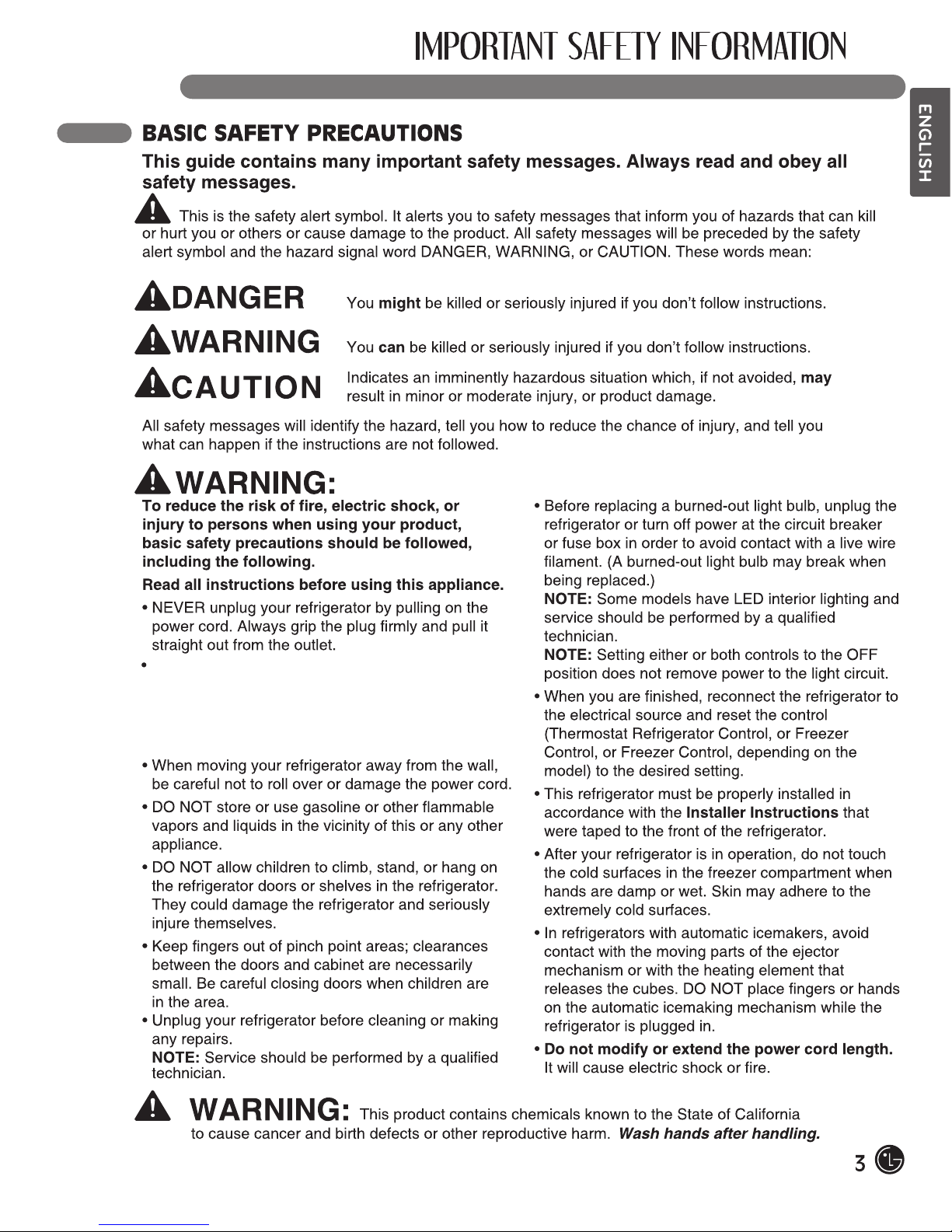

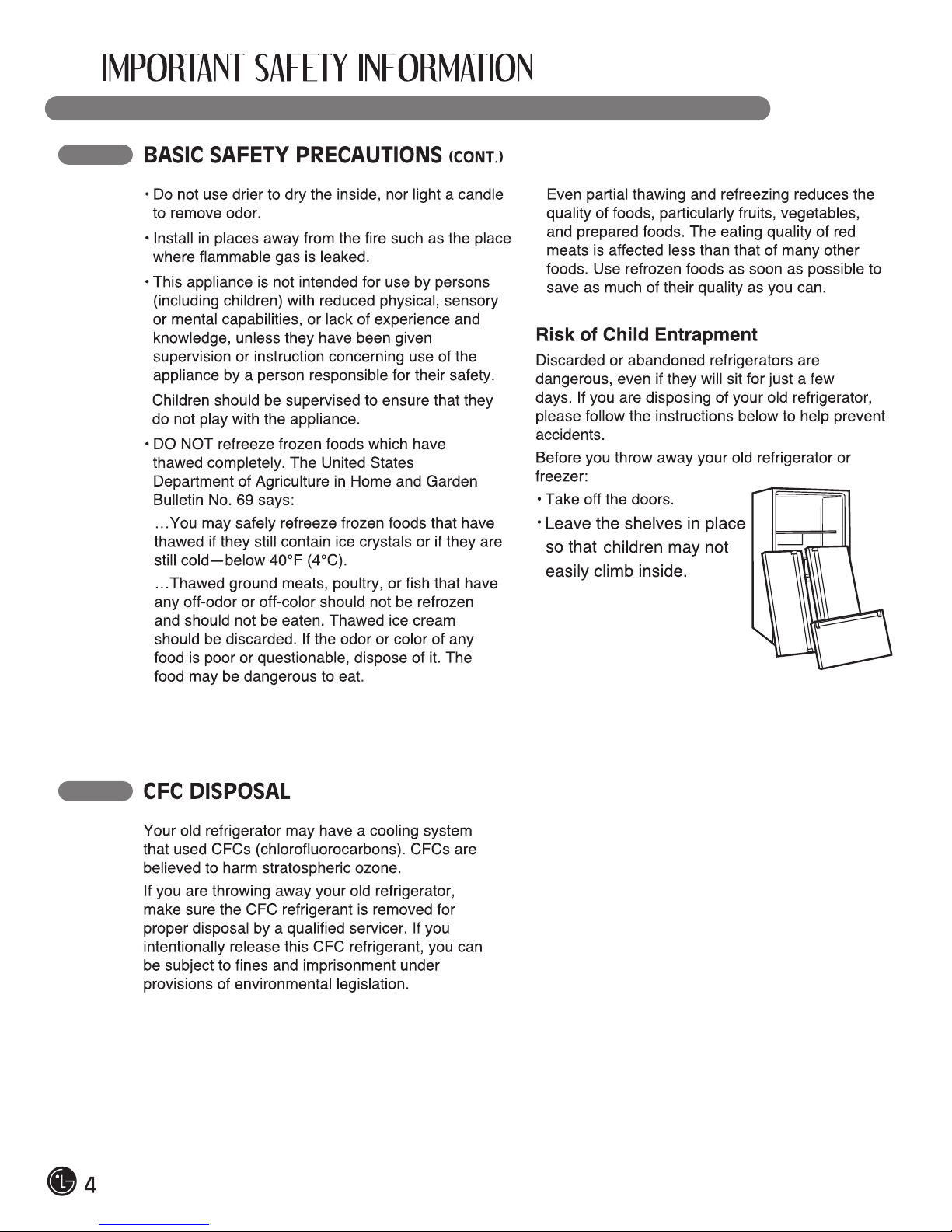

Basic Safety Precautions ........................................3

CFC Disposal ..........................................................4

How to Connect Electricity ......................................5

PARTS AND FEATURES

Special Features .....................................................6

Key Parts and Components ....................................7

INSTALLATION

Choose the Proper Location ...................................8

Clearances ..............................................................8

Flooring ...................................................................9

Handle Removal......................................................9

Refrigerator Door and Freezer Drawer Removal ..10

Light Replacement ................................................15

Connecting the Water Supply ...............................16

Connecting the Water Lines..................................17

Leveling the Refrigerator Doors ............................18

Starting..................................................................19

HOW TO USE

Setting The Controls .............................................20

Automatic Icemaker .............................................21

Storing Foods .......................................................22

Location of Foods .................................................23

Shelf Height Adjustment .......................................24

Removing and Replacing Components ................25

CARE AND CLEANING

Cleaning the Refrigerator .....................................27

General Information .............................................27

TROUBLESHOOTING

Before Calling for Service …………………………29

SMART DIAGNOSIS

Smart Diagnosis ………………………...............…28

SPECIFICATIONS

Key Dimensions and Specifications .....................33

WARRANTY

Product Registration Information ..........................34

THANK YOU!

Congratulations on your purchase

and welcome to the LG family.

Your new LG French Door

Refrigerator combines

advanced cooling technology

with simple operation and high

efficiency. Follow the operating

and care instructions in this

manual and your refrigerator

will provide you with many years

of reliable service.

If the supply cord is damaged, it must be replaced by

the manufacturer or its service agentor a similarly qualied

person in order to avoid a hazard. Do not use a cord that

shows cracks or abrasion damage along its length or at

either the plug or connector end.

ENGLISH

HOW TO CONNECT ELECTRICITY

IMPORTANT: Please read carefully.

wWARNING

Electrical Shock Hazard

For personal safety, this appliance must be

properly grounded. Have the wall outlet and

the circuit checked by a qualified electrician to

make sure the outlet is properly grounded.

RECOMMENDED GROUNDING METHOD

The refrigerator should always be plugged into

its own individual properly grounded electrical

outlet rated for 120 volts, 60 Hz, AC only, and

fused at 20 a peres. This provides the

best perfor ance and also prevents overloading

house wiring circuits which could cause a fire

hazard fro overheated wires. It is

reco ended that a separate circuit serving

only this appliance be provided.

Use a receptacle which cannot be turned off with

a switch or pull chain. Do not use an extension

cord. Where a standard two-prong wall outlet is

encountered, it is your personal responsibility

and obligation to have it replaced with a properly

grounded three-prong wall outlet.

Do not, under any circumstances, cut or

remove the third (ground) prong from the

power cord.

Do not use an adapter plug.

NOTE: So e odels have LED interior lighting and

service should be perfor ed by a qualified technician.

When you are finished, reconnect the refrigerator to

the electrical source and reset the control

(Ther ostat, Refrigerator Control, or Freezer Control,

depending on the odel) to the desired setting.

USE OF EXTENSION CORDS

Because of potential safety hazards under

certain conditions, we strongly recommend

against the use of an extension cord.

However, if you still elect to use an extension

cord, it is absolutely necessary that it be a UL-listed

(USA), 3-wire grounding-type appliance

extension cord having a grounding-type plug

and outlet and that the electrical rating of the

cord be 20 a peres ( ini u ) and 120 volts.

Use of an extension cord will increase the

clearance needed for the back of the

refrigerator.

SAVE THESE INSTRUCTIONS

SPECIAL FEATURES

CONTROL PANEL LED DISPLAY SCREEN

Simple electronic controls are user-friendly.

The LED screen shows refrigerator and freezer

temperatures, displays water filter status,

dispenser information, and more.

ICE PLUS

When this feature is activated, the freezer section

will run at the coldest temperature for a 24- hour

period to increase ice production.

DOOR ALARM

A warning alarm sounds at 30-second intervals

when the refrigerator or freezer door is left open

for more than 60 seconds.

CRISPERS

LG’s crispers preserve humidity and help vegetables

stay crisp.

GLIDE‘N’SERVE

Provides storage space with a variable temperature

control that keeps the compartment colder than

refrigerator.

NOTE: This guide covers several different models.

The refrigerator you have purchased may have some or all of the items listed below.

The locations of the features shown below may not match your model.

Mullion

Folds in when the left door is opened.

21 3

KEY PARTS AND COMPONENTS

In addition to the special features and components

outlined in the Special Features section, there are

several other important components that are

referenced in this manual.

ENGLISH

ADJUSTABLE REFRIGERATOR SHELVING

The refrigerator compartment shelves are

adjustable to allow flexibility for storage needs.

GALLON STORAGE BINS

Three interchangeable bins can be arranged to

suit your storage needs.

REMOVABLE ICE STORAGE BIN

The ice storage bin can be removed to fill ice

buckets, coolers, or pitchers.

LED INTERIOR LAMPS

Refrigerator interior is lit by the LED array.

FIXED DOOR BINS

CHOOSE THE PROPER LOCATION

wWARNING

Excessive Weight Hazard

Two or more people are required when

moving and unpacking the appliance.

• Store and install the refrigerator where it will not

be exposed to te peratures below freezing or

exposed to outdoor weather conditions.

• Install this appliance in an area where the

te perature is between 55°F (13°C) and 110°F

(43°C). If the te perature around the appliance

is too low or too high, cooling ability ay be

adversely affected.

• If this refrigerator is installed where the

te perature is above 110°F (43°C), the

freezing capacity is co pro ised and the cost

of electricity used increases.

• To reduce the risk of electric shock, do not

install the refrigerator in a wet or da p area.

• Select a place where a water supply can be

easily connected for the auto atic ice aker

and dispenser.

• Unstable installation ay cause vibration and

noise. If the floor is not even, ake the

refrigerator level by rotating the height adjusting

screws.

• Properly ground the refrigerator to confor with

all governing codes and ordinances.

wAUTION

Avoid placing the unit near heat sources,

direct sunlight, or moisture.

CLEARANCES

• Too s all a distance fro adjacent ite s ay

result in lowered freezing capability and

increased electricity consu ption charges.

Allow at least 24 in. (61 c ) in front of the

refrigerator to open the doors.

NOTE: For co plete di ensions and specifications,

see page 33.

2" (5.08 c )

ENGLISH

FLOORING

• To minimize noise and vibration, the refrigerator

MUST be installed on a solidly constructed floor.

• To avoid vibration, the unit must be level.

If required, adjust the leveling legs to compensate

for unevenness of the floor. The front should be

slightly higher than the rear to aid in door

closing. The leveling legs can be turned easily

by pushing against the top of the refrigerator to

take the weight off the feet. Turn the leveling

legs clockwise to raise the unit or

counterclockwise to lower it.

• Carpeting and soft tile surfaces are not

recommended.

• Never install the refrigerator on a platform or

weakly supported structure.

NOTE: When moving the refrigerator for cleaning

or service, be sure to protect the floor. Always

pull the refrigerator straight out when moving it.

Do not wiggle or walk the refrigerator when trying

to move it; floor damage could occur.

HANDLE REMOVAL

To move the refrigerator through a house door, it

may be necessary to remove the refrigerator

door handles.

NOTE: Handle appearance may vary from

illustrations on this page.

CAUTION

• Use special care when removing handles to

prevent scratching the doors.

• The handle could be damaged if you hit it with

a hammer while removing or attaching.

• When you assemble or disassemble a handle,

you must push or pull with reasonable force.

NOTE: It is recommend that the doors be removed when it is necessary to move the refrigerator through a

narrow opening.

Loosen the set screws with a 2.5 mm (3/32")

Allen wrench and remove the handle.

NOTE: If the handle mounting fasteners need

to be tightened or removed, use a 1/4" Allen

wrench.

Mounting

Fasteners

Set Screw

Allen Wrench

1Loosen the set screws located on the

lower side of the handle with a

in. Allen

wrench and remove the handle.

2Loosen the mounting fasteners that

connect to the freezer drawer and handle

using a

in. Allen wrench, and remove

the mounting fasteners.

1_MFL63728512_영어 2012.5.12 3:53 PM 페이지10 1_MFL63728512_영어 2012.5.12 3:53 PM 페이지10

HANDLE REMOVAL (CONT.)

HANDLE REINSTALLATION

REFRIGERATOR DOOR AND FREEZER DRAWER REMOVAL

REFRIGERATOR DOOR REMOVAL

wWARNING

Electric Shock Hazard

• Disconnect electrical supply to the refrigerator before installing. Failure to do so could result in death or

serious injury.

• Do not put hands or feet or metal sticks into the air vents, base grille, or bottom of the refrigerator. You may

be injured or receive an electrical shock.

• Be careful when you work with the hinge, base grille, and stopper. You may be injured.

Before you begin, remove food and bins from the doors. f your entrance door is too narrow for the refrigerator

to pass through, remove the refrigerator door and move the refrigerator sideways through the doorway.

wWARNING

When the customer takes apart the handle or

assemble it from a refrigerator, please be cautious of

following things.

• Hold the handle with your own hand to make sure

not to drop the handle to the floor or instep while

taking apart the handle from a refrigerator.

• Do not swing the handle towards people or animals

after taking apart the handle.

• nsert the bracket hole of the handle into the stopper

bolt of the door exactly, and then assemble the set

screws to fix the handle.

• Check if there's any gap between the door and

handle after fixing the handle.

Place the handle on the door by aligning handle

footprints to fit mounting fasteners and tighten the

set screws with a 2.5 mm (3/32") Allen wrench.

NOTE: f the handle mounting fasteners need to

be tightened or removed use a 1/4" Allen wrench

Assemble the mounting fasteners at

both ends of the handle using a 1

/4in. Allen

wrench.

Place the handle on the door by fitting

the handle footprints over the mounting

fasteners and tightening the set screws

with a 1

/8in. Allen wrench.

Mounting

Fasteners

1_MFL63728512_영어 2012.5.12 3:53 PM 페이지10

Indice

Lingue:

Manuali Frigorifero popolari di altre marche

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Manuale utente

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Manuale utente

Sharp

Sharp SJ-BA31IEXW2-EU Manuale utente

CORBERO

CORBERO CC2300MCW Manuale utente

KitchenAid

KitchenAid 2205264 Manuale utente

Stengel

Stengel KU 1101 A++ Manuale utente

NEFF

NEFF KI181 Series Manuale utente

Hoshizaki

Hoshizaki Reach-In Manuale utente

Amana

Amana ASD2524VES00 Manuale utente

BOMANN

BOMANN KGC 213 Manuale utente

Danby

Danby DAR044A1SLDD Istruzioni per il montaggio

Samsung

Samsung RF323TE Manuale utente

Beko

Beko CSA31022 Manuale utente

IKEA

IKEA FROSTIG C 185 E Manuale utente

Electrolux

Electrolux ER 6821 D Manuale utente

True

True TS-28 Manuale utente

Frigidaire

Frigidaire FSC23R5DW9 Manuale utente

Beko

Beko LSP4579W Manuale utente
