LG Refrigerator-freezer Manuale utente
ХОЛОДИЛЬНИК С
МОРОЗИЛЬНЫМ
ОТДЕЛЕНИЕМ
ИНСТРУКЦИЯ ПО ЭКСПЛУАТАЦИИ
ПЕРЕД ВКЛЮЧЕНИЕМ ХОЛОДИЛЬНИКА
ВНИМАТЕЛЬНО ПРОЧИТАЙТЕ ДАННУЮ
ИНСТРУКЦИЮ И ВСЕГДА ДЕРЖИТЕ ЕЕ ПОД РУКОЙ.
REFRIGERATOR-
FREEZER
OWNER'S MANUAL
PLEASE
READ THIS OWNER'S MANUAL THOROUGHLY
BEFORE OPERATING AND KEEP IT HANDY FOR
REFERENCE AT ALL TIMES.
25
Introduction
Installation
Operation
Suggestion On
Food storage
Care and
Maintenance
Trouble Shooting
Table of Contents
Registration
Important Safety Instruction
Identification of Parts
Installation
Starting
Temperature Control
Display Panel For Temperature Control
Opti Fresh Zone
Super Freezer
Vacation
Self Test
Lock
Door Alarm
Ice Making
Defrosting
Half Shelf
Wine Rack
Storing Food
General Information
Lamp Replacement
To Reverse the Doors
Cleaning
Trouble Shooting
26
26
31
32
32
33
33
35
36
36
37
37
38
38
38
39
39
40
42
43
43
44
45
Introduction
Introduction
Registration
The model and serial number are found on the rear of
this unit. This number is unique to this unit and not
available to others. You should record requested
information here and retain this guide as a permanent
record of your purchase. Staple your receipt here.
Date of Purchase :
Dealer Purchased From :
Dealer Address :
Dealer Phone No. :
Model No. :
Serial No. :
Important Safety Instruction
To avoid any risk of personal injury, material
damage or incorrect use of the appliance, be sure to
observe the following safety precautions. (After
reading these owner’s instructions, please keep
them in a safe place for reference). Remember to
hand them over to any subsequent owner.
Indicates that
a danger of
death or
serious injury
exists
Warning
ww
26
Indicates that
a risk of
personal
injury or
material
damage exists
Caution
ww
The working life of this set is 7 years since the date of
delivery to consumer.
27
Introduction
Important Safety Instruction
wwWarning
Precaution •This fridge-freezer must be properly installed and
located in accordance with the Installation
Instruction before it is used.
•Never unplug your fridge-freezer by pulling on
the power cord. Always grip plug firmly and pull
straight out from the outlet.
•When moving your appliance away from the wall,
be careful not to roll over or damage the power
cord.
•After your fridge-freezer is in operation, do not
touch the cold surfaces in the freezer
compartment, particularly when hands are damp
or wet. Skin may adhere to these extremely cold
surfaces.
•Pull out the power plug prior to cleaning the fridge-
freezer. Never damage, serverely bend, pull out, or
twist the power cord because power cord damage may
cause a fire or electronic shock. Never place glass
products in the freezer because they may be broken
when their inner contents are frozen.
•Do not directly spray water inside or outside the
fridge/freezer.
There is a risk of explosion or fire.
•Do not insert the power plug with wet hands.
You may receive an electric shock.
•Do not put a container filled with water on top of
the appliance.
If the water spills on to any electrical parts, it may lead
to fire or electric shock.
•Do not install the fridge/freezer in a damp place,
where it could be splashed with water.
Incorrect insulation of the electrical parts may cause an
electric shock or file.
Introduction
28
Important Safety Instruction
•Do not disassemble, repair or alter the appliance.
It may cause fire or abnormal operations, which may
lead to injury.
•Pull the power plug out of the socket before
replacing the interior light in the refrigerator.
Otherwise, there is a risk of electric shock.
•If possible, connect the fridge-freezer to its own
individual electrical outlet to prevent it and other
appliances or household lights from causing an
overload.
The supply plug of the refrigerator-freezer should be
placed in easy accessible position for quick disconnection
in emergency.
Accessibility of
Supply Plug
It will cause electric shock or fire.
Do not modify or
extend the Power
Cord length
If the supply cord is damaged, it must be replaced by the
manufacturer or its service agent or a similarly qualified
person in order to avoid a hazard.
Don't store or use gasoline or other flammable vapors
and liquids in the vicinity of this or any other appliance.
In the event of an electric short circuit, grounding
(earthing) reduces the risk of electric shock by providing
an escape wire for the electric current. In order to
prevent possible electric shock, this appliance must be
grounded. Improper use of the grounding plug can result
in an electric shock. Consult a qualified electrician or
service person if the grounding instructions are not
completely understood, or if you have doubts on
whether the appliance is properly grounded.
Risk of child entrapment.
Before you throw away your old refrigerator or freezer:
Take off the doors.
Leave the shelves in place so that children may not
easily climb inside.
Supply Cord
Replacement
Danger
Don't store
Grounding
(Earthing)
29
Introduction
Important Safety Instruction
wwWarning wwKeep ventilation openings, in the appliance enclosure
or in the built-in structure, clear of obstruction.
wwDo not use mechanical devices or other means to
accelerate the defrosting process, other than those
recommended by the manufacturer.
wwDo not damage the refrigerant circuit.
wwDo not use electrical appliances inside the food
storage compartments of the appliance, unless they
are of the type recommended by the manufacturer.
wwThe refrigerant and insulation blowing gas used in
the appliance require special disposal procedures.
When disposal, please consult with service agent or a
similarly qualified person.
This appliance contains a small amount of isobutane
refrigerant (R600a), natural gas with high
environmental compatibility, but it is also
combustible. When transporting and installing the
appliance, care should be taken to ensure that no
parts of the refrigerating circuit are damaged.
Refrigerant squirting out of the pipes could ignite
or cause an eye injury. If a leak is detected, avoid
any naked flames or potential sources of ignition
and air the room in which the appliance is standing
for several minutes.
In order to avoid the creation of a flammable gas air
mixture if a leak in the refrigerating circuit occurs, the
size of the room in which the appliance may be sited
depends on the amount of refrigerant used. The room
must be 1m2in size for every 8g of R600a refrigerant
inside the appliance. The amount of refrigerant in your
particular appliance is shown on the identification plate
inside the appliance.
Never start up an appliance showing any signs of
damage. If in doubt, consult your dealer.
Introduction
Important Safety Instruction
wwCaution •If the wall socket is loose, do not insert the power
plug.
It may cause electric shock or fire.
•Never unplug your refrigerator by pulling on the
power cord. Always grip plug firmly and pull it
straight out from the outlet. You may disconnect a
wire and cause a short circuit.
•Do not use a wet or damp cloth when cleaning the
plug. Remove any foreign matter from the power
plug pins.
Otherwise, there is a risk of fire.
•Do not put your hands into the bottom area of
the appliance.
Any Sharp edges may cause personal injury..
•After unplugging the appliance, wait for at least
five minutes before plugging it again to the wall
socket.
Abnormal operation of the freezer may cause material
damage.
•If the appliance is not to be used for a long time,
pull out the power plug.
Any deterioration in the insulation may cause fire.
•Do not let children touch or play with the control
panel on the front of the appliance.
•The refrigerant used in fridge/freezer and the
gases in the insulation material require special
disposal procedures. Ensure that none of the pipes
on the back of the appliances are damaged prior
to disposal.
30
31
Introduction

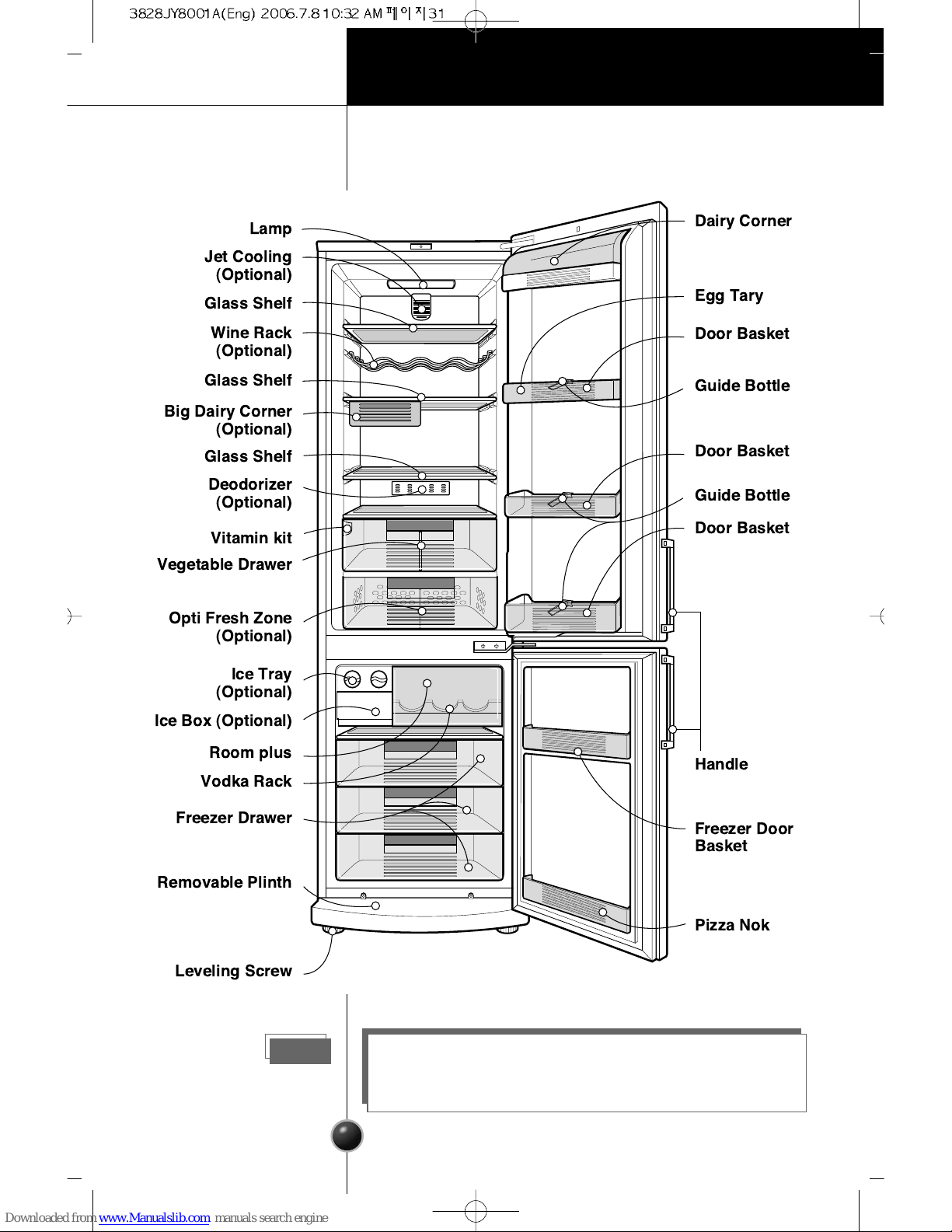

Identification of Parts
Note If you find some parts missing from your unit, they
may be parts only used in other models. (i.e. the
“Miracle Zone” is not included in all models)
!"
# $%
!"
&' (
&
! )
!"
!"
!"
*%
!"
*% + !"
$
& $%
(
$,'
, %(
-
Installation
Installation
Starting
1. Select a good location.
Place your fridge-freezer where it is easy to use.
2. Avoid placing the unit near heat sources, direct
sunlight or moisture.
3. To ensure proper air circulation around the
fridge -freezer, please maintain sufficient space on
both the sides as well as top and maintain at least
2 inches (5 cm) from the rear wall.
4. To avoid vibration, the unit must be leveled. If
required, adjust the leveling screws to compensate for
the uneven floor.
The front should be slightly higher than the rear to
aid in door closing.
Leveling screws can be turned easily by tipping the
cabinet slightly.
Turn the leveling screws counterclockwise( ) to
raise the unit, clockwise( ) to lower it.
5. Clean your fridge-freezer thoroughly and wipe off all
dust accumulated during shipping.
6. Install accessories such as ice cube box, etc., in their
proper places. They are packed together to prevent
possible damage during shipment.
7. Connect the power supply cord (or plug) to the
outlet. Don't double up with other appliances on the
same outlet.
When your fridge-freezer is installed, allow it 2-3 hours
to stabilize at normal operating temperature prior to
filling it with fresh or frozen foods.
If power plug is disconnected, allow 5 minutes delay
before restarting.
Your fridge-freezer is now ready for use.
32
33
Operation
Temperature Control
Display Panel For
Temperature Control
Your fridge-freezer has controls that let you regulate the
temperature in the fridge and freezer compartments.
Temperature Adjustment Button for
Refrigerator Compartment
Temperature Adjustment Button for
Opti Fresh Zone Compartment
ON/OFF Power Button
Temperature Adjustment Button
for Freezer Compartment
Super Freezer Button
Vacation Button
< Exterior Type 1 >
< Exterior Type 2 >
< Interior Type>
MinMin MaxMax
MinMin MaxMax
Temperature Adjustment Button for
Refrigerator Compartment
Lock Button
ON/OFF Power Button
Temperature Adjustment Button
for Freezer Compartment
Super Freezer Button
Vacation Button
ON/OFF Power Button Temperature Adjustment Button for
Refrigerator Compartment
Adjusting the
temperatures and
functions
Altri manuali per Refrigerator-freezer
19
Indice
Altri manuali LG Frigorifero
LG
LG GL-M492GGLJ Manuale utente
LG
LG LFC22740 Series Istruzioni per il montaggio
LG
LG LMXC23746S Manuale utente
LG
LG LFX25976xx Manuale utente
LG
LG GBB940DFQZT Manuale utente
LG
LG LFX25992 series Manuale utente
LG
LG Refrigerator-freezer Manuale utente
LG
LG GB-335WL Manuale utente
LG
LG LF25G8330 Series Manuale utente
LG
LG GR-L267FSN Manuale utente
LG
LG LRSPC2331T Manuale utente
LG
LG REFRIGERATOR Manuale utente
LG
LG GL-051 Manuale utente
LG
LG LMX25985SB Manuale utente
LG
LG MFL62227222 Manuale utente
LG
LG LFX28979SB Manuale utente
LG
LG GN-F579ESDV Manuale utente
LG
LG LFX21980 Series Manuale di istruzioni
LG
LG GT22BPPD Manuale utente
LG
LG LFX28978 Series Manuale utente
