LG VB2718NRTQ Manuale utente
VACUUM CLEANER
SERVICE MANUAL

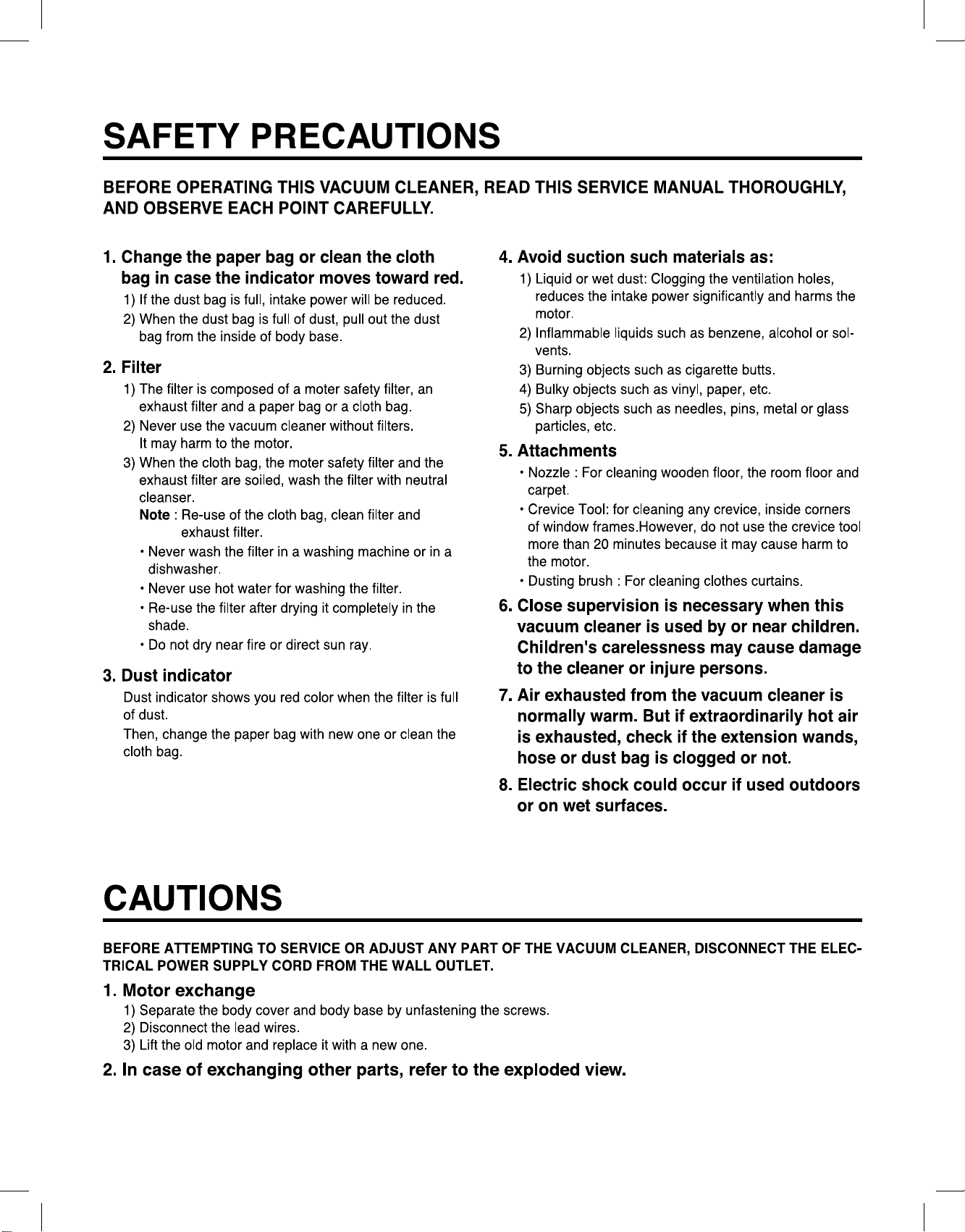

CAUTION
BEFORE SERVICING THE UNIT, READ THE
"SAFETY PRECAUTIONS" IN THIS MANUAL.
MODEL:VB2718NRTQ
Internal Use Only
Website http://biz.lgservice.com
삼흥
정판
P/No.:MFL48957501
MAR.2008
PrintedinChina
Copyright © 2007 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
-2-
-3-
LGE Internal Use Only Copyright © 2007 LG Electronics. Inc. All right reserved.
Only for training and service purposes

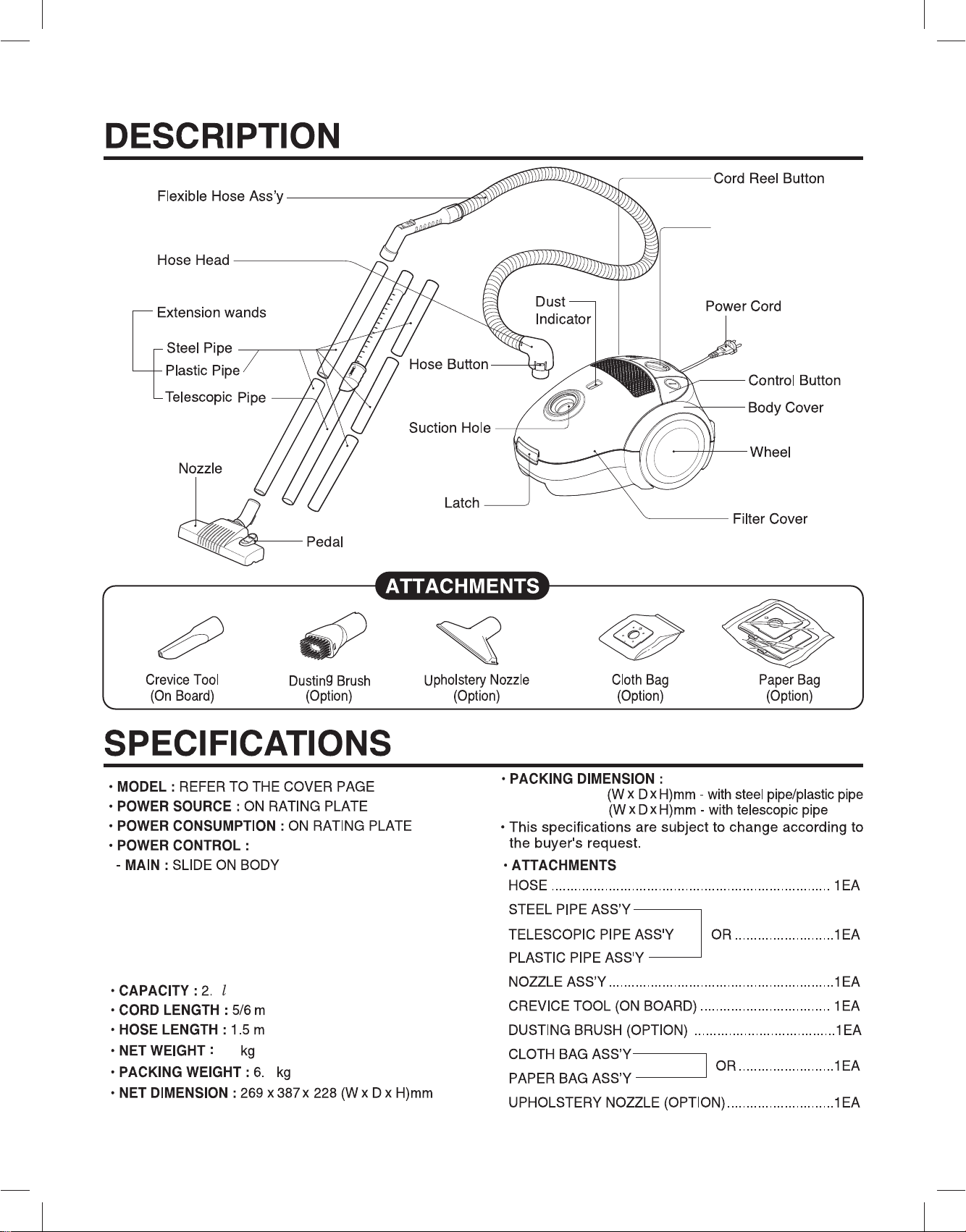

Control Knob(Rotate)
290x485x293
5
4.3
7
(VB2716NRTU)
(VB2717NRTU/TN)
(VB2718NRDN)
Copyright © 2007 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
-4-
290x550x293
(VC3817R)
(VC3817RU)
(VC3816RU)

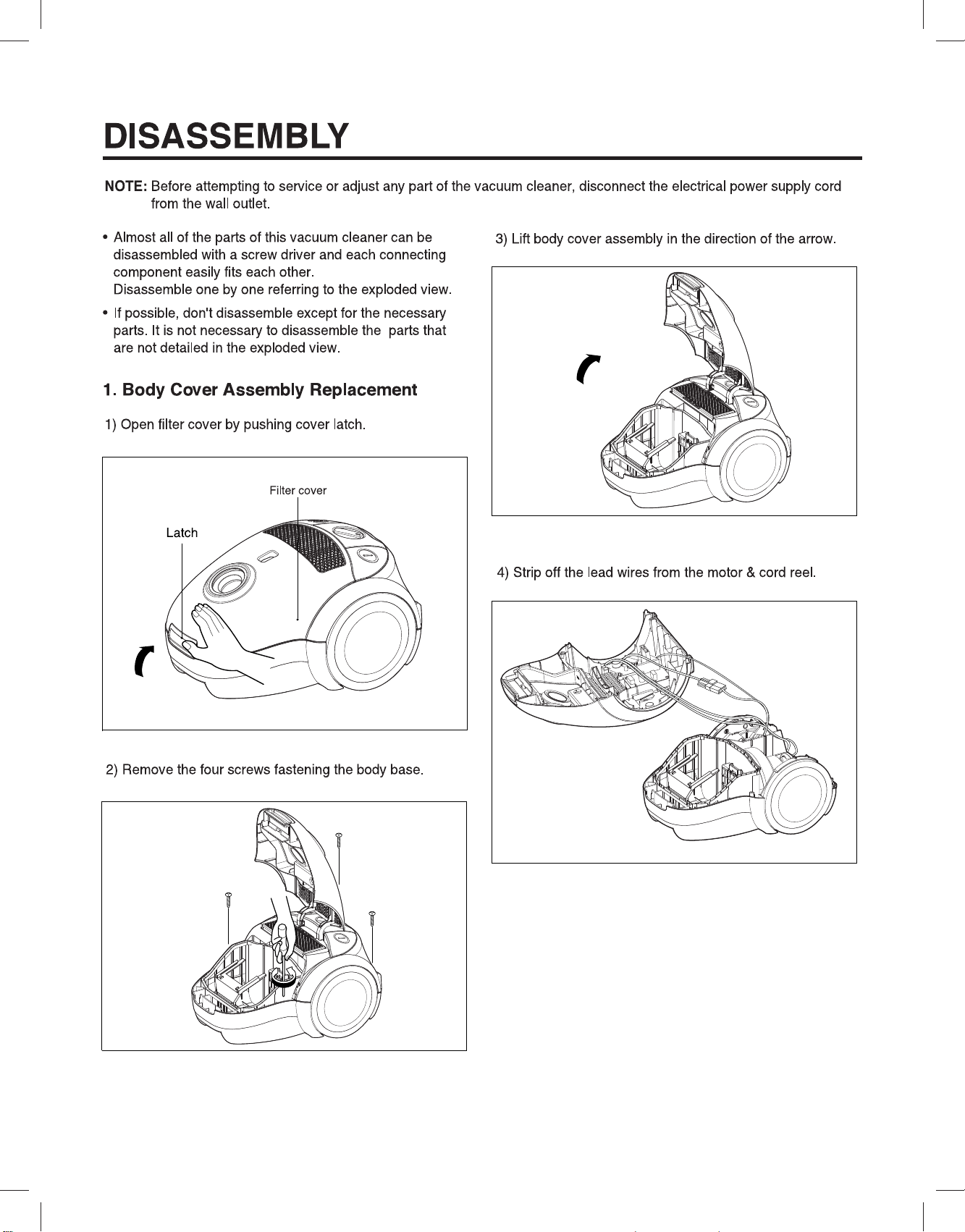

-5-
LGE Internal Use Only Copyright © 2007 LG Electronics. Inc. All right reserved.
Only for training and service purposes

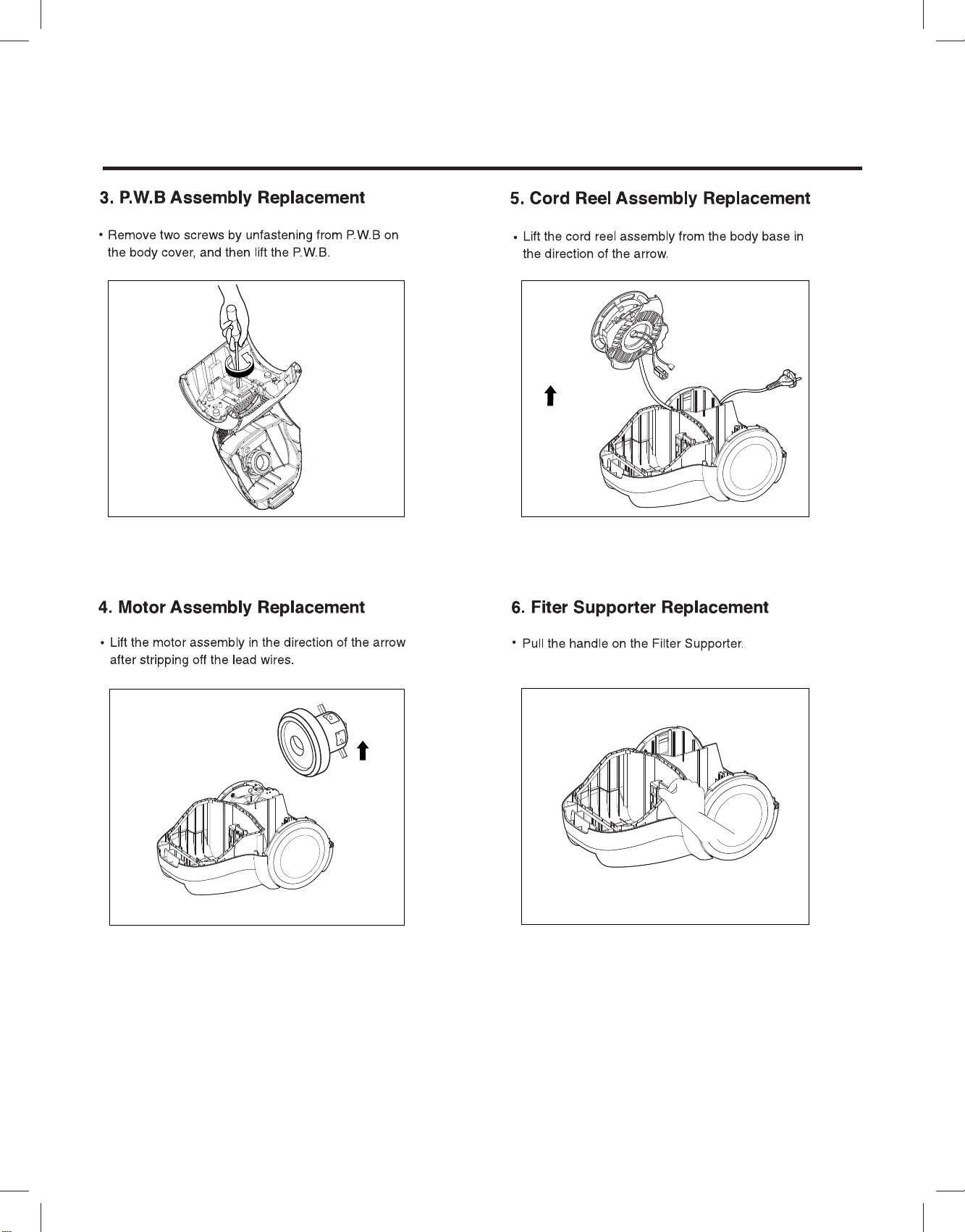

Copyright © 2007 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
-6-

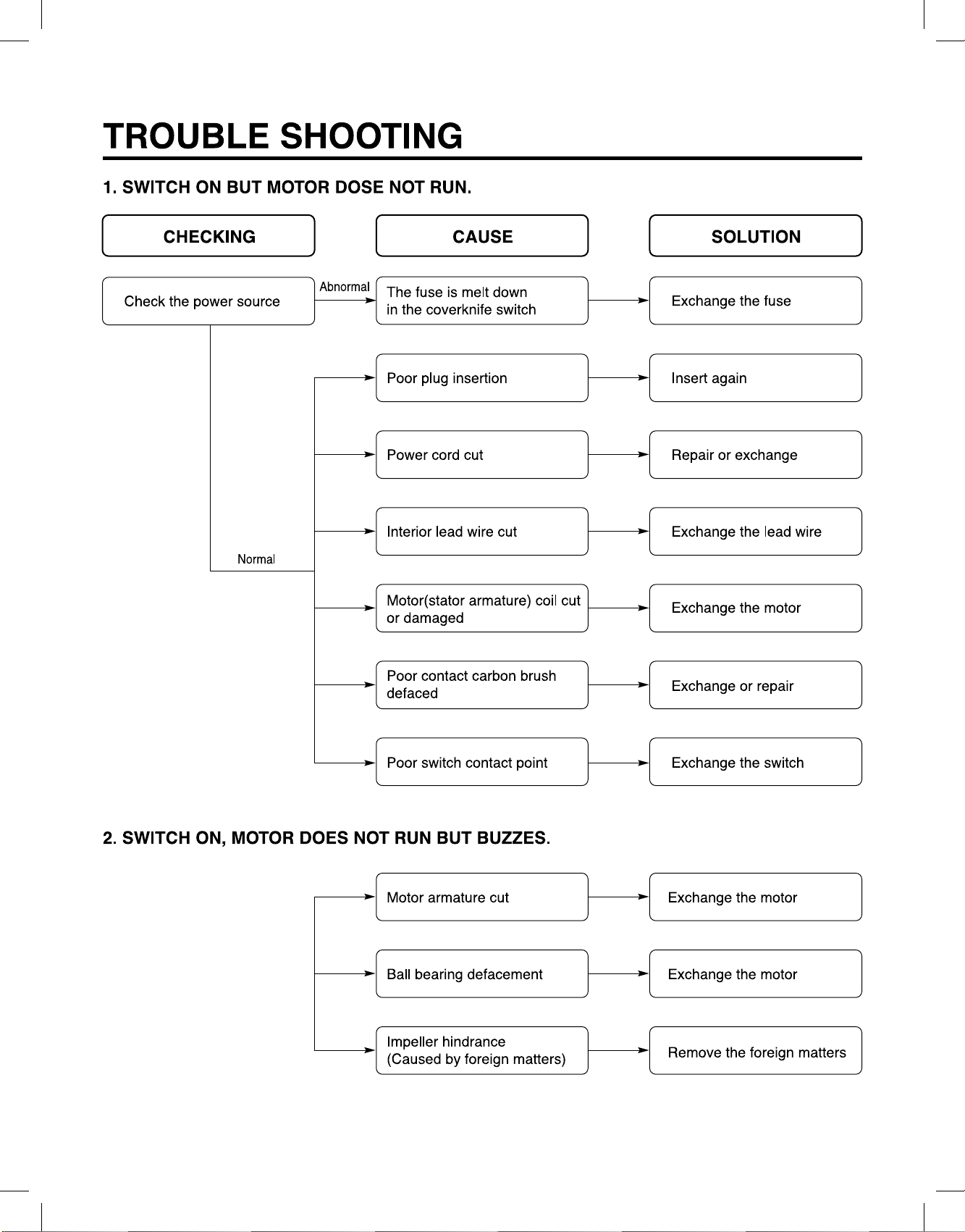

-7-
LGE Internal Use Only Copyright © 2007 LG Electronics. Inc. All right reserved.
Only for training and service purposes

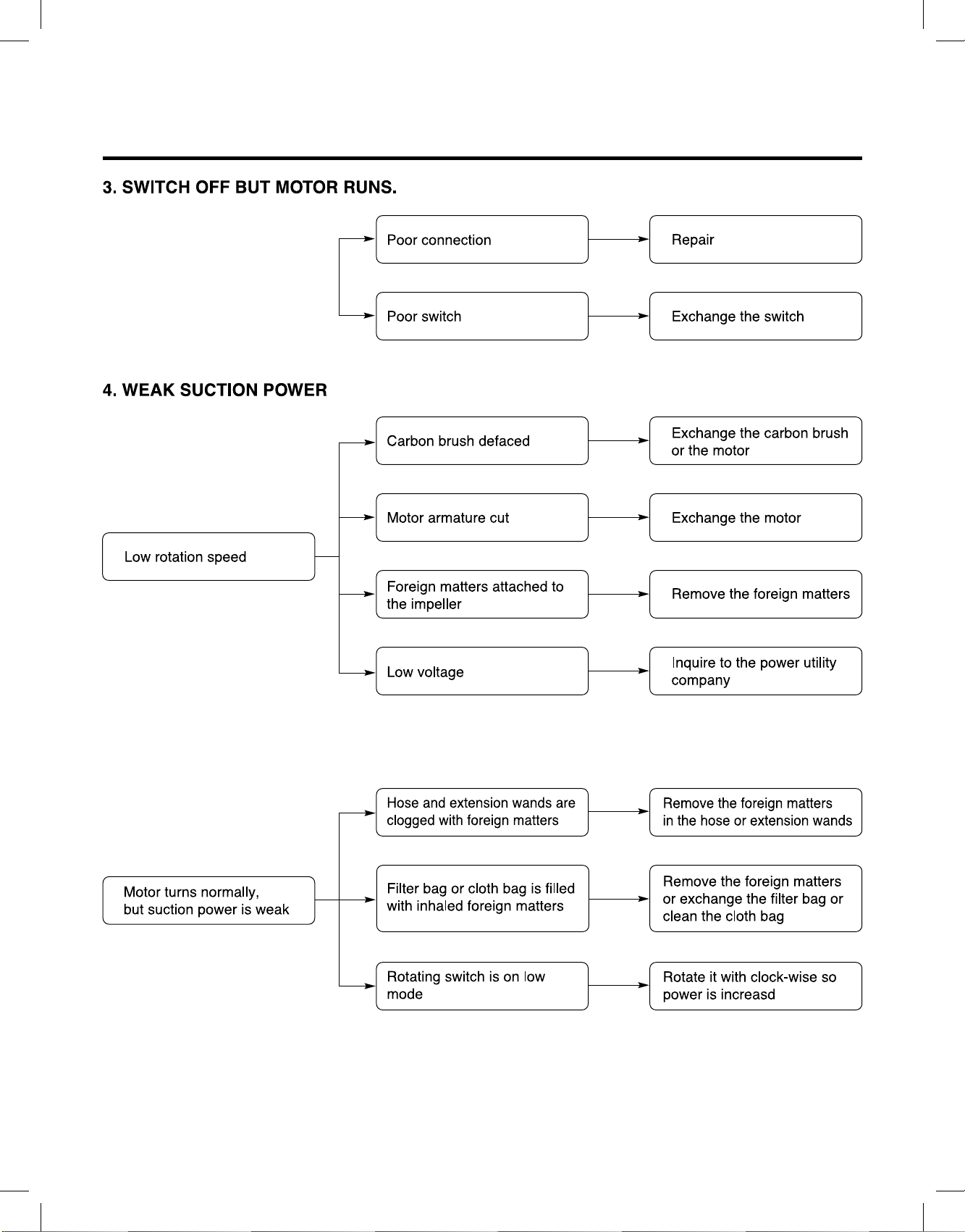

Copyright © 2007 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
-8-

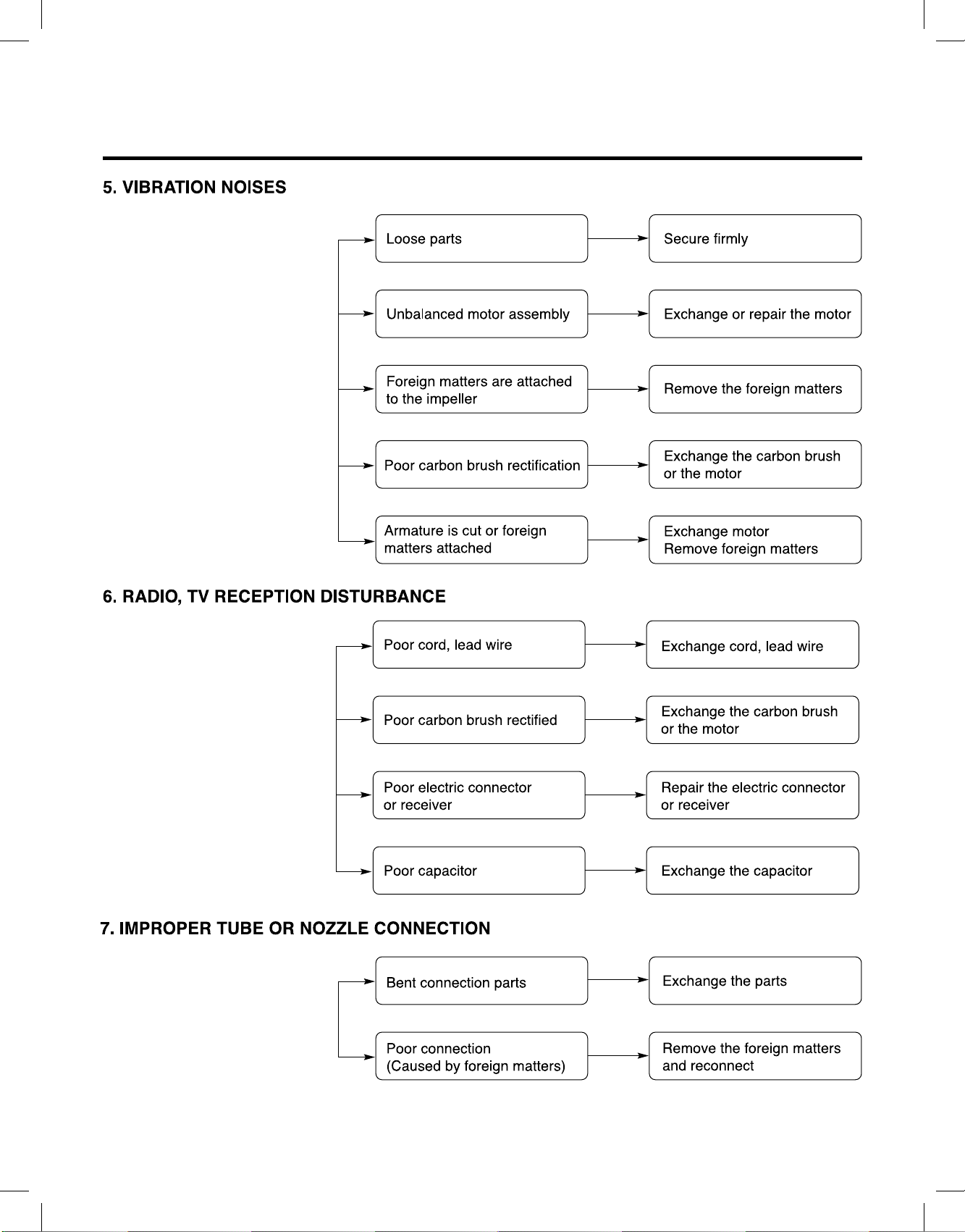

-9-
LGE Internal Use Only Copyright © 2007 LG Electronics. Inc. All right reserved.
Only for training and service purposes
L

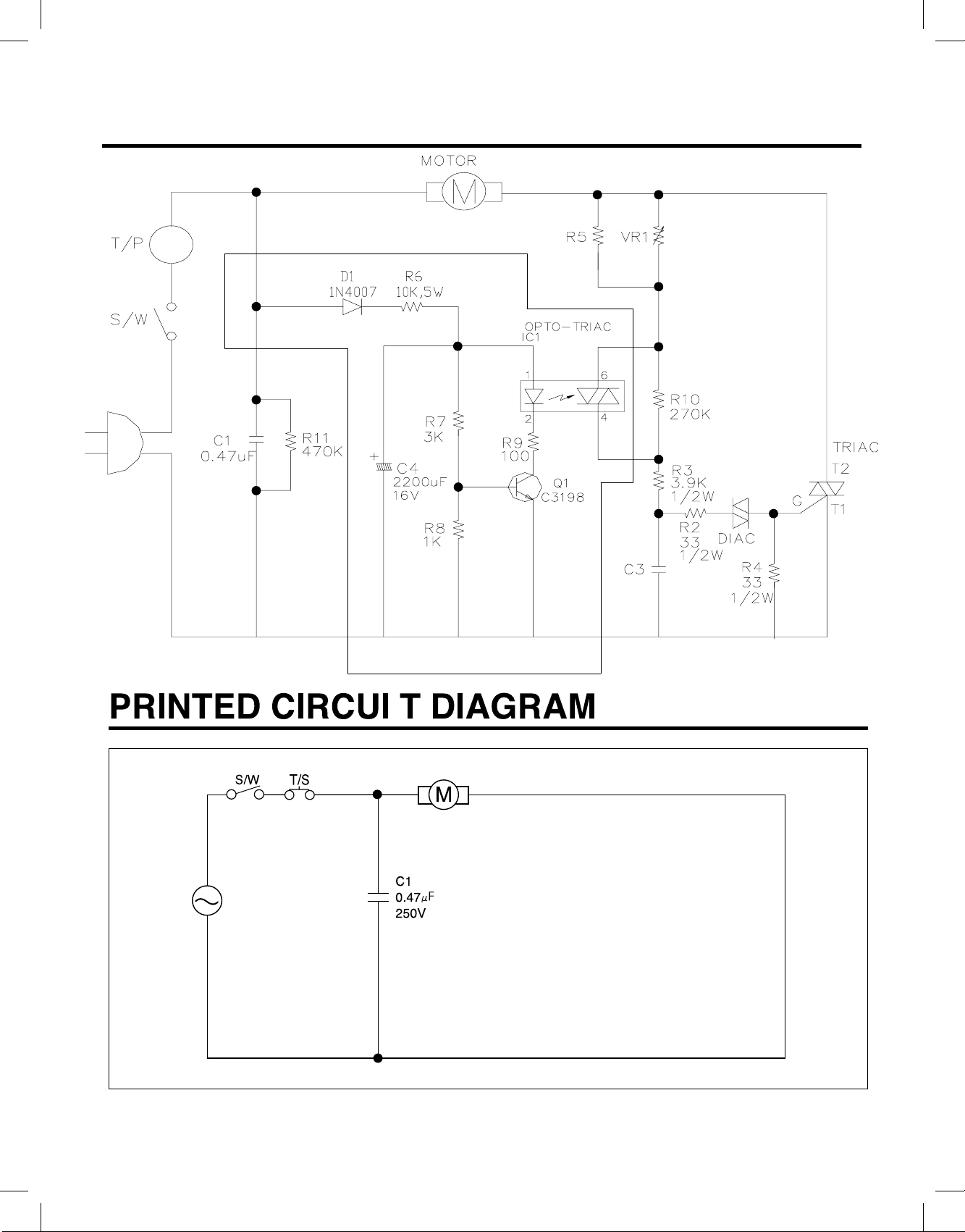

SCHEMATIC DIAGRAM
Copyright © 2007 LG Electronics. Inc. All right reserved. LGE Internal Use Only
Only for training and service purposes
-10-
