LG FH496TDL23 Manuale utente
WASHING
MA
CHINE
FH296EDL24
FH0B8EDL2 FH0B8EDL21
FH0B8QDL22 FH0B8QDL25
FH296EDL23
FH4B8EDL21
P/NO : MFL67584559
Please read this manual carefully before operating
your washing machine and retain it for future reference.
FH496TDL23 FH2B8EDL21 FH0B8QDL2
FH496TDL24
Rev. No.: 00
MFL67584559
No Spin/400/800/1000 [FH0B8QDL2 / FH0B8QDL22 / FH0B8QDL25 /
FH0B8EDL2 / FH0B8EDL21]
No Spin/400/800/1200 [FH2B8EDL21 / FH296EDL24 / FH296EDL23]
No Spin/400/800/1400 [FH4B8EDL21 / FH496TDL23 / FH496TDL24]
7.0kg : [FH0B8QDL2 / FH0B8QDL22 / FH0B8QDL25]
7.5kg : [FH4B8EDL21 / FH2B8EDL21 / FH296EDL24]
[FH0B8EDL2 / FH0B8EDL21 / FH296EDL23]
8.0kg : [FH496TDL23 / FH496TDL24]
leg
Adjustable
Lower cover
Door
Drawer
(For detergent and
fabric softener)
Power Plug
Control Panel
Drum
Drain Pump Filter
Drain Plug
Lower Cover Cap

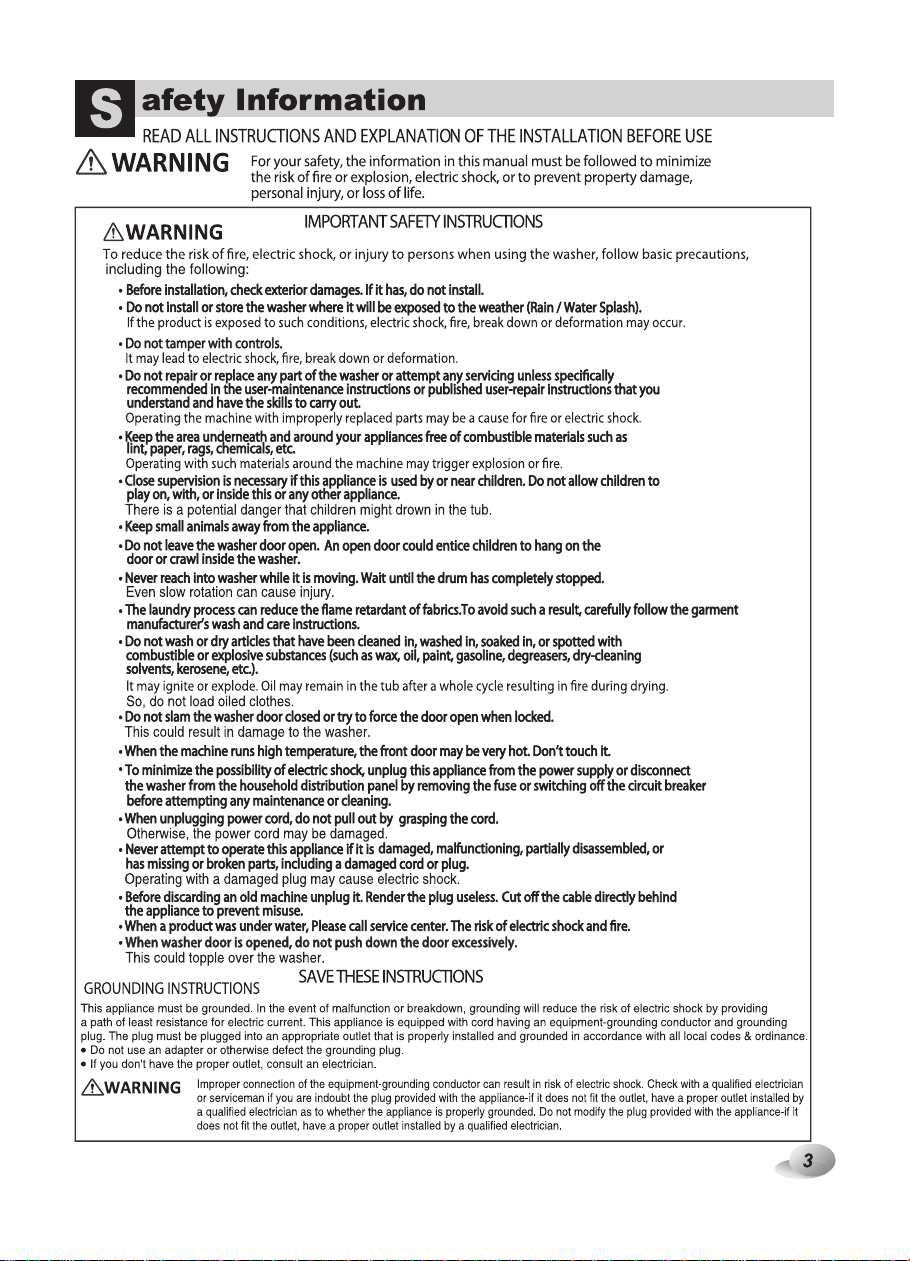

If the supply cord is damaged,
it must be replaced by the
manufacturer or its service agents
order to avoid a hazard.
59kg / 2100W
carpeted floor.subjected
in caused
Machine.
5
o

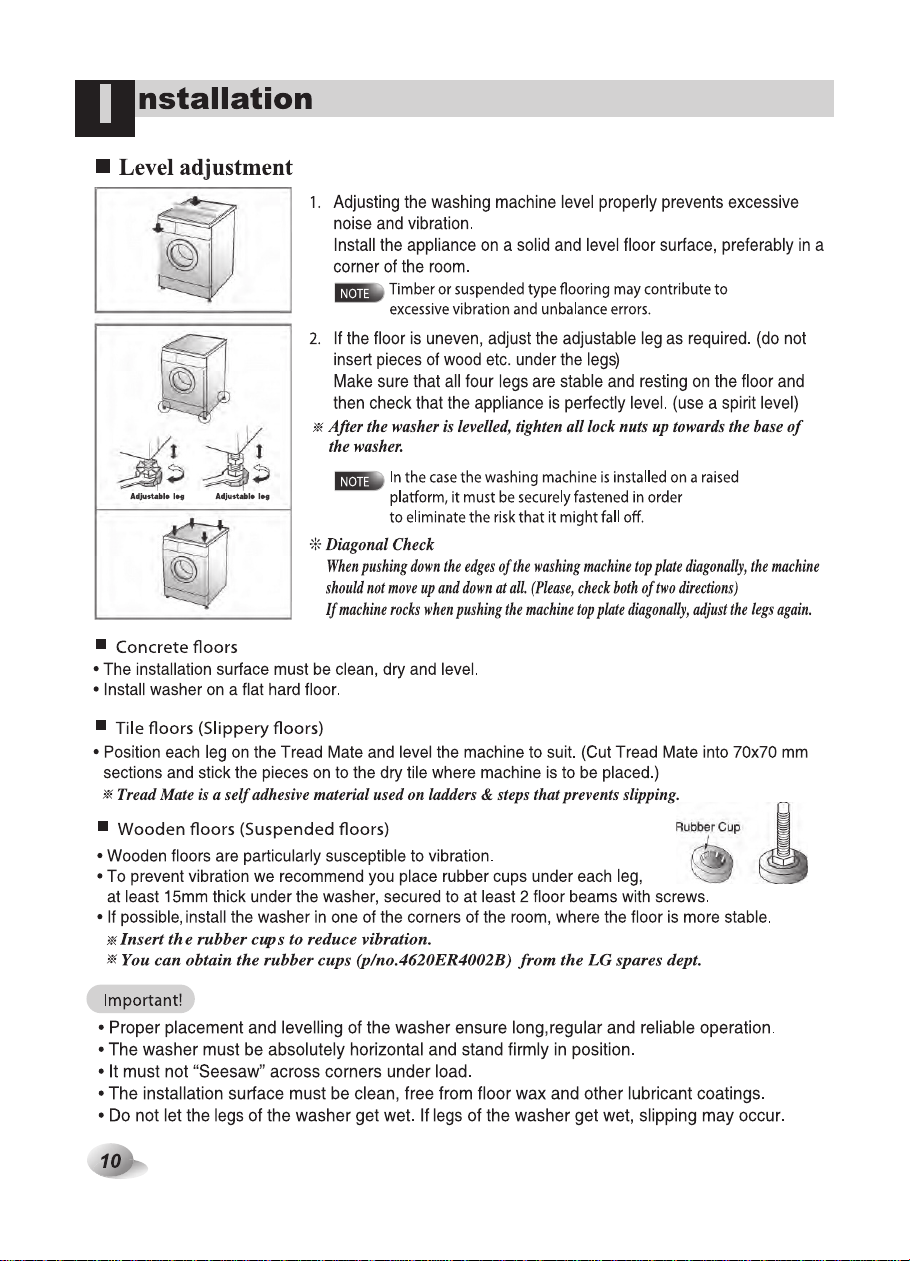

adjustable legs
It is advisable to avoid, the usage of trolley & the movement of Washing Machine after installation.
As it may disturb the levelling of washer, which can create excessive noise & vibration.
6
Part can be different according to different models.
(1.0~10kgf/cm²)

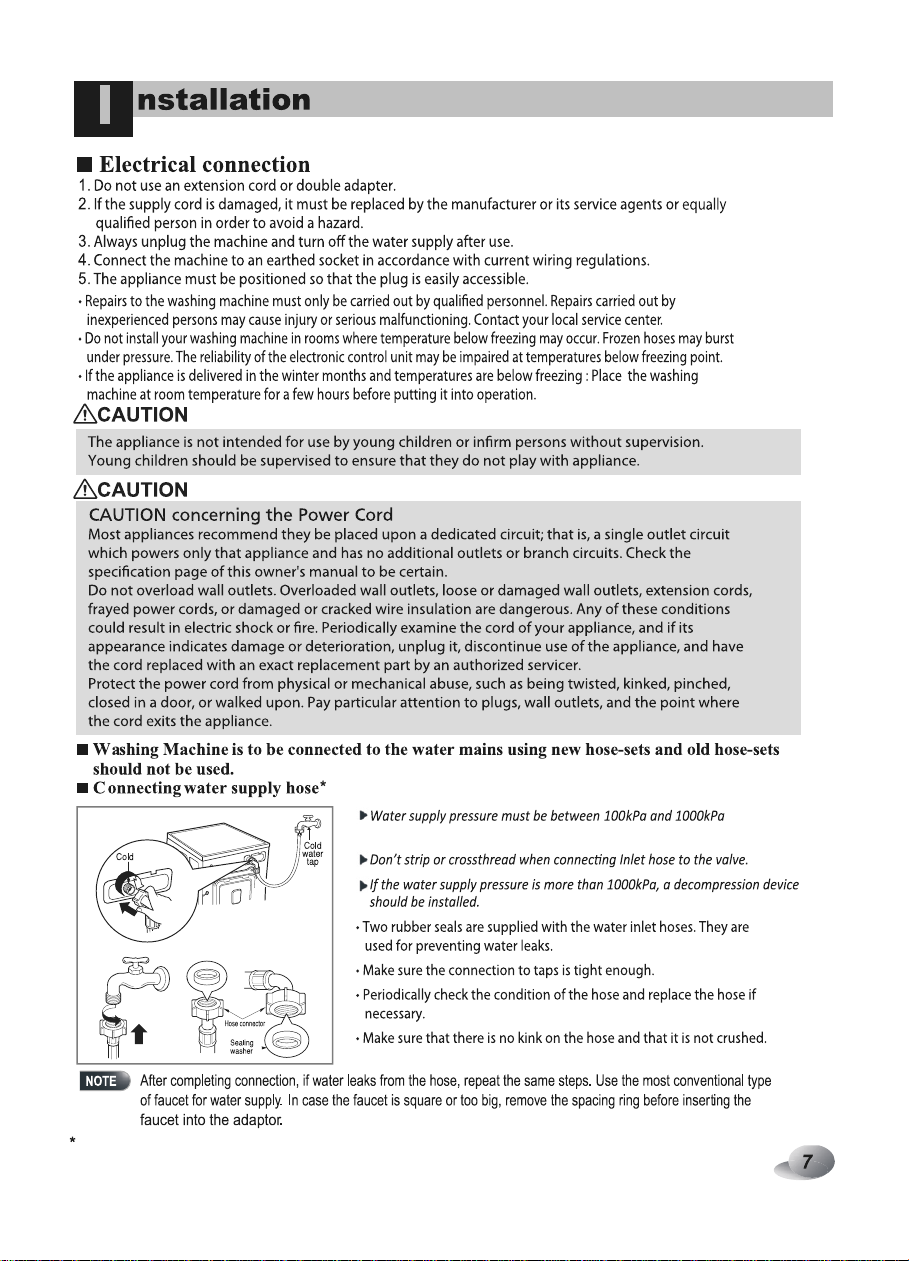

Two rubber seals are provided
with inlet hose connectors.
These are used to prevent water
leakage.
Make sure the connection to tap
is sufficiently tight.
Check rubber seals in inlet hose
connectors. Screw the hose connector onto
water supply tap.
Hose
Connector
Rubber
seal
Questo manuale è adatto per i seguenti modelli
