LG WM2487HM series Manuale utente
Owner's Manual
WM2487H*M
☎☎1-800-243-0000
24 HOURS A DAY, 7 DAYS A WEEK FOR LG CUSTOMER SERVICE
Please read this manual carefully. It provides
instructions on safe installation, use, and maintenance.
Retain it for future reference.
Record the model and serial numbers of your machine
and report this information to your dealer if your machine
requires service.
Washing Machine
Designed specially to use only
HE (High Efficiency) detergent
P/No.: 3828ER

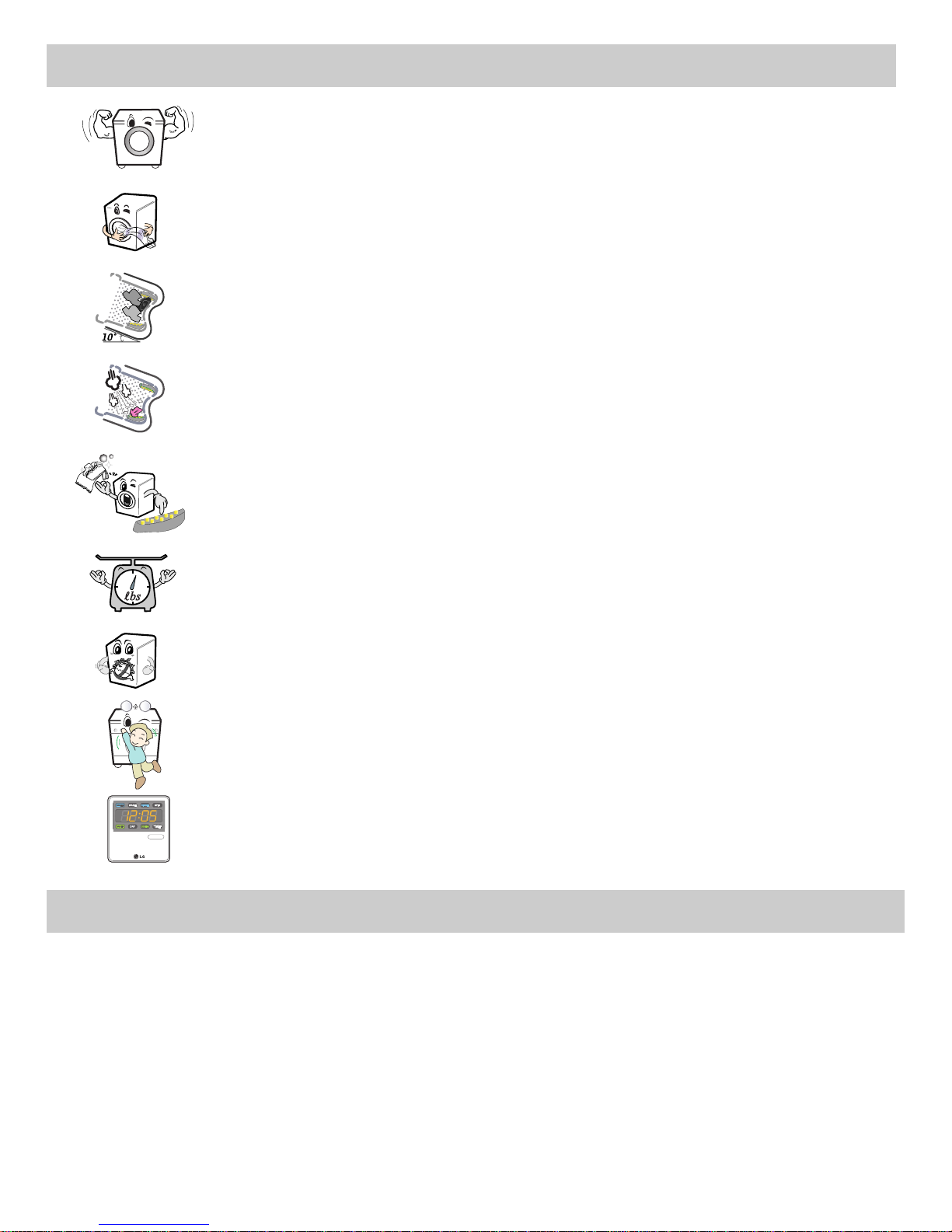

PRODUCT FEATURES
2
CONTENTS
■Ultra Capacity
The Larger drum enables not just higher head drop and stronger centrifugal force, but also
less tangling and wrinkling of the laundry. Heavier loads, such as king size comforters,
blankets, and curtains, can be washed.
■Direct Drive System
The advanced Brushless C motor directly drives the drum without
belt and pulley.
■Tilted Drum and Extra Large Door Opening
Tilted drum and extra large opening make it possible to load
and unload clothing more easily.
■Steam Washing and SteamFreshTM
Steam Washing features upgraded washing performance with low energy and water
consumption. SteamFreshTM cycle removes wrinkles from dry clothes.
■RollerJets
Washing ball enhances the wash performance and reduces damage
to the clothing. The jets spray and help tumble clothes to enhance
washing performance while maintaining fabric care.
■Automatic Wash Load Detection
Automatically detects the load and optimizes the washing time.
■Built-in Heater
Internal heater helps to maintain water temperature at its optimum level for selected cycles.
■Child Lock
The Child lock prevents children from pressing any button to change the settings during
operation.
■Using the RLM (Remote Laundry Monitor)
The RLM monitors status of your washer and/or dryer. You can plug the display unit into any
power outlet in your home.
The RLM isplay Unit can be purchased separately for this washer.
Important Safety Information ...........................................................................................................................................3
Specifications...................................................................................................................................................................4
Installation Instructions ....................................................................................................................................................5
Preparation Before Washing..........................................................................................................................................10
Using the ispenser ......................................................................................................................................................11
Cycles ...........................................................................................................................................................................13
How to Use the Washer.................................................................................................................................................14
Maintenance ..................................................................................................................................................................17
Troubleshooting Guide ..................................................................................................................................................20
Warranty ........................................................................................................................................................................23
추가선택, 예약,
추가선택, 예약,
IMPORTANT SAFETY INFORMATION
ENGLISH
3
READ ALL INSTRUCTIONS BEFORE USE
WARNING!
For your safety, the information in this manual must be followed to minimize the risk of fire or
explosion, electric shock, or to prevent property damage, personal injury, or loss of life.
IMPORTANT SAFETY INSTRUCTIONS
• Read all instructions before using the washer.
• Do not wash articles that have been previously
cleaned in, washed in, soaked in, or spotted with
gasoline, dry cleaning solvents, or other
flammable or explosive substances, as they give
off vapors that could ignite or explode.
• Do not add gasoline, dry cleaning solvents, or
other flammable or explosive substances to the
wash water. These substances give off vapors that
could ignite or explode.
• Under certain conditions, hydrogen gas may be
produced in a hot water system that has not been
used for weeks or more. HYDROGEN GAS IS
EXPLOSIVE. If the hot water system has not been
used for such a period, before using the washing
machine, turn on all hot water faucets and let the
water flow from each for several minutes. This will
release any accumulated hydrogen gas. As the gas
is flammable, do not smoke or use an open flame
during this time.
• Do not allow children to play on or in the washer.
Close supervision of children is necessary when
the washer is used near children.
• Before the washer is removed from service or
discarded, remove the door to prevent children
from hiding inside.
• Do not install or store the washer where it will be
exposed to the weather.
• Do not tamper with controls.
• Do not repair or replace any part of the washer or
attempt any servicing unless specifically
recommended in the user-maintenance
instructions or published user-repair instructions
that you understand and have the skills to carry
out.
• See Installation Instructions for grounding
requirements.
• ALWAYS follow the fabric care instructions
supplied by the garment manufacturer.
• Do not place items exposed to cooking oil in your
washer. Items contaminated with cooking oils may
contribute to a chemical reaction that could cause
a load to catch fire.
• Do not use fabric softeners or products to
eliminate static unless recommended by the
manufacturer of the fabric softener or product.
WARNING: To reduce the risk of fire, electric shock, or injury to persons when using the washer, follow basic
precautions, including the following:
SAVE THESE INSTRUCTIONS
This appliance must be grounded. In the event of malfunction or breakdown, grounding will reduce the risk
of electric shock by providing a path of least resistance for electric current. This appliance is equipped with
a cord having an equipment-grounding conductor and grounding plug. The plug must be plugged into an
appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances.
• Do not use an adapter or extension cord.
• Do not remove ground prong.
• If you don’t have the proper outlet, consult an electrician.
GROUNDING INSTRUCTIONS
WARNING: Improper connection of the equipment-grounding conductor can result in risk of electric shock.
Check with a qualified electrician or serviceman if you are in doubt as to whether the appliance is
properly grounded. o not modify the plug provided with the appliance - if it does not fit the outlet,
have a proper outlet installed by a qualified electrician.
!
!
!
for removing shipping bolts
and leveling the washer
& Steam Nozzle
Drum Light
Door Seal
SPECIFICATIONS
4
■
Accessories
■Name: Front-loading Washing Machine
■Power supply: 120V~ 60Hz
■Size: 68.6 cm (W) X 75.6 cm ( ) X 98.3 cm (H), 129.1 cm ( with door open)
27”(W) X 293/4”( ) X 3811/16”(H), 5013/16”( with door open)
■Weight: 192 lbs. (87 kg)
■Wash capacity: 3.47 cu. ft. (IEC: 4.0 cu. ft.)1)
■Spin speed: 1200 rpm max.
■Permissible water pressure: 14.5 ~ 116 PSI (100 ~ 800 kPa)
Specifications subject to change by manufacturer.
1) Per IEC 60456, washes the equivalent of a 4.0 cu. ft. agitator washer.
Safety Cover (PLC Modem)
5
INSTALLATION INSTRUCTIONS
1. To prevent internal damage during transport,
4 locking bolts are installed. Before operating
the washer, remove the bolts and braces.
• If they are not removed, it may cause severe
vibration, noise, and malfunction.
3. Take out the 4 bolts and braces by twisting
the braces slightly. Keep the 4 bolts, braces
and the wrench for future use.
• Whenever the appliance is transported, the
shipping bolts and braces must be reinstalled.
. Unscrew the 4 bolts with the wrench supplied.
o first lower side to remove easily. One of the
bolts retains the power cord of the washer to
prevent operating without removing bolts.
4. Close the holes with the caps supplied.
The appliance is fitted with shipping bolts to prevent
internal damage during transportation.
Packing and all shipping bolts must be removed
before using the washer.
When unpacking the base, be sure to remove
the additional packing support in the middle of
the base packing.
: Two or more people may be need to install and move the appliance.
■Shipping bolts
Install or store unit where it will not be exposed to temperatures below freezing or
exposed to outside weather conditions.
Properly ground washer to conform with all governing codes and ordinances.
To reduce the risk of electric shock, do not install the washer in humid spaces.
The base opening must not be obstructed by carpeting when the washing machine is installed on a carpeted floor.
In countries where there are areas which may be subject to infestation by cockroaches or other vermin, pay
particular attention to keeping the appliance and its surroundings in clean condition at all times.
amage caused by cockroaches or other vermin will not be covered by the appliance warranty.
■Removing shipping bolts
Wrench
cap
ENGLISH
!
WARNING
INSTALLATION INSTRUCTIONS
6
■Installation clearances
The location must be large enough to fully open
the washer door.
■Washer dimensions
• Most installations require a minimum 4 in.
(10 cm) clearance behind the washer.
■Minimum installation spacing for
recessed area installation.
The following dimensions shown are for the minimum
spacing allowed.
Additional spacing should be considered for
installation and servicing.
• Additional clearances might be required for wall,
door and floor moldings.
• Additional spacing of 1 in. (2.5 cm) on all sides of
the washer is recommended to reduce noise
transfer.
Companion appliance spacing should also be
considered.
■Level floor
• Allowable slope under entire washer is 1°.
• To minimize noise and vibration, the washer
MUST be installed on a solidly constructed
floor.
• Carpeting and soft tile surfaces are not
recommended.
• Never install the washer on a platform or weakly
supported structure.
NOTE: A firm, solid floor is even more critical to a
front-loading washer than to a top-loader.
If your floor is wood and/or frame
construction, you may need to reinforce it.
Front-loaders use substantially faster spin
speeds than top-loaders, causing greater
vibration. If the floor is not solid, your washer
will vibrate. You will hear and feel the
vibration throughout your house.
■Power outlet
• Must be within 60 in. (1.5 m) of either side of the
washer. o not overload the outlet with more
than one appliance.
• Time-delay fuse or circuit breaker is recommended.
NOTE: It is the personal responsibility and obligation
of the customer to have a proper outlet
installed by a qualified electrician.
[Front view]
[Side view]
INSTALLATION INSTRUCTIONS
ENGLISH
7
• Water supply pressure must be between
14.5 and 116 PSI (100~800 kPa).
• o not crossthread when connecting inlet hose to
the valve.
• If the water supply pressure is more than 116 PSI,
a pressure reducing device should be installed.
• Two Sealing washers are supplied with the water
inlet hoses to prevent water leaks.
• Check for leakage of washing machine connections
by turning the tap completely on.
• Periodically check the condition of the hose and
replace the hose if necessary.
• Make sure that there is no kink in the hose and that
it is not crushed.
• Be sure that the two water input ports are connected
to the correct water faucets. The connector for hot
water is colored red.
■Connecting water supply hose
NOTE: Washing Machine is to be connected to the water mains using new hoses.
Old hoses should not be used.
■Electrical connection
• o not use an extension cord or double adapter.
• If the supply cord is damaged, it must be replaced by a qualified person in order to avoid a hazard.
• If the machine will not be used for an extended time, unplug it and shut off the water supply.
• Connect the machine to a grounded outlet in accordance with current wiring regulations.
• The appliance must be positioned so that the plug is easily accessible.
Repairs to the washing machine must only be carried out by qualified personnel. Repairs carried out by
inexperienced persons may cause injury or serious malfunctioning. Contact your local service center.
o not install your washing machine in a room where temperatures below freezing may occur.
Frozen hoses may burst under pressure. The reliability of the electronic control unit may be impaired
at temperatures below the freezing point.
If the appliance is delivered in the winter months and temperatures are below freezing,
store the washing machine at room temperature for a few hours before putting it into operation.
!
CAUTION! Concerning the Power Cord
Most appliances recommend they be placed upon a dedicated circuit; that is, a single outlet circuit which powers only that
appliance and has no additional outlets or branch circuits. Check the specification page of this owner's manual to be
certain.
o not overload wall outlets. Overloaded wall outlets, loose or damaged wall outlets, extension cords, frayed power cords,
or damaged or cracked wire insulation are dangerous. Any of these conditions could result in electric shock or fire.
Periodically examine the cord of your appliance, and if its appearance indicates damage or deterioration, unplug it,
discontinue use of the appliance, and have the cord replaced with an exact replacement part by an authorized servicer.
Protect the power cord from physical or mechanical abuse, such as being twisted, kinked, pinched, closed in a door, or
walked upon. Pay particular attention to plugs, wall outlets, and the point where the cord exits the appliance.
INSTALLATION INSTRUCTIONS
8
■Installation of drain hose
• The drain hose should not be placed higher than
96 in. from the bottom of the washer.
• Properly securing the drain hose will protect the
floor from damage due to water leakage.
• Place the end of the drain hose in the hole of the
floor drain system.
• When installing the drain hose at a sink, secure it
so it cannot break away and cause flooding and
damage.
• Properly securing the drain hose will protect the
floor from damage due to water leakage.
This equipment is not designed for maritime use or for mobile installations such as in RV’s, aircraft, etc.
Turn off the faucet if the machine is to be left for an extended period of time (e.g. holiday).
When disposing of the appliance, cut off the power cable, and destroy the plug.
isable the door lock to prevent young children being trapped inside.
Packaging material (e.g. Films, Styrofoam) can be dangerous for children. There is a risk of suffocation! Keep all
packaging from children.
INSTALLATION INSTRUCTIONS
ENGLISH
9
■Level adjustment
• Leveling the washing machine properly prevents
excessive noise and vibration.
Install the appliance on a solid and level floor surface,
preferably in a corner of the room.
• If the floor is uneven, adjust the adjustable feet as
required. ( o not insert pieces of wood, etc. under the
feet.)
NOTE: Extend the feet no more than necessary to level
the washer. The more the feet are extended, the
more the washer will vibrate.
• Make sure that all four feet are stable and resting on
the floor and then check that the appliance is perfectly
level (Use a level).
• After the washer is level, tighten the lock nuts up
against of the base of the washer. All lock nuts must
be tightened.
• It is critical to adjust the feet perfectly. This must be
done while the washer is spinning with a load. Use the
wrench (supplied) to adjust the feet until there is no
vibration. Then tighten the lock nuts to prevent further
adjustment.
NOTE: If there are vibration and noise during the spin
cycle, re-check the leveling of the washer, adjust
the feet as required, and tighten the lock nuts
securely to prevent changes in adjustment.
Run the washer with a test load to make certain
your washer is properly leveled. Put
approximately 6 pounds of laundry in the
machine. Then, press POWER, RINSE+SPIN, and
START/PAUSE, in that order. When the machine
spins at high speed, verify that it is stable. If not,
adjust the feet accordingly.
• If you install the washer and dryer with pedestals, it is
necessary to level with the pedestal feet.
Diagonal Check
When pushing down the edges of the washing machine
top plate diagonally, the machine should not move up
and down at all. (Please, check both directions.)
f the machine rocks when pushing the machine top plate
diagonally, adjust the feet again.
Tighten Tighten
Altri manuali per WM2487HM series
1
Questo manuale è adatto per i seguenti modelli
3
Indice
Lingue:
Altri manuali LG Rondella
LG
LG DLE3400 Series Manuale utente
LG
LG WD-T1213MRD Manuale utente
LG
LG F2J5HN Series Manuale utente
LG
LG F1480FD Manuale utente
LG
LG WM25BV2S6BR Manuale utente
LG
LG F2514NTGE Manuale utente
LG
LG V2-B12X3WE Manuale utente
LG
LG WT5101HV.ASSEEUS Manuale utente
LG
LG T2518SSAB Manuale utente
LG
LG WD-1257RD Manuale utente
LG
LG F11443W Manuale utente
LG
LG F4Y913 CTA1 Series Manuale utente
LG
LG WSC0805WH Manuale utente
LG
LG F4J8TH Series Manuale utente
LG
LG WM3070HRA Manuale utente
LG
LG T1288NEHVE Manuale utente
LG
LG WD1402CRD6 Manuale utente
LG
LG F1496TD2 Manuale utente
LG
LG WM3455HS Manuale di istruzioni
LG
LG WM1815CS Manuale utente
