LIBERTY AV SOLUTIONS Digitalinx 8N1USB-HUB Manuale utente

11675 Ridgeline Drive

Colorado Springs, CO

REV 01052021

Phone: 719-260-0061

Toll-Free: 800-530-8998

Fax: 719-260-0075

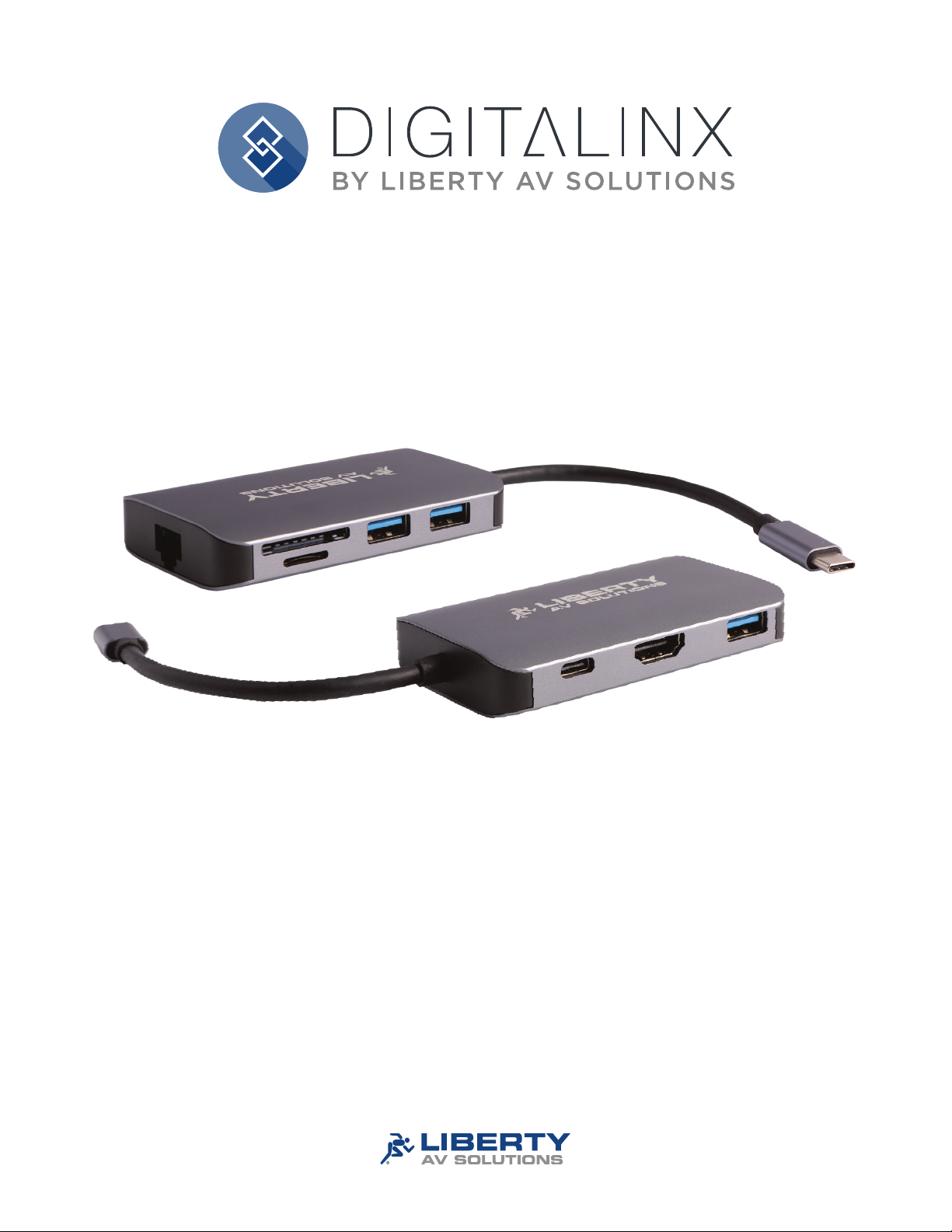

Advanced 8-in-1 USB-C Multi-Port Hub

8N1USB-HUB

8N1USB-HUB Quick Guide

This Liberty AV 8N1USB-HUB USB-C to HDMI hub allows you to connect an external HDMI display to

mirror your laptop’s display, or expand your system’s desktop area, with support for resolutions up to

4K@30Hz. It also features a Gigabit Ethernet port, a USB-C PD port, three USB 3.0 Type-A data ports,

and SD and TF card slots for advanced data transfer capabilities all from a single cable. The built-in

Gigabit Ethernet adapter allows you to enjoy the superior security and increased speeds of a wired

Ethernet connection.

USB 3.0 connectivity allows you to charge and sync mobile devices or use external drives and provides

data transfer speeds up to 5 Gbps through the USB Type-A ports. The USB-C port supports the Power

Delivery (PD) 3.0 standard, delivering up to 100 watts of power to compatible devices. The PD 3.0

standard also ensures that connected devices won’t reset or disconnect when power is applied to or

removed from the USB-C port. The lightweight and premium aluminum design results in a better built

adapter, making it more durable than adapters made of plastic.

Interact with up to three USB devices simultaneously while transfering data and powering devices

like web cameras, capture cards, tablets, thumb drives, smart boards, microphones, and other USB

peripherals with ease. The multiport USB hub can fully support data transfer rates from SuperSpeed,

Hi-Speed, and Full-Speed USB connections and is fully backward compatible to all USB 2.0 and USB 1.1

hosts.

Featuring a low-prole design, the Liberty AV powered hub can be mounted in various locations,

such as conference tables, work stations, and home oce enviroments. No drivers or downloads are

required for installation; although, connected USB peripherals may require a driver.

All USB 3.0 Ports are compatible with USB 2.0 devices—just remember the device will perform only at a

USB 2.0 speed.

Product Overview

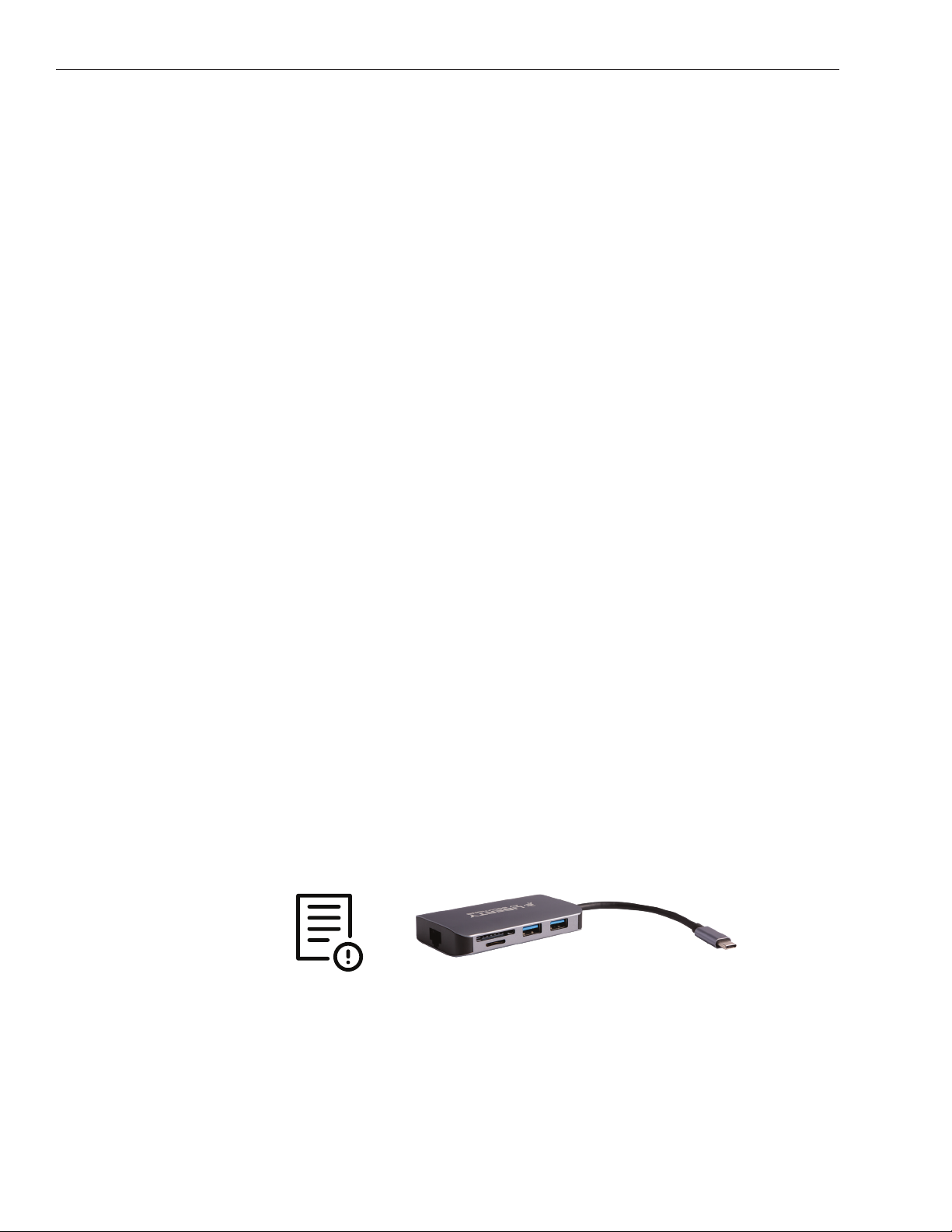

Package Contents

(x1) Quick

Start Guide

(x1) USB

3.0 Hub

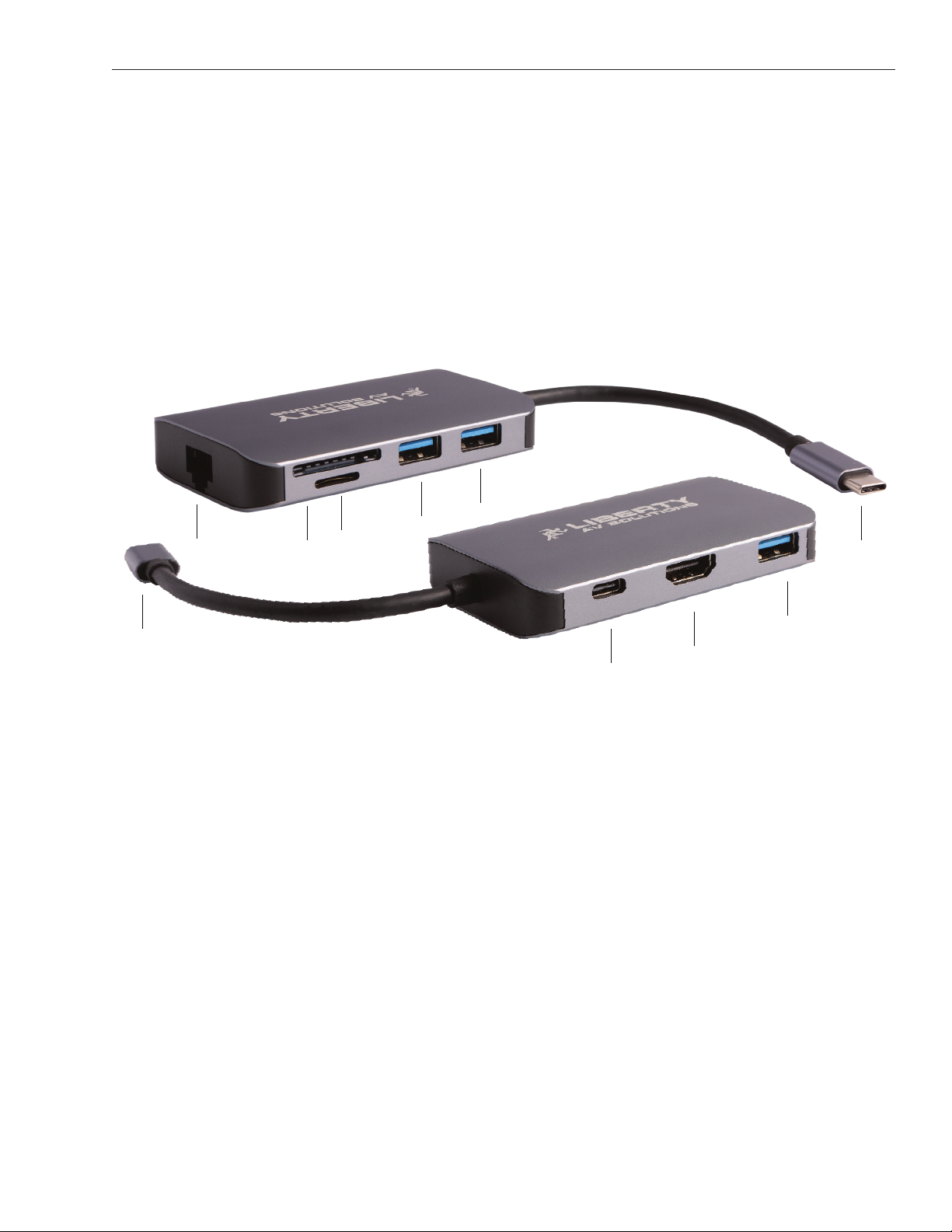

8N1USB-HUB Quick Guide

1. RJ45 for Gigbit Pass-thru

2. USB 3.0 Type A Female Port

3. TF Card Slot

4. SD Card Slot

5. HDMI Female Port

6. USB-C Male Port

7. USB-C PD (power delivery) Port

Product Breakdown

Setting Up Your Device

• Requirement: A Host with one available USB 3.0 port (compatible to any host OS of Windows/Android/ios).

• Plug the USB Type C end port of the hub into your computer.

• The Operating System on your computer will detect the Liberty AV USB powered hub.

• Connect USB periphials into one of the USB ports on the Liberty AV USB multiport hub.

• Make other connections as necessary: HDMI, Ethernet, Power Supply, or SD Cards

8N1USB-HUB Quick Guide

Maintenance and Troubleshooting

Maintenance

• If the USB hub is not in long-term use, please reseat the power adapter.

• When cleaning the USB hub, disconnect all connections, including power. Please use a dry, soft cloth

to wipe. If the dirt is serious, use a neutral cleaner gently. Do not use strong or corrosive detergent.

Avoid

• Low-cost, uncertied USB cables.

• Spilling liquid on the USB hub.

Troubleshooting

• Computer software doesn’t detect the connected USB periphials when connected to the hub:

Step 1: Make sure that any other applications that are using the said periphial(s) are fully closed.

Step 2: Within the software of your choice, make sure you have selected the device under

“audio & video settings.”

Step 3: Make sure the USB drivers on your computer are up to date.

• Computer hardware doesn’t detect the USB Hub:

Step 1: Reconnect the hub’s USB cable to your computer.

Step 2: Restart your computer.

8N1USB-HUB Quick Guide

Technical Specications

USB Hub

Case Material Aluminum alloy chassis with TPE thermoplastic elastomer

cable

Supported USB Transfer

Rates

Transfer rate of 5Gbps/1.5 Mbps/12 Mbps/480 Mbps

USB Compliance Gen USB 3.1 while being fully backward compatible for USB

3.0/ USB 2.0/ USB 1.1

Features

Operating System Windows®7 (1080p and under only), Windows 8.1,

Windows 10 or higher macOS™ 10.10 or higher Google™

Chromebook™ Version 29.0.1547.70 or higher Linux

USB PD Charging Port Up to 100 watts of power delivery, intended ONLY for a

laptop, mobile, and tablet charging

USB Charging Protocol Supports USB-IF Rev 1.2 and BC 1.2

USB Communication Protocol UVC 1.1

Input/Output Interface

Interface USB-C 3.1 Gen.1 male connection with 1x RJ45 female, 1x

HDMI female, 3x USB-A 3.0 female, 1x USB-C female PD

charging port, 1x SD/TF slot

Support on Upstream Port SuperSpeed (SS), HighSpeed (HS) and FullSpeed (FS) trac.

Note: Transfer rates are device and USB host controller

dependent

Support on Downstream

Ports

SuperSpeed (SS), HighSpeed (HS), FullSpeed (FS) and

LowSpeed (LS) trac

Video Resolution Supports a full range of resolutions up to 4K UHD 3840x2160

@ 30Hz, 2k, 1080p, 720p, 480p

Ethernet Pass up to 1 GB of Ethernet speed

SD/TF Card Slot Supported memory card capacity, up to 512GB with read/

write speeds up to 480Mbps

Physical Parameter

USB Port Max Power Output 5V/1.3A per USB port, up to 15’ from device

Dimension (LxWxH) 87mm(L) x 53mm(W) x 15.8mm(H)

Net Weight 65g

Certication CE, FCC, RoHS

Thank you for your purchase.

For Technical Support please call our

toll-free number at 800-530-8998

or email us at [email protected]

www.libav.com

11675 Ridgeline Drive, Colorado Springs, Colorado 80921 USA

Phone: 719-260-0061 Fax: 719-260-0075 Toll-Free: 800-530-8998
