Life Gear 97355 Manuale utente

WIND MAKER

MOTORIZED TREADMILL

OWNER'S MANUAL

MODEL# 97355

TABLE OF CONTENTS

ONE YEAR LIMTED WARRANTY

LifeGear Inc. warrants to the original purchaser that this product is free from defects in material and workmanship when used for the purpose

intended, under the conditions that it has been installed and operated in accordance with LifeGear's Owner's Manual. LifeGear's

obligation under this warranty is limited to replacing or repairing, free of charge, any parts which may prove to be defective under normal home

use. This warranty does not include any damage caused by improper operation, misuse or commercial application.

From the date of purchase, the frame is warranted to be free from defects for 1 (one) year. This warranty is extended only to the original owner

and is not transferable. When ordering replacement parts please have the following information ready:

1. Owner's Manual

2. Model Number

3. Description of Parts

4. Part Number

5. Date of Purchase

WARRANTY 1

SAFETY INSTRUCTIONS 2

OVERVIEWDRAWING 4

PARTS LIST 5

HARDWARE PACKING LIST 7

ASSEMBLY INSTRUCTIONS 8

CAUTION 10

FOLDUP&INCLINEADJUSTMENT 11

COMPUTER OPERATION 12

LUBRICATION & RUNNING BELTADJUSTMENT 15

Observe the following prior to use of the treadmill:

DANGER: To reduce the risk of electric shock, please observe the following:

zAlways unplug the treadmill from the electrical outlet immediately after using and before cleaning, assembling, or servicing.

NOTE: Failure to follow these instructions may lead to personal injury and cause damage to the treadmill.

WARNING: To reduce the risk of burns, fire, electric shock please observe the following:

zNever leave the treadmill unattended when plugged in.Disconnect by turning off the master power switch, and unplugging from outlet.

zNever operate this treadmill if it has a damaged cord or plug, is not working properly, if it has been dropped or damaged, or if it has been

exposed to water.

zDo not attempt any maintenance or adjustments other than those described in this manual. Should any problems arise, discontinue use and

consult theAuthorized Service Representative.

zDo not use outdoors.

zDo not operate where aerosol (spray can) products are being used or where oxygen is being administered.

zDo not pull the treadmill by its power cord or use the cord as a handle.

zClose supervision is necessary if this treadmill is used by, or near children, persons with disabilities, or pets.

zKeep Dry-do not operates in a wet or moist condition. Save these instructions.

zDo not operate under a blanket. Excessive heating can occur and cause fire, electrical shock, or injury to

persons.

zKeep electrical cord away from heated surfaces.

zNever insert any object into any opening.

zKeep the treadmill on a solid, level surface with sides at least two feet from any wall. Be sure the area around

the treadmill remains clear during use and has adequate clearance, see illustration below.

WARNING: Connect the treadmill to a properly grounded outlet only.

FRONT

REAR

TOP

VIEW

2 FEET MIN. 2 FEET MIN.

4 FEET MINIMUM

LEFT

SIDE

RIGHT

SIDE

SAFETY INSTRUCTIONS

zThis product must be grounded. If it should malfunction or break down, grounding provides a path of least resistance for electric current

reducing the risk of electric shock. * This treadmill is equipped with a cord having equipment grounding connector and a grounding plug. The

plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances.

DANGER: Improper connection of the treadmill grounding connector can result in the risk of electric shock. Check with a qualified

electrician, if you are in doubt as to whether the product is properly grounded. Do not modify the plug provided with the

treadmill. If it will not fit your outlet, have a properly grounded outlet installed by a qualified electrician.

zThis unit must be plugged into a normal 220 volt 50/60 hz, 10 amp circuit, which has a grounding.

zKeep hands clear of all moving parts. Never place hands, feet under the treadmill.

zDo not use the treadmill on a carpet that is greater than 1/2 inch in height.

zBefore each use, check that the running belt is aligned and centered on the treadmill bed and all visible fasteners on the treadmill are

sufficiently tightened and secure.

WARNING: BEFORE BEGINNING ANY EXERCISE PROGRAM CONSULT YOUR PHYSICIAN. THIS IS ESPECIALLY IMPORTANT FOR

INDIVIDUALS OVER THE AGE OF 35 OR PERSONS WITH PRE-EXISTING HEALTH PROBLEMS. READ ALL INSTRUCTIONS BEFORE

USING ANY FITNESS EQUIPMENT. WE ASSUME NO RESPONSIBILITY FOR PERSONAL INJURY OR PROPERTY DAMAGE

SUSTAINED BY OR THROUGH THE USE OF THIS PRODUCT. DO NOT OPERATE THIS EXERCISE EQUIPMENT WITHOUT

PROPERLY FITTED GUARDS, AS THE MOVING PARTS CAN PRESENT A RISK OF SERIOUS INJURY TO YOUNG CHILDREN.

CAUTION: Read all instructions carefully before operating this product. Retain this Owner’s Manual for future reference.

234

69 55

64 65

44 39

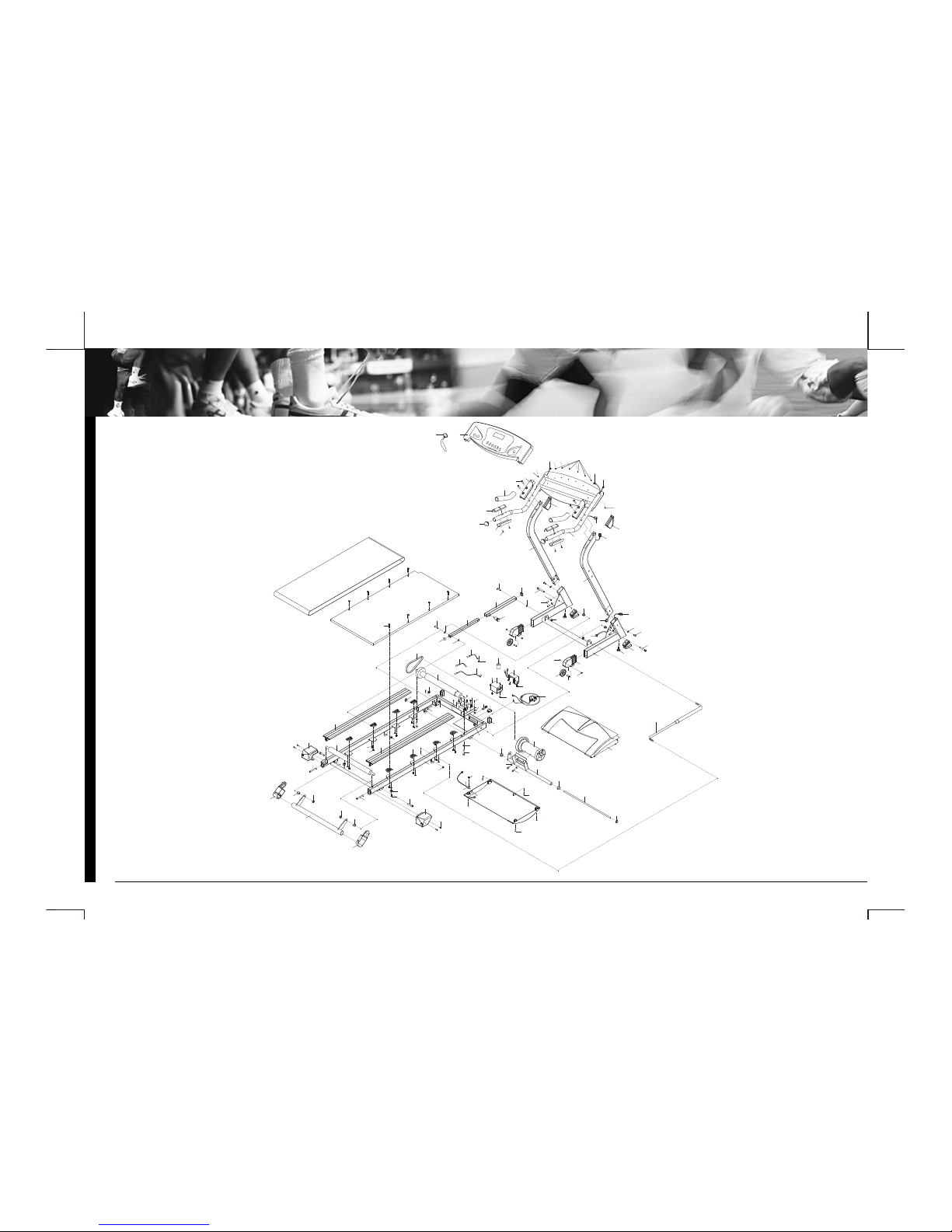

OVERVIEWDRAWING

Part # Description Quantity Part # Description Quantity

1 Main Frame 1

2 Base Frame 1

3 Adjustable Pad 2

4 End Cap for #2 2

5 Moving Wheel 2

6 Wheel 2

7 Rod for Moving Wheel 2

8 Screw (M4*10) 4

9 Running Deck 1

10 Front Roller, Drive 1

11 Rear Roller, Tension 1

12 Running Belt 1

13 Motor Base 1

14 Bushing 2

15 Axis 1

16 Drive Motor 1

17 Bracket forDrive Motor 1

18 PCB Motor Controller 1

19 Drive Belt 1

20 Sensor 1

21 Bracket for Sensor 1

22 Switch, AC Power 1

23 Rubber Bumper 8

24 Side Rail 2

25 Bolt (M8*60) 2

26 Screw (M4*16) 12

27 Screw (M6*35) 8

28 Nut (M6) 8

29 Nut (M8) 4

30 End Cap (25*50) 2

31 Dust Cover, Up 1

32 Dust Cover, Lower 1

33 Screw (M4*60) 4

34 L-Handrail 1

35 R-Handrail 1

36 Handlebar 1

37 End Cap for Handlebar 2

38 Computer 1

39 M3*10 Screw 8

40 Ring for Cable Power 1

41 Safety Magnet 1

42 Handlebar Adorner 2

43 Bolt (M8*50) 4

44 End Cap (30*60) 2

45 Foam Grip 2

46 Spacer 2

47 Cap Nut 2

48 Bolt (M10*60) 2

49 Nut (M10) 4

50 Bolt (M8*16) 6

51 Nut 1

52 Safety Tube A 1

53 Safety Tube B 1

54 Bolt (M8*40) 1

55 Spring Washer (M8) 11

56 Nylon Washer 2

57 Spring Knob 1

58 Foot Pad 2

PARTS LIST

59 L-Rear Cap 1

60 R-Rear Cap 1

61 Incline Beam 1

62 Cover for Incline Beam 2

63 Bolt (M10*40) 2

64 Bushing 2

65 Tapping Screw (ST4*10) 4

66 Handpulse Cover-Upper W/Wire 2

67 Handpulse Cover-Lower 2

68 Screw (M3*20) 4

69 Bolt (M8*35) 1

70 Screw (M8*12) 2

71 Bolt (M8*45) 2

72 Screw (M4*12) 7

73 Sensor Cable I (850 mm.) 1

74 Sensor Cable II (1100 mm.) 1

75 Sensor Cable III (600 mm.) 1

76 Cylinder 1

77 End Cap ( 25) 1

78 End Cap ( 20) 1

79 Fuse Box 1

80 Cable, Power Plug 1

81 Nylon Nut (M4) 7

82 Earth Lead 1

83 Cable Switch/PCB 1

84 Wire for Fuse Box 1

85 Choke (34MH-40MH) 1

86 Wave Filter (06SS4-2DC1) 1

Part # Description Quantity Part # Description Quantity

PARTS LIST

43 Bolt (M8*50) --------------------------------------------------------------------------------------------------4

50 Bolt (M8*16)------------------------------------------------------------------------------------------6

55 Spring Washer (M8) --------------------------------------------------------------------------------6

PLACE WASHER, BOLT’S END, OR

SCREW ON CIRCLE TO CHECK FOR

CORRECT SIZE.

INCHES

MILLIMETERS

Part # Description Quantity

HARDWARE PACKING LIST

Step 1

Connect the Sensor Cable I (73) to the Sensor Cable II (74). Then insert the R-Handrail (35) to the Base Frame (2)

and secure it with three Bolts (50) and Spring Washers (55). Repeat above steps to attach the L-Handrail (34) to the

Base Frame (2).

ASSEMBLY INSTRUCTIONS

Step 2

Attach the Handlebars (36) with Computer (38) onto the L and R-Handrails (34, 35) with four Bolts (43) and two

Handlebar Adorners (42). Finally, connect the Sensor Cable II (74) to the Sensor Cable III (75).

Step 3

Insert two End Caps (44) into the L and R-Handrails (34, 35).

ASSEMBLY INSTRUCTIONS
