Life Span Equalizer Manuale utente

Product may vary slightly from the item pictured due to model upgrades

USER’S

MANUAL

EQUALIZER

LIFESPAN EQUALIZER Page 1

CONTENTS

1 IMPORTANT SAFETY INSTRUCTIONS ……………………………………………….. 2

1.1 IMPORTANT ELECTRICAL INFORMATION ……………………………………………….. 3

1.2 IMPORTANT OPERATIONAL INSTRUCTIONS ……………………………………………….. 4

1.3 FOLDING INSTRUCTIONS ……………………………………………….. 4

2 ASSEMBLY INSTRUCTIONS ……………………………………………….. 5

3 DISPLAY PANEL OPERATIONS ……………………………………………….. 9

3.1 SAFETY KEY ……………………………………………….. 9

3.2 GETTING STARTED ……………………………………………….. 10

3.3 DISPLAY OPERATION ……………………………………………….. 10

3.4 PULSE GRIP FEATURE ……………………………………………….. 14

3.5 CALORIE DISPLAY ……………………………………………….. 14

3.6 PROGRAMS ……………………………………………….. 14

4 MAINTENANCE ……………………………………………….. 16

4.1 GENERAL CLEANING ……………………………………………….. 16

4.2 GENERAL CARE ……………………………………………….. 16

4.3 BELT/DECK/ROLLER LUBRICATION ……………………………………………….. 17

4.4

HOW TO CHECK THE RUNNING MAT FOR PROPER

LUBRICATION ……………………………………………….. 17

4.5 BELT ADJUSTMENT ……………………………………………….. 18

4.6 BELT TRACKING ADJUSTMENT ……………………………………………….. 19

5 TROUBLESHOOTING ……………………………………………….. 20

5.1 TROUBLESHOOTING TABLE ……………………………………………….. 20

6 EXERCISE GUIDE ……………………………………………….. 22

6.1 WORKOUT GUIDELINES ……………………………………………….. 23

7 WARRANTY REGISTRATION ……………………………………………….. 25

8 EXPLODED DIAGRAM ……………………………………………….. 25

9 PARTS LIST ……………………………………………….. 26

LIFESPAN EQUALIZER Page 2

1. IMPORTANT SAFETY INSTRUCTIONS

Danger–To reduce the risk of electric shock disconnect your treadmill from the

electrical outlet prior to cleaning and/or service work.

DO NOT USE AN EXTENSION CORD: DO NOT ATTEMPT TO DISABLE THE GROUNDED

PLUG BY USING IMPROPER ADAPTERS OR IN ANY WAY MODIFY THE CORD SET.

zInstall the treadmill on a flat level surface with access to a 220-240 volt (50/60Hz),

grounded outlet.

zDo not operate treadmill on deeply padded, plush or shag carpet. Damage to both

carpet and treadmill may result.

zDo not block the rear of the treadmill. Provide a minimum of 1 metre clearance

between the rear of the treadmill and any fixed object.

zPlace your unit on a solid, level surface when in use.

zNever allow children on or near the treadmill.

zWhen running, make sure the plastic clip is fastened on your clothing. It is for your

safety, should you fall or move too far back on the treadmill.

zKeep hands away from all moving parts.

zNever operate the treadmill if it has a damaged cord or plug.

zKeep the cord away from heated surfaces.

zDo not operate where aerosol spray products are being used or where oxygen is

being administered. Sparks from the motor may ignite a highly gaseous environment.

zNever drop or insert any object into any openings.

zThe treadmill is intended for in-home use only and not suitable for long time running.

zTo disconnect, turn all controls to the off position, remove the safety key, and then

remove the plug from the outlet.

WARNING - Read all instructions before using this treadmill.

It is important your treadmill receives regular maintenance to prolong its

useful life. Failing to regularly maintain your treadmill may void your

LIFESPAN EQUALIZER Page 3

zThe pulse sensors are not medical devices. Various factors, including the user’s

movement, may affect the accuracy of heart rate readings. The pulse sensors are

intended only as exercise aids in determining heart rate trends in general.

zUse handrails provided; they are for your safety.

zWear proper shoes. High heels, dress shoes, sandals or bare feet are not suitable for

use on your treadmill. Quality athletic shoes are recommended to avoid leg fatigue.

zAllowed temperature: 5 to 40 degrees.

Remove the safety key after use to prevent unauthorized treadmill operation.

1.1 IMPORTANT ELECTRICAL INFORMATION

WARNING!

zNEVER use a ground fault circuit interrupt (GFCI) wall outlet with this treadmill.

Route the power cord away from any moving part of the treadmill including the

elevation mechanism and transport wheels.

zNEVER remove any cover without first disconnecting AC power.

zNEVER expose this treadmill to rain or moisture. This treadmill is not designed for

use outdoors, near a pool, or in any other high humidity environment.

For your information, please note following electronical specification of Treadmill:

♦Input voltage: ～240V (50HZ)

♦Speed display scope: 1.0-22 (KM/h)

♦Time display scope: 0：00-99：59 (minute: second)

♦Distance display scope: 0.01-99.9 (Km)

♦Heart rate display scope: 60-200 (times/min)

♦Energy display scope: 0-999 (Cal)

♦Gradient display scope: 0-20%

LIFESPAN EQUALIZER Page 4

1.2 IMPORTANT OPERATION INSTRUCTIONS

zBe sure to read the entire manual before operating your machine.

zUnderstand that changes in speed and incline do not occur immediately. Set your

desired speed on the computer console and release the adjustment key. The

computer will obey the command gradually.

zUse caution while participating in other activities while walking on your treadmill;

such as watching television, reading, etc. These distractions may cause you to lose

balance or stray from walking in the centre of the belt; which may result in serious

injury.

zIn order to prevent losing balance and suffering unexpected injury, NEVER mount

or dismount the treadmill while the belt is moving. This unit starts with at a very low

speed. Simply standing on the belt during slow acceleration is proper after you have

learned to operate this machine.

zAlways hold on to handrail while making control changes.

zA safety key is provided with this machine. Remove the safety key will stop the

walking belt immediately; the treadmill will shut off automatically. Insert the safety

key will reset the display.

zDo not use excessive pressure on console control keys. They are precision set to

function properly with little finger pressure.

1.3 FOLDING THE TREADMILL

When folding the treadmill, pull out the handles on the holding spanner and place the

main frame at corresponding position. By then, the handle bolt will appear automatically.

After that, move the treadmill to another place so as to make it occupy a smaller area.

Before the use, place the treadmill to the position you would like to do exercise, and lift

its main frame by right hand and pull out the handles and place them on the floor slowly.

Then the handles will appear automatically. Finally screw down the handles firmly to

release yourself from being worried about the safety during exercise.

LIFESPAN EQUALIZER Page 5

2 ASSEMBLY INSTRUCTIONS

Assembly List: Ⅴ

Ⅰ

Ⅱ

Ⅲ

Ⅳ

Ⅴ

Ⅵ

Ⅶ

Ⅷ

Ⅸ

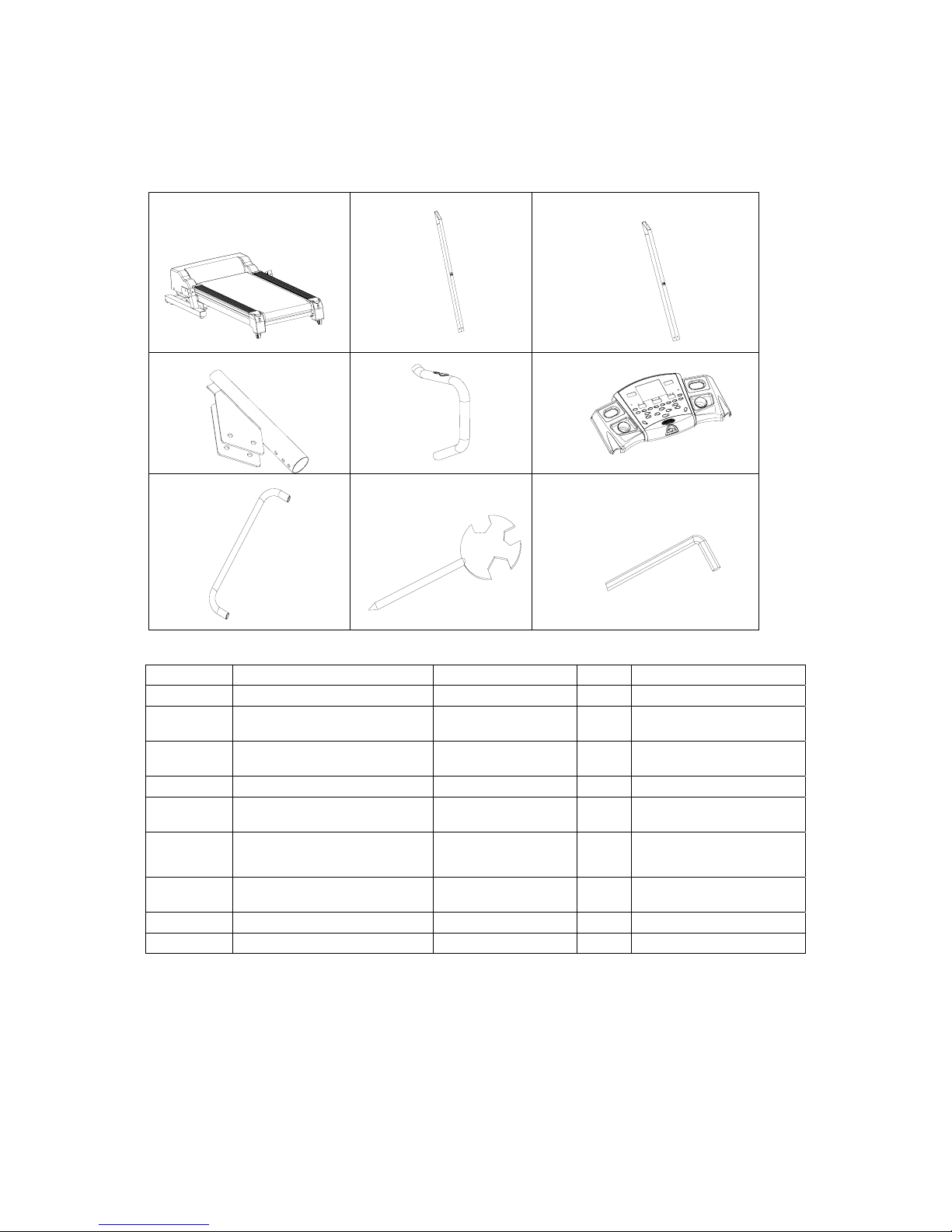

Packing List:

No. Title Spec. Qty Remark

ⅠMain frame 1

ⅡLeft pillar handrail

combination 1

ⅢRight pillar handrail

combination 1

ⅣElectronic meter frame 2

ⅤCombination of left and

right handrails 2

ⅥElectronic meter 1

ⅦSeat tube of electronic

meter 1

ⅧCrossed solid wrench S13 S14 S15 1

ⅨInner hexagon spanner S5 S6 2

LIFESPAN EQUALIZER Page 6

Assembly Steps:

1. Take all parts of the running machine out from the packing case.

Figure 3

WE RECOMMEND YOU HAVE SOMEONE TO ASSIST YOU IN LIFTING AND ASSEMBLING

YOUR LIFESPAN TREADMILL. FOLLOW THESE INSTRUCTIONS CAREFULLY AND IT WILL

MAKE IT EASIER TO ASSEMBLE YOUR LIFESPAN TREADMILL

CAUTION:

1. DO NOT PLUG IN POWER CORD UNTIL FINAL ASSEMBLY IS COMPLETED AND

MOTOR COVER IS INSTALLED.

2. Do not attempt to assemble the treadmill until the assembly instructions are

followed and the uprights are attached to the treadmill. Failure to follow this can

result in damage to the treadmill.

3. Your treadmill is a very heavy piece of exercise equipment and should be handled

with caution.

4. Children should not be allowed to play on the treadmill or move the treadmill

deck up and down.

LIFESPAN EQUALIZER Page 7

2. As shown in Figure 3: (1) Put the lower part of left pillar 84 into the pillar seat of base combination 79

first; (2) And then fasten left pillar 84 onto 79 by inner hexagon socket screw 1 and inner dead washer 28

in the way shown in Figure 3 and use S6 inner hexagon socket wrench for tightening; (3) Connect trunk

line 74 with trunk line 75 and then put right pillar 85 into the pillar seat of base combination 79; (4) And

finally fasten the right pillar 85 onto the base combination 79 by inner hexagon socket screw 1, and inner

dead washer 28 in the way shown in Figure 3 and use S6 inner hexagon socket wrench for tightening.

Figure 4

3. As shown in Figure 4: (1) Firstly, cut over hole of electronic meter frame 88 into the double-screw bolt

of electronic meter 66; (2) And then lock inner hexagon socket screw 13 into the screw of electronic

meter 66 respectively; and finally use S6 inner hexagon wrench for tightening.

Figure 5

LIFESPAN EQUALIZER Page 8

4. As shown in Figure 5: (1) Cut over the electronic meter which has been connected well in last step into

the upper parts of left and right pillars respectively; (2) And then connect link trunk line 74 with the

connecting wire of the electronic meter well; (3) And finally lock inner hexagon screw 1 by inner hexagon

socket wrench and then fix it on 84 and 85.

5. As shown in Figure 6: (1) Nest handrails 82 and 83 into electronic meter frame ( lifting at left, speed at

right); (2) And then fasten them onto electronic meter frame by inner hexagon screw 15 and get right the

foam ; (3) And finally fix the lower ends of the handrails onto the pillar by inner hexagon bolt 14.

Figure 7

6. As shown in Figure 7: (1) Nest pull tube 86 into the round tubes of left and right pillars 84 and 85; (2)

And then churn up the external foam of pull tube 86, conduct a locking by cross recessed screw 18 and a

tightening with a crossed solid wrench; (3) And finally knead the foam.

7. Check whether or not all parts have already been firmly locked. The assembly is now completed.

LIFESPAN EQUALIZER Page 9

Caution:

1. Keep the user manual and assembly tools for future servicing or repair.

2. Conduct another check to all connecting parts once assembly is completed to ensure

everything is installed correctly and running smoothly.

3. Make certain there are no factors which will lead to an unstable placement of the

treadmill, such as unlevel ground as it places a hidden safety danger to users.

4. When folding the treadmill, the elastic pin should be pulled out and raised to a certain

height. Moving may be done only after it is confirmed that the elastic pin has already

been inserted into the hole of the extension tube.

Ensure all fixings are tightly secured and the treadmill is well constructed.

3 DISPLAY PANEL OPERATIONS

3.1 Safety Key

IMPORTANT: The treadmill will not operate if the safety key is not in place.
