Life Span Supreme Manuale utente

NOTE: This manual may be subject to updates or changes. Up to date manuals are available through our website at www.lifespanonline.com.au/downloads

Product may vary slightly from the item pictured due to model upgrades

Read all instructions carefully before using this product. Retain this owner’s manual for

future reference.

SUPREME OWNER’S MANUAL

SUPREME

TABLE OF CONTENTS

1. IMPORTANT SAFETY INSTRUCTIONS 3

2. IMPORTANT ELECTRICAL INFORMATION 4

3. IMPORTANT OPERATING INSTRUCTIONS 5

4. ASSEMBLY INSTRUCTIONS 6

5. FOLDING INSTRUCTIONS 11

6. OPERATION GUIDE AND PROGRAM CHART 12

7. EXERCISE GUIDE 27

8. MAINTENANCE INSTRUCTIONS 29

9. EXPLODED DIAGRAM 34

10. PARTS LIST 35

11. TROUBLE SHOOTING GUIDE 38

12. WARRANTY 40

SUPREME

1. IMPORTANT SAFETY INSTRUCTIONS

WARNING - Read all instructions before using this treadmill.

It is important your treadmill receives regular maintenance to prolong its useful life. Failing to

regularly maintain your treadmill may void your warranty.

Danger – To reduce the risk of electric shock disconnect your treadmill from the electrical outlet prior to

cleaning and/or service work.

DO NOT USE AN EXTENSION CORD: DO NOT ATTEMPT TO DISABLE THE GROUNDED PLUG BY

USING IMPROPER ADAPTERS OR IN ANY WAY MODIFY THE CORD SET.

•Install the treadmill on a flat level surface with access to a 220-240 volt (50/60Hz), grounded outlet.

•Do not operate treadmill on deeply padded, plush or shag carpet. Damage to both carpet and

treadmill may result.

•Do not block the rear of the treadmill. Provide a minimum of 1 metre clearance between the rear of

the treadmill and any fixed object.

•Place your unit on a solid, level surface when in use

•Never allow children on or near the treadmill.

•When running, make sure the plastic clip is fastened on your clothing. It is for your safety, should

you fall or move too far back on the treadmill.

•Keep hands away from all moving parts.

•Never operate the treadmill if it has a damaged cord or plug.

•Keep the cord away from heated surfaces.

•Do not operate where aerosol spray products are being used or where oxygen is being administered.

Sparks from the motor may ignite a highly gaseous environment.

•Never drop or insert any object into any openings.

•The treadmill is intended for in-home use only and not suitable for long time running.

SUPREME

•To disconnect, turn all controls to the off position, remove the safety key, and then remove the plug

from the outlet.

•The pulse sensors are not medical devices. Various factors, including the user’s movement, may

affect the accuracy of heart rate readings. The pulse sensors are intended only as exercise aids in

determining heart rate trends in general.

•Use the handrails provided; they are for your safety.

•Wear proper shoes. High heels, dress shoes, sandals or bare feet are not suitable for use on your

treadmill. Quality athletic shoes are recommended to avoid leg fatigue.

•Allowed temperature: 5 to 40 degrees.

Remove the safety key after use to prevent unauthorized treadmill operation.

2. IMPORTANT ELECTRICAL INFORMATION

WARNING!

•NEVER use a ground fault circuit interrupt (GFCI) wall outlet with this treadmill. Route the power

cord away from any moving part of the treadmill including the elevation mechanism and transport

wheels.

•NEVER remove any cover without first disconnecting AC power.

•NEVER expose this treadmill to rain or moisture. This treadmill is not designed for use outdoors,

near a pool, or in any other high humidity environment.

•This is high-power item; please do not share the same outlet with other high power machines such

as, fridges, air conditioning etc. Please choose an outlet exclusively for the machine and make sure

the fuse is 10A.

SUPREME

3. IMPORTANT OPERATING INSTRUCTIONS

•Be sure to read the entire manual before operating your machine.

•Understand that changes in speed and incline do not occur immediately. Set your desired speed on

the computer console and release the adjustment key. The computer will obey the command

gradually.

•Use caution while participating in other activities while walking on your treadmill, such as watching

television, reading, etc. These distractions may cause you to lose balance or stray from walking in

the centre of the belt; which may result in serious injury.

•In order to prevent losing balance and suffering unexpected injury, NEVER mount or dismount the

treadmill while the belt is moving. This unit starts with at a very low speed. Simply standing on the

belt during slow acceleration is proper after you have learned to operate this machine.

•Always hold on to handrail while making control changes.

•A safety key is provided with this machine. Remove the safety key will stop the walking belt

immediately; the treadmill will shut off automatically. Inserting the safety key will reset the display.

•Do not use excessive pressure on console control keys. They are precision set to function properly

with little finger pressure.

SUPREME

4. ASSEMBLY INSTRUCTIONS

3L/R Upright 13.T-Type Wrench 14.Screw Driver 15.Wrench

31．Safety lock 41.Front cover 55.Dumbbell 76.Bolt

M6*15

77. Bolt

M8*20

83. Bolt

M4*8

84．Tapping screw

85．M4*15

94.Washer

∮8.4*∮14.5*t0.8

98.spring line 99.HRC 102．Main Frame

103.Computer Assembly 104.DB Rack 105.EKG Grip Pulse 7.connection parts

SUPREME

STEP 1:

STEP 2:

1. Connect the bottom wire (106) with

the middle wire (107). Then place the

L/R upright (3L/R) on the main frame

assembly (102), secure them with bolt

M8*20 (77) and the Internal Washer

∮8.4*∮14.5*t0.8 (94). Do not tighten

these bolts completely at this step

1. Attach the connection parts (7L/R) onto

the computer (103) tightly with bolts

M8*20 and the washer ∮8.4*∮14.5*t0.8

(94)

SUPREME

STEP 3:

1. Set the cover (36L/R) on the upright

(3L/R).

2. Connect the middle wire (107) with the

up wire (108).

3. Attach the computer assembly (103),

the connection parts (7L/R) and L/R

upright (3L/R) together with bolt M8*20

(77) and internal washer (94) according

to the diagram.

SUPREME

STEP 4:

STEP 5:

1. Attach the DB rack (104) on the upright

(3L/R) with bolt M6*15(76).

2. Completely tighten the bolts in the STEP

3. Attach the front cap (41) onto the upright

and the main frame with the bolt

M4*8(83).

1. Connect the wires between the computer

and the EKG Grip Pulse (105)

2. Attach the EKG Grip Pulse (105) onto the

treadmill according to the diagram

3. Secure them with the bolt M6*15(76).

SUPREME

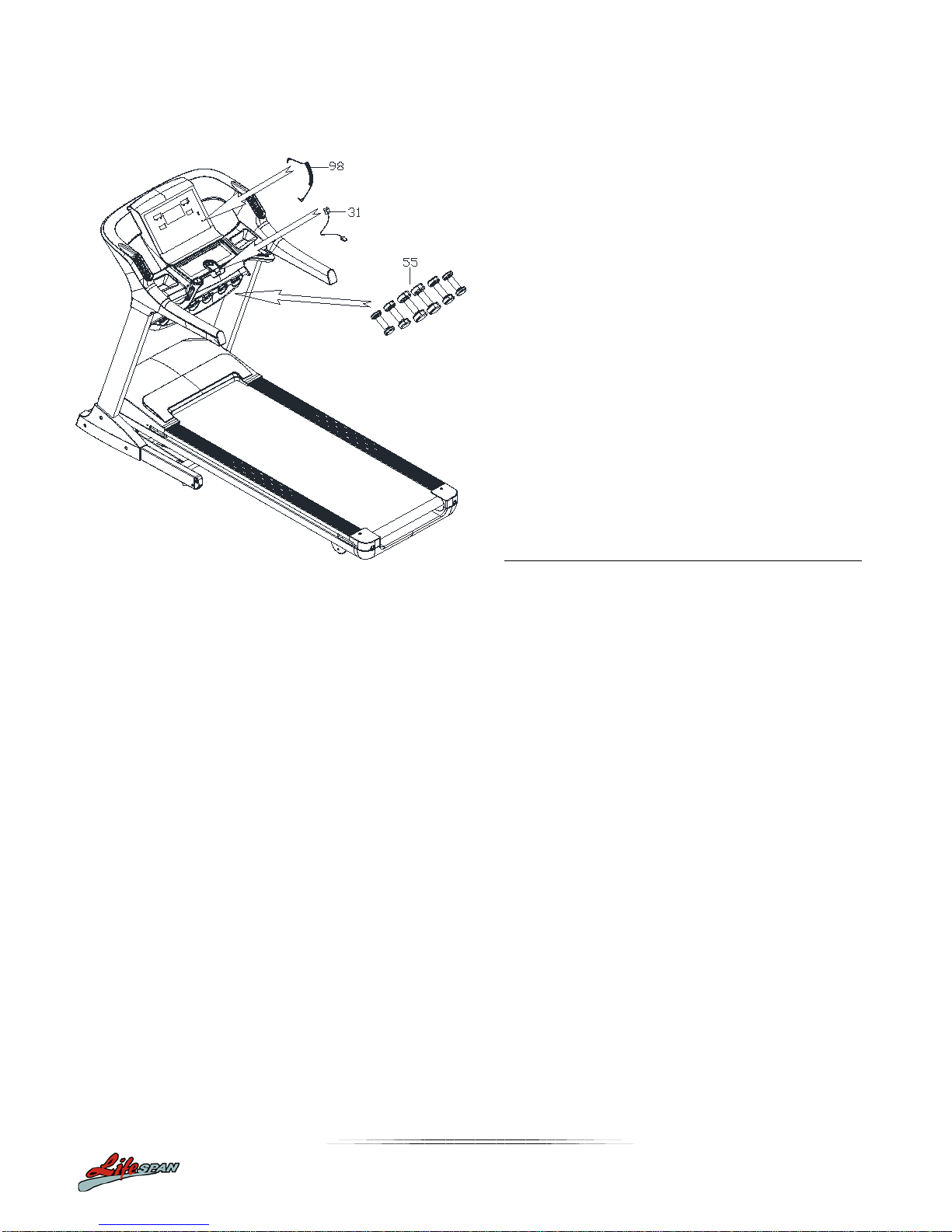

STEP 6:

ATTENTION: Confirm that assembly is complete as required above, and then check that all bolts are

tightened before turning the machine on.

1. Install the dumbbell (55), safety lock (31)

and the spring line for the MP3 (98)

according to the diagram.
