Lightmybricks 103024 Manuale utente

Light My Bricks : Ghostbusters Firehouse Headquarters LED

Lighting Kit

Here is the instructions document for the Lego Ghostbusters Firehouse Headquarters

LED lighting kit. Please read and follow the steps carefully to ensure this lighting kit is

installed properly.

Package contents:

 6x White Strip Lights

 13x White 30 cm Bit Lights

 3x Flashing Red 30cm Bit Lights

 1x Flashing White 30cm Bit Light

 1x 12-port Expansion Board

 2x 6-port Expansion Boards

 1x 4-port Traffic Light Effects Board

 1x Battery Pack (3x AA batteries not included)

 10x Adhesive squares

Connecting Cables

 4x 15cm cable

 5x 30cm cable

Extra Lego Pieces

 6x plate 1×6 (for mounting strip lights)

 2x trans red 1×1 round plate

 1x trans green 1×1 round plate

 1x trans orange 1×1 round plate

 2x trans red 1×1 round brick

 2x light grey 1×1 modified brick with stud on one side

 2x light grey “tap”

Important things to note:

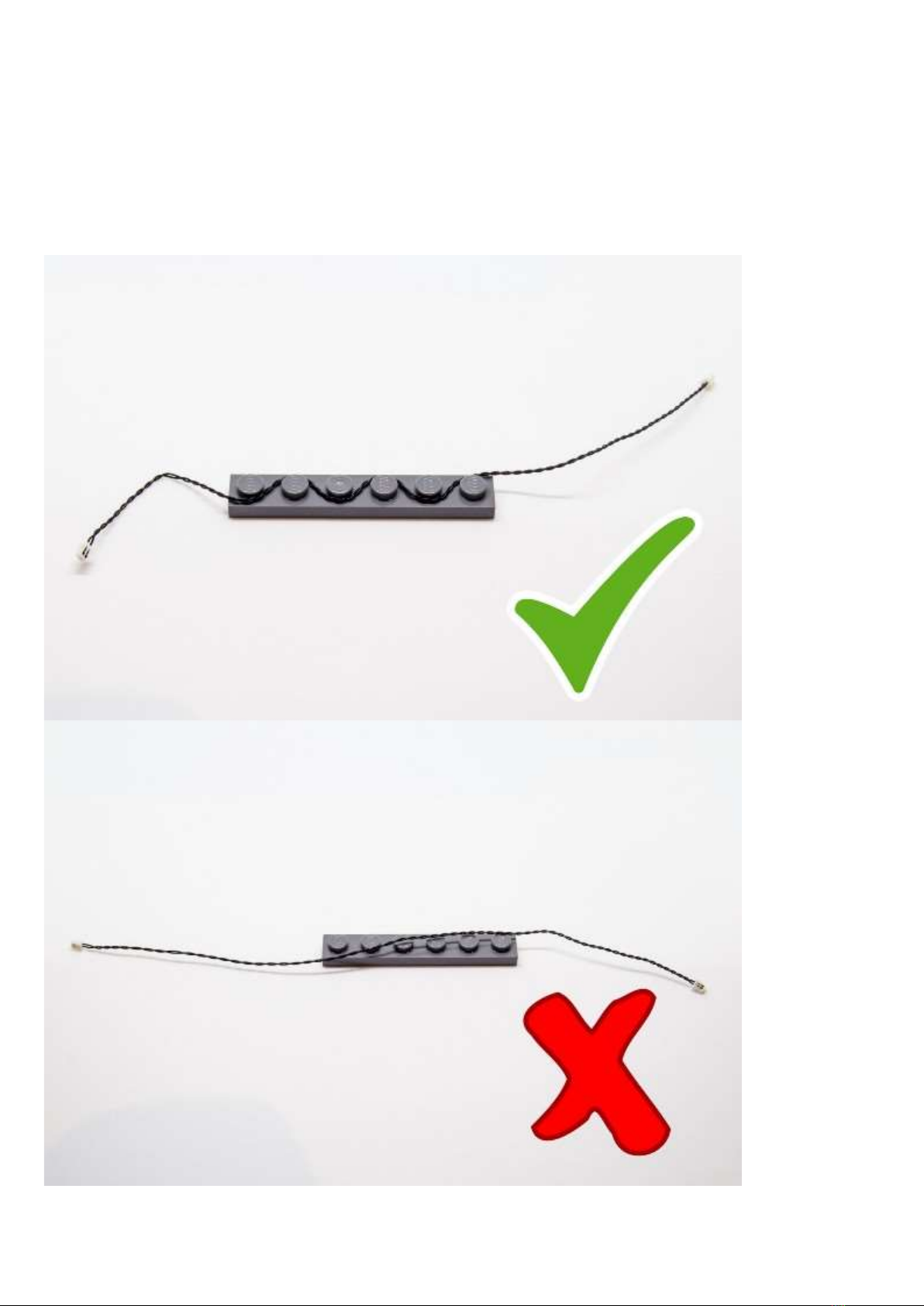

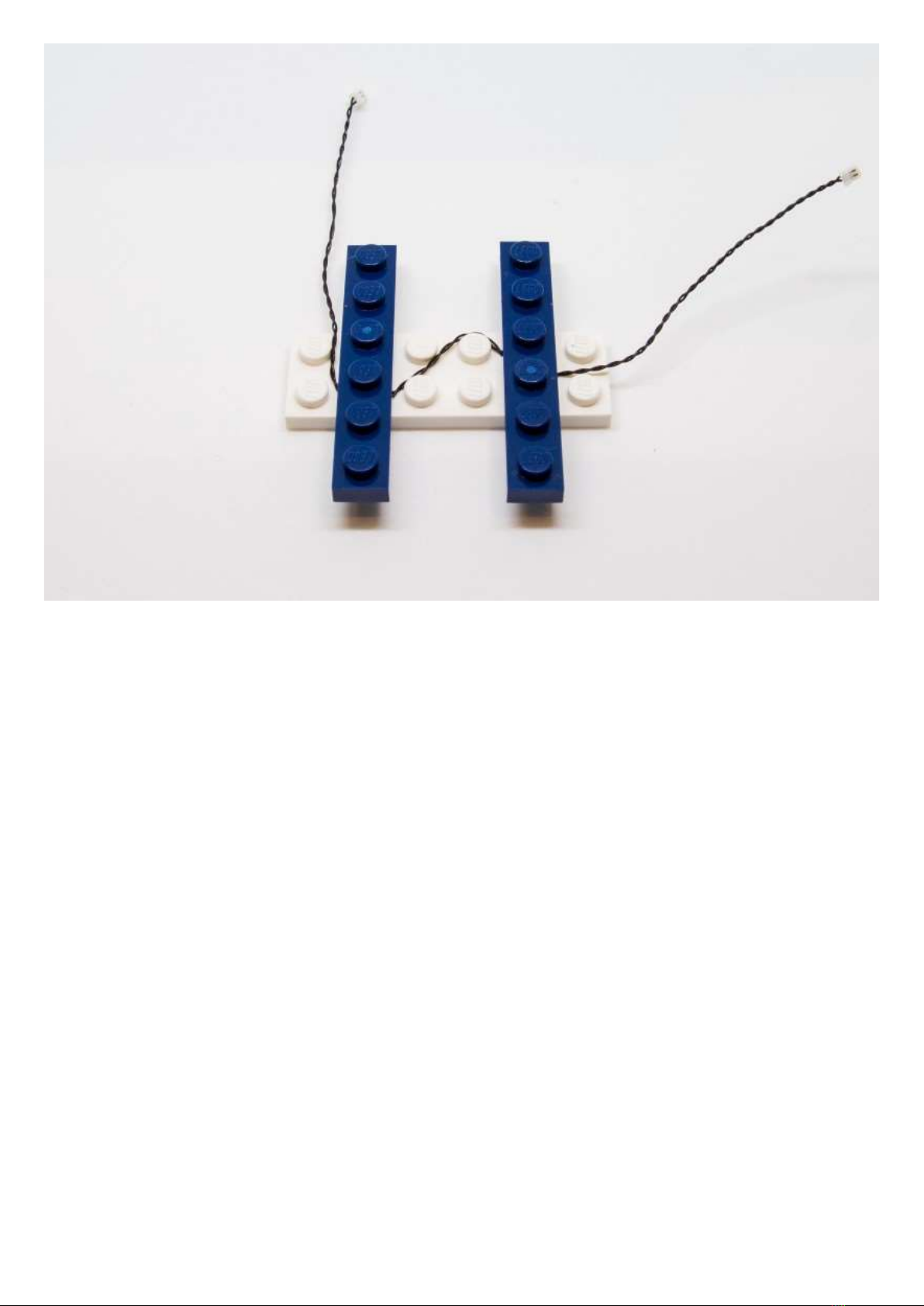

Laying cables in between and underneath bricks

Cables can fit in between and underneath LEGO® bricks, plates, and tiles providing they

are laid correctly between the LEGO® studs. Do NOT forcefully join LEGO® together

around cables; instead ensure they are laying comfortably in between each stud.

CAUTION: Forcing LEGO® to connect over a cable can result in damaging the cable

and light.

Connecting cable connectors to Strip Lights

Take extra care when inserting connectors to ports on the Strip Lights. Connectors can be

inserted only one way. With the Strip Light facing up, ensure the side of the connector

with the wires exposed is facing down. If a plug won’t fit easily into a port connector, don’t

force it. Doing so will damage the plug and the connector.

Connecting cable connectors to Expansion Boards

Take extra care when inserting connectors to ports of Expansion Boards. Connectors can

be inserted only one way. With the expansion board facing up, look for the soldered “=”

symbol on the left side of the port. The connector side with the wires exposed should be

facing toward the soldered “=” symbol as you insert into the port. If a plug won’t fit easily

into a port connector, do not force it.

WARNING: Incorrectly inserting the connector can result in bent pins inside the port or

possible overheating of the expansion board when connected.

Installing Bit Lights under LEGO® bricks and plates.

When installing Bit Lights under LEGO® pieces, ensure they are placed the correct way

up (Yellow LED component exposed). You can either place them directly on top of

LEGO® studs or in between.

OK, Let’s Begin!

Instructions for installing this kit

1.) This lighting kit is installed from the bottom up. Start by opening the building and

removing the 2nd and top levels of the modular building.

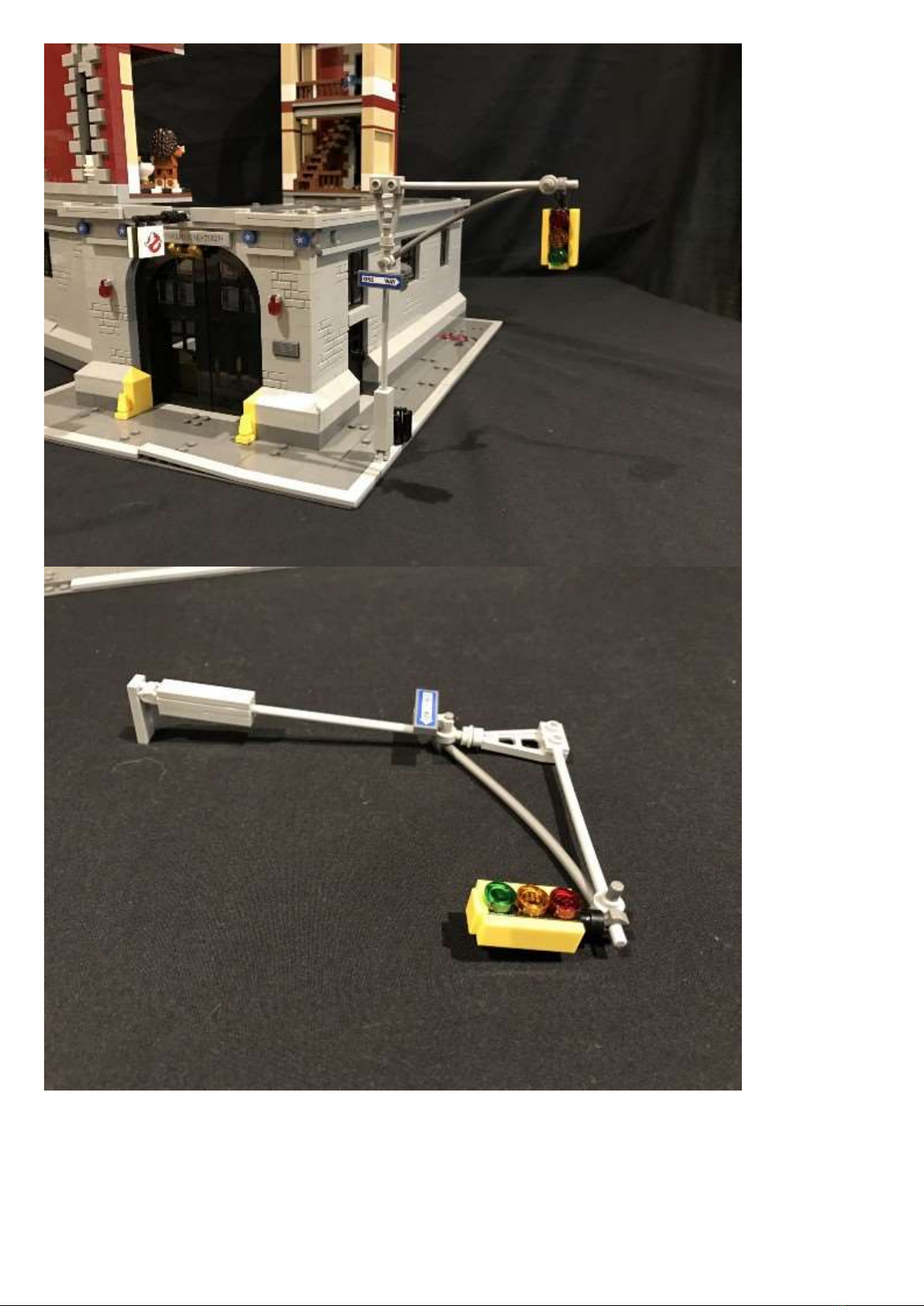

We will be installing lights to the traffic light first. Remove the traffic light and pole, then

disassemble the traffic light starting from the left yellow plate.
