Lightolier Lytecaster 1152 Manuale utente

Lightolier a Genlyte company www.lightolier.com

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

45˚

F 2011

Lytecaster®Recessed Downlighting 1152

Page 1 of 2 6 3/4" Aperture Low Voltage Adjustable Pinhole Reflector Trim

1152/1102P1 Series

Standard

7 9/16”

6 1/2”

7 7/8”

1” Max.

Features

1. Housing: Hydroformed aluminum, .040" thick (18 ga.); matte white trim

flange.

2. Pinhole Faceplate: Die-formed steel, .036" thick (20 ga.) ; welded assembly

of aperture plate and inner shield, matte white finish. Cuts off glare at normal

viewing angles.

3. Lampholder Assembly: Provides 358˚ horizontal rotation and 45˚ vertical

adjustment. Anti-glare ring holds glass. Spring lamp clips allow snap-on/

snap-off lamping without disturbing aiming position. Locking screws lock

Lampholder Assembly into aiming position; both horizontal and vertical locks

provided. Two pin base socket.

4. Transformer: Magnetic; for 35W-75W MR16 lamps;120V primary, nominal

12V secondary; remarkable from below.

5. Frame-In Kit: See Frame-In Kit specification sheets for more details.

Dimming Information

Dimming controls: use only dimmers specifically designed for use with magnetic

transformed, like Lightolier Onset®, Sunrise® series LV or VA dimmers, or any

Lightolier Controls dimming system. Low voltage fixtures may produce audible

sound when used with dimmers, which may be objectionable in acoustically

critical areas.

Options & Accessories

Extra Wide Flange Trim Ring: 1954 - 8 5/8" O.D.

MR16 Replacement Sockets: 1975A

Retaining Clips: 1955 - For installation in

existing ceiling.

Slot Aperture Faceplate: 1552

Labels:

UL (Suitable for Damp Locations), I.B.E.W.

1152/1100DEEP IC Series

Insulated Ceiling

9 1/4”

1152/1103R

0™ Non-IC

Remodeler Ring

7 7/8”

Complete Fixture consists of Reflector Trim & Frame-In Kit. Select each separately.

Reflector Trim Frame-In Kit — See Individual Frame-In Kit Specification Sheets

Incandescent

Frame-In Kit Installation Type Lamping Height

1152 Matte White 1102P1 Non-IC 42W - 75W MR16 7 7/8”

1103R Non-IC Remodeler 7 7/8”

1100DICM Deep IC 35W MR16 9 1/4”

1100DAICM Deep AirSeal® IC 9 1/4”

Lightolier a Genlyte company www.lightolier.com

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Job Information Type:

45˚

F 2011

Lytecaster®Recessed Downlighting 1152

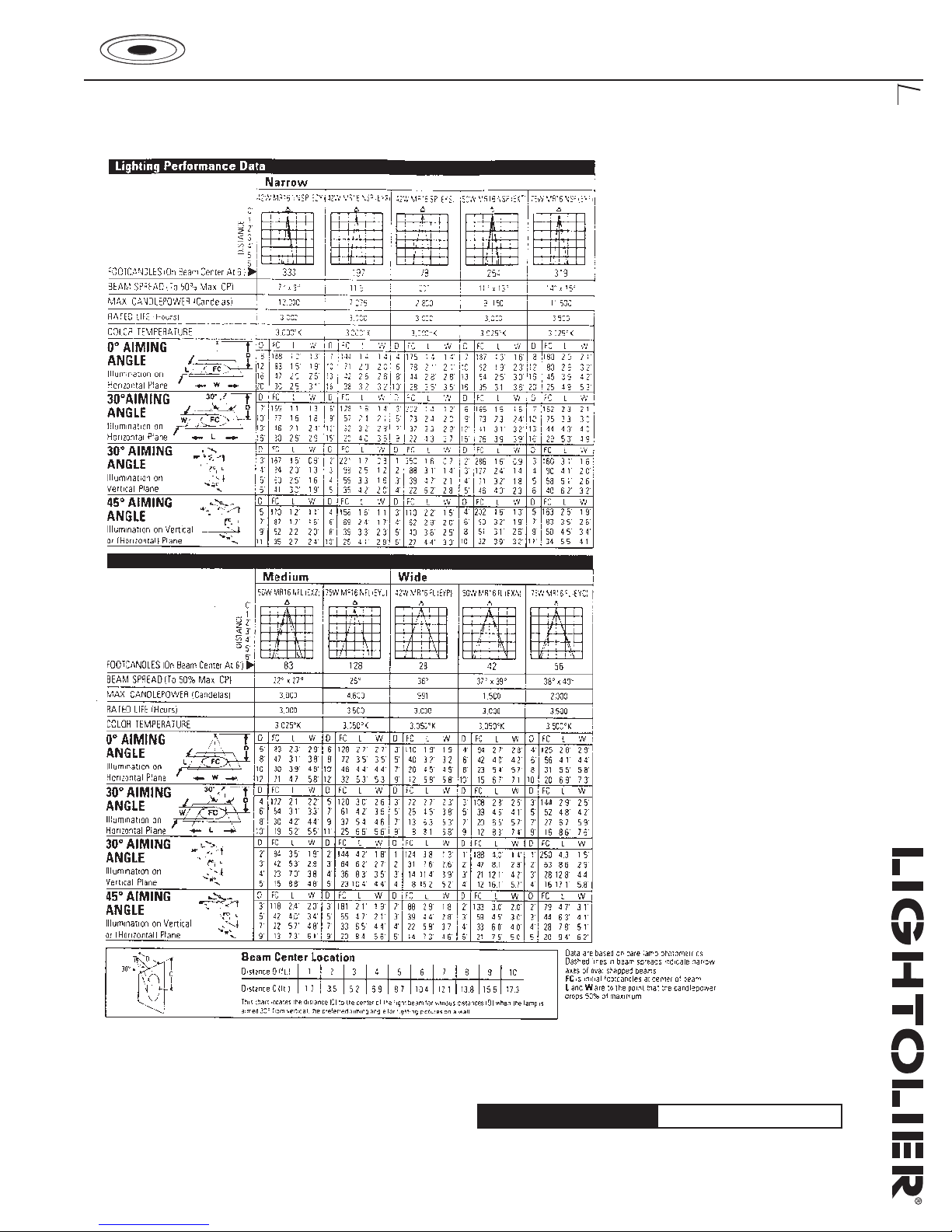

Page 2 of 2 6 3/4" Aperture Low Voltage Adjustable Pinhole Reflector Trim
