Lightolier Calculite GC Manuale utente

Frame-In Kit

Decorative Element

Catalog No.

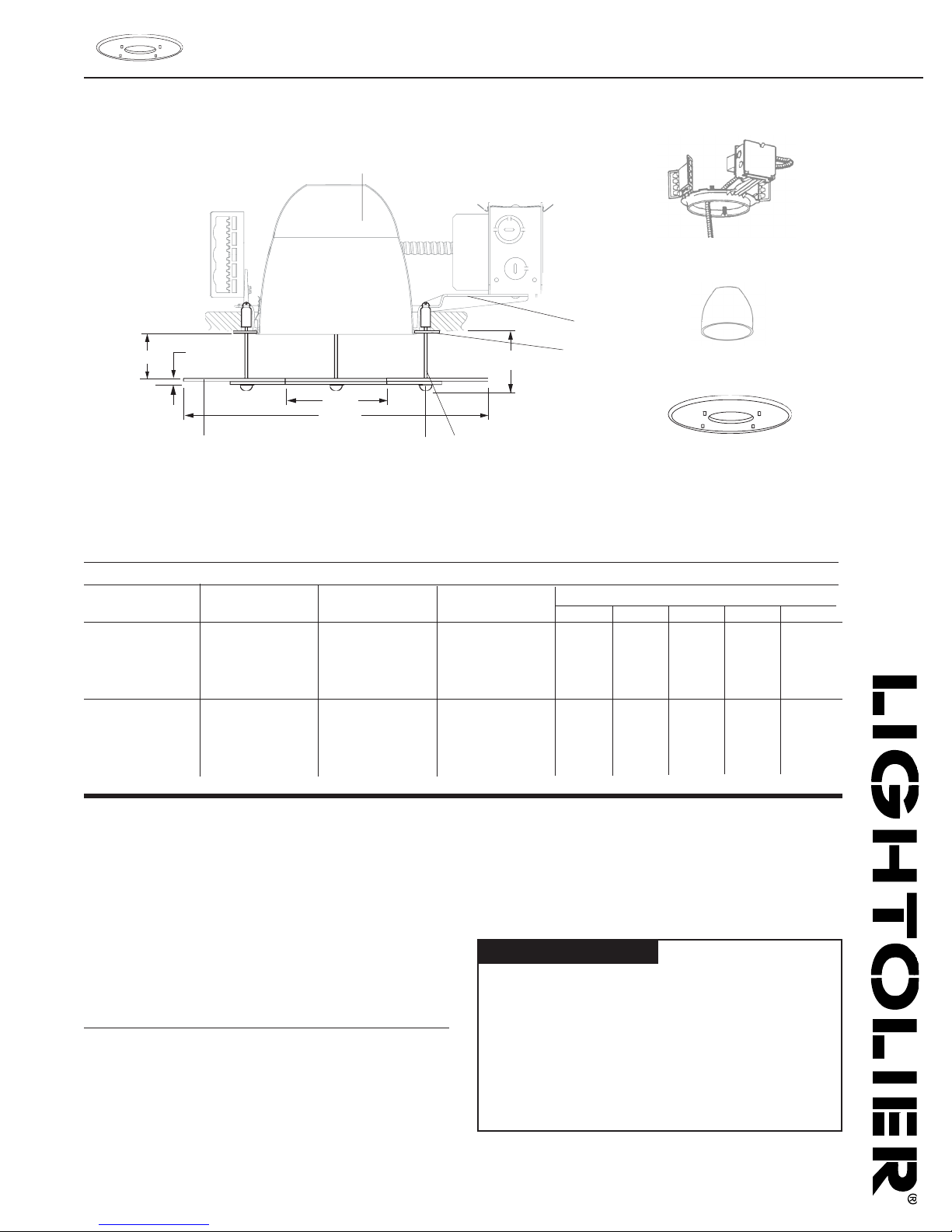

Dimensions

GC6A

GC6G

GC6B

Amber Edge

Green Edge

Blue Edge

Finish/Color Trimless Reflector ABCDE

For use with all Calculite

6” Compact Fluorescent

and Incandescent open

downlight Frame-In Kits

except ProSpec.

Frame-In Kit

12” 4” 2 1/4” 1/4” 1 3/4”

132Glass Edge Lit Circle

Trimless Reflector

Complete Fixture consists of decorative element, standard Frame-In Kit and trimless reflector. Select each separately.

Ordering Information

For use with all Calculite

6” Compact Fluorescent

and Incandescent open

trimless downlight

reflectors except ProSpec.

GC7A

GC7G

GC7B

Amber Edge

Green Edge

Blue Edge

For use with all Calculite

7” Compact Fluorescent

and Incandescent open

trimless downlight

reflectors except ProSpec.

For use with all Calculite

7” Compact Fluorescent

and Incandescent open

downlight Frame-In Kits

except ProSpec.

13 1/2” 5” 2 1/4” 1/4” 1 3/4”

Calculite®Decorative Claritas Art Glass GC

Page 1 of 1 6” & 7”Aperture Decorative Glass Edge Lit Circle

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

Lightolier a Genlyte Thomas Company www.lightolier.com

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Features

1. Decor Disc: Two layers of hand fused art glass. A white base fused to a

colorful edge capped with a clear layer of glass.

2. Mounting Rod: 4 stainless steel rods 1/8” diameter.

3. Decorative Fastener: Four placed 90˚ apart, with matte white painted

finish.

4. Trim Ring: .090” thick aluminum ring with matte white finish.

5. Reflector: See reflector trim for Specification Sheet.

6. Frame-In Kit: See Frame-In Kit for Specification Sheet.

Lighting Data

See applicable downlight Specification Sheet for base lighting data. Multiply the

candlepower values or the coefficient of utilization by the following factors:

6” 7”

A Lamp downlights .70 .70

Compact Fluorescent lamp downlights .65 .75

PAR Lamp downlights .85 .85

Mechanical

Decorative Elements securely fastened to 4 mounting frame rods with 4 half

round decorative spheres (3/8” dia.) and 4 (1/8” dia.) stainless steel rods for

maximum security.

Labels

U.L. (Damp Location)
