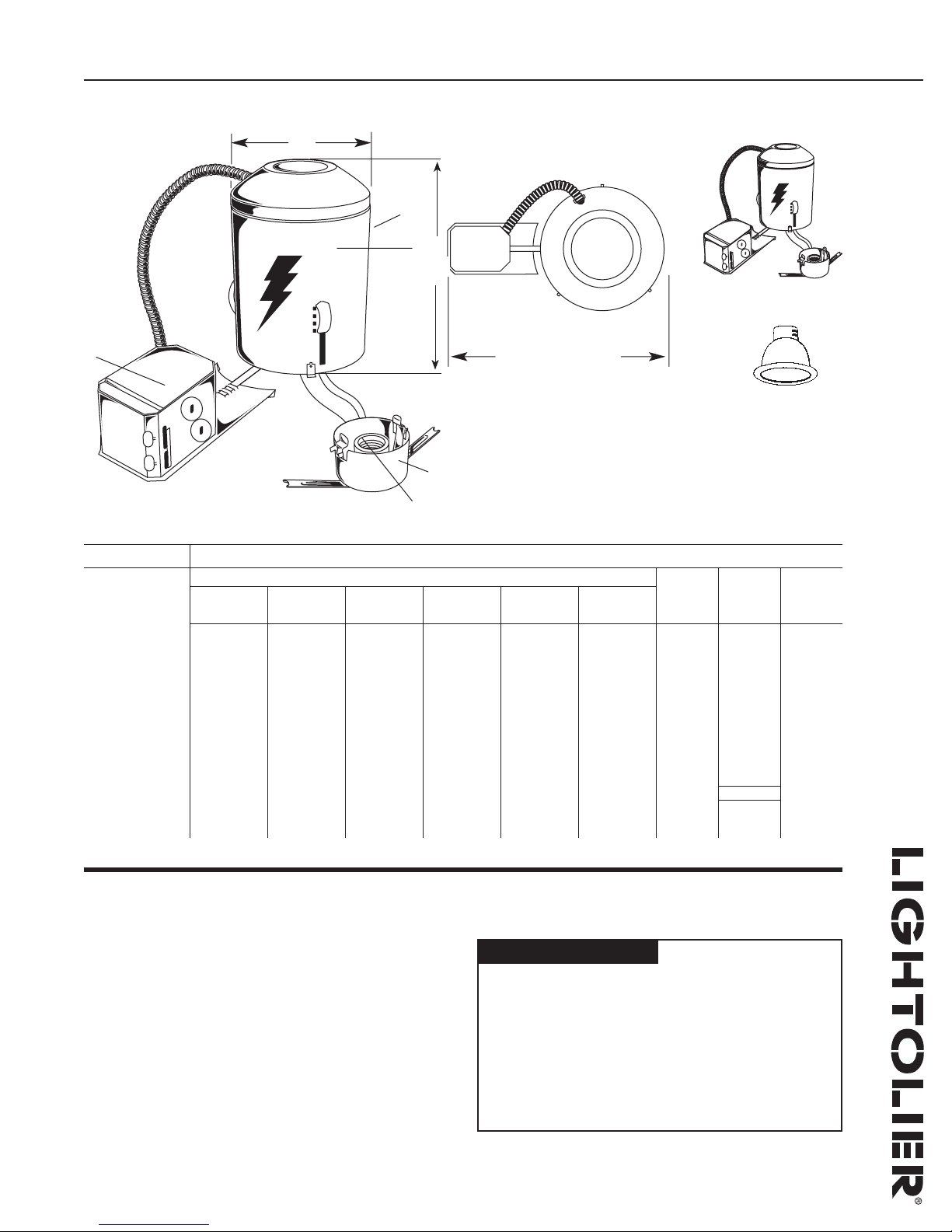

Lytecaster®Recessed Downlighting 1104ICR

Page 1 of 1 6 3/4" Aperture

® Incandescent Convertible IC/Non-IC Remodeler Frame-In Kit

6 7/8"

13 1/8"

Overall Length

Frame-In Kit

Top View

Reflector Trim

Ceiling Opening 7" Diameter

Features

1. Housing: .032 (#20 ga.) Aluminum. U.L. listed convertible IC/NON-

IC. Integral retaining spring secures housing to ceilings up to 2” thick.

Removable for access to junction box and ceiling plenum.

2. Junction Box: 2 1/2” X 2 1/2” X 3 1/2” (21 cu. in.) .032 (#22 ga.) galva-

nized steel. U.L. listed for 90°C supply wire. Integral cable clamps permit

attachment of non-metallic (#12 or #14 ga.) Romex® cable without tools or

additional connectors.

3. Socket Housing: Impact extruded aluminum or galvanized steel. Attached

trim retaining spring secures trim to any height on housing wall.

4. Socket: Porcelain medium base: nickel plated screw shell. Pre-wired with

#18 ga. SF1 (300 VOLT 200°C) leads to junction box.

5. Thermal protector: Meets NEC and U.L. requirements. Located inside housing.

Options & Accessories

AirSeal®Kit: LAS56R

(Required for AirSeal® installation)

Labels

UL (Type IC/NON-IC Convertible, Suitable for Damp Locations).

Romex® is a registered trademark of General Cable Industries Inc.

7 1/2”

Complete Fixture consists of Reflector Trim & Frame In Kit. Select each seperatly

Frame-In Kit Reflector Trims — See Individual Reflector Trim Specification Sheets

1104ICR Open Downlight

Eyeball Enclosed

Diffusers

Wall

Washer

Specular

Reflector

Specular

Cone

Satin

Cone

Cross

Blade Baffles Basic

White

1143

1144

1144CD

1112†

1113†

1113BK†

1113CD†

1113WH†

1108†

1110†

1132

1132A

1105†

1105WH

1176

1176WH

1176PB

1179M1

1179WH

1105BNM

1170M1

1171

1182 1121

1124

1126*

1128*

1134*

1177SH*

1178SH*

1177LX

1178LX

1190

1185*

1186*

1186WH*

Open Wet

1181WH

1181CD

* For Non-IC applications only.†Add NM to catalog number for Natural Metal flange and finish.
