Lytespan® Track Lighting System 24MHT4RS

Page 1 of 2 Mini HID T4 GU6.5, BT PGJ5 Spot Reflector

Features

1. Spot Reflector: Aluminum, faceted, specular, anodized and sealed.

Finish

Specular Anodized and Sealed.

Labels

UL, cUL

Ordering Information

Catalog No. Finish Lamps For Use With Luminaires

24MHT4RS Anodized T4 GU6.5, BT PGJ5 8109 & 8111

24MHT4RSCCZ Champagne Bronze

24MHT4RSWRM Incandescent Warm

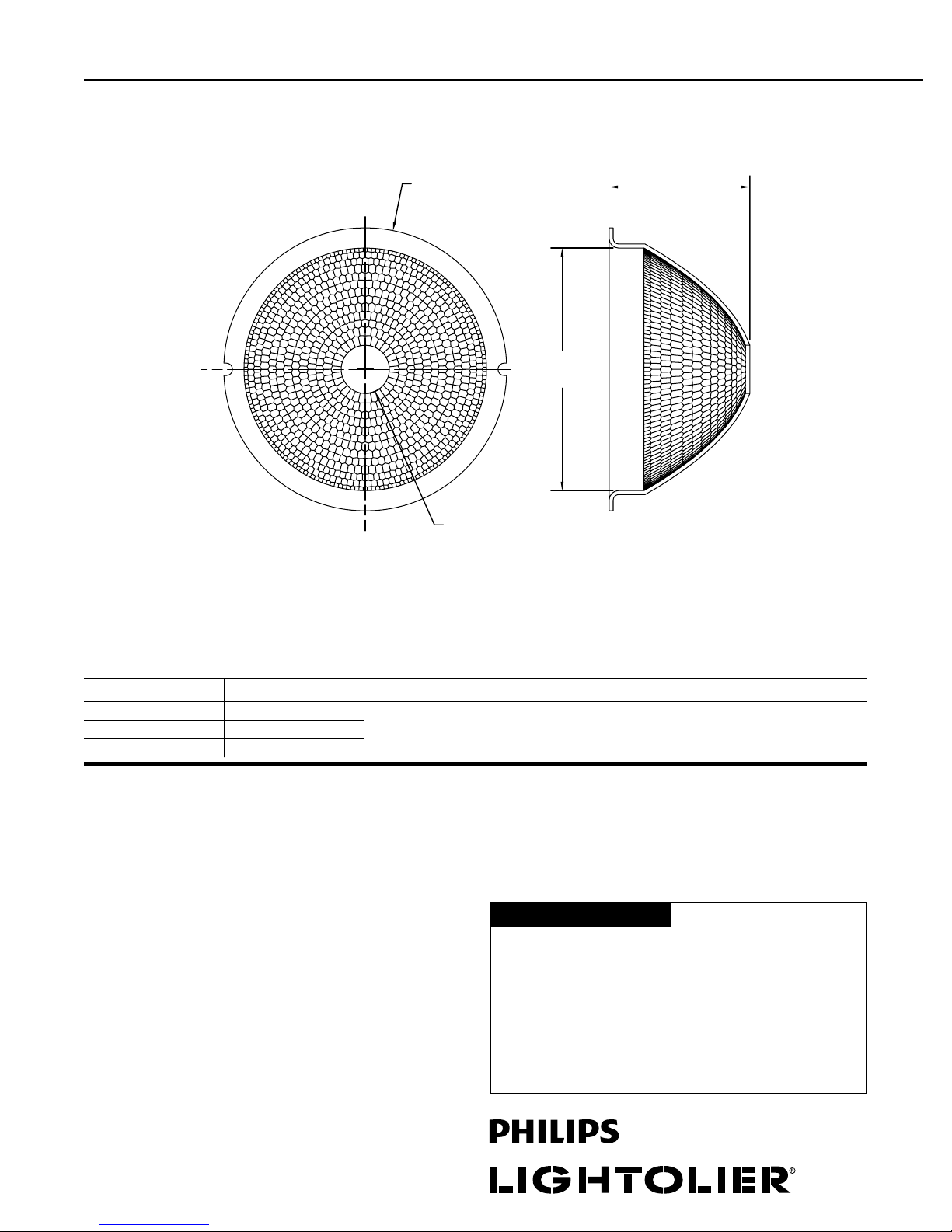

3 5/32 in

[ 80.0 mm]

2 11/16 in

[68.6 mm]

1 9/16 in

[39.8 mm]

17/32 in

[ 13.6 mm]

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Lytespan® Track Lighting System 24MHT4RS

Page 2 of 2 Mini HID T4 GU6.5, BT PGJ5 Spot Reflector

Job Information Type:

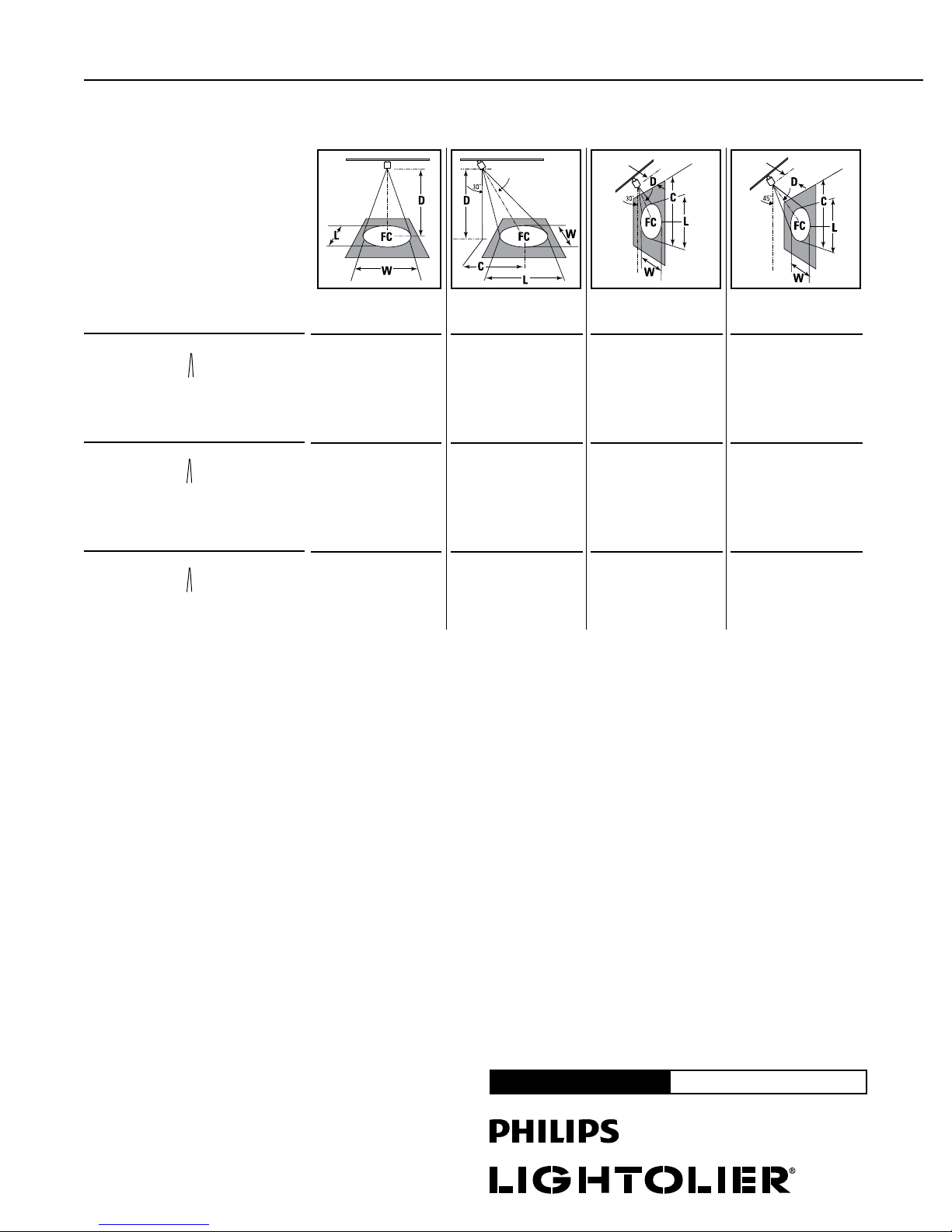

Aiming Angle: 0° 30° Horizontal 30° Vertical 45° Vertical

L Beam length D Distance

W Beam Width A Aiming Angle

C Distance to center beam FC Footcandles

L and W are the outer points where the candle

power drops to 50% of the maximum. FC are the

initial footcandles at the center of the beam.

Lamp data shown is typical. Consult lamp

manufacturers for availability and performance.

CBCP = Center Beam Candle Power.

Lamp

Beam Spread CBCP Rated

(To 50% CBCP) Life (Hrs.) D FC L W

10 178 1.7 1.7

12 123 2.1 2.1

14 91 2.4 2.4

16 69 2.8 2.8

D FC C L W

4 6.9 139 2.9 1.4

5 8.7 89 3.6 1.7

6 10.4 62 4.3 2.1

7 12.1 45 5.0 2.4

D FC C L W

4 6.9 139 2.9 1.4

5 8.7 89 3.6 1.7

6 10.4 62 4.3 2.1

7 12.1 45 5.0 2.4

D FC C L W

5 5.0 251 1.8 1.2

6 6.0 175 2.1 1.5

7 7.0 128 2.5 1.7

8 8.0 98 2.8 2.0

20W T4 17773 12,000

8109

24MHT4RS 10°

20W BT-5 17240 12,000

8111

24MHT4RS 10°

D FC L W

10 172 1.7 1.7

12 120 2.1 2.1

14 88 2.4 2.4

16 67 2.8 2.8

D FC C L W

10 5.8 112 2.3 2.0

12 6.9 78 2.8 2.4

14 8.1 57 3.3 2.8

16 9.2 44 3.7 3.2

D FC C L W

4 6.9 135 2.9 1.4

5 8.7 86 3.6 1.7

6 10.4 60 4.3 2.1

7 12.1 44 5.0 2.4

D FC C L W

5 5.0 244 1.8 1.2

6 6.0 169 2.1 1.5

7 7.0 124 2.5 1.7

8 8.0 95 2.8 2.0

35W BT-5 30214 9,000

8112

24MHT4RS 10˚

D FC L W

12 210 2.1 2.1

14 154 2.4 2.4

16 118 2.8 2.8

18 93 3.1 3.1

D C FC L W

10 5.8 196 2.3 2.0

12 6.9 136 2.8 2.4

14 8.1 100 3.3 2.8

16 9.2 77 3.7 3.2

D C FC L W

4 6.9 236 2.9 1.4

5 8.7 151 3.6 1.7

6 10.4 105 4.3 2.1

7 12.1 77 5.0 2.4

D C FC L W

6 6.0 297 2.1 1.5

7 7.0 218 2.5 1.7

8 8.0 167 2.8 2.0

9 9.0 132 3.2 2.2

Note: For Champagne Bronze (CCZ), multiply FC values by 0.64.

For Incandescent Warm (WRM), multiply FC values by 0.85.
