Lightolier Task Lighting F7200 Manuale utente

Lightolier a Genlyte company www.lightolier.com

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

Task Lighting F7200

Page 1 of 2 Portable Ambient

Features

Housing: High purity extruded aluminum, a portion from recycled material.

F7200: Oval shape.

Housing end: Die-cast aluminum, welded to the housing.

Finish: Powder coat baked enamel. Standard colors: white or aluminum.

Shielding: Perforated pierced pattern or louver.

Lamp: 2x39 watt T5HO lamps (included).

Ballast: Electronic and meets ANSI starting, end of life protection, THD and

sound rating specifications.

Switching: On/off switch on stem. Optional cord switch available.

Wiring: 3-wire cord with grounded low profile plug. Minimum length 9 feet.

Listing: UL/cUL listed.

6 3/4"

171mm

1 5/8"

41mm

Ordering Information

Style Lamps Length Wattage Voltage Type Color Mounting

F72 = Rectangle 2= Lamps 3= 3 Foot 7= 39W 1= 120V 2= Pattern AL = Aluminum F= Floor Stand

8= 39W Pierced WH = White P= Panel Bolt-on

Dimming 4= Louver E= Expandable Bracket

B= Binder Bin

F72 2 3 1

Example = F7223714ALP

1.424

1.426

6.750

1.304

.750

2. Pattern Pierced

4. Louver

Lightolier a Genlyte company www.lightolier.com

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Job Information Type:

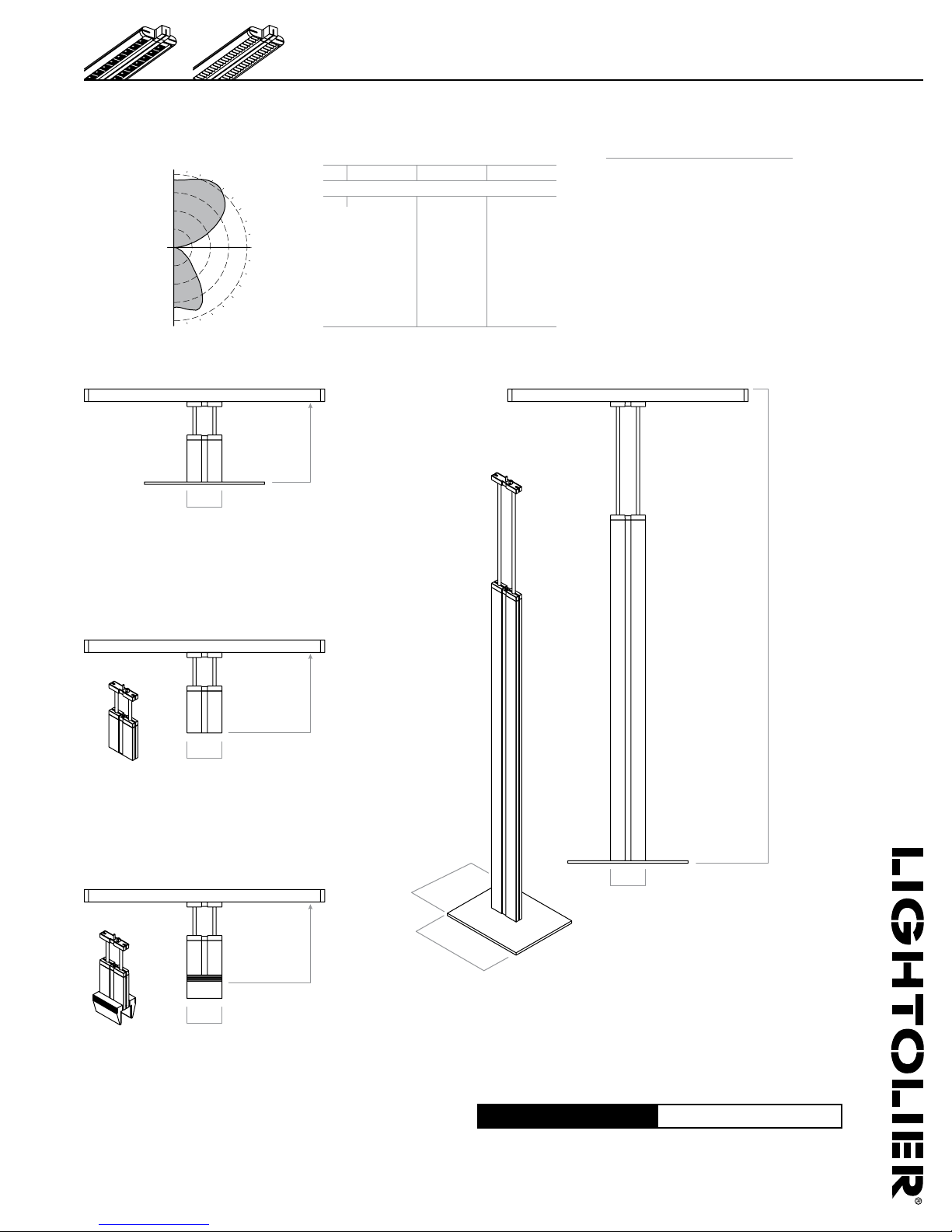

Task Lighting F7200

Page 2 of 2 Portable Ambient

5 5/8"

Adjustable

10" to 13"

Adjustable

10" to 13"

Adjustable

10" to 13"

5 5/8"

Adjustable

55" to 75"

20"

508mm

12"

305mm

Floor Stand

5 5/8"

Binder Bin Mount

Weighted Base

Weighted base allows fixture to sit atop

shelves or overhead cabinets.

Not recommended for use in seismic areas.

Panel Mount (Bolt-On)

Bolts to the top of furniture systems or short walls.

A small steel bracket is bolted though the top cap.

The stem assembly slides onto this bracket and is

held in place with hidden set screws.

Expandable Bracket

This adjustable bracket clamps onto

furniture systems ranging from 2" to 4" thick.

1500

1125

750

375

100

110

120

130

140

150

160

170

180

Candlepower Curve

Report No:

ITL54678.IES.MOD

Catalog No:

F7223714xxx

Lamps:

2-F39T5/HO

Lumens:

3500 each

Efﬁciency:

78.6%

Zonal Lumen Summary

Zone Lumens % Barelamp % Luminaire

0-90 1744 24.9 31.7

90-180 3761 53.7 68.3

0-180 5505 78.6 100.0

Coefﬁcients of Utilization

% Effective Ceiling Cavity Reﬂectance

80 70 50

% Wall Reﬂectance

50 30 10 50 30 10 50 30 10

0 52 52 52 45 45 45 33 33 33

1 45 43 42 40 38 37 29 28 27

2 40 37 34 35 32 30 25 24 22

3 35 31 28 31 28 25 22 20 19

4 31 27 24 27 24 21 20 18 16

5 27 23 21 24 21 18 18 15 14

6 24 21 18 21 18 16 16 14 12

7 22 18 15 19 16 14 14 12 10

8 20 16 13 17 14 12 13 11 9

9 18 14 12 16 13 11 12 10 8

10 16 13 11 14 11 9 11 9 7
