Lightolier 9” PENDALYTE SERIES Manuale di istruzioni

IS:CTC

INSTRUCTION SHEET NO.

A0504 Page 1 of 1

READ AND UNDERSTAND THESE INSTRUCTIONS BEFORE INSTALLING LUMINAIRE

This luminaire is intended for installation in accordance with the National Electrical Code and local regulations.

To assure full compliance with local codes and regulations, check with your local electrical inspector before

installation. To prevent electric shock, turn off electricity at fuse box before proceeding.

Retain these instructions for maintenance reference.

631

rpor

ver,

02720

COMPANY

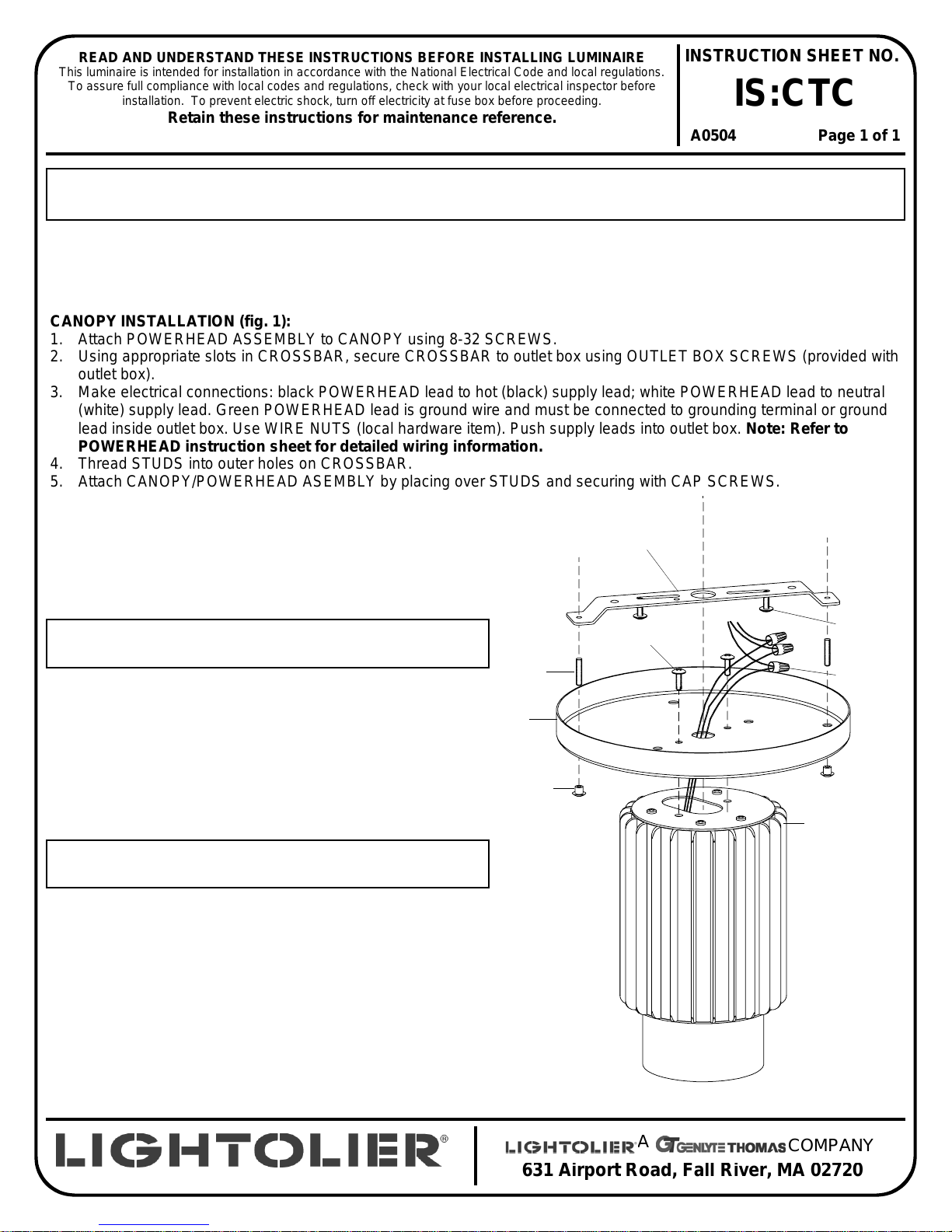

CANOPY INSTALLATION (fig. 1):

1. Attach POWERHEAD ASSEMBLY to CANOPY using 8-32 SCREWS.

2. Using appropriate slots in CROSSBAR, secure CROSSBAR to outlet box using OUTLET BOX SCREWS (provided with

outlet box).

3. Make electrical connections: black POWERHEAD lead to hot (black) supply lead; white POWERHEAD lead to neutral

(white) supply lead. Green POWERHEAD lead is ground wire and must be connected to grounding terminal or ground

lead inside outlet box. Use WIRE NUTS (local hardware item). Push supply leads into outlet box. Note: Refer to

POWERHEAD instruction sheet for detailed wiring information.

4. Thread STUDS into outer holes on CROSSBAR.

5. Attach CANOPY/POWERHEAD ASEMBLY by placing over STUDS and securing with CAP SCREWS.

INSTRUCTION SHEET FOR ASSEMBLY AND INSTALLATION OF 9”,12”&16” PENDALYTE™ SERIES

CLOSE TO CEILING MOUNT.

Note: This instruction sheet covers several luminaire styles. Powerhead assembly, lamp type, and reflector style

may vary slightly from that shown, although installation is the same.

CAUTION: MAKE CERTAIN WIRES ARE NOT PINCHED

BETWEEN PARTS.

CAUTION: MAXIMUM WATTAGE AS MARKED ON

LUMINAIRE MUST NOT BE EXCEEDED.

8-32 SCREWS

CROSSBAR

STUDS

CANOPY

POWERHEAD

ASSEMBLY

Fig. 1

OUTLET

BOX

CAP

SCREWS

WIRENUTS
