Lightolier Lytecaster 1135 Manuale utente

Lytecaster Recessed Downlighting 1135

Page 1 of 2 6 3/4” Aperture Step Baffle Wall Washer Reflector Trim

Lightolier a Genlyte company www.lightolier.com

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

Features

1. Reflector: Hydroformed aluminum, .040” thick (18 ga.). White gloss finish on

inside and flange.

2. Step Baffle: Die cast aluminum, stepped conical surface for low brightness,

matte black finish.

3. Aperture Plate: Semi-circular; die-formed steel; matte white; attached to

step baffle; snaps out for relamping.

4. Scoop Reflector: Hydroformed aluminum, .040” thick (18 ga.), Anobrite®

(anodic-processed) semi-specular finish for permanent high reflectivity;

provides an even wash of light over wall surface without scallops or

shadows.

5. Frame-In Kit: (1102P1 standard frame shown; other frames listed above.)

See Frame-In Kit specification sheet for more details.

Options & Accessories

Retaining Clips: 1955 - For installing in existing ceiling.

Extra Wide Flange Trim Ring: 1954 - 8 5/8” O.D.

Labels

UL (Suitable for Damp Locations), I.B.E.W.

Complete Fixture consists of Reflector Trim & Frame-In Kit. Select each separately.

Reflector Trim Frame-In Kit — See Individual Frame-In Kit Specification Sheets

1135

Matte Black Step Baffle

1135WH

Matte White Step Baffle

Incandescent Fluorescent

Frame-In Kit Ceiling Type Lamping Height Frame-In Kit Ceiling Type Lamping Height

1102P1

Non-IC 100W A19, 150W

A21, 90W BR40

9 1/4",

8 1/2"

1100FTU Series Non-IC (1) Triple 26/32W (GX24q-3) 9 1/4"

1101F18U

Series

Uniframe

Non-IC

(1) Quad/Triple 18W (GX24q-2) 8 3/8"

max.

1103R Non-IC

Remodeler

100W A19,

150 A21, BR40

9 1/4",

8 1/2" 1101F2642U

Series

Uniframe

Non-IC

(1) Quad/Triple 26W (GX24q-3)

(1) Triple 32W (GX24q-3)

(1) Triple 42W (GX24q-3)

8 3/8"

max.

1100DICM

1100DAICM

Deep IC

Deep AirSeal IC

60W A19, BR30 9 1/4"

9 1/4"

Lytecaster Recessed Downlighting 1135

Page 2 of 2 6 3/4” Aperture Step Baffle Wall Washer Reflector Trim

Job Information Type:

Lightolier a Genlyte company www.lightolier.com

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

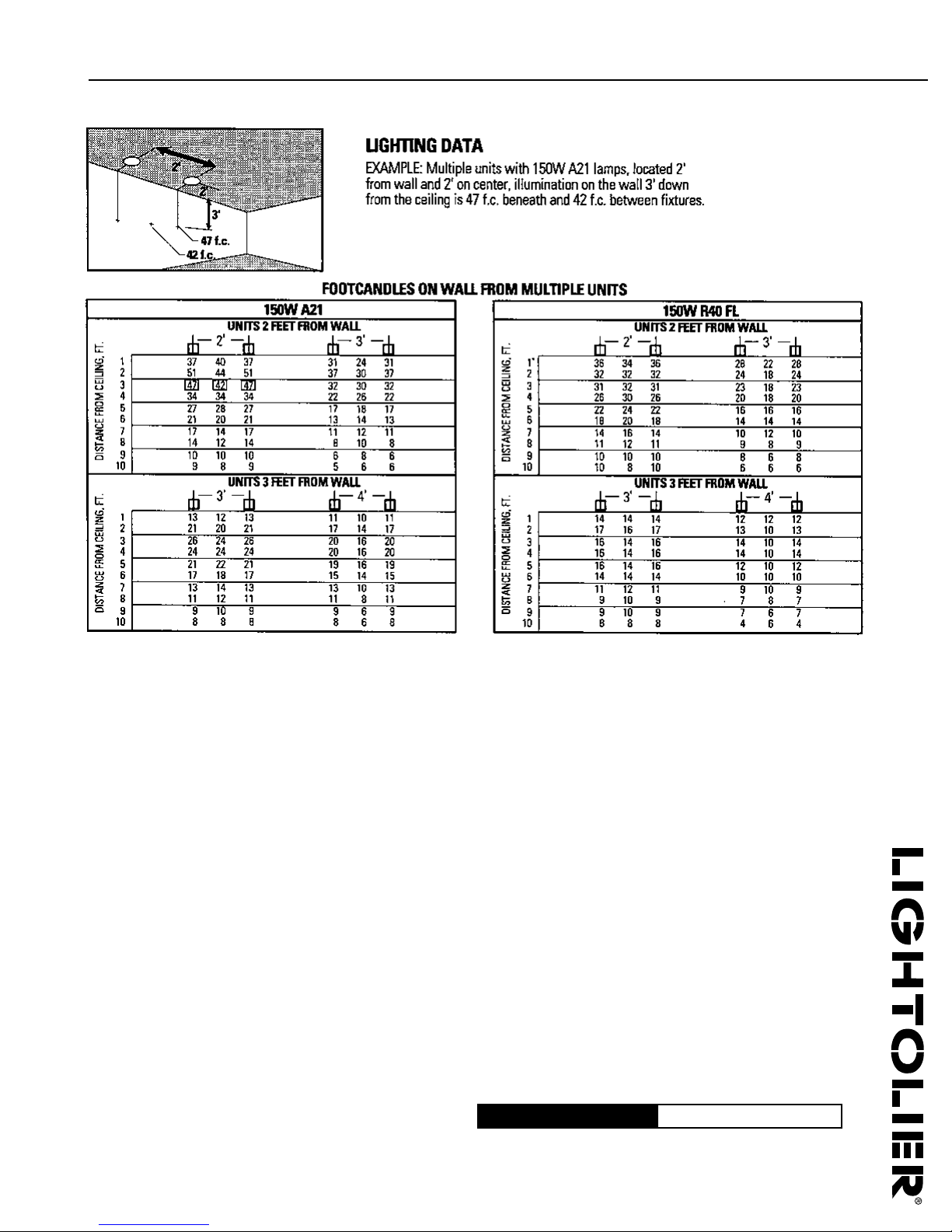

Footcandle values are averaged and rounded off and are based on a minimum of five units.

For fixture-to-wall distances, other than those shown, use maximum of 1 of 1 spacing (distance between fixture not more than distance to wall) for best results.

To convert lighting data for a lower wattage incandescent lamp of the same type, multiply the footcandle values by the ration of the lumens of the two lamps.
