ALTER METALYTE

2’ X 4’ RECESSED DIRECT/INDIRECT FLUORESCENT

2 LAMP, T8, 5 1/2” DEEP

MICROPERFORATED MESH LAMP SHIELD

STATIC

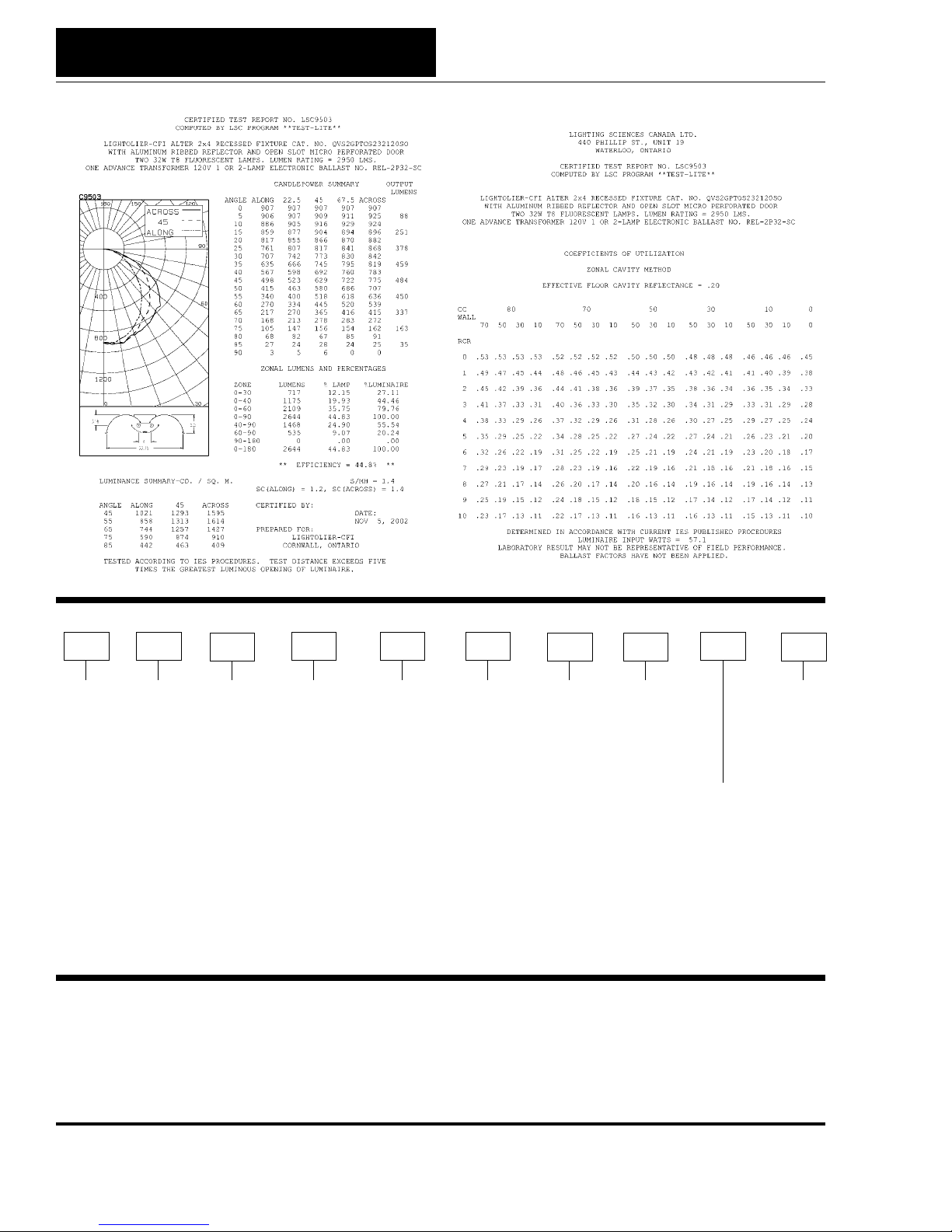

Efficiency 44.8%.

Semi-specular aluminum reflectors with

lengthwise ridges.

Swing down microperforated lamp shield

for easy relamping and maintenance.

Alter soft white film on inside of mesh conceals

lamp image and provide balance between

reflected light and direct light.

Fully recessed luminaire and lamp

compartment.

Specular interior reflector.

One piece body for easy installation.

Easy access to ballast through lamp

compartment.

Fits standard T-Grid ceilings.

Optional acrylic drop-down visual element.

MOUNTING METHODS/FEATURES DIMENSIONS

FIXTURE TYPE

JOB INFORMATION:

VOLTS

L30-50

QVS2GPTOS232

Suited to standard exposed Slot T-grid ceilings

Ceiling compatibility

Suited to standard exposed T-grid ceilings

Swing down optical system for

easy relamping and maintenance

Microperforated mesh lamp shields Semi-specular aluminum reflector

with lengthwise ridges

Genlyte Thomas Company

OS =Open slot (no acrylic)

OP =One Piece (no center slot)

GC =Clear acrylic

GG =Clear acrylic / Green projected color face

GB =Clear acrylic / Blue projected color face

GR = Clear acrylic / Red projected color face

ORDERING INFORMATION Explanation of Catalogue Number Example: QVS2GPTOS232120SO

SPECIFICATIONS

MATERIALS: One piece chassis constructed from die formed

20 gauge cold rolled steel. Reflectors - Semi-specular matte aluminum

reflector with lenghtwise ridges. Soft white acrylic film on inside of lamp

shield conceals lamp image.

FINISH: Chassis exterior - phosphate undercoating, baked white acrylic

matte high reflectance paint finish.

ELECTRICAL: Rapid start HPF, thermally protected class “P” ballast (Bi-tube

type). If K.Os are within 3” of ballast use wire suitable for at least 90C.

LABELS: Listed by CSA, UL

QVS2GPTOS232

QVS

QUALITY

VISUAL

STATIC

FIXTURE

WIDTH

CEILING

TYPE

LAMP

SHIELD

LAMP

QUANTITY

LAMP/FIXTURE

LENGTH

120

VOLTAGE

120,277

347

OPTIONS

Standard exposed

T-grid ceilings

(NOMINAL 24”)

32 = 32W T8

R =Radio Interface Filter

O =Emergency Lighting

System (for Canada)

N =Emergency Lighting

System (for U.S.)

Recessed direct

indirect soft light

optical system

PT=Semi-

specular matte

reflector /

Microperforated

mesh

lamp shield

CLEAR POLISHED

ACRYLIC DROP

DOWN VISUAL ELEMENT

We reserve the right to change, materials and finish in any way that will not alter installed appearance or reduce function and performance.

ALTER METALYTE

2’ X 4’ RECESSED DIRECT/INDIRECT FLUORESCENT

OS 2 32

2’

BALLAST

SO: 2 LPB T8 Elect.

PS: T8 PowerSpec HDF Dimming †

DA: iGEN DALI †

† Not available in 347V.

Genlyte Thomas Company

631 Airport Road, Fall River, MA 02720 - Tel. (508) 679-8131

C.F.I. Division of Canlyte, Inc.

525 Education Road, Cornwall, Ontario

Canada K6H 6C7 - (613) 938-6221
