Lightolier ProSpec 26038 Manuale utente

ProSpec™Track Lighting 26038

Page 1 of 2 Cylinder PAR38

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

Lightolier a Genlyte Thomas Company www.lightolier.com

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Features

1. Track attachment fitting: die-cast aluminum with separate mechanical and

electrical functions. Fitting cannot be engaged or disengaged while fixture is

powered. Polarity is not a concern with ProSpec track because of its sym-

metrical positioning of circuits within the track, adapters are reversed to

access one or the other circuits.

2. Stem: 5/8" O.D. .049" wall, stainless steel.

3. Locking feature: die-cast aluminum mechanism permits the locking of the

horizontal and vertical positions simultaneously by clamping jaws. When the

stainless steel braking lever is released, the horizontal and vertical functions

remain fully tensioned to hold aiming positions. Adjustment range is:

Horizontal 0-340°; Vertical 0° (NADIR) - 90°.

4. Lampholder: porcelain, medium base, nickel plated screw shell, #18 ga.

braided SF-1 leads.

5. Housing: 20 ga. (.036) steel, hemmed front edge for stiffness, prevents chip-

ping and enhances appearance.

6. Lamp and accessory support: .032 steel, flared for easy entry of accesso-

ry cartridge, matte black finish.

7. Lens retaining ring: .125" spring steel.

8. Accessory cartridge: formed aluminum, installs and removes with a twist

and lock action. Holds three accessories max. and cross blade baffle; black

matte finish.

9. Cross blade baffle: .070 extruded aluminum, black matte finish. 1" deep,

removable.

10. Lever: energizes fixture electrically by 90° rotation.

11. Clamping tabs: expands or releases gripper springs from track ledge; grip-

per springs hold attachment fitting securely within track.

Finish

All painted finishes are powder coated baked enamel.

Ordering Information

Catalog No. Finishes Mountings Lamps

26038 WH Matte White ProSpec™Track System PAR38 250W Max.

26038 BK Matte Black

Options & Accessories

Accessories: 4 3/4" dia. series. Filters, lenses, screens and louvers.

150W max.when using accessories.

Electrical

Electrical components: Polycarbonate moldings.

Contacts: Heavy gauge 1/2 hard brass developed for Lightolier's "U"

shaped track conductors.

Labels

UL, I.B.E.W.

Fixture MOL = 11-1/2"

5 7/8" Dia.

5678

2 1/4"

Stem

Accessories

Ordered

Separately

8 1/8"

4 3/8"

ProSpec Track System

3 1/4"

6 5/8"

ProSpec™Track Lighting 26038

Page 2 of 2 Cylinder PAR38

Lightolier a Genlyte Thomas Company www.lightolier.com

631 Airport Road, Fall River, MA 02720 •(508) 679-8131 •Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

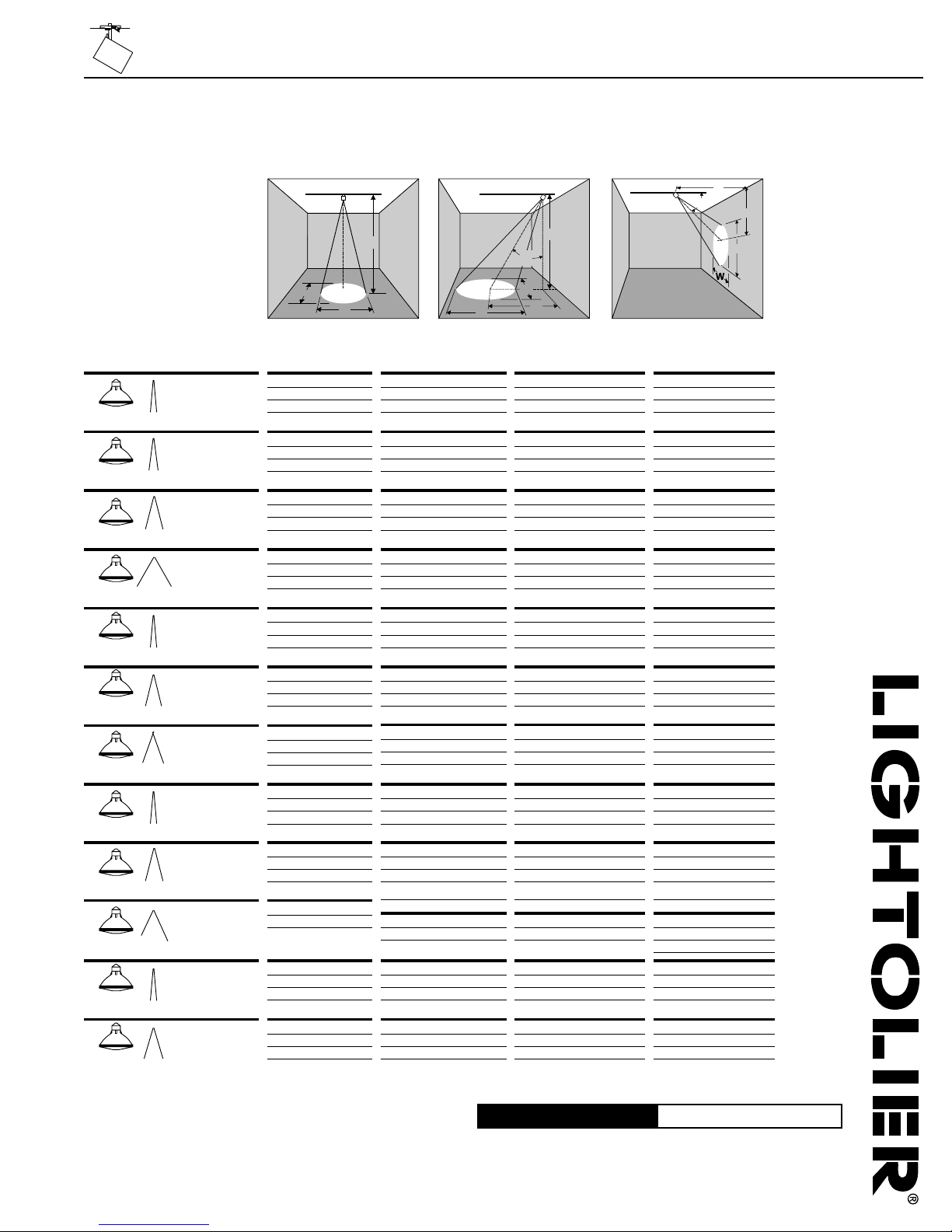

3400 3000

100W PAR38

FL (T-H IR) 40°

Lighting Data

LBeam length

WBeam width

CDistance to center of beam

DDistance

AAiming angle

FC Footcandles

Land W are the outer points where

the candlepower drops to 50% of the

maximum. FC are the initial foot-

candles at the center of the beam.

FC L

Aiming Angle: 0°30°45°or 60°Horizontal 30°45°or 60°Vertical

LAMP 0°AIMING ANGLE A=30°AIMING ANGLE A=45°AIMING ANGLE A=60°AIMING ANGLE

Beam Spread

50% Max CP

Beam Center

C.P. Candelas

Rated

Life-Hrs DFCL W D C FCL W D CFCL W D CFCL W

19500 2500

90W PAR38

NSP (T-H) 9°

10' 195 1.6' 1.6'

15' 87 2.4' 2.4'

20' 49 3.1' 3.1'

25' 31 3.9' 3.9'

8' 4.6' 198 1.7' 1.5'

12' 6.9' 88 2.5' 2.2'

16' 9.2' 49 3.4' 2.9'

20' 11.5' 32 4.2' 3.6'

6' 6.0' 192 1.9' 1.3'

9' 9.0' 85 2.9' 2.0'

12' 12.0' 48 3.8' 2.7'

15' 15.0' 31 4.8' 3.3'

4' 6.9' 152 2.6' 1.3'

6' 10.4' 60 3.8' 1.9'

8' 13.9' 38 5.1' 2.5'

10' 17.3' 24 6.4' 3.1'

14500 2500

90W PAR38

SP (T-H) 12°

8' 227 1.7' 1.7'

12' 101 2.5' 2.5'

16' 57 3.4' 3.4'

20' 36 4.2' 4.2'

7' 4.0' 192 2.0' 1.7'

10' 5.8' 94 2.8' 2.4'

13' 7.5' 56 3.7' 3.2'

16' 9.2' 37 4.5' 3.9'

5' 5.0' 205 2.1' 1.5'

7' 7.0' 105 3.0' 2.1'

9' 9.0' 63 3.8' 2.7'

11' 11.0' 42 4.7' 3.3'

3' 5.2' 201 2.6' 1.3'

4' 6.9' 113 3.5' 1.7'

5' 8.7' 73 4.3' 2.1'

6' 10.4' 50 5.2' 2.5'

4500 2500

90W PAR38

FL (T-H) 28°

6' 125 3.0' 3.0'

8' 70 4.0' 4.0'

10' 45 5.0' 5.0'

12' 31 6.0' 6.0'

5' 2.8' 117 3.4' 2.9'

7' 4.0' 60 4.8' 4.0'

9' 5.2' 36 6.1' 5.2'

11' 6.4' 24 7.5' 6.3'

3' 3.0' 177 3.2' 2.1'

5' 5.0' 64 5.3' 3.5'

7' 7.0' 32 7.4' 4.8'

9' 9.0' 20 9.6' 6.3'

2' 3.5' 141 4.9' 2.0'

3' 5.2 63 7.4' 3.0'

4' 6.9' 35 9.8' 4.0'

5' 8.7' 23 12.4' 5.0'

1300 2500

90W PAR38

WFL (T-H) 60°

3' 144 3.5' 3.5'

5' 52 5.8' 5.8'

7' 27 8.1' 8.1'

9' 16 10.4' 10.4'

3' 1.7' 94 5.2' 4.0'

5' 2.9' 34 8.7' 6.7'

7' 4.0' 17 12.1' 9.3'

9' 5.2' 10 15.8' 12.0'

2' 2.0' 115 6.9' 3.3'

3' 3.0' 51 10.4' 4.9'

4' 4.0' 29 13.9' 6.5'

5' 5.0' 18 17.3' 8.2'

1' 1.7' 163 NA 2.3'

2' 3.5 41 NA 4.6'

3' 5.2' 18 NA 6.9'

4' 6.9' 10 NA 9.2'

29000 3000

100W PAR38

SP (T-H IR) 10°

10' 290 1.7' 1.7'

15' 129 2.6' 2.6'

20' 73 3.5' 3.5'

25' 46 4.4' 4.4'

8' 4.6' 294 1.9' 1.6'

12' 6.9' 131 2.8' 2.4'

16' 9.2' 74 3.7' 3.2'

20' 11.5' 47 4.7' 4.0'

6' 6.0' 285 2.1' 1.5'

9' 9.0' 127 3.2' 2.2'

12' 12.0' 71 4.2' 3.0'

15' 15.0' 46 5.3' 3.7'

4' 6.9' 227 2.9' 1.4'

6' 10.4' 101 4.3' 2.1'

8' 13.9' 57 5.7' 2.8'

10' 17.3' 36 7.2' 3.5'

7500 3000

100W PAR38

NFL (T-H IR) 27°

7' 153 3.4' 3.4'

10' 75 4.8' 4.8'

13' 44 6.2' 6.2'

16' 29 7.7' 7.7'

6' 3.5' 135 3.9' 3.3'

9' 5.2' 60 5.9' 5.0'

12' 6.9' 34 7.8' 6.7'

15' 8.7' 22 9.8' 8.3'

4' 4.0' 166 4.1' 2.7'

6' 6.0' 74 6.1' 4.1'

8' 8.0' 41 8.2' 5.4'

10' 10.0' 27 10.2' 6.8'

2' 3.5' 234 4.6' 1.9'

3' 5.2' 104 7.0' 2.9'

4' 6.9' 59 9.3' 3.6'

5' 8.7' 38 11.6' 4.8'

5' 2.9' 88 5.1' 4.2'

7' 4.0' 45 7.1' 5.9'

9' 5.2' 27 9.1' 7.6'

11' 6.4' 18 11.2' 9.2'

3' 3.0' 134 5.0' 3.1'

5' 5.0' 48 8.4' 3.1'

7' 7.0' 25 11.7' 7.2'

9' 9.0' 15 15.1' 9.3'

2' 3.5' 106 9.7' 2.9'

3' 5.2 47 14.5' 4.4'

4' 6.9' 27 19.3' 5.8'

5' 8.7' 17 24.2' 7.3'

6' 94 4.4' 4.4'

8' 53 5.8' 5.8'

10' 34 7.3' 7.3'

12' 24 8.7' 8.7'

25000 3000

120W PAR38

NSP (T-H) 10°

10' 250 1.7' 1.7'

15' 111 2.6' 2.6'

20' 63 3.5' 3.5'

25' 40 4.4' 4.4'

8' 4.6' 254 1.9' 1.6'

12' 6.9' 113 2.8' 2.4'

16' 9.2' 63 3.7' 3.2'

20' 11.5' 41 4.7' 4.0'

6' 6.0' 246 2.1' 1.5'

9' 9.0' 109 3.2' 2.2'

12' 12.0' 61 4.2' 3.0'

15' 15.0' 39 5.3' 3.7'

4' 6.9' 195 2.9' 1.4'

6' 10.4' 87 4.3' 2.1'

8' 13.9' 49 5.7' 2.8'

10' 17.3' 31 7.2' 3.5'

5000 3000

120W PAR38

FL (T-H) 30°

6' 139 3.2' 3.2'

8' 78 4.3' 4.3'

10' 50 5.4' 5.4'

12' 35 6.4' 6.4'

5' 2.9' 130 3.7' 3.1'

7' 4.0' 66 5.1' 4.3'

9' 5.2' 40 6.6' 5.6'

11' 6.4' 27 8.1' 6.8'

3' 3.0' 196 3.5' 2.3'

5' 5.0' 71 5.8' 3.8'

7' 7.0' 36 8.1' 5.3'

9' 9.0' 22 10.4' 6.6'

2' 3.5' 156 5.5' 2.1'

3' 5.2 69 6.2' 3.2'

4' 6.9' 39 10.9' 4.3'

5' 8.7' 25 13.7' 5.4'

2000 3000

120W PAR38

WFL (T-H) 50°

4' 125 3.7' 3.7'

6' 56 5.6' 5.6'

8' 31 7.5' 7.5'

10' 20 9.3' 9.3'

3' 1.7' 144 4.0' 3.2'

5' 2.9' 52 6.7' 5.4'

7' 4.0' 27 9.4' 7.5'

9' 5.2' 16 12.1' 9.7'

3' 3.0' 79 7.2' 4.0'

4' 4.0' 44 9.5' 5.3'

5' 5.0' 28 11.9' 6.6'

6' 6.0' 20 14.3' 7.9'

1' 1.7' 250 10.7' 1.9'

2' 3.5 63 21.5' 3.7'

3' 5.2' 28 32.2' 5.6'

4' 6.9' 18 42.9' 7.5'

40000 4200

250W PAR38

SP (T-H) 11°

15' 178 2.9' 2.9'

20' 100 3.9' 3.9'

25' 64 4.8' 4.8'

30' 44 5.8' 5.8'

10' 5.6' 260 2.6' 2.2'

15' 8.7' 115 3.9' 3.3'

20' 11.5' 65 5.2' 4.4'

25' 14.4' 42 6.4' 5.6'

8' 8.0' 221 3.1' 2.2'

12' 12.0' 98 4.7' 3.3'

16' 16.0' 55 6.2' 4.4'

20' 20.0' 35 7.8' 5.4'

5' 8.7' 200 4.0' 1.9'

8' 13.9' 78 6.3' 3.1'

11' 19.1' 41 8.7' 4.2'

14' 24.2' 26 11.1' 5.4'

8000 4200

250W PAR38

FL (T-H) 32°

7' 163 4.0' 4.0'

10' 80 5.7' 5.7'

13' 47 7.5' 7.5'

16' 31 9.2' 9.2'

6' 3.5' 144 4.7' 4.0'

9' 5.2' 64 7.1' 6.0'

12' 6.9' 35 9.4' 7.9'

15' 8.7' 23 11.8' 9.9'

4' 4.0' 177 5.0' 3.2'

6' 6.0' 79 7.5' 4.9'

8' 8.0' 44 10.0' 6.5'

10' 10.0' 28 12.5' 8.1'

2' 3.5' 250 6.1' 2.3'

3' 5.2' 111 9.1' 3.4'

4' 6.9' 63 12.2' 4.6'

5' 8.7' 40 15.2' 5.7'
