Lytespan®Accent Lighting System 8608

Page 1 of 1 LyteJacks 75W Remote Transformer

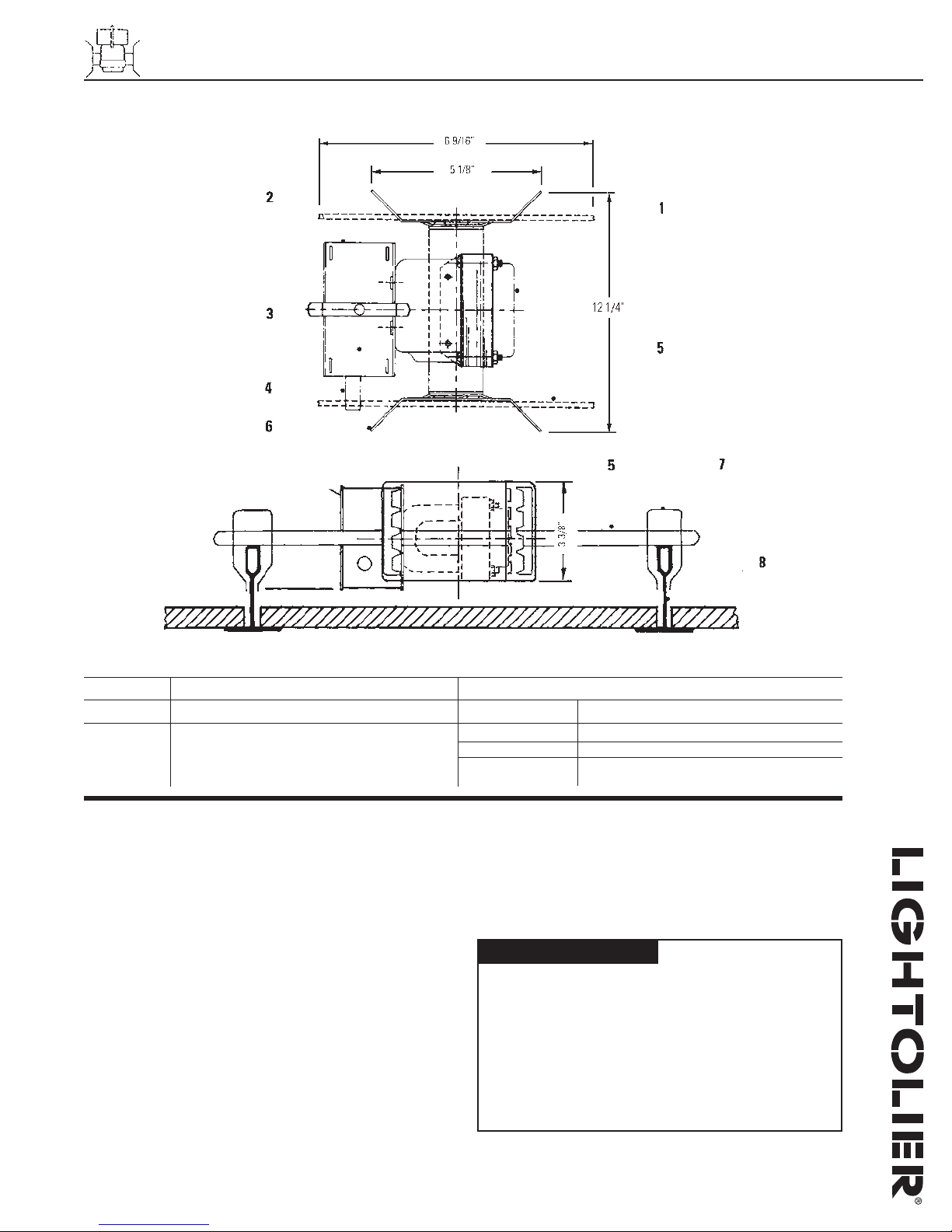

Features

1. Transformer: Magnetic type, 75W, 120V or 277V input, 12V output.

2. Steel Splice Box: Contains knockouts for conduit.

3. Divided Wiring Compartment: Contains taps for 120V or 277V supply and

secondary wires from transformer.

4. Thermal Protector

5. Mounting Bar: (See Accessories).

6. Steel Mounting Brackets: Used with mounting bars (order separately) for

mounting onto ceiling runners.

7. T-Bar Clips

8. Ceiling Runner

Electrical

Low voltage magnetic transformer, 120V or 277V input, 12V output, powers

any Point Power Jack. The transformer is limited to a total load of 75W or (2)

Point Power Jacks, whichever is fullled rst. Thermally protected. Type Non-IC.

Requires min. 75°C supply wires. Use only dimmers specially rated for induc-

tive loads (low voltage xtures equipped with magnetic transformers) such as

Lightolier Lytemode and Scenist systems and Lightolier dimmers carrying the

sufx VA.

Labels

UL; I.B.E.W.

Catalog No. Mounting Accessories (Order Separately)

Catalog No. Description

8608 Recess in accessible ceiling. Access above ceiling required 1950 18” Mounting Bars (Set of 2)

Insulation must be kept 3” away from transformer sides 1951 27” Mounting Bars (Set of 2)

and wiring compartment; and must not be placed above unit 1956 T-Bar Clips (Set of 4)

as to entrap heat.
