Lightolier Brisa FB5114LEC Manuale utente

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

Lightolier is a Philips group brand

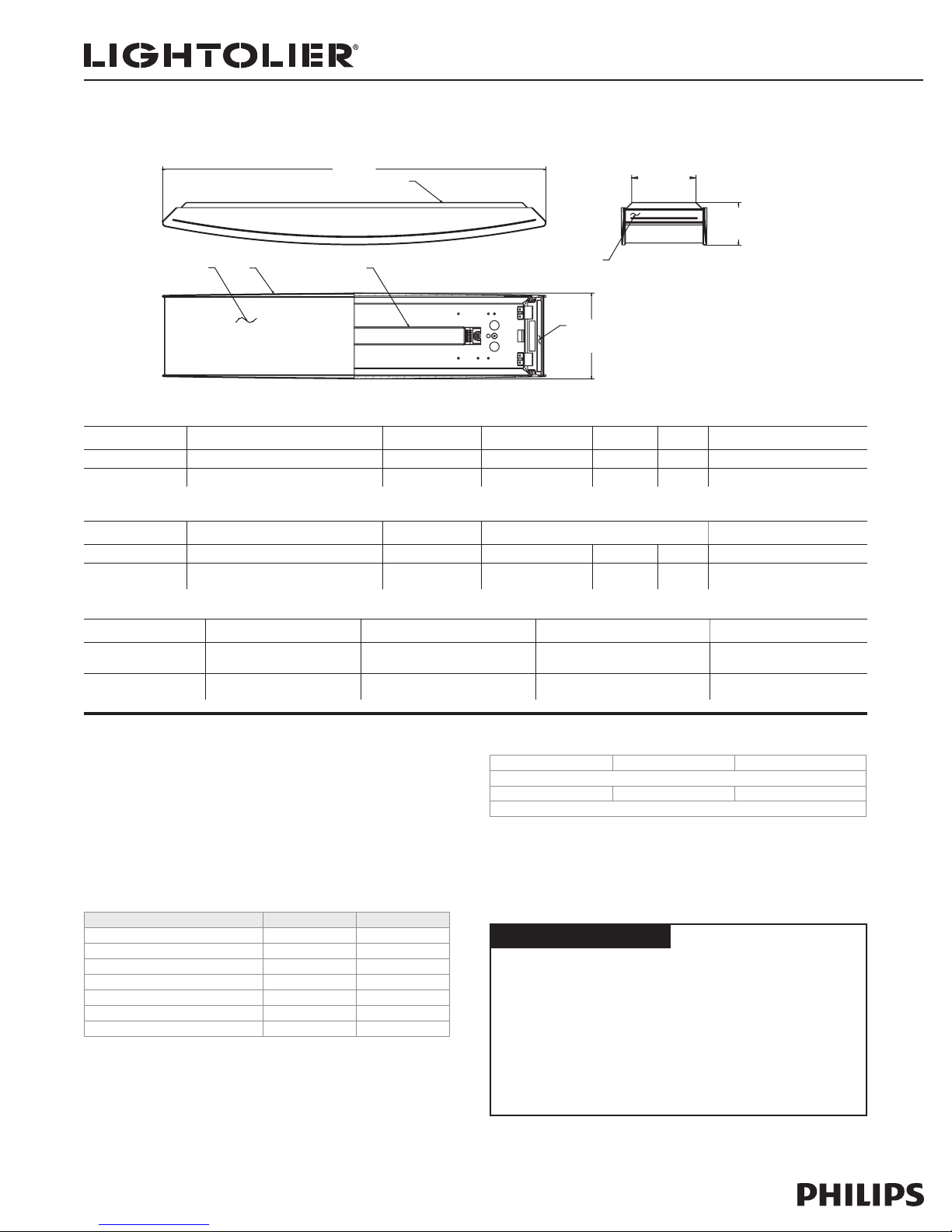

Brisa™ Linear Bow Surface Mount FB5114LEC

Page 1 of 2 Wall/Ceiling Mount T5 Fluorescent ADA Compliant

Features

1. Housing Sides and ends: Die-cast aluminum.

2. Back Pan: Stamped 18ga. (0.048”) sheet metal.

3. Diffuser: Bowed opal glass or opal acrylic

4. Optics: Internal white acrylic diffuser covers slots on housing sides

and ends.

Mounting

Fixture Mounts directly to 4" octagonal junction box.

Electrical

5. Ballast

A. Lutron Dimming 120V & 277V 1 Lamp 2 Lamp

Voltage 120V 277V 120V 277V

Total Input Watts 20W 10W 38W 17W

Max. Line Current (Amps) 0.17A 0.08A 0.32A 0.14A

Power Factor >0.95 >0.95 >0.95 >0.95

THD <20% <20% <20% <20%

Min. Starting Temp 50°F, -10°C 50°F, -10°C

Dimming Range 100%-10% 100%-10%

6. Luminaire-Ballast Disconnect: Meets NEC 410.130(G)

and CEC Disconnect Requirements.

Lampholders

Fluorescent: Mini Bi-Pin, G5 Base

25 5/16"

[643mm] 4 1/4"

[108mm]

2 13/16"

[71mm]

5 5/8"

[144mm]

Fixture Ordering Information

Catalog No. Description Finish Wattage Volts Lamp Ballast (Eco-10)

FB5114LEC1 Linear Bow Surface Mount Dimming Satin aluminum 14W 120V (1) T5 E3T514C1201

FB5114LEC2 Linear Bow Surface Mount Dimming Satin aluminum 14W 277V (1) T5 E3T521C2771

Multi Lamp

Catalog No. Description Finish Dimensions (Nominal) Ballast (Eco-10)

FB5214LEC1 Linear Bow Surface Mount Dimming Satin aluminum 14W 120V (2) T5 E3T514C1201

FB5214LEC2 Linear Bow Surface Mount Dimming Satin aluminum 14W 277V (2) T5 E3T521C2771

Diffuser Ordering Information

Catalog No. Description Finish Dimensions (Nominal) Ballast (Eco-10)

FBA5 Acrylic Bow Diffuser Opal 5" X 24"" E3T514C1201

FBG5 Glass Bow Diffuser Opal 5" X 24" E3T521C2771

Lamping (by others)

General Electric Osram/Sylvania Philips

(1) 14W T5 Linear Fluorescent

F14W/T5/*/ECO FP14/* F14T5/*/ALTO

*Manufactures Color Temperature Designation

Finish

Satin Aluminum

Labels

cULus Listed. Suitable for Dry Locations.

Job Information Type:

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Brisa™ Linear Bow Surface Mount FB5114LEC

Page 2 of 2 Wall/Ceiling Mount T5 Fluorescent ADA Compliant

Lightolier is a Philips group brand

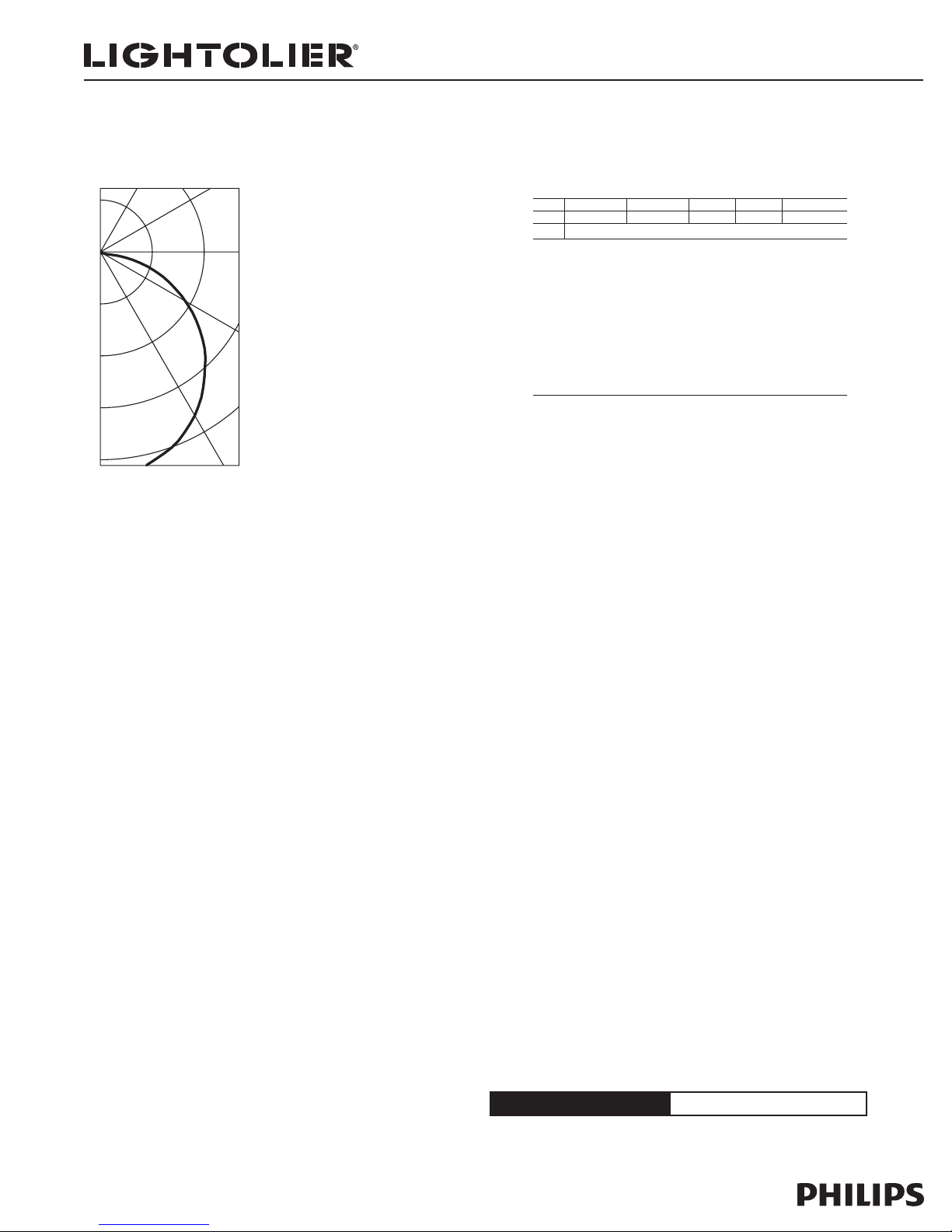

Candlepower Summary

Angle Along 22.5. 45 67.5 Across. Output

Lumens

0 220 220 220 220 220

5 218 219 219 218 219 21

15 210 211 210 210 210 60

25 196 197 196 195 195 90

35 175 175 174 173 173 109

45 148 148 147 146 146 114

55 117 117 116 115 115 104

65 84 84 83 82 81 82

75 50 50 49 49 48 52

85 20 20 19 17 16 21

90 10 10 9 7 6

95 4 4 4 4 4 5

105 2 2 2 3 3 2

115 2 1 2 2 2 2

125 1 1 1 2 2 1

135 1 1 1 1 1 1

145 1 1 1 1 1 1

155 1 1 1 1 1 1

165 1 1 1 1 1 0

175 1 1 1 1 1 0

180 1 1 1 1 1

100

150

200

0°30°

60°

90°

Certied Test Report no. 3577FR

Computed by LSI Program **TEST-LITE**

SC= 1.3

Prepared For:

Lightolier

Fall River, MA

TESTED ACCORDING TO IES PROCEDURES. TEST DISTANCE EXCEEDS FIVE

TIMES THE GREATEST LUMINOUS OPENING OF LUMINAIRE.

Coefﬁcients of Utilization

Ceiling 80% 70% 50% 30% 10%

Wall 70 50 30 10 70 50 30 10 50 30 10 50 30 10 50 30 10 0

RCR Zonal Cavity Method - Effective Floor Reflectance = 20%

Room Cavity Ratio

0 .33 .33 .33 .33 .32 .32 .32 .32 .31 .31 .31 .29 .29 .29 .28 .28 .28 .27

1 .30 .29 .28 .27 .29 .28 .27 .26 .27 .26 .25 .26 .25 .24 .25 .24 .24 .23

2 .27 .25 .23 .22 .27 .25 .23 .22 .24 .22 .21 .23 .21 .20 .22 .21 .20 .19

3 .25 .22 .20 .18 .24 .22 .20 .18 .21 .19 .18 .20 .19 .17 .19 .18 .17 .16

4 .23 .20 .17 .16 .22 .19 .17 .15 .19 .17 .15 .18 .16 .15 .17 .16 .15 .14

5 .21 .17 .15 .13 .20 .17 .15 .13 .16 .14 .13 .16 .14 .13 .15 .14 .12 .12

6 .19 .16 .13 .11 .19 .15 .13 .11 .15 .13 .11 .14 .12 .11 .14 .12 .11 .10

7 .18 .14 .12 .10 .17 .14 .11 .10 .13 .11 .10 .13 .11 .10 .12 .11 .09 .09

8 .16 .13 .10 .09 .16 .12 .10 .08 .12 .10 .08 .12 .10 .08 .11 .09 .08 .08

9 .15 .11 .09 .07 .15 .11 .09 .07 .11 .09 .07 .10 .09 .07 .10 .08 .07 .07

10 .14 .10 .08 .07 .14 .10 .08 .06 .10 .08 .06 .09 .08 .06 .09 .08 . 06 .06

Determined In Accordance With Current IES Published Procedures

Luminaire Input Watts = 33.0

FB5214U-FBG5

Zonal Lumens and Percentages

Zone Lumens % Lamp %Luminaire

0-30 170 7.12 25.60

279 11.66 41.95

497 20.73 74.56

653 27.23 97.93

373 15.57 55.98

155 6.50 23.37

13 .58 2.07

667 27.80 100.00

0-40

0-60

0-90

40-90

60-90

90-180

0-180

** Efciency = 27.8%**

DECORATIVE LUMINAIRE CAT. # FB5214U-FBG5 2-14W PHILIPS

T-5 LAMPS. LUMEN RATING = 1200 LMS.

BALLAST/ ADVANCE ICN-2S28
