Lightolier C4X4MR Istruzioni per l’uso

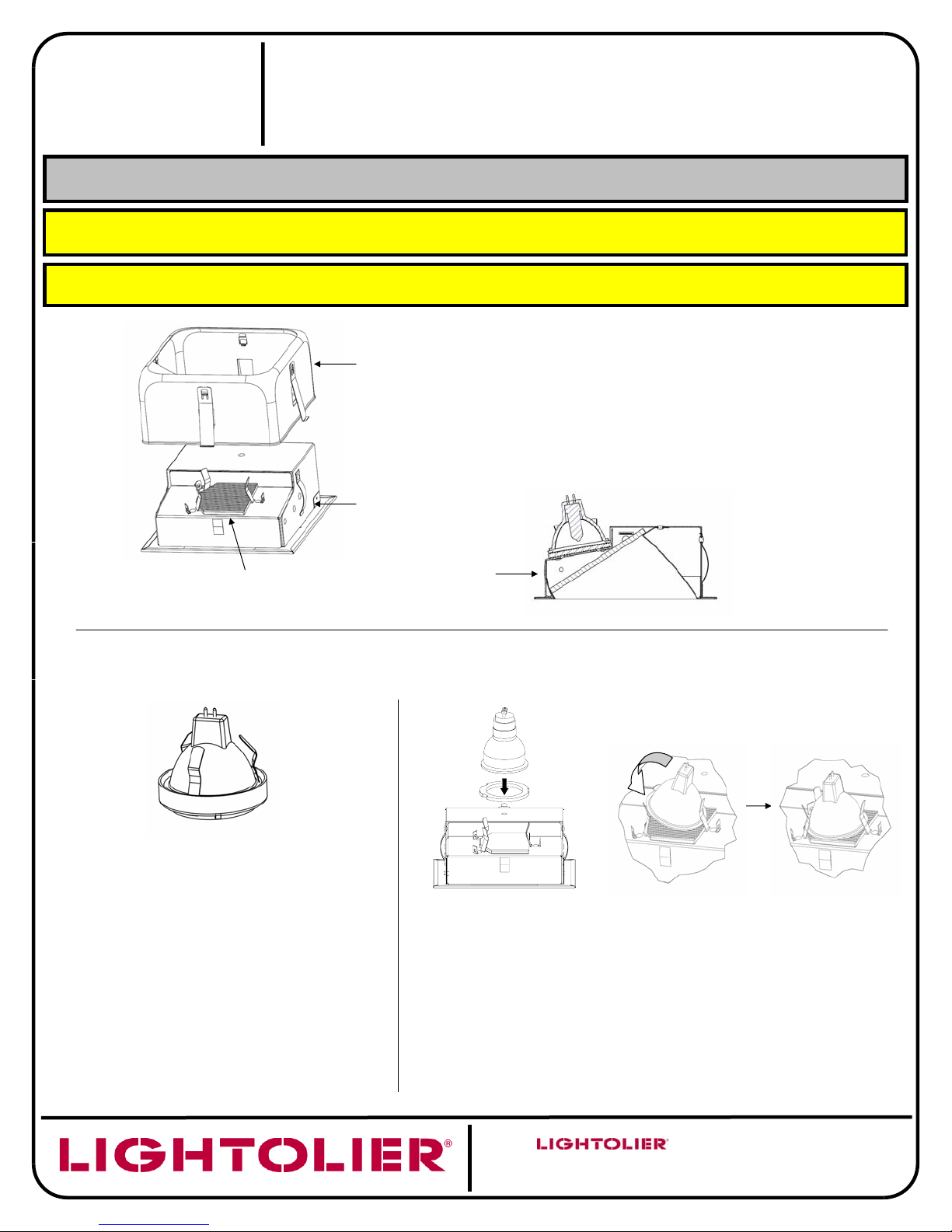

READ AND UNDERSTAND THESE INSTRUCTIONS BEFORE INSTALLING FIXTURE

This fixture is intended for installation in accordance with the National Electrical Code and local regulations. To

assure full compliance with local codes and regulations, check with your local electrical inspector before

installation. To prevent electric shock, turn off electricity at fuse box before proceeding.

Retain these instructions for maintenance reference.

INSTALLATION INSTRUCTIONS FOR 4” MATRIX RECESSED MR-16

DOWNLIGHT

ADJUSTABLE ACCENT and LENSED WALLWASH TRIMS.

INSTRUCTION SHEET NO.

IS:C4

4MR

B0707 Page 1 of 2

A GENLYTE COMPANY

631 Airport Road, Fall River, MA 02720

CAUTION: (RISK OF FIRE) DO NOT INSTALL INSULATION ABOVE NOR WITHIN 3 INCHES (76mm) OF ANY

PART OF THE LUMINAIRE (LIGHTING FIXTURE)

CAUTION: USE ONLY ROUGH-IN SECTIONS PROVIDED BY LIGHTOLIER. USE OF OTHER MANUFACTURERS’ ROUGH-IN KITS

WILL VOID THE UNDERWRITERS LABRATORIES LISTING AND COULD CONSTITUTE A FIRE HAZARD.

SUB-

SSEMBL

SUB-

SSEMBL

LAMP

OPENING

LOWER

REFLECTOR

Downlight Trim:

This trim is provided with a downlight sub-assembly, lampholder assembly,

and a lower reflector unit.

1. Separate LOWER REFLECTOR from SUB-ASSEMBLY. Set LOWER

REFLECTOR aside.

2. Feed SOCKET through lamp opening as shown above. Install SUB-

ASSEMBLY into F.I.K. (in ceiling) by pushing through ceiling opening

until flush with ceiling.

3. ** To install MR16 Incandescent lamp, see LAMPING

INSTRUCTIONS FOR MR16 INCANDESCENT instructions on page 2.

** To install HID MR16 please refer to the lamping

instructions that ship with the lampholder in the HID frame.

4. Install LOWER REFLECTOR into SUB-ASSEMBLY until flange is flush

with ceiling.

FINISHED INSTALLATION

CEILING

SPRING

CLIPS

ADJUSTMENT

MECHANISM

SOCKET

Adjustable Accent Trim:

This trim is provided with a lampholder assembly, lamp

adjustment mechanism/sub-assembly and a lower reflector unit.

1. Separate LOWER REFLECTOR from SUB-ASSEMBLY. Set

LOWER REFLECTOR aside.

2. Feed SOCKET through lamp opening as shown. Install

SUB-ASSEMBLY into F.I.K. (in ceiling) by pushing through

ceiling opening until flush with ceiling.

3. ** To install MR16 Incandescent lamp, see LAMPING

INSTRUCTIONS FOR MR16 INCANDESCENT instructions

on page 2.

** To install HID MR16 please refer to the lamping

instructions that ship with the lampholder in the HID frame.

4. Lamp tilt angle is adjusted via screw marked “TILT”.

5. To adjust rotational position of lamp, loosen screw marked

“ROTATION”, and manually rotate lamp assembly until

desired position is reached. Tighten screw to lock.

6. Install LOWER REFLECTOR into SUB-ASSEMBLY until

flange is flush with ceiling.

LOWER

REFLECTOR

READ AND UNDERSTAND THESE INSTRUCTIONS BEFORE INSTALLING FIXTURE

This fixture is intended for installation in accordance with the National Electrical Code and local regulations. To

assure full compliance with local codes and regulations, check with your local electrical inspector before

installation. To prevent electric shock, turn off electricity at fuse box before proceeding.

Retain these instructions for maintenance reference.

INSTALLATION INSTRUCTIONS FOR 4” MATRIX RECESSED MR-16

DOWNLIGHT

ADJUSTABLE ACCENT and LENSED WALLWASH TRIMS.

INSTRUCTION SHEET NO.

IS:C4X4MR

B0707 Page 2 of 2

A GENLYTE COMPANY

631 Airport Road, Fall River, MA 02720

CAUTION: (RISK OF FIRE) DO NOT INSTALL INSULATION ABOVE NOR WITHIN 3 INCHES (76mm) OF ANY

PART OF THE LUMINAIRE (LIGHTING FIXTURE)

CAUTION: USE ONLY ROUGH-IN SECTIONS PROVIDED BY LIGHTOLIER. USE OF OTHER MANUFACTURERS’ ROUGH-IN KITS

WILL VOID THE UNDERWRITERS LABRATORIES LISTING AND COULD CONSTITUTE A FIRE HAZARD.

Typical Lampholder Assembly

(Supplied with Downlight and Adjustable Accent finishing

sections, along with (1) product-specific glass lens)

* To install HID MR16 please refer to the lamping instructions

that ship with the lampholder in the HID frame.

1. Install lamp into (3) springs as shown.

2. Up to (2) optional 2” accessories may be installed into this

type of lampholder. Refer to appropriate product

specification sheets for any accessory limitations, if any.

3. Connect lamp socket (in F.I.K.) to lamp pins.

4. Install into lamp opening in trim housing.

LAMPING INSTRUCTIONS

ALWAYS ADHERE TO MAXIMUM WATTAGE

LIMITATIONS SPECIFIED ON FINISHING

SECTION LABELING

Wallwash Lamp Installation

* HID applications place ring that ships standard with wall wash trim, over lens as

illustrated above. Continue with steps 1-5.

1. Install lamp into (3) springs as shown.

2. Wallwash trims are supplied with (1) linear spread lens. DO NOT REMOVE this lens,

as it is critical for proper lamp seating and photometric performance.

3. (1) optional 2” accessory may be installed on top of this spread lens. HID applications

will NOT accept any accessories. Refer to appropriate product specification sheets

for any accessory limitations, if any.

4. Connect lamp socket (in F.I.K.) to lamp pins.

5. Install trim as shown elsewhere on this sheet.

Low Voltage applicationsHID applications

HOUSING

TOWARDS WALL TO BE

ILLUMINATED

TRIM

Wallwash Finishing Sections:

This Finishing Section is provided with a housing, a custom linear

spread lens, and a wallwasher trim unit

1. Separate TRIM from HOUSING. Set TRIM aside.

2. Install HOUSING into F.I.K. (in ceiling) by pushing through

ceiling opening until SPRING CLIPS are flush with ceiling.

See instructions on other side.

3. Install appropriate lamp as detailed below.

4. Install TRIM into HOUSING until flange is flush with ceiling.

TRIM must be oriented as shown in order to provide

maximum performance.

LINEAR SPREAD

LENS – DO NOT

REMOVE
