Lightolier Lytecaster 1071 Manuale utente

Lightolier a Genlyte company www.lightolier.com

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

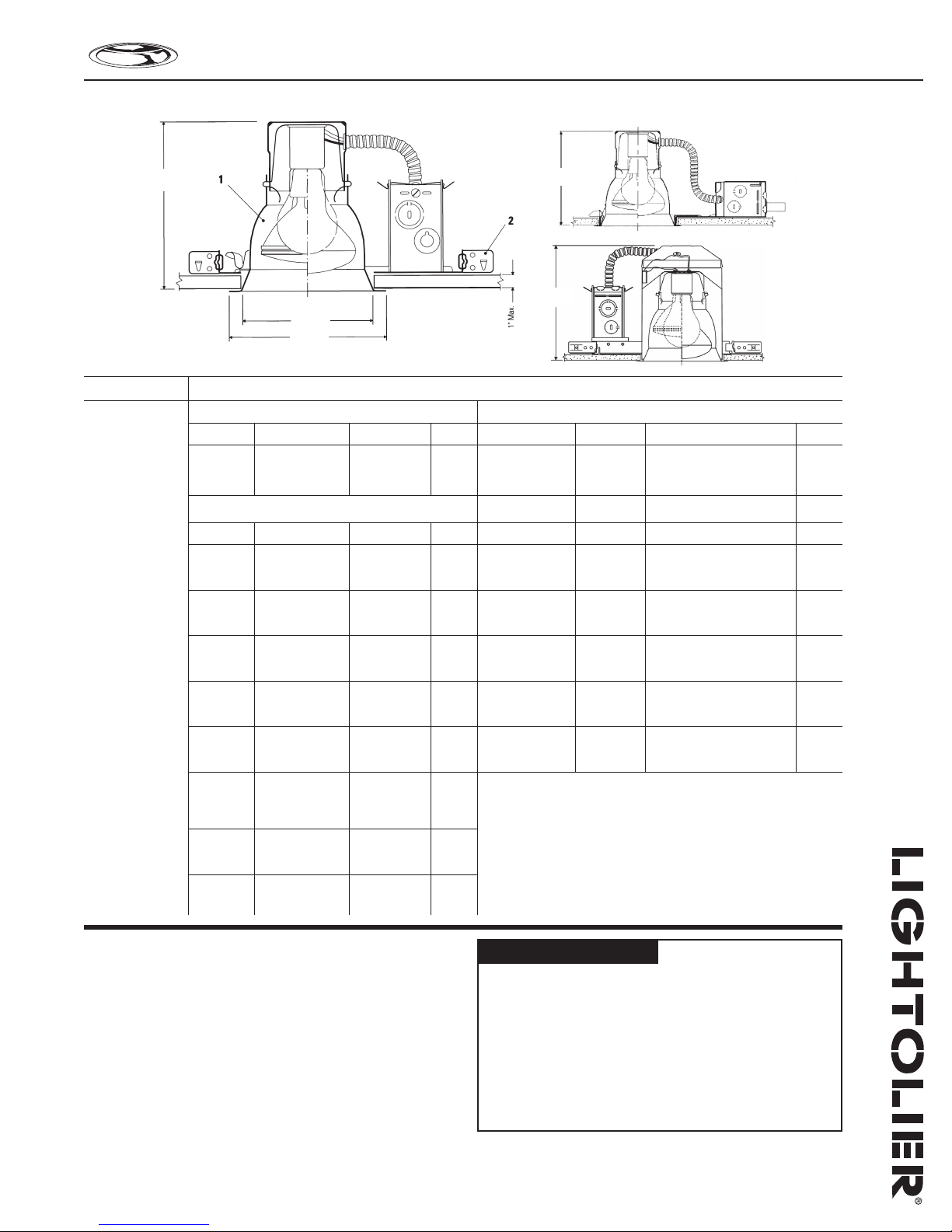

Lytecaster®Recessed Downlighting 1071

Page 1 of 2 5" Aperture Basic White Reflector Reflector Trim

1071/1003R

0™Non-IC

Remodeler Ring

6 3/4"

Features

1. Reflector: Hydroformed aluminum, .040" thick, (18 ga.); non-yellowing,

scratch resistant Perma White Finish, 88% reflectance; white trim flange.

2. Frame-In Kit: (1002P1 standard frame shown). Other frames listed

above and shown on the right. See Frame-In Kit specification sheets for

more details.

Options & Accessories

Medium-Base PAR30 1968 - For use w/short neck PAR30 lamps

Socket Extender:

Spread Lens: L56WWLENS - Proprietary spread lens for use with combination

of wall washer optics and LED Frame-In Kits.

Labels

UL (Suitable for Damp Locations); I.B.E.W.

6 1/8"

1071/1002P1 Series

Standard Incandescent

6 3/4"

5 1/16"

Complete Fixture consists of Reflector Trim & Frame-In Kit. Select each separately.

Reflector Trim Frame-In Kit — See Individual Frame-In Kit Specification Sheets

1071

Perma White

LED

Fluorescent

Frame-In Kit Installation Type Lamping Height

Frame-In Kit Ceiling Type Lamping Height

1001LED

1000LEDREM

L56LED

Non-IC

Non-IC Remodeler

Non-IC Retrofit

LED

6 3/4""

6 3/4"

1001F13U Series UniFrame™

Non-IC (1) Triple 13W (GX24q-1) 5 7/8"

Incandescent 1001F18U Series UniFrame™

Non-IC (1) Triple 18W (GX24q-2) 5 7/8"

Frame-In Kit Ceiling Type Lamping Height 1004F13 Series IC (1) Quad/Triple 13W (GX24q-1) 7 1/2"

1000P1

1002P1

Non-IC 75W A19,

PAR30*

65W BR30

6 3/4" 1004F18** Series IC (1) Quad/Triple 18W (GX24q-2) 7 1/2"

1000P1

1002P1

Non-IC 75W A19,

PAR30*

65W BR30

6 3/4" 1004F26** Series IC (1) Quad/Triple 26W (GX24q-2) 7 1/2"

1003R Non-IC Remodeler 75W A19,

PAR30*

85W BR30

6 3/4" 1001F13ICU/N Performance

IC (1) Triple 13W (GX24q-1) 7 1/4"

1000IC

1000AICM

AirSeal®IC 40W A19

65W BR30, 75W

PAR 30

7 5/16"

7 5/16 1001F18ICU/N Performance

IC (1) Triple 18W (GX24q-2) 7 1/4"

1004ICX/N AirSeal®IC 52W A19

65W BR30

75W PAR 30

7 1/4" 1910XFH1 Conversion

Kit (1) Quad 13W (GX23-2) 6 3/4"

1004IC/N

1004ICR

1004SIC/N

1004SICR

AirSeal® IC

IC Remodeler

AirSeal® IC

IC Remodeler

50W PAR30

65W BR30 7 1/2"

7 1/2"

5 1/2"

**Lightolier recommends the use of triple tube lamps

*(Use Socket Extender Accessory With Short Neck)

1004IC/N

1004ICR

Non-IC

Non-IC Remodeler

52W A19

75W PAR30

85W BR30

7 1/2"

1004SIC/N

1004SICR

Non-IC

Non-IC Remodeler

75W PAR30

85W BR30 5 1/2"

5 1/2"

1071/1004IC/N

0™Convertible

IC/Non-IC

7 1/2"

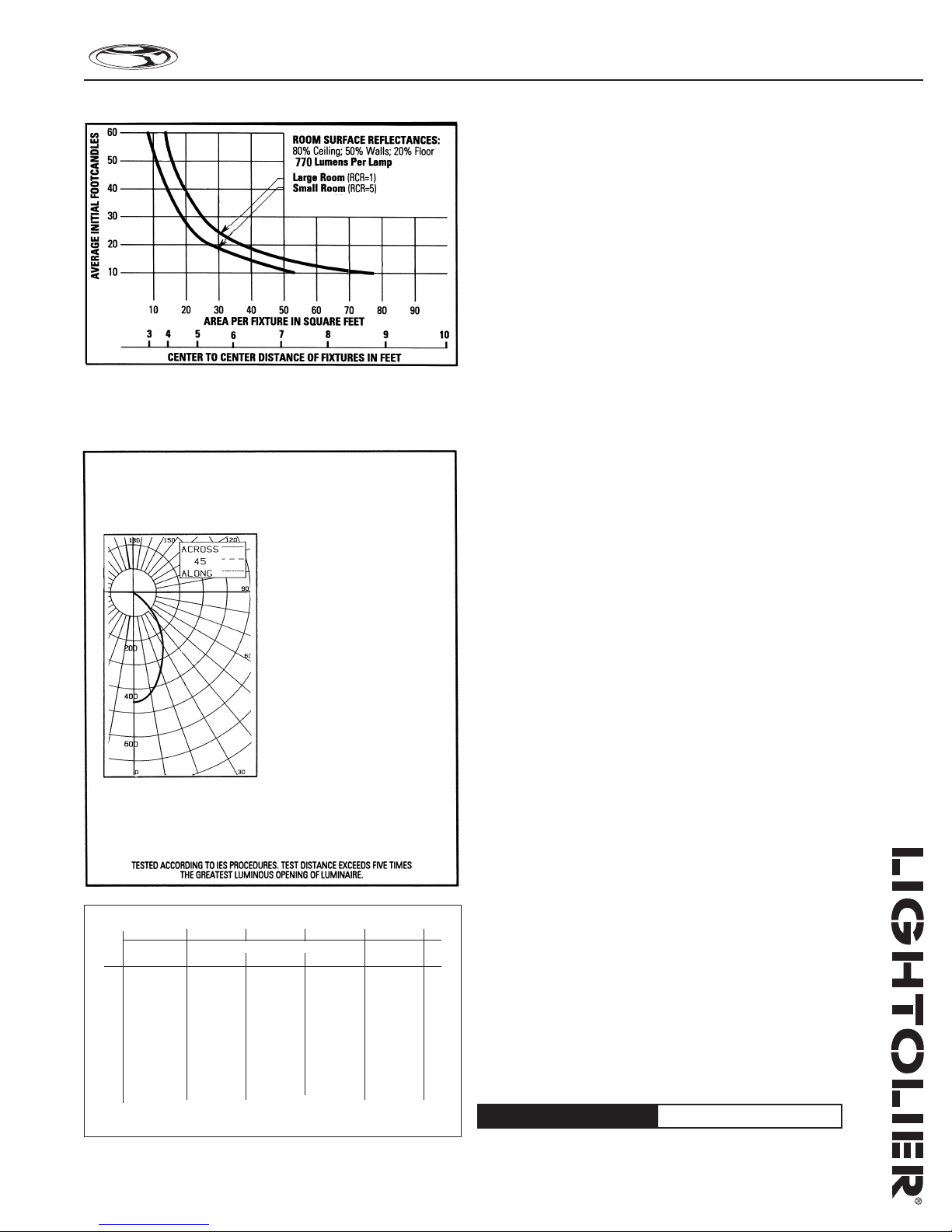

Lytecaster®Recessed Downlighting 1071

Page 2 of 2 5" Aperture Basic White Reflector Reflector Trim

Lightolier a Genlyte company www.lightolier.com

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Job Information Type:

To convert lighting data for a lower wattage incandescent lamp of the same type,

multiply the footcandle (or candlepower) values by the ratio of the lumens of the

two lamps. The coefficients of utilization remain the same.

Use quick calculator chart to determine the spacing of 100 Watt BR30 FL units for

a desired level of illumination. Conversion Factor: 75W A19, F.C. x 0.85. 1 Lt 13W

Quad Tube, F.C. x 0.6.

Spacing Ratio = 0.9

Coefficients of Utilization

CERTIFIED TEST REPORT NO. 0275FR

COMPUTED BY LSI PROGRAM **TEST LITE**

RECESSED OPEN LYTECASTER DOWNLIGHT

5 1/16" DIA. APERTURE, BASIC WHITE REFLECTOR

ONE 75W BR30 FLOOD LAMP. LUMEN RATING = 770LMS

CANDLEPOWER SUMMARY

ANGLE MEAN CP LUMENS

0 447

5 438 42

10 420

15 386 108

20 339

25 293 136

30 254

35 225 142

40 200

45 164 122

50 104

55 69 67

60 56

65 45 44

70 33

75 21 23

80 11

85 5 6

90 1

ZONAL LUMENS AND PERCENTAGES

ZONE LUMENS % LAMPS % LUMINAIRE

0–30 286 37.20 41.49

0–40 428 55.63 62.04

0–60 617 80.15 89.40

0–90 690 89.66 100.00

40–90 262 34.03 3796.00

60–90 73 9.51 10.60

90–180 0 .00 .00

0–180 690 89.66 100.00

**EFFICIENCY = 89.7% **

DATE: APRIL 3,1997

PREPARED FOR:

LIGHTOLIER, FALL RIVER, MA

80 70 50 30 10

% WALL REFLECTANCE

50 30 10 50 30 10 50 30 10 50 30 10 50 30 10 0

1 .97 .94 .92 .95 .93. .90 .91 .89 .88 .88 .89 .85 .85 .84 .82 .81

2 .88 .84 .80 .87 .83 .79 .84 .80 .77 .81 .78 .76 .79 .76 .74 .73

3 .80 .75 .71 .79 .74 .70 .77 .72 .69 .74 .71 .68 .72 .69 .67 .65

4 .74 .68 .63 .73 .67 .63 .71 .66 .62 .69 .65 .61 .67 .63 .61 .59

5 .68 .61 .56 .67 .61 .56 .65 .60 .56 .63 .59 .55 .62 .58 .55 .53

6 .62 .56 .61 .61 .55 .51 .60 .54 .50 .58 .54 .50 .57 53 .50 .48

7 .57 .50 .46 .56 .50 .46 .55 .49 .45 .54 .49 .45 .53 .48 45 .43

8 .52 .46 .42 .52 .46 .41 .51 .45 .41 .50 .45 .41 .49 .44 .41 .39

9 .48 .41 .37 .48 .42 .37 .47 .41 .37 .46 .41 .37 .34 .40 .37 .35

10 .45 .38 .40 .44 .38 .34 .43 .38 .34 .43 .37 .34 .42 .37 .34 .32

20% FLOOR CAVITY REFLECTANCE

ROOM CAVITY RATIO

Conversion Factor: 75W A19, C.U. x 0.5. 1 Lt. 13W Quad Tube, C.U. x 0.5.
