Lightolier LW6CLP Manuale utente

READ AND UNDERSTAND THESE INSTRUCTIONS BEFORE INSTALLING FIXTURE

This fixture is intended for installation in accordance with the National Electrical Code and local regulations.

To assure full compliance with local codes and regulations, check with your local electrical inspector before

installation. To prevent electrical shock, turn off electricity at fuse box before proceeding.

Retain these instructions for maintenance reference.

LIGHTOLIER a GENLYTE company.

631 Airport Road, Fall River, MA 02720

INSTRUCTION SHEET NO.

IS:LW6U

A0397 Page 1 of 1

INSTALLATION PROCEDURE FOR: LW6CLP; LW6GDP; LW6BKP; LW6CLW; LW6GDW;

LW6BKW; LW7CLP; LW7GDP;LW7BKP; LW7CLW; LW7GDW; LW7BKW — LENS WALL

WASHER CONE TRIM AND LW7U — LENS WALL WASHER LAMP/YOKE ASSEMBLY

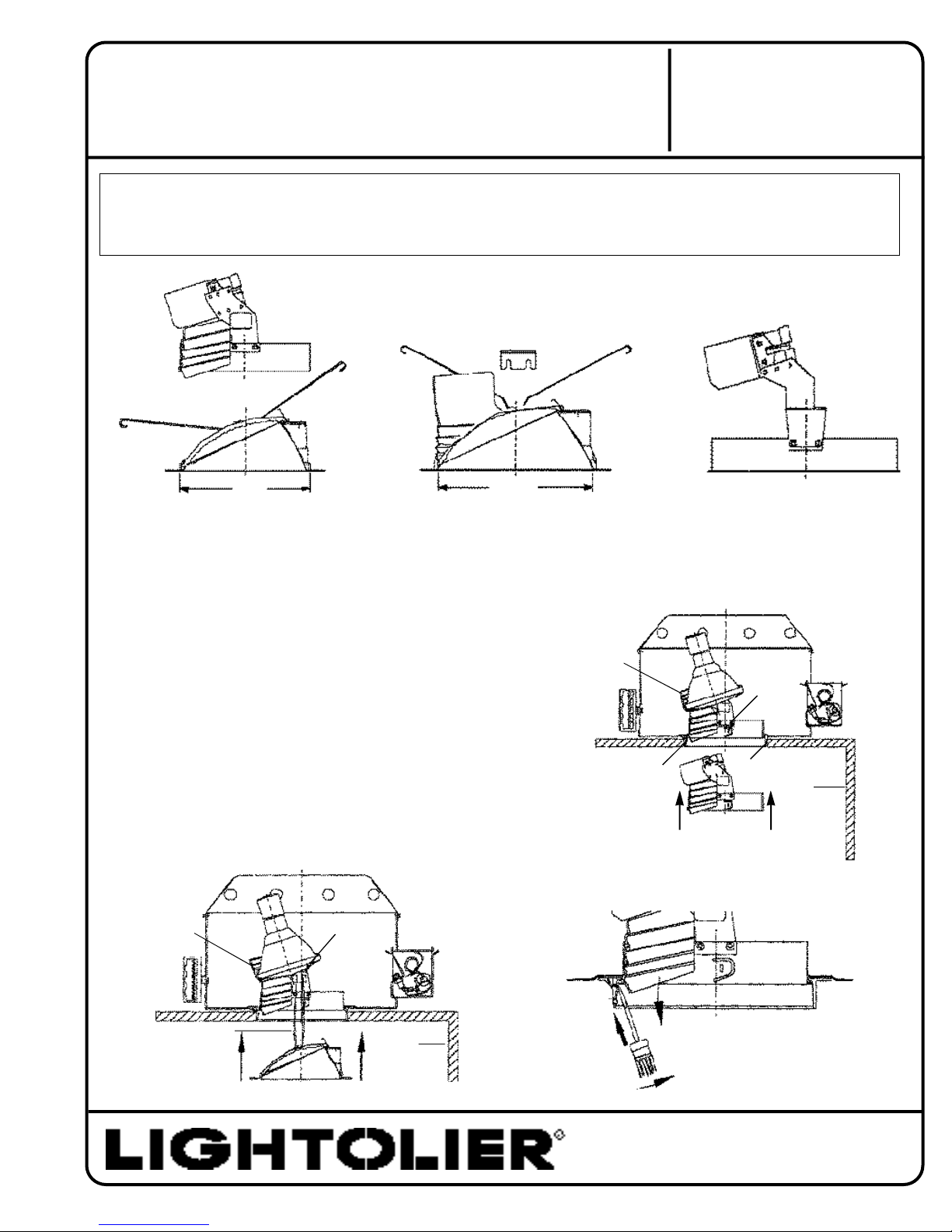

FIG.1 – LAMP/YOKE ASSEMBLY

& LENS WALL WASHER TRIM FIG. 2 – LENS WALL WASHER TRIM FIG. 3 – LAMP/YOKE ASSEMBLY

6” I.D. 7 1/4” I.D.

FIG.4

LAMP

RING

TAB

SLOT

WALL

FRAME

SPRING FRAME

RING

LAMP/YOKE

ASSEMBLY

FIG.6

LAMP

RING YOKE

SLOT

LENS WALL WASHER TRIM

TORSIONTITE SPRING WALL

FIG.5

PULL ASSEMBLY DOWN

A. INSTALLATION PROCEDURE FOR LAMP/YOKE ASSEMBLY

AND LENS WALL WASHER IN PROSPEC FIXTURES

1. INSTALL LAMP/YOKE ASSEMBLY (Figs. 1 & 3)

Insert LAMP/YOKE ASSEMBLY through aperture opening and

push LAMP/YOKE ASSEMBLY up against FRAME SPRINGS

until flush with top of FRAME RING. (Fig. 4)

2. HORIZONTAL ANGLE ADJUSTMENT/LOCK (Fig. 4)

Rotate LAMP/YOKE ASSEMBLY so LAMP RING is opposite

the WALL (358°). Insert blade of screwdrive into SLOT of TAB

and twist into FRAME RING to lock ASSEMBLY in position.

3. REMOVE LAMP/YOKE ASSEMBLY

By pushing TAB outward reverse Step 2 Locking. Insert blade

of screwdriver against SPRING and pull down. (Fig. 5)

4. INSTALL LENS WALL WASHER IN PROSPEC FIXTURES

Squeeze the two TORSIONTITE SPRINGS and push them

through the SLOTS in the YOKE until trim is flush with

ceiling. (Fig. 6)

Questo manuale è adatto per i seguenti modelli
