Lightolier Lytecaster 1004SICR Manuale utente

Lightolier a Genlyte company www.lightolier.com

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

© 2006 Genlyte Group LLC • H0906

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

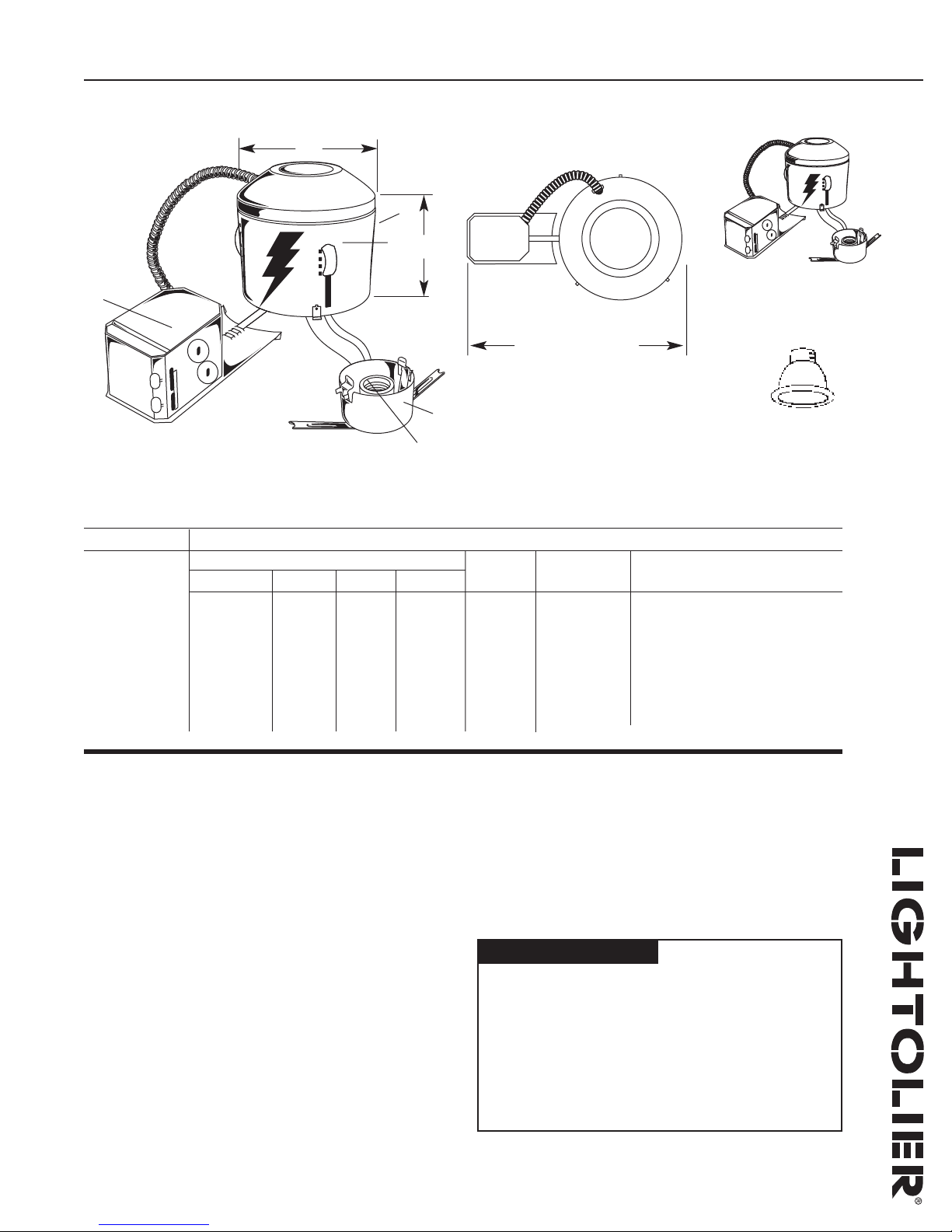

Lytecaster®Recessed Downlighting 1004SICR

Page 1 of 1 5" Aperture 0®Shallow Incandescent Convertible IC/Non-IC Remodeler Frame-in Kit

4

5

1

3

2

11 3/8"

Overall Length

Frame-In Kit

Top View

5 1/4"

5 1/2"

Reflector Trim

Features

1. Housing: .032" (#20 ga.) Aluminum. UL listed convertible IC/NON-

IC. Integral retaining spring secures housing to ceilings up to 2" thick.

Removable for access to junction box and ceiling plenum. 5 1/2" tall for use

in 2" X 6" joist construction and shallow plenum applications.

2. Junction Box: 2 1/2" X 2 1/2" X 3 1/2" (21 cu. in.) .032" (#22 ga.) galva-

nized steel. UL listed for 90°C supply wire. Suitable for branch circuit wiring

supplying connected fixtures. Integral cable clamps permit attachment of

non-metallic (#12 or #14 ga.) Romex®cable without tools or additional

connectors.

3. Socket Housing: Impact extruded aluminum or galvanized steel. Attached

trim retaining spring secures trim to any height on housing wall.

4. Socket: Porcelain medium base; nickel plated screw shell. Pre-wired with

#18 ga. SF1 (300 Volt 200°C) leads to junction box.

5. Thermal Protector: Meets NEC and U.L. requirements. Located inside

housing.

Options & Accessories

AirSeal®Kit: LAS56R (required for AirSeal Installation)

Labels

UL (Type IC/NON-IC Convertible, Suitable for Damp Locations)

Complies with Air Leakage Requirements stated in the Model Energy Code and

the Washington State Energy Code.

Romex®is a registered trademark of General Cable Industries Inc.

Ceiling Opening: 5 3/8" Diameter

Complete Fixture consists of Reflector Trim & Frame-In Kit. Select each separately.

Frame-In Kit Reflector Trims — See Individual Reflector Trim Specification Sheets

Open Downlight

Specular Cone Satin Cone Baffles Basic White Wall Washer Enclosed Diffuser

1004SICR 1012 1008 1005 1071 1085* 1024*

1012NM 1008NM 1005WH

1013 1010 1005NM

1013BK 1010NM 1005BNM

1013WH 1076

1013CD 1076WH

1013NM

1013BKNM

1013CDNM *For Non-IC applications only
