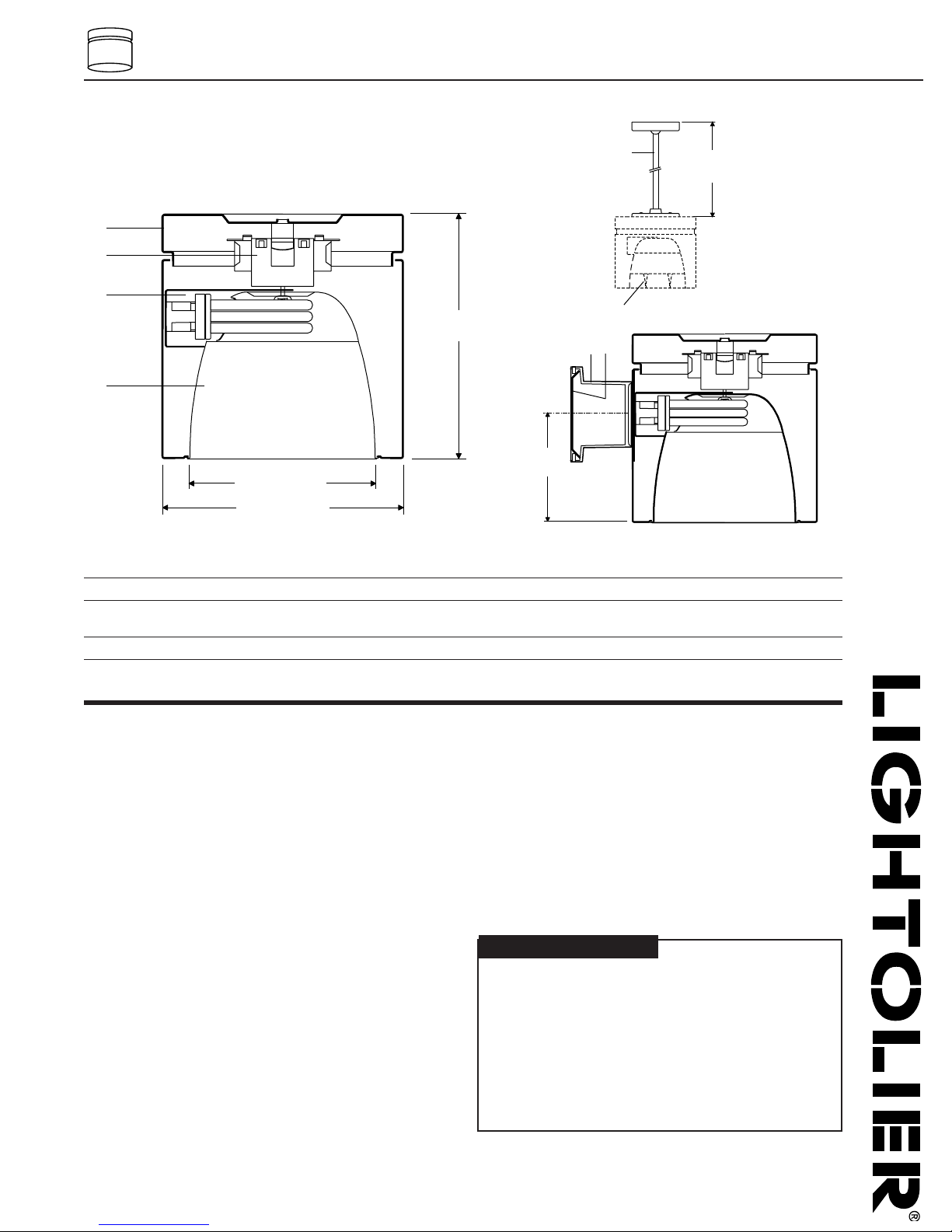

Calculite®Compact Fluorescent Surface Cylinder CS8142

Page 1 of 2 8” Aperture Triple Tube (4-Pin) Ceiling & Wall Mount

11 1/2"

(292 mm)

8 3/4" Dia. (222 mm)

11 1/4" Dia. (286 mm)

(959 mm)

37 3/4"

6 1/2"

(165 mm)

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

Lightolier a Genlyte Thomas Company www.lightolier.com

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Features

1. Reflector: 16 ga. Specular Alzak® aluminum, 55° visual cutoff to lamp and

lamp image, wide distribution. Iridescence Free finish.

2. Housing: Seamless, heavy-gauge aluminum. Two part construction provides

ventilation. Returned edge precisely seats reflector. Matte white finish.

3. Ballast: Mounted on support bracket, can be easily removed for service.

4. Socket Bracket: Die-formed steel. Attaches to reflector for correct optical

alignment.

5. Stem Kit: Cat. No. FA CSA36: Provided with 1/2" dia. stem and 4 1/2" dia.

canopy. Self aligning swivel provides maximum 38° vertical adjustment.

Installs over 4" octagonal outlet box. Stem can be cut to length on site.

Matte white baked enamel finish. Sold separately.

6. (Optional) Turbo Louver: (not shown) Specular clear Alzak®aluminum deep

reflector with removable radial louver assembly combines good efficiency

with a shield aperture, 50° cutoff to lamp.

7. Crossbar: Install over 4" octagonal or rectangular outlet box.

8. Bracket: One piece cast aluminum with integral backplate.

Electrical

Note: For complete ballast electrical data and latest lamp/ballast compatibility

refer to “Ballast” specification sheet.

UL listed for 90°C supply conductors.

Complete Fixture Ceiling Mount Lamp

CS8142HUCL Clear Iridescence Free Reflector, 26W/32W/42W Triple Tube

White Housing 120V - 277V 4-Pin (Amalgam)

Complete Fixture Wall Mount Lamp

CW8142HUCL Clear Iridescence Free Reflector, 26W/32W/42W Triple Tube

White Housing 120V - 277V 4-Pin (Amalgam)

Options and Accessories

Other Housing and Reflector Finishes

Consult Factory

Frame & Mounting

Dimming Consult Factory

Fuse (Slow Blow) Add Suffix F

Turbo Louver Add Suffix TB

Labels

UL listed for damp locations, I.B.E.W.

Alzak®is a registered trademark of ALCOA.

CW8142

Spacing Ratio =1.5

CERTIFIED TEST REPORT NO. 0213FR (Based on Recessed fixture 8038CLW/8142HE120)

COMPUTED BY LSC PROGRAM **TEST-LITE**

CALCULITE 8 3/4" HORIZONTAL COMPACT FLUORESCENT RECESSED DOWNLIGHT

WITH CLEAR IRIDESCENCE FREE FINISH REFLECTOR

1-42W P-LT TRIPLE TUBE COMPACT FLUORESCENT LAMP. LUMEN RATING = 3200 LMS.

Coefficients of Utilization

% EFFECTIVE CEILING CAVITY REFLECTANCE

80 70 50 30 10 0

% WALL REFLECTANCE

50 30 10 50 30 10 50 30 10 50 30 10 50 30 10 0

1.73 .71 .70 .72 .70 .69 .69 .68 .67 .66 .65 .64 .64 .63 .63 .61

2.68 .65 .63 .67 .64 .62 .64 .62 .61 .62 .61 .59 .61 .59 .58 .57

3.62 .59 .56 .61 .58 .56 .60 .57 .55 .58 .56 .54 .57 .55 .53 .52

4.58 .54 .51 .57 .54 .51 .56 .53 .50 .54 .52 .50 .53 .51 .49 .48

5.53 .49 .46 .53 .49 .46 .51 .48 .46 .50 .47 .45 .49 .47 .45 .44

6.49 .45 .42 .49 .45 .42 .48 .44 .41 .47 .43 .41 .46 .43 .41 .40

7.45 .41 .38 .45 .40 .37 .44 .40 .37 .43 .39 .37 .42 .39 .37 .36

8.41 .37 .34 .41 .36 .33 .40 .36 .33 .39 .36 .33 .39 .35 .33 .32

9.38 .33 .30 .37 .33 .30 .37 .33 .30 .36 .32 .30 .35 .32 .29 .28

10 .34 .30 .27 .34 .30 .27 .33 .29 .27 .33 .29 .26 .32 .29 .26 .25

20% FLOOR CAVITY REFLECTANCE

ROOM CAVITY RATIO

180 150 120

400

800

1200

ACROSS

ALONG

** EFFICIENCY = 66.2%66.2%

66.2%66.2%

66.2% **

DATE: NOV 6, 1996

PREPARED FOR: LIGHTOLIER, MA

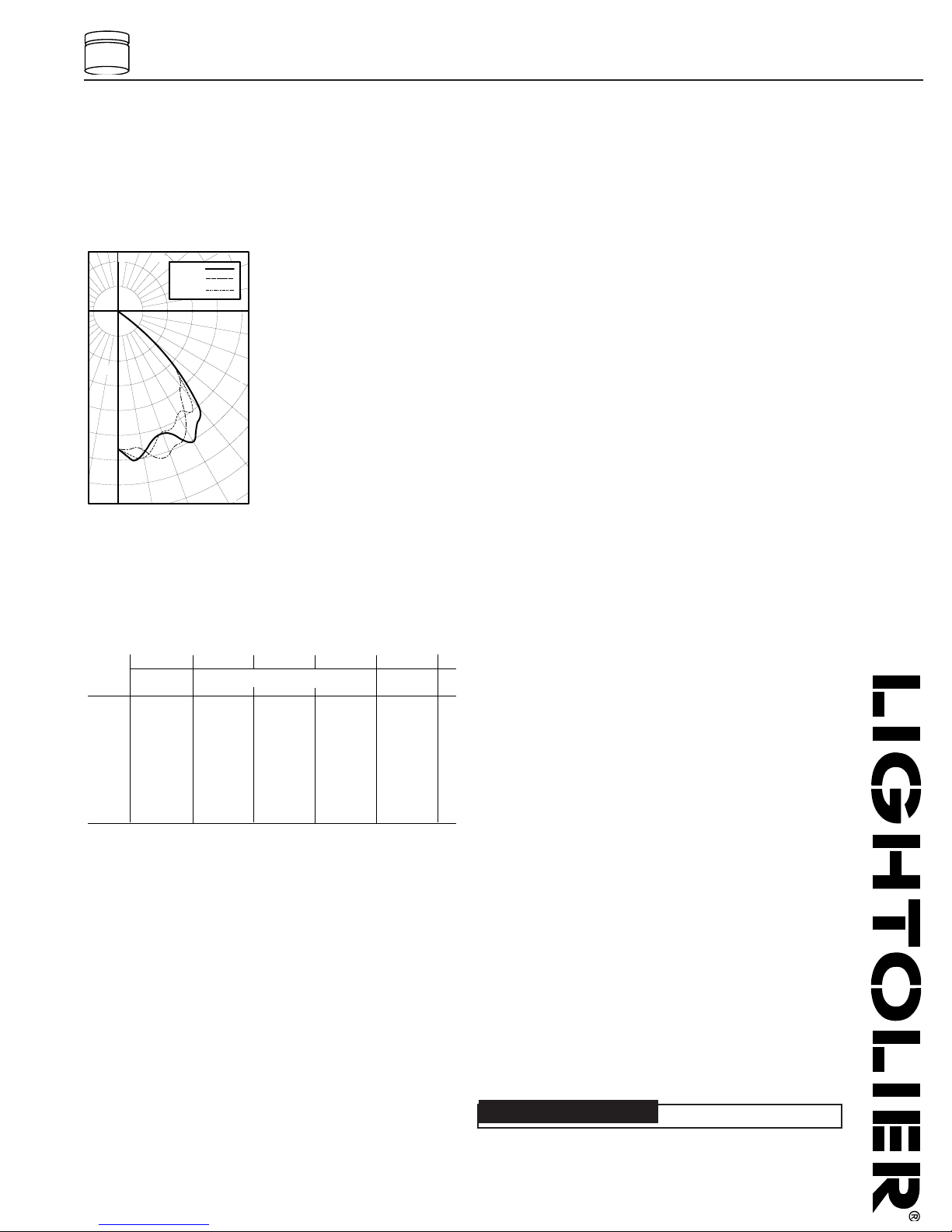

CANDLEPOWER SUMMARY

OUTPUT

LUMENS

ANGLE ALONG 22.5 45 67.5 ACROSS

01110 1110 1110 1110 1110

51112 1131 1167 1185 1197 110

10 1126 1187 1196 1166 1155

15 1220 1226 1112 1058 1072 321

20 1212 1167 1024 1019 1036

25 1166 1058 1025 1106 1115 498

30 1079 1006 949 1117 1201

35 879 927 989 1080 1094 616

40 762 780 872 984 997

45 616 596 603 647 655 476

50 354 347 349 330 327

55 37 39 46 52 50 97

60 11 122

65 00 0000

70 00 000

75 00 0000

80 00 000

85 00 0000

90 00 000

ZONAL LUMENS AND PERCENTAGES

ZONE LUMENS % LAMP %LUMINAIRE

0-30 928 29.01 43.82

0-40 1544 48.26 72.91

0-60 2117 66.19 99.99

0-90 2118 66.20 100.00

40-90 573 17.93 27.09

60-90 0.01 .01

90-180 0.00 .00

0-180 2118 66.20 100.00

TESTED ACCORDING TO IES PROCEDURES. TEST DISTANCE EXCEEDS FIVE TIMES THE

GREATEST LUMINOUS OPENING OF LUMINAIRE.

Calculite®Compact Fluorescent Surface Cylinder CS8142

Page 2 of 2 8” Aperture Triple Tube (4-Pin) Ceiling & Wall Mount

Lightolier a Genlyte Thomas Company www.lightolier.com

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.
