Lightolier 1088GW Manuale utente

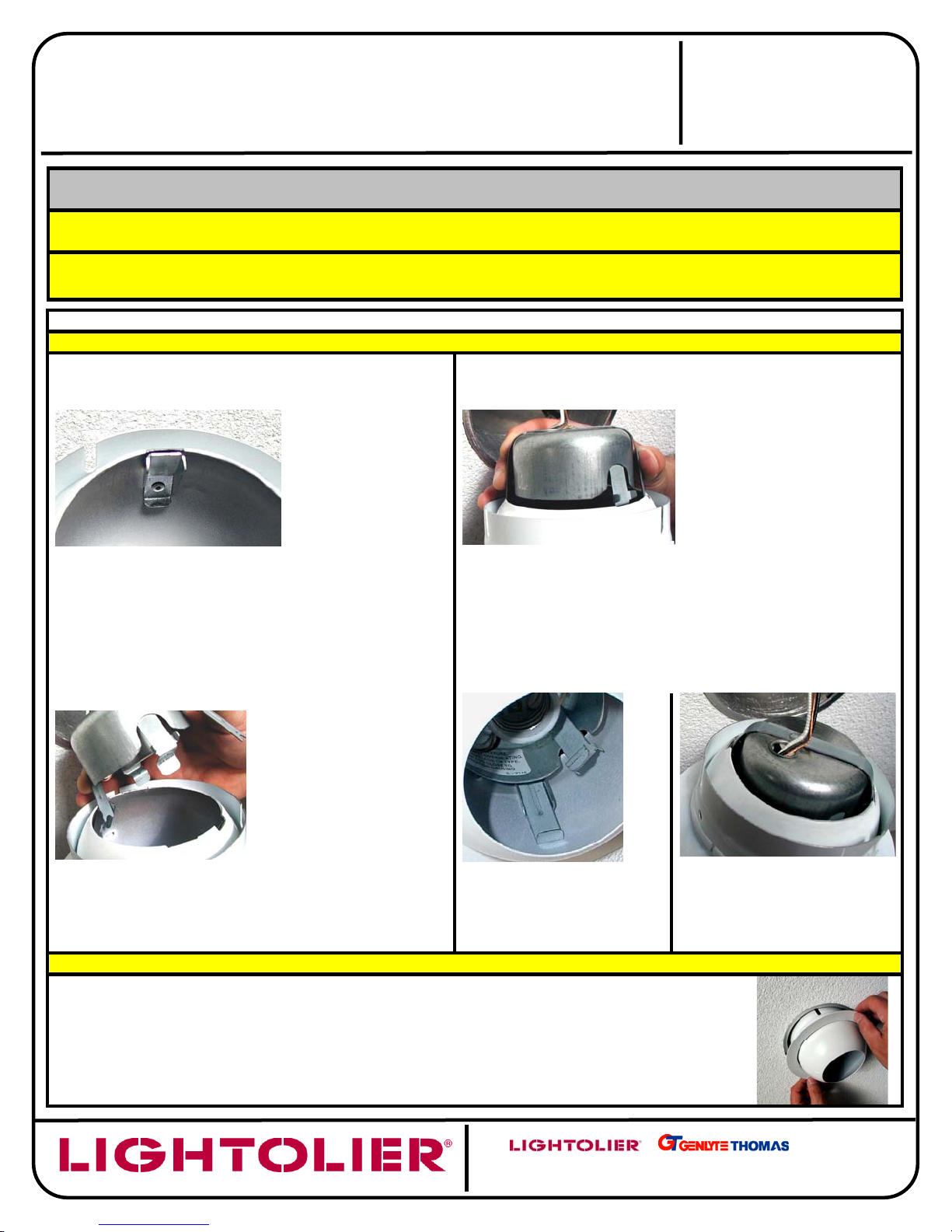

1. FRAME-IN KIT INSTALLATION: See frame-in kit instruction sheet for installation procedure.

2. ATTACH SOCKET CUP TO TRIM:

2a. Socket cup is attached to trims by use of socket cup

spring channels on inside of eyeball. 2c. Squeeze socket cup spring legs together and insert the

second leg into the channel on the opposite side of eyeball.

2b. Align one socket cup spring leg with the channel on

one side of eyeball. 2d. Push socket cup into eyeball until both socket cup spring

legs hit the tab at the base of the channel.

NOTE: Spring tension should draw socket cup into position.

3. PUSH UP:

Pre-aim and push trim straight up into fixture housing until it is tight against the ceiling.

Aiming may be adjusted as necessary. For rotational adjustment remove trim from fixture

housing and reposition to achieve the desired aiming.

READ AND UNDERSTAND THESE INSTRUCTIONS BEFORE INSTALLING FIXTURE

This fixture is intended for installation in accordance with the National Electrical Code and local regulations. To

assure full compliance with local codes and regulations, check with your local electrical inspector before

installation. To prevent electric shock, turn off electricity at fuse box before proceeding.

Retain these instructions for maintenance reference.

INSTALLATION PROCEDURE FOR: 1088, 1088WH, 1088GW

CAUTION: (RISK OF FIRE) FOR NON IC-RATED INSTALLATIONS, DO NOT INSTALL INSULATION ABOVE

OR WITHIN 3 INCHES OF ANY PART OF FIXTURE.

CAUTION: USE ONLY REFLECTOR TRIMS PROVIDED BY LIGHTOLIER. USE OF OTHER MANUFACTURER’S REFLECTOR

TRIMS MAY VOID THE UNDERWRITERS LABORATORIES LISTING AND COULD CONSTITUTE A FIRE HAZARD.

INSTRUCTION SHEET NO.

IS:1088

A0105 Page 1 of 1

A COMPANY

631 Airport Road, Fall River, MA 02720
