Lytecaster Recessed Downlighting 1000AICM

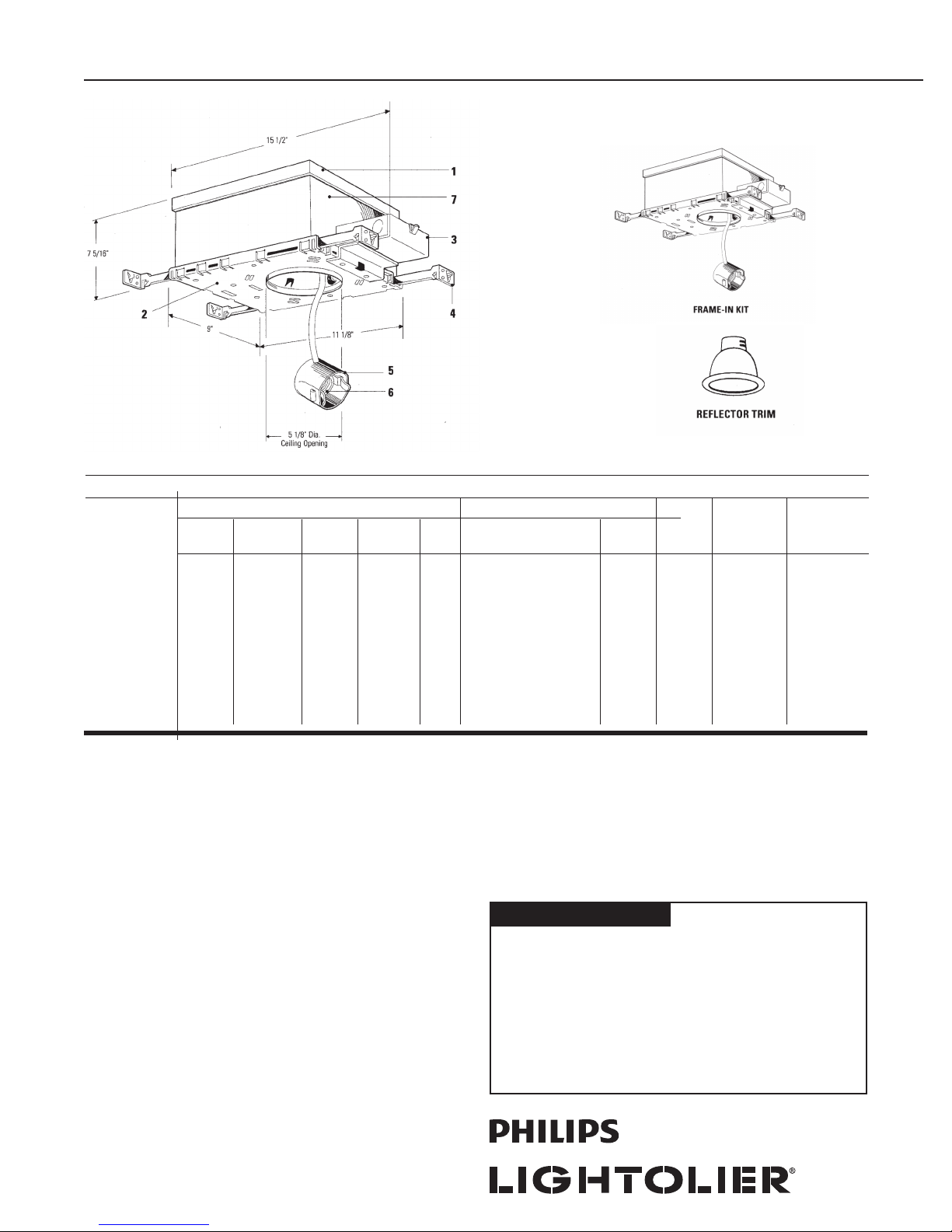

Page 1 of 1 5" Aperture Incandescent Insulated Ceiling, AirSeal Frame-In Kit

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

www.lightolier.com © 2010 Philips Group • G0810

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

Complete Fixture consists of Reflector Trim & Frame-In Kit. Select each separately.

Frame-In Kit Reflector Trims — See Individual Reflector Trim Specification Sheets

Open Downlight Recessed

Satin Basic Enclosed Open Wall

Reflector Cone Cone Baffles White Adjustable Eyeball Diffusers Wet Location Washer

1000AICM 1045 1012 1008 1005 1071 1027 1029 1022 1021 1084CD 1035

1046 1012NM 1008NM 1005NM 1027CD 1029CD 1022WH 1024 1084WH 1035WH

1046CD 1013 1010 1005BNM 1027NM 1029NM 1082 1090 1085

1013CD 1010NM 1005WH 1027CDNM 1029CDNM

1013BK 1076 1027BKNM 1029BKNM

1013WH 1076WH 1027WH 1029GDNM

1013NM 1038 1029CLNM

1013CDNM 1038NM 1029CL

1013BKNM 1048 1029GD

1048NM 1029BK

1029BNM 1029WH

Features

1. Housing: .026" (#20 ga.) galvanized steel. U.L. listed for direct contact with

thermal insulation. AirSeal housing minimizes air leakage to less than 2 CFM at

1.57 psf, which complies with Washington State Energy Code (Section 502.4)

and reduces heat loss and condensation on ceiling. Access door for inspection

of junction box.

2. Mounting Frame: .036" (#20 ga.) galvanized steel. Accommodates all ceilings

up to 1" thick. 3/8" deep integral lip. Four slots are positioned 90º apart to

simplify alignment. Push-in/twist-out rotoclips hold reflector flush to ceiling.

3. Junction Box: 2" x 4" x 4", .060" (#14 ga.) galvanized steel. U.L. listed for,

maximum of 6 No. 12 ga., 90º C through branch circuit conductors. Quick release

“L” shaped cover for outside access to wiring. Access door inside of housing

allows easy inspection of wiring without removal of housing. Integral cable

clamps permit attachment of nonmetallic Romex® or armored cable without the

need for additional connectors.

4. Mounting Bars: .059" (#16 ga.) galvanized steel. 13" long bars extend to 27",

rotatable and lockable, with integral T-bar tabs.

5. Socket Housing: Impact extruded aluminum or galvanized steel.

6. Socket: Porcelain medium base; nickel plated screw shell. Pre-wired with #18

ga. SF1 leads to junction box.

7. Thermal Protector: Meets NEC and U.L. requirements. Located inside housing

Options & Accessories

Mounting Bars: 1964 - 20" set of (2)

T-Bar Ceiling Clips: 1956 - set of (4)

Extra-Thick Ceiling Mounting Ring: 1967B - 1 1/4” to 2" thick ceilings.

277V Remote Step-Down Transformer: 7997 - 277V down to 120V 300W max. load.

Labels

UL (Suitable for Damp Locations), I.B.E.W.
