Lightolier 4X9 MATRIX SERIES Istruzioni per l’uso

READ AND UNDERSTAND THESE INSTRUCTIONS BEFORE INSTALLING FIXTURE

This fixture is intended for installation in accordance with the National Electrical Code and local regulations. To

assure full compliance with local codes and regulations, check with your local electrical inspector before

installation. To prevent electric shock, turn off electricity at fuse box before proceeding.

Retain these instructions for maintenance reference.

INSTALLATION PROCEDURE FOR: 4X9 AND 9X9MATRIX SERIES RECESSED

COMPACT FLUORESCENT EMERGENCY LIGHTING FRAME-IN KITS

INSTRUCTION SHEET NO.

IS:4X9EM

A0502

Page 1 of 4

A COMPANY

631 Airport Road, Fall River, MA 02720

IMPORTANT SAFEGUARDS

READ AND FOLLOW ALL SAFETY INSTRUCTIONS

WHEN USING ELECTRICAL EQUIPMENT, BASIC SAFETY PRECAUTIONS SHOULD ALWAYS BE FOLLOWED INCLUDING:

1. Turn off AC power before proceeding.

2. Do not use outdoors.

3. Do not mount near gas or electrical heaters.

4. Do not attempt to service the battery. A sealed, rechargeable, no maintenance battery is used. Do not incinerate

or mutilate; may burst or release toxic materials. Do not short circuit; may cause burns. Battery acid can cause

burns to skin and eyes. If acid is spilled on skin or eyes, flush with fresh water and contact a physician

immediately.

5. Equipment should be mounted in locations and at a height where it will not be readily subject to tampering by

unauthorized personnel.

6. The use of accessory equipment is not recommended by the manufacturer and may cause an unsafe condition.

7. Do not use the equipment for other than intended use.

8. This unit has more than one power supply connection point. To reduce the risk of electrical shock, disconnect both

the normal and the emergency power supplies before servicing.

9. Before servicing to prevent electrical shock, disconnect the battery connectors on the emergency pack (location

on the end of the emergency pack). Make certain that the switch (if the fixture is switched) and the unswitched

lines to the emergency pack are turned off at the fuse box. Servicing should be performed by qualified personnel

only.

10. Be sure all electrical connections are complete before battery (inverter) connectors on emergency Pack are

connected.

11. The emergency battery pack must be fed from the same branch circuit as the AC ballast(s).

12. In switched fixtures, emergency pack must be connected ahead of any local switching.

13. Select the appropriate wiring diagrams to connect the emergency pack and the AC ballasts (see page 4).

SAVE THESE INSTRUCTIONS

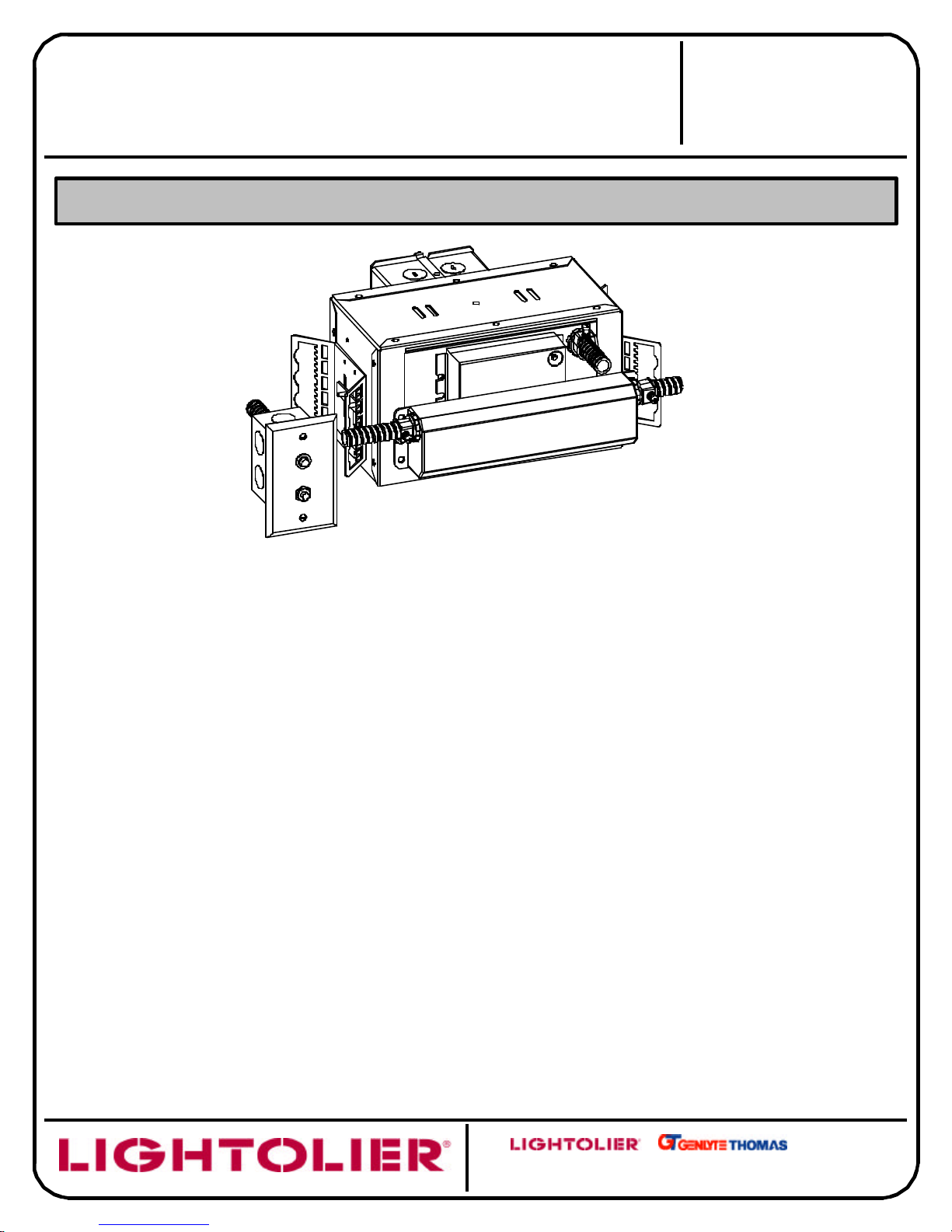

4X9142HUEM Shown.

READ AND UNDERSTAND THESE INSTRUCTIONS BEFORE INSTALLING FIXTURE

This fixture is intended for installation in accordance with the National Electrical Code and local regulations. To

assure full compliance with local codes and regulations, check with your local electrical inspector before

installation. To prevent electric shock, turn off electricity at fuse box before proceeding.

Retain these instructions for maintenance reference.

INSTRUCTION SHEET NO.

IS:4X9EM

A0502

Page 2 of 4

A COMPANY

631 Airport Road, Fall River, MA 02720

°°

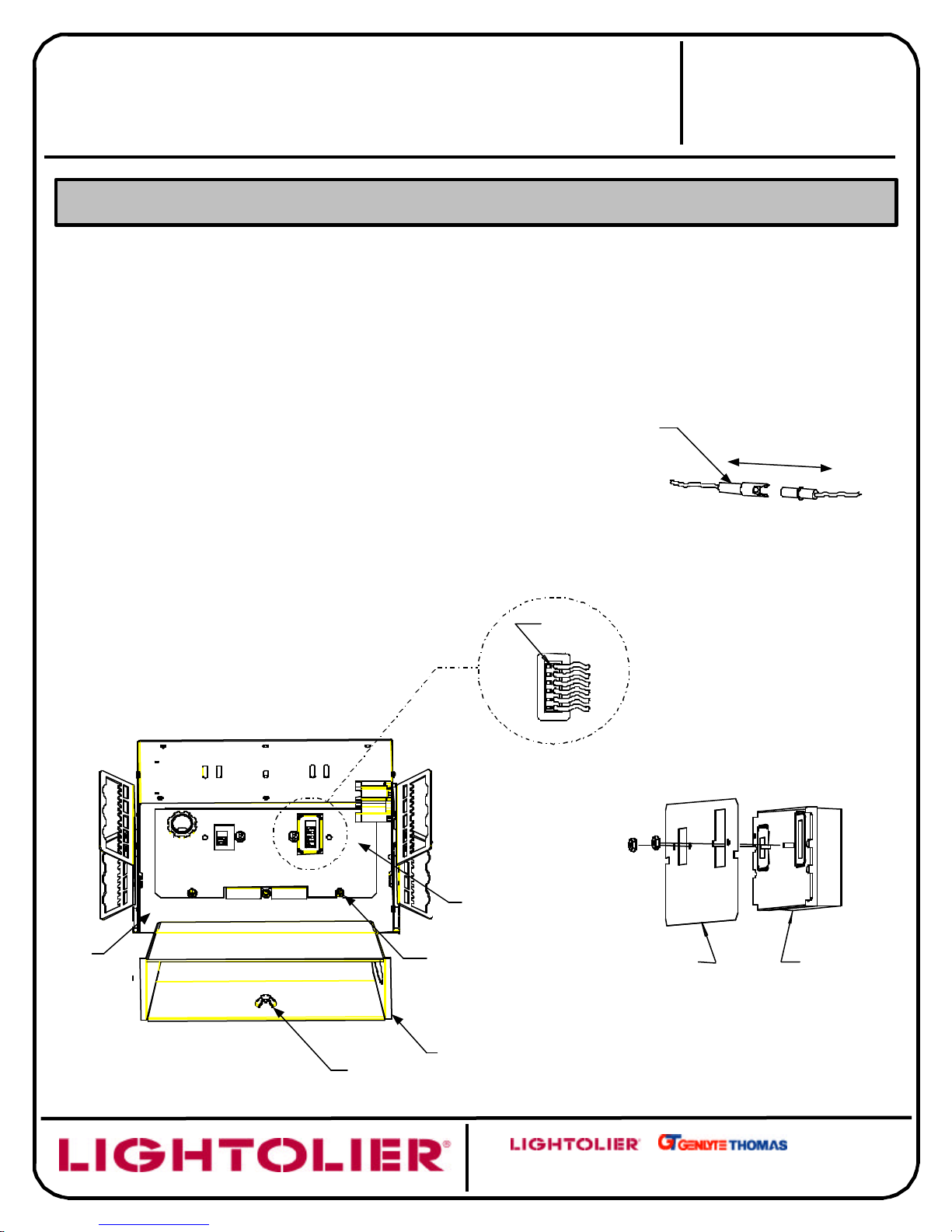

Instructions for replacing BALLAST:

ALL SERVICING MUST BE PERFORMED BY QUALIFIED PERSONNEL ONLY.

1. This unit has more than one power supply connection point. Make certain that the switch (if the fixture is switched) and

the unswitched lines to the EMERGENCY BALLAST (see page 3) are turned off at the fuse box.

2. Disconnect the battery pack INVERTER CONNECTORS (Fig. 1), located inside the SWITCH BOX(see page 3) to

prevent electrical shock from the battery pack.

3. Remove REFLECTOR TRIM & lamp(s) (See IS:4X4, section E.).

4. Undo WINGNUT(s) and remove UPPER REFLECTOR.

5. Remove SCREWS that secure BALLAST PLATE to HOUSING.

6. Partially remove BALLAST PLATE from HOUSING.

7. Disconnect wire leads from BALLAST push-in terminals.

(Insert pin or paper clip in RELEASE SLOT, Fig. 2a)

8. Remove BALLAST from BALLAST PLATE (Fig. 3), and install new BALLAST.

9. Insert wire leads into BALLAST. Follow appropriate wiring diagram on page 4.

10. Reattach BALLAST PLATE, UPPER REFLECTOR, lamp(s), and REFLECTOR TRIM.

FIG. 1

INVERTER

CONNECTORS

UPPER

REFLECTOR

SCREW

HOUSING

WINGNUT

BALLAST

PLATE

FIG. 2a

RELEASE

SLOT

FIG. 2

BALLAST

BALLAST PLATE

FIG. 3

INSTALLATION PROCEDURE FOR: 4X9 AND 9X9MATRIX SERIES RECESSED

COMPACT FLUORESCENT EMERGENCY LIGHTING FRAME-IN KITS

READ AND UNDERSTAND THESE INSTRUCTIONS BEFORE INSTALLING FIXTURE

This fixture is intended for installation in accordance with the National Electrical Code and local regulations. To

assure full compliance with local codes and regulations, check with your local electrical inspector before

installation. To prevent electric shock, turn off electricity at fuse box before proceeding.

Retain these instructions for maintenance reference.

INSTRUCTION SHEET NO.

IS:4X9EM

A0502

Page 3 of 4

A COMPANY

631 Airport Road, Fall River, MA 02720

Instructions for replacing EMERGENCY BALLAST:

ALL SERVICING MUST BE PERFORMED BY QUALIFIED PERSONNEL ONLY.

1. This unit has more than one power supply connection point. Make certain that the switch (if the fixture is switched) and

the unswitched lines to the EMERGENCY BALLAST are turned off at the fuse box.

2. To remove SWITCH BOX from ceiling: Disconnect the battery pack inverter connectors (see page 2) located inside the

SWITCH BOX to prevent electrical shock from the battery pack. Disconnect switch and indicator light leads, and

locknut inside SWITCH BOX. Remove SWITCH BOX.

3. Disconnect all EMERGENCY BALLASTconnections inside fixture JUNCTION BOX.

4. Disconnect all leads from A/C BALLAST. DO NOT disconnect any wire leads from lamp socket(s). Remove LOCKNUT

from BALLAST PLATE, and remove BALLAST PLATE with A/C BALLAST. See page 2 for detailed instructions on A/C

BALLAST removal and replacement.

5. Loosen RETAINING SCREW on EMERGENCY BALLAST MOUNTING BRACKET, and lift EMERGENCY BALLAST

MOUNTING BRACKET from HOUSING wall.

6. Feed EMERGENCY BALLAST MOUNTING BRACKETand EMERGENCY BALLASTthrough opening.

7. Remove emergency ballast from MOUNTING BRACKETand replace with new EMERGENCY BALLAST.

8. Re-install all hardware, including fiberglass sleeves over wiring.

9. Re-connect all electrical connections. Follow appropriate wiring diagram on page 4.

SWITCH BOX

JUNCTION BOX

A/C BALLAST

BALLAST PLATE

LOCKNUT

HOUSING

RETAINING SCREW

EMERGENCY BALLAST

MOUNTING BRACKET

VIEW LOOKING INSIDE FIK SIDE VIEW

INSTALLATION PROCEDURE FOR: 4X9 AND 9X9MATRIX SERIES RECESSED

COMPACT FLUORESCENT EMERGENCY LIGHTING FRAME-IN KITS

EMERGENCY

BALLAST

READ AND UNDERSTAND THESE INSTRUCTIONS BEFORE INSTALLING FIXTURE

This fixture is intended for installation in accordance with the National Electrical Code and local regulations. To

assure full compliance with local codes and regulations, check with your local electrical inspector before

installation. To prevent electric shock, turn off electricity at fuse box before proceeding.

Retain these instructions for maintenance reference.

INSTRUCTION SHEET NO.

IS:4X9EM

A0502

Page 4 of 4

A COMPANY

631 Airport Road, Fall River, MA 02720

TEST

SWITCH

INDICATOR

LIGHT

VIOLET +

WHT -

BLK

VIOLET

WHT

WHT/BLK

WHT

RED

WHT

SWITCH BOX

LAMP 1

WHT

BLU

BLU/WHT

WHT/BLK

WHT

BLK(120V)

ORG(277 V)

YEL

RED

YEL/BLK

YEL

BLU

YEL

GRN

BLK

WHT

BLK(120 V)

ORG(277 V)

COMMON

GROUND

HOT(SWITCHED

ORUNSWITCHED)

EMERGENCY

PACK

A/C

BALLAST

JUNCTION

BOX

LAMP 2

TEST

SWITCH

INDICATOR

LIGHT

VIOLET +

WHT -

BLK

VIOLET

WHT

WHT/BLK

WHT

RED

WHT

SWITCH BOX

LAMP

BLU

BLU/WHT

WHT/BLK

WHT

BLK(120 V)

ORG(277 V)

RED

YEL/BLK

YEL

GRN

BLK

WHT

BLK(120 V)

ORG(277 V) HOT(UN-SWITCHED)

120V(BLK) OR277V (ORG).

CAPUNUSED LEAD

COMMON

GROUND

HOT(SWITCHED

ORUNSWITCHED)

EMERGENCY

PACK

A/C

BALLAST

JUNCTION

BOX

RED

VIOLET

YEL

WIRING DIAGRAM #1 – 120-277V (26W, 32W, 42W, 4-PIN QT), SINGLE LAMP (4X4 AND 4X9 SERIES)

WIRING DIAGRAM #2 – 120-277V (26W, 32W, 42W, 4-PIN QT), DUAL LAMP (9X9 SERIES)

(LAMP 2 OPERATES IN EMERGENCY MODE)

SELECT PROPER VOLTAGE LEAD.

CAP UNUSED LEAD.

2DO NOT MATE INVERTER CONNECTORS

UNTIL INSTALLATION IS COMPLETE AND

A.C. POWER IS SUPPLIED.

HOT(UN-SWITCHED)

120V(BLK) OR277V (ORG).

CAPUNUSED LEAD

SELECT PROPER VOLTAGE LEAD.

CAP UNUSED LEAD.

DO NOT MATE INVERTER CONNECTORS

UNTIL INSTALLATION IS COMPLETE AND

A.C. POWER IS SUPPLIED.

REDRED

RED
