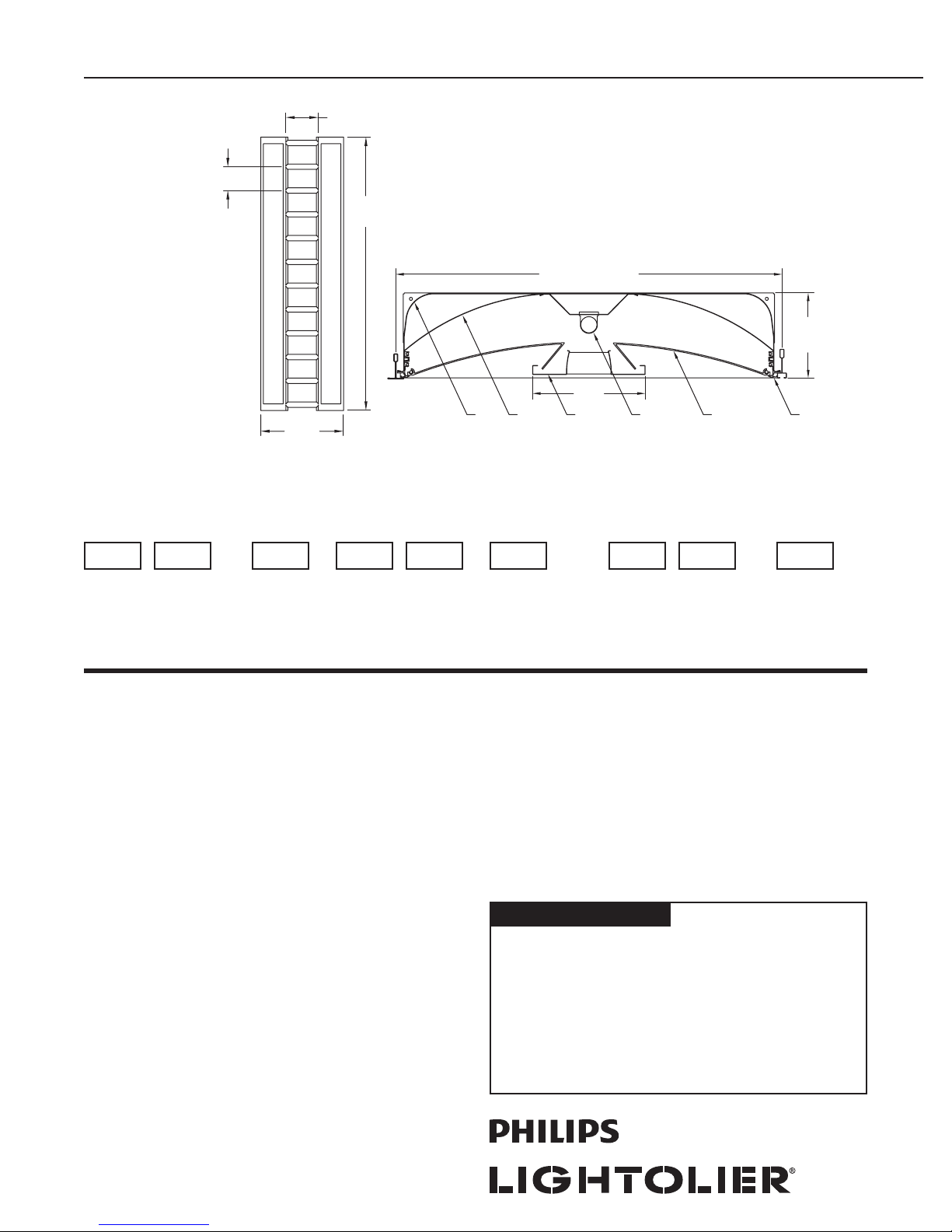

Lighting Systems ALETTA AL1T8

Page 1 of 2 LouverShield,1T8LampperFixture,GridMounted

D1007

Features

1. Housing: 23gaugepre-paintedsteel.20gaugeavailable,consultfactory.

2. Lamp: OneT8.(byothers)

3. Faux Housing: ExtrudedFrostyacrylic.

4. Louver:HighpuritySemi-Specular,2-3/4"(6.99cm)openingx1-3/8"(3.49cm)

deepon2"(5.08cm)ctrswithmicro-prismaticsideoverlays.Elongatedlens

openingsare22"(55.88cm)windows.

5. Performance Kick Reflector:.020"(0.05cm)95%-98%reflective,UV

resistant polypropylene.

6. Trim:Extrudedaluminumtrim,paintedwhite,interfaceswithceilinggridor

plasterframebyothers.

Electrical

Ballastsareelectronicandhighpowerfactor.Dimmingballastsareavailableon

manylamptypes,pleaseconsultfactoryregardingspecificapplications.1325

maxlumenbatterypackisstandard.Seeapplicationtableonpage2foroutput

with specific lamp types. Continuous luminaires utilize 12 gauge through wires.

Factoryinstalledballastdisconnectallowstheballasttobedisconnectedfromand

reconnected to incoming power under load without turning the entire circuit off.

Mounting

Housingissuspendedbyhangerwiresandlaidintostandardorslot-Tgridceiling.

Mountingaccessoryavailablefordrywallinstallations(seepage2).

Labels

UL,cULandI.B.E.W.

Ordering Instructions

Individual Fixtures:

1. OrderquantityofIndividualUnitsrequired.

Continuous Runs:

1. OrderoneStarterandoneEnderfixtureperrun.

2. OrderappropriatequantityofJoinerfixtures.

Continuousrunsonly-PriortoinstallingAlettainagridceiling,theinstalling

contractormustensurethatthexturewillsetintotwomainrunners,spaced2'

(60.96cm)oncenter.Nogridcrossmembersarerequiredexceptatthebeginning

and end of the run.

7.00”

(17.78cm)

23.00”

(58.42cm)

2.00”

(5.08cm)

2.75”

(6.99cm)

24.00” (60.96cm)

5.28”

(13.41cm)

7.00”

(17.78cm)

Louver w/ Elongated

Lens Detail

* For dimming, use "D" option. If "D" is not selected, ballast will be static.

Ordering Information

Family Shielding Length Lamps Lamp Type Ballast Factor Voltage Housing Option

A1T8

Aletta LE=Louverw/

Elongated Lens

2=2'(60.96cm)

4=4'(121.92cm)

1 = 1 Lamp T8 =T8

Standard

Output

71 = .71

78 =.78

88 =.88

10 = *1.0 Dimming

and Static

12 = *1.2 Step Dimming

1 = 120v

2 = 277v

3 =347v

U =IndividualUnit

S = Starter

J = Joiner

E = Ender

D = Dimming

E =EMPack

2 = 2 Circuit

4 =4ThroughWire

5 =5ThroughWire

Job Information Type:

631AirportRoad,FallRiver,MA02720•(508)679-8131•Fax(508)674-4710

We reserve the right to change details of design, materials and finish.

www.lightolier.com©2010PhilipsGroup•

Lighting Systems ALETTA AL1T8

Page 2 of 2 LouverShield,1T8LampperFixture,GridMounted

D1007

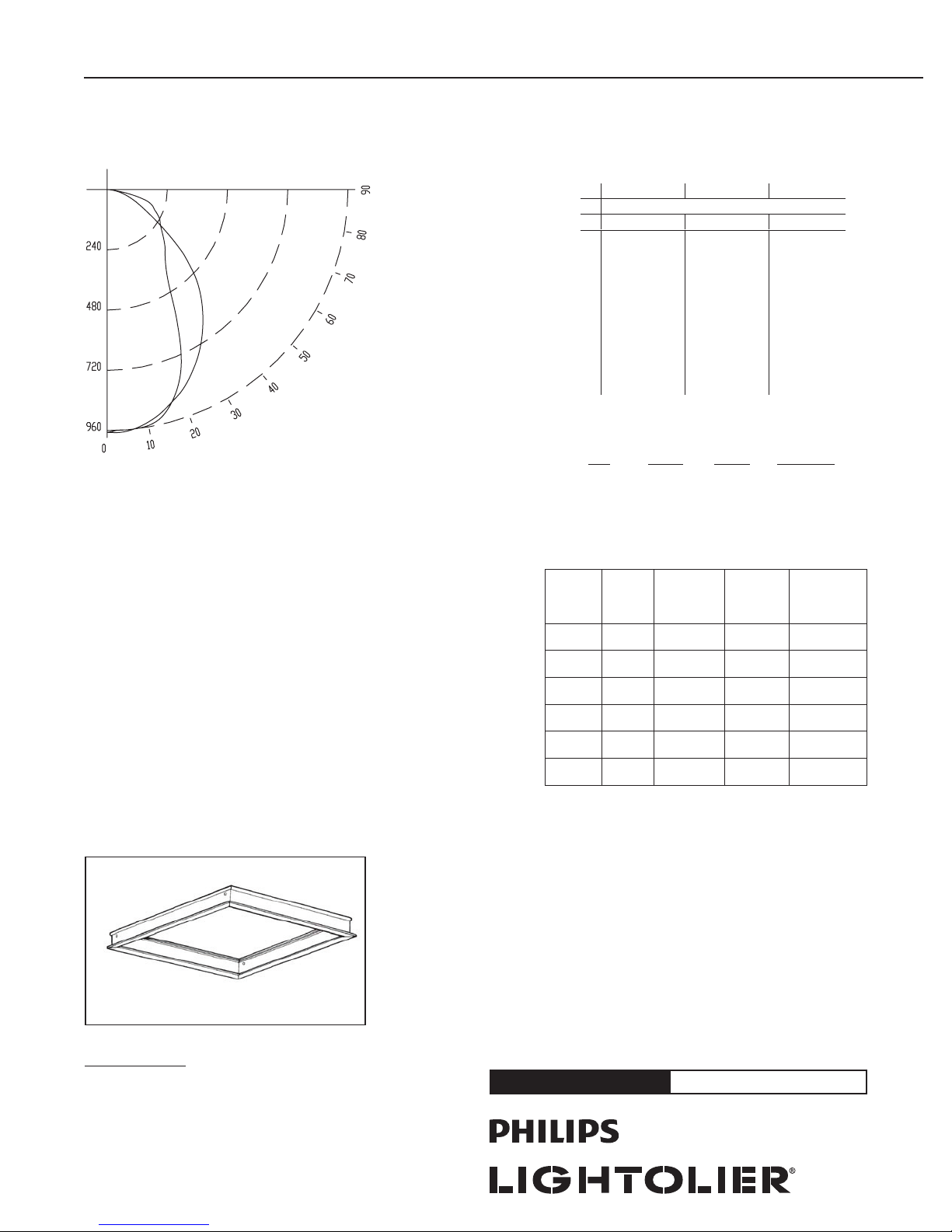

Performance

COEFFICIENTS OF UTILIZATOIN

% EFFECTIVE CEILING CAVITY REFLECTANCEE

CANDLEPOWER CURVE

80 70 50

WALLREFLECTANCE

70 50 30 70 50 30 50 30 10

0 76 76 76 74 74 74 71 71 71

1 70 67 64 68 65 63 63 61 59

2 64 59 55 62 58 54 56 53 50

3 59 53 48 57 52 47 50 46 43

4 54 47 42 53 47 42 45 41 38

5 50 43 38 49 42 37 41 37 33

6 47 39 34 46 38 34 37 33 30

7 44 36 31 43 35 30 34 30 27

8 41 33 28 40 33 28 32 27 24

9 39 31 26 38 30 25 29 25 22

10 36 28 24 36 28 24 27 23 20

20% FLOOR CAVITY REFLECTANCE

ZoneLumens%Lamp % Luminaire

0-90 1872 63.4 100

0-180 1872 63.4 100

DISTRIBUTION

Mounting Accessory

Drywall Conversion Kit

For Individual Units only

FK92X2

FK92X4

Lamp

Length

Lamp

Type

Lamp Rated

Output

Lamp

Wattage

Battery

Lumen Output

T5HO 4450* 54 1250*

T5 2600* 28 1325*

T8 2950 32 1100

T5HO 1750* 24 725*

T5 1200* 14 750*

T8 1350 17 650

* 25˚C Rating

CANDLEPOWER

ZONE 0 22 45 67 90

DEG.

CANDELAS

90 0 0 0 0 0

85 16 25 23 20 19

75 69 81 117 149 154

65 143 145 161 201 217

55 278 242 240 250 262

45 501 444 328 321 327

35 665 661 532 435 416

25 802 812 781 725 694

15 903 907 921 920 914

5 965 964 963 961 960

0 967 967 967 967 967

REPORT NO.: ALE41T8.IES

LAMPS: 1 FO32/835

LUMENS: 2950

EFFICIENCY: 63.4%

EM Pack Output Table

ROOM CAVITY RATIO

– Conversion Kit for 2’ (60.96cm) Unit

– Conversion Kit for 4’ (121.92cm) Unit

4’

(121.92cm)

4’

(121.92cm)

4’

(121.92cm)

2’

(60.96cm)

2’

(60.96cm)

2’

(60.96cm)
