Lightolier Lytecaster 1035 Manuale utente

Lightolier a Genlyte company www.lightolier.com

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

Lytecaster®Recessed Downlighting 1035

Page 1 of 2 5" Aperture Step Baffle Wall Washer Reflector Trim

Complete Fixture consists of Reflector Trim & Frame-In Kit. Select each separately.

Reflector Trim Frame-In Kit — See Individual Frame-In Kit Specification Sheets

1035

White plate with

matte black step baffle

1035WH

White plate with

matte white step baffle

LED

Fluorescent

Frame-In Kit Installation Type Lamping Height

Frame-In Kit Ceiling Type Lamping Height

1001LED

1001LEDEM

1001LEDREM

L56LED

Non-IC

Non-IC EM

Non-IC Remodeler

Non-IC Retrofit

LED

6 3/4""

6 3/4"

1001F13U Series UniFrame™

Non-IC

(1) Triple 13W (GX24q-1) 5 7/8"

Incandescent 1001F18U Series UniFrame™

Non-IC

(1) Triple 18W (GX24q-2) 5 7/8"

Frame-In Kit Ceiling Type Lamping Height 1004F13 Series IC (1) Quad/Triple 13W (GX24q-1) 7 1/2"

1002P1

1000P1

Non-IC

60W A19

75W BR30

6 3/4"

1004F18 Series IC (1) Triple 18W (GX24q-2) 7 1/2"

1003R Non-IC Remodeler 60W A19

85W BR30

6 3/4" 1004F26 Series IC (1) Triple 26W (GX24q-3) 7 1/2"

1000IC

1000AICM

1004ICX/N

AirSeal®IC

40W A19

7 5/16"

7 1/4"

1001F13ICU/N Performance

(1) Triple 13W (GX24q-1) 7 1/4"

1001F18ICU/N Performance

(1) Triple 18W (GX24q-2) 7 1/4"

1910XFH1 Conversion

Kit

(1) Quad 13W (GX23-2) 6 3/4"

Features

1. Reflector: Hydroformed aluminum, .040" thick, (18 ga.); Anobrite®

(anodic-processed) semi-specular finish for permanent reflectivity; matte

white trim flange.

2. Step Baffle: Die cast aluminum with stepped conical surface for

low brightness, matte black or matte white finish.

3. Aperture Plate: Semi-circular; die formed steel; matte white or gloss white;

spin locked to step baffle; snaps out with step baffle and scoop reflector by

means of concealed retaining springs for relamping.

4. Scoop Reflector: Hydroformed aluminum, .040" thick (18 ga.); Anobrite®

(anodic processed) semi-specular finish for permanent high reflectivity;

provides an even wash of light over wall surfaces without scallops or

shadows.

5. Frame-In Kit: (1002P1 standard frame shown). Other frames listed above

and shown.

Options & Accessories

Retaining Clips: 1955 - For Installing in Existing Ceiling

Extra Wide Flange Trim Ring: 1957 - 7" O.D.

Spread Lens: L56WWLENS - Proprietary spread lens for use with

combination of wall washer optics and LED Frame-In Kits.

Labels

UL (Suitable for Damp Locations), I.B.E.W.

7 1/4"

1035/1004ICX/N

0™

AirSeal®Insulated Ceiling

6 3/4"

1035/1003R

0™

Non-IC Remodeler

Lytecaster®Recessed Downlighting 1035

Page 2 of 2 5" Aperture Step Baffle Wall Washer Reflector Trim

Job Information Type:

Lightolier a Genlyte company www.lightolier.com

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

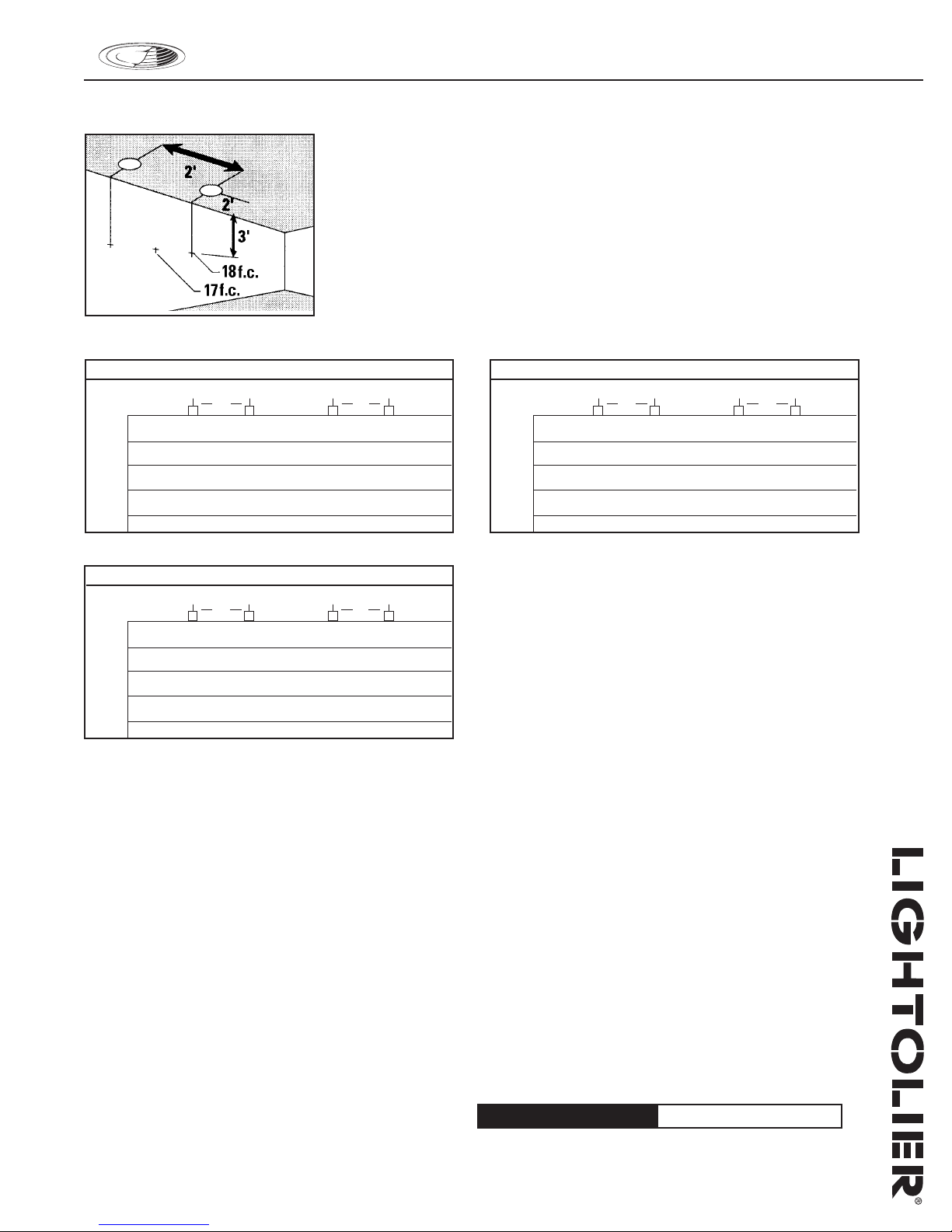

LIGHTING DATA

EXAMPLE: Multiple units with 75W BR30 FL lamps, located

2’ from wall and 2’ on center, provide illumination on the wall

3’ down from the ceiling of 18 f.c. beneath and 17 f.c. between

the fixtures.

FOOTCANDLES ON WALL FROM MULTIPLE UNITS

Footcandle values are averaged and rounded off and are based on a minimum of five units.

For fixture-to-wall distances, other than those shown, use maximum of 1 of 1 spacing (distance between fixtures not more than distance to wall) for best result.

To convert lighting data for a lower wattage incandescent lamp of the same type, multiply the footcandle values by the ratio of the lumens of the two lamps.

60W A19

1 17 16 17 12 9 12

2 18 18 18 13 11 13

3 13 13 13 9 8 9

4 9 9 9 6 6 6

5 6 6 6 4 4 4

6 4 4 4 3 3 3

7 3 3 3 2 2 2

8 2 2 2 1 1 1

9 2 2 2 1 1 1

DISTANCE FROM CEILING, FT.

UNITS 2 FEET FROM WALL

2’ 3’

75W BR30 FL

1 24 23 24 16 16 16

2 20 20 20 16 12 16

3 18 17 18 12 12 12

4 13 13 13 9 9 9

5 9 9 9 7 6 7

6 7 7 7 5 5 5

7 5 5 5 4 4 4

8 4 4 4 3 3 3

9 3 3 3 3 3 3

DISTANCE FROM CEILING, FT.

UNITS 2 FEET FROM WALL

2’ 3’

13W Quad Tube

1 8 8 8 7 4 7

2 11 11 11 8 7 8

3 9 9 9 6 6 6

4 6 6 6 4 4 4

5 4 4 4 3 3 3

6 3 3 3 2 2 2

7 2 2 2 1 1 1

8 1 1 1 1 1 1

9 1 1 1 1 1 1

DISTANCE FROM CEILING, FT.

UNITS 2 FEET FROM WALL

2’ 3’
