Lytecaster®Recessed Downlighting 2005

Page 1 of 2 3 3/4” Aperture Step Baffle Reflector Trim

Complete Fixture consists of Reflector Trim & Frame-In Kit. Select each separately.

Reflector Trim Frame-In Kit — See Individual Frame-In Kit Specification Sheets

2005

2005WH

2005NM

2005BNM

Matte Black

Matte White

Matte Black

w/Natural Metal™Flange

Natural Metal™ Baffle

w/Natural Metal™ Flange

Line Voltage Low Voltage

Frame-In Kit Install Type Lamping Height Frame-In Kit Installation Type Lamping Height

2000P1 Non-IC 40W A19** 5 1/2"

5 1/2"

2000LV Standard Non-IC 5 3/8"

2002P1 Standard Non-IC 75W R20, PAR16 2000LVR Remodeler Non-IC 5 3/8"

2003R Std. Non-IC Rem. 50W PAR20 2000LVRE1 Remodeler Elec Low Voltage Non-IC 5 3/8"

2000IC IC

50W R20 PAR20

45W PAR16

5 1/4"

2000LVE1 Electronic Low Voltage Non-IC 120V 20W-50W MR16 5 3/8"

2000AIC AirSeal®2000LVE2 Electronic Low Voltage Non-IC 277V 5 3/8"

2004ICV/N Lytening AirSeal®IC 5 3/8"

2000LVNT Low Voltage Remote Transformer 20W-42W MR16 5 3/8"

2000AICV Lytening AirSeal®IC 20W-35W MR16 7 5/16"

* 60W A19 with 2003R

2005/2002P1

Standard Incandescent 2005/2000LVR

Remodeler Low Voltage

2005/2000LVNT

Low Voltage Remote Transformer

2005/2004ICV/N

0™AirSeal®Insulated Ceiling

2005/2003R

0™ NON-IC

Remodeler Ring

7 1/4”

5 3/8”

5 1/2”

Features

1. Reflector: Hydroformed aluminum, .040" thick (18 ga.); matte white or

Natural Metal™ trim flange.

2. Step Baffle: Aluminum with stepped conical surface for low brightness.

3. Frame-In Kit: (2002P1 standard frame shown.) Other frames shown on the

right. See Frame-In Kit specification sheet for more detail.

Options & Accessories

Lytegems®: See 1300 Series Specification sheets.

Retaining Clips: 1955 - For Installing in Existing Ceiling

Extra Thick Ceiling 1967C - Up to 2” thick ceiling

Mounting Ring:

Labels

UL (Suitable for Damp Locations), I.B.E.W.

Job Information Type:

Lightolier is a Philips group brand

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Lytecaster®Recessed Downlighting 2005

Page 2 of 2 3 3/4” Aperture Step Baffle Reflector Trim

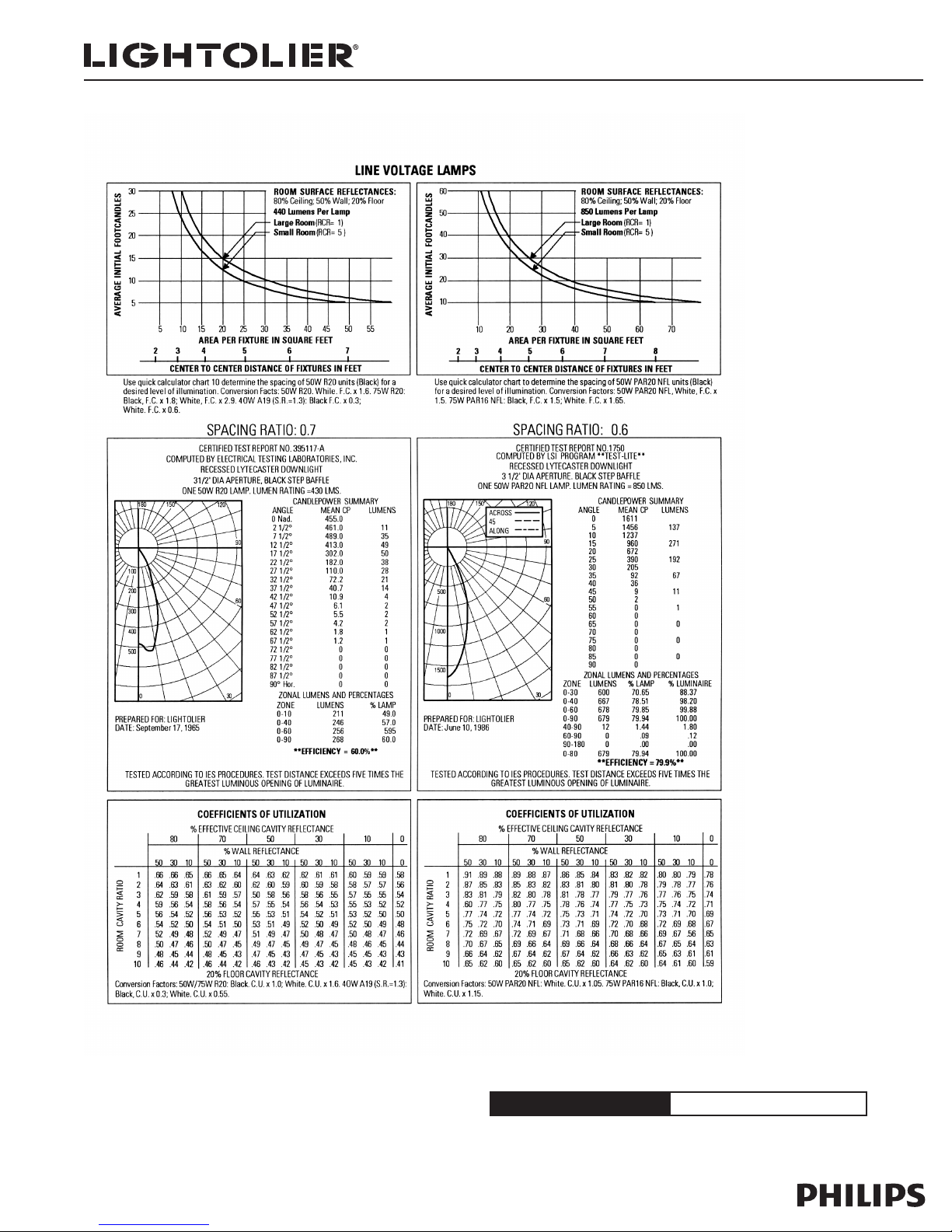

To convert lighting data for a lower wattage lamp of the same type, multiply

footcandles (or candlepower) values by the ration of the lumens of the two lamps.

The coefficients of utilization remain the same.
