ProSpecTM Track Lighting 26383W

Page 1 of 2 Wall Wash Cylinder PAR38/3

Lightolier a Genlyte company www.lightolier.com

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

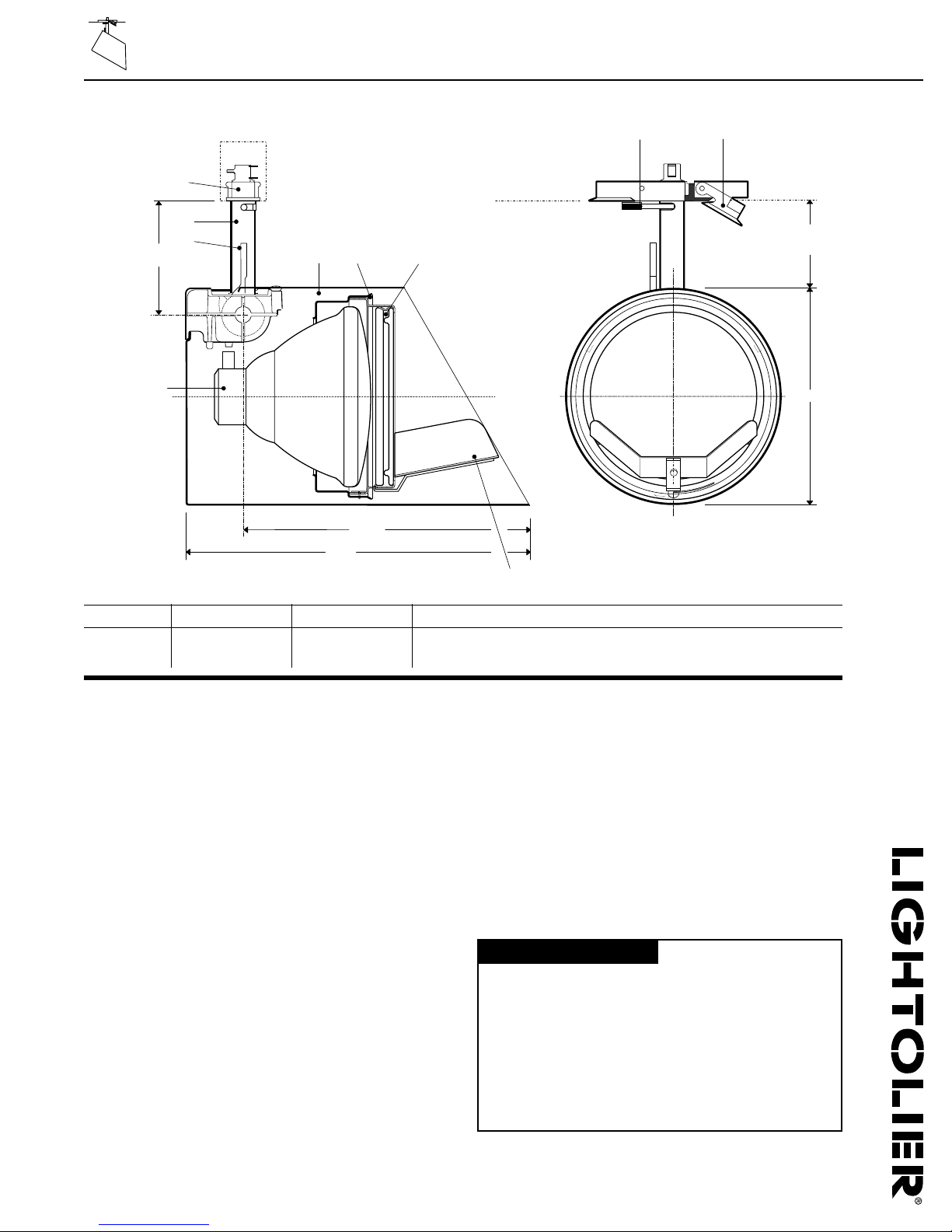

Fixture MOL = 11 5/8"

5 7/8" Dia.

9 10

2 1/4"

Stem

ProSpec Track System

3 1/4"

7 3/8"

8 7/8"

Features

1. Track attachment ﬁtting: Die-cast aluminum with separate mechanical

and electrical functions. Fitting cannot be engaged or disengaged while

ﬁxture is powered. Polarity is not a concern with ProSpec track because of

its symmetrical positioning of circuits within the track, adapters are reversed

to access one or the other circuits.

2. Stem: 5 /8" O.D. .049" wall, stainless steel.

3. Locking feature: Die-cast aluminum mechanism permits the locking of the

horizontal and vertical positions simultaneously by clamping jaws. When

the stainless steel braking lever is released, the horizontal and vertical func-

tions remain fully tensioned to hold aiming positions. Adjustment range is:

Horizontal 0-340°; Vertical 0° (NADIR) - 90°.

4. Lampholder: Porcelain, medium side prong connector #18 ga. braided SF -1

leads.

5. Housing: 20 ga. (.036) steel.

6. Lamp and accessory support: .032 steel, ﬂared for easy entry of

accessory cartridge, matte black ﬁnish.

7. Kick reﬂector assembly: Holds one accessory behind the spread lens;

example: color ﬁlter, UV ﬁlter, Heat ﬁlter. Assembly is removable from front

using a twist and lock motion.

8. Reﬂector: Embossed texture anodized aluminum; reﬂects light towards

upper portion of wall and ceiling line.

9. Lever: Energizes ﬁxture electrically by 90° rotation.

10. Clamping tabs: Expands or releases gripper springs from track ledge; grip-

per springs hold attachment ﬁtting securely within track.

Finish

All painted ﬁnishes are powder coated baked enamel.

Options & Accessories

Accessories: 4 3/4” dia. series. Filters, lenses, screens and louvers. 150W max

when using accessories.

Electrical

Electrical components: Polycarbonate moldings.

Contacts: Heavy gauge 1/2 hard brass developed for Lightolier's "U"

shaped track conductors.

Labels

UL; I.B.E.W.

Catalog No. Finishes Mountings Lamps

26383W WH Matte White ProSpecTM Track PAR38/3 150W Max.

26383W BK Matte Black Systems

Lightolier a Genlyte company www.lightolier.com

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Job Information Type:

ProSpecTM Track Lighting 26383W

Page 2 of 2 Wall Wash Cylinder PAR38/3

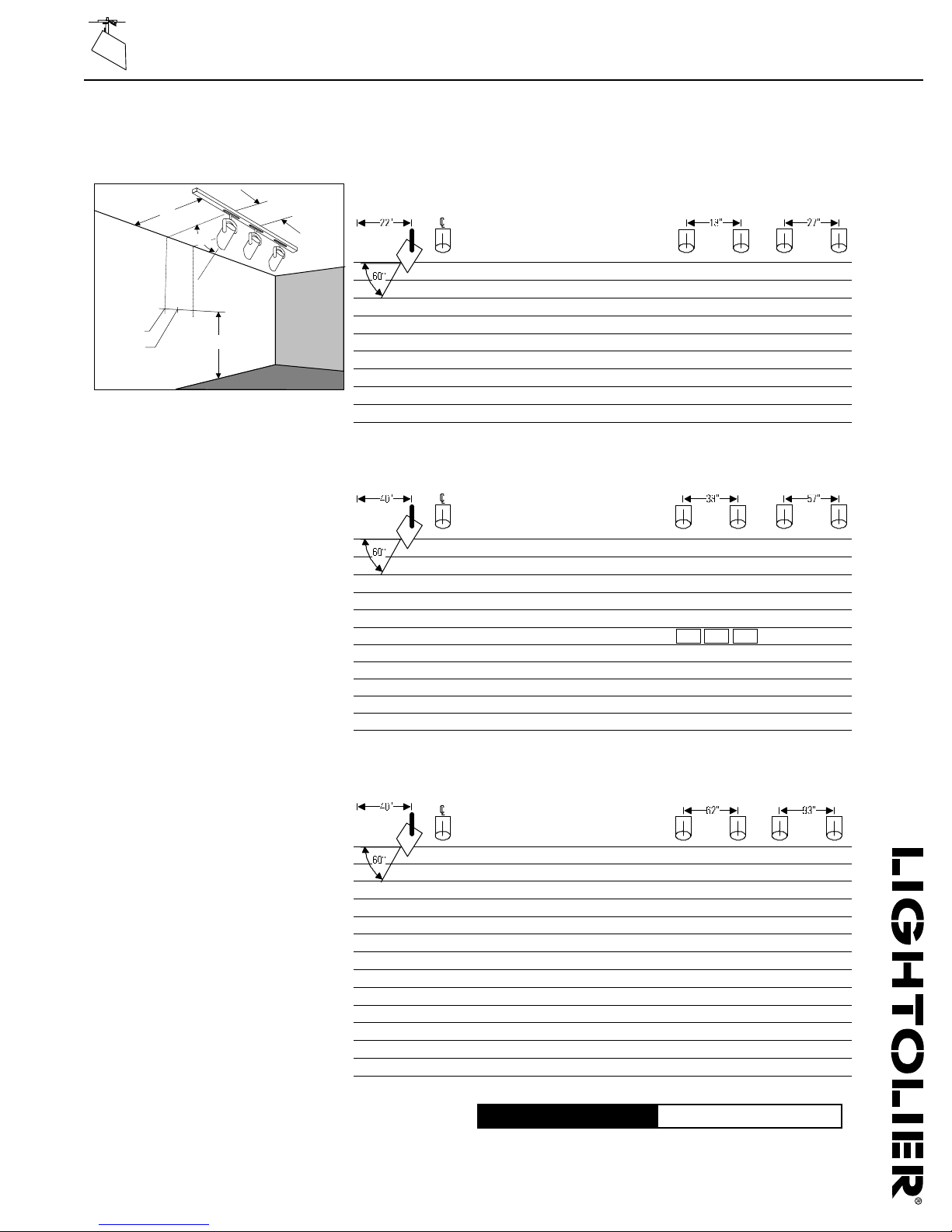

DISTANCE TO SIDE OF UNIT

6" 12" 18" 24" 30" 36" 42" 48"

0 11.0 6.5 5.5 3.0 2.0 1.5 1.0 0.5 0.5 19.5 16.5 19.5 15.0 10.5 15.0

1 70.0 65.0 34.0 12.0 5.5 8.0 1.5 1.0 1.0 97.0 109.5 97.0 80.0 48.5 80.0

2 115.0 110.0 66.0 26.0 9.0 3.5 2.0 1.0 1.0 171.0 190.5 171.0 129.0 95.0 129.0

2.5 140.0 130.0 80.0 36.0 14.0 4.5 2.5 1.5 1.0 217.0 231.0 217.0 160.0 120.0 160.0

3 120.0 115.0 77.0 39.0 16.5 6.0 2.5 1.5 1.5 203.0 217.0 203.0 144.0 120.0 144.0

4 48.0 48.0 40.0 24.0 14.0 7.5 3.0 2.0 1.5 102.0 113.0 102.5 71.0 69.0 71.0

5 17.0 17.0 16.0 11.5 8.5 5.5 3.0 2.0 1.5 46.5 51.0 46.5 33.0 32.5 33.0

6 8.0 7.0 8.0 6.0 5.0 3.5 2.8 2.0 1.5 25.5 27.0 25.5 18.5 18.5 1 8.5

7 4.0 4.0 5.0 3.5 3.0 3.0 2.0 2.0 1.0 15.0 18.5 15.0 12.0 12.5 12.0

8 2.5 3.0 3.0 2.5 2.5 2.5 2.0 1.5 0.5 11.5 14.0 11.5 9.0 0.0 9.0

10'-0" Ceiling Height Track 40" from Wall*

DISTANCE TO SIDE OF UNIT

12' 24' 36' 48" 60' 72" 84'

0 6.0 5.0 2.5 2.5 2.0 1.0 0.5 0.0 12.0 9.5 12.0 7.5 6.0 7.5

1 13.0 11.0 9.0 3.5 2-0 1.0 0.5 0.5 21.5 24.0 21.5 17.0 13.5 17.0

2 23.0 18.0 12.0 4.5 3.0 1.0 0.5 0.5 82.5 83.0 82.5 26.0 18.0 26.0

3 25.0 28.0 14.5 5.0 8.0 1.0 0.5 0.5 86.5 40.5 36.5 28.0 21.0 280

4 33.0 27.0 15.0 6.0 2.5 1.0 0.5 0.5 48.0 45.0 48.0 36.0 22.5 36.0

4.5 34.0 28.0 16.0 6.0 2.5 1.0 1.0 0.5 48.0 47.0 48.0 37.0 23.5 37.0

5 28.0 25.0 15.0 6.0 2.5 1.5 1.0 0.5 41.0 43.0 41.0 31.5 22.0 81.5

6 20.0 18.0 13.0 5.5 2.0 1.5 1.0 0.5 82.0 34.0 32.0 28.5 20.0 23.5

7 15.0 18.0 9.0 4.0 1.5 1.5 1.0 1.0 25.0 25.0 25.0 18.0 14.5 18.0

8 10.0 8.5 6.0 3.0 1.5 1.5 1.0 1.0 18.0 18.0 18.0 18.0 10.5 13.0

9 8.0 7.0 4.5 2.0 1.5 1.5 1.0 1.0 14.0 14.0 14.0 11.0 8.5 11.0

10 5.0 4.0 8.5 1.5 1.5 1.5 1.0 1.0 9.0 10.5 9.0 7.5 6.5 7.5

12'-0" Ceiling Height Track 66" from Wall*

DISTANCE TO SIDE OF UNIT

12' 24' 36' 48' 60' 72' 84' 96'

0 3.5 3.0 2.5 2.0 1.0 1.0 0.5 0.5 0.5 5.0 5.0 5.0 4.0 3.0 42

1 5.5 5.0 4.0 3.0 1.5 1.0 0.5 0.5 0.5 7.5 7.5 7.5 6.0 3.5 6.2

2 8.0 7.5 5.5 3.5 2.0 1.5 1.0 0.5 0.5 10.5 10.0 10.5 8.5 5.0 8.8

3 9.0 8.5 7.0 4.5 2.5 1.5 1.0 4.0 0.5 12.0 12.0 12.0 9.5 5.5 9.8

4 10.0 10.0 8.0 5.5 8.0 2.0 1.0 1.0 0.5 18.5 14.5 18.5 10.5 6.5 10.6

5 12.5 12.0 10.0 6.5 3.5 2.0 1.0 1.0 0.5 17.0 17.5 17.0 13.5 8.0 13.4

6 15.0 14.0 11.0 7.5 4.5 2.5 1.5 1.0 1.0 20.0 20.0 20.0 16.5 9.5 16.4

6.5 15.0 14.0 11.0 8.0 4.5 3.0 1.5 1.0 0.5 21.5 20.5 21.5 16.5 10.0 16.4

7 14.0 12.5 10.5 7.5 4.5 8.0 1.5 1.0 0.5 20.0 19.5 20.0 15.0 9.5 15.6

8 12.5 11.5 10.0 7.0 4.0 3.0 1.5 1.5 0.5 18.5 18.0 18.5 13.5 9.0 15.6

9 10.0 9.0 8.0 6.0 4.0 8.0 1.5 1.5 0.5 16.0 15.0 16.0 11.0 8.5 11.2

10 8.5 8.0 7.0 5.0 4.0 3.0 1.5 1.5 0.5 14.0 18.5 14.0 19.5 8.5 19.6

11 7.0 6.5 6.0 4.5 8.0 8.0 1.5 1.5 0.5 12.5 11.0 12.5 7.5 7.0 7.6

12 5.5 5.0 4.2 3.0 3.0 2.0 1.5 1.5 0.5 9.5 8.5 9.5 6.0 6.5 6.2

Footcandles On Wall: Single Units Multiple Units †

EXAMPLE: With track located 40" from wall

multiple units spaced 38" on center and aimed

60∫from horizontal, the illumination on wall

5' 6" from floor will be 48 f.c. beneath units and

47 f.c. between units.

38"40"

48 f.c.

47 f.c.

60°

5'-6"

8'-0" Ceiling Height Track 22" from Wall*

Track Dist.

from Wall

Track Dist.

from Wall

Track Dist.

from Wall

Lighting Data 150W Par 3813 FL

*At recommended track distance from

wall for corresponding ceiling height, wall

washer will provide maximum Illumination

at eye level (5' 6' above ﬂoor) when aimed

60 from horizontal (I.E.S. recommended

practice).

† Footcandles shown In table for multiple

units are based on a minimum of 5 units

when on 18", 27", or 38" centers and 8

units when on 57" 62", or 98" centers.

Footcandle values are based on average

room conditions.
