INSTRUCTION SHEET NO.

IN=ALLATION OF PRE-WIRED CALCULITE FRAME4N-KITS

A-LAMP WALL WASHERIDOWNLIGHT IS:V611

INSTRUCTION SHE~ FOR ITEMS R0291

V611, W612 Page 1of 2

READ AND UNDERSTAND THESE INSTRUCTIONS BEFORE INSTALLING FIXTURE.

This fixture is intended for installation in accordance with the National Electrical Code and local regulations. To assure full compliance

with local codes and regulations, check with your local electrical inspector before installation. To prevent electrical shock, turn off

electricity at fuse box before proceeding.

Retain these Instructions for maintenance reference.

WARNING—(RISK OF FIREIDO NOT INSTALL InSUlatiOn WITHIN 3INCHES OF FIXTURE SIDES OR

WIRING COMPARTMENT, NOR ABOVE FIXTURE IN SUCH AMANNER SO AS TO ENTRAP HEAT.

N~E RELIXTOR/HOUSING must be Installed before closlng in ceiling. Make sum flnlshed ceiling Is lined up with MOUNTING

FRAME (Fig. 6).

A. FRAME-IN AND WIRE-IN (FIG. 1)

1.Install FRAME-IN SECTION using ADJUSTABLE MOUNTING BRACKET (see below).

Wire to supply leads. White fixture lead to neutral supply lead. Black fixture lead to hot (120V.)

supply lead. Bare fixture wire to supply ground. Use wirenuts (local hardware items). Place all

electrical connections in the J-BOX. Attach J-BOX COVER onto J-BOX.

[m I<>~”[~<> 1-[ 1= [~” :&;~;;;;,N;~E&;~,E;~;y~~

nuea I

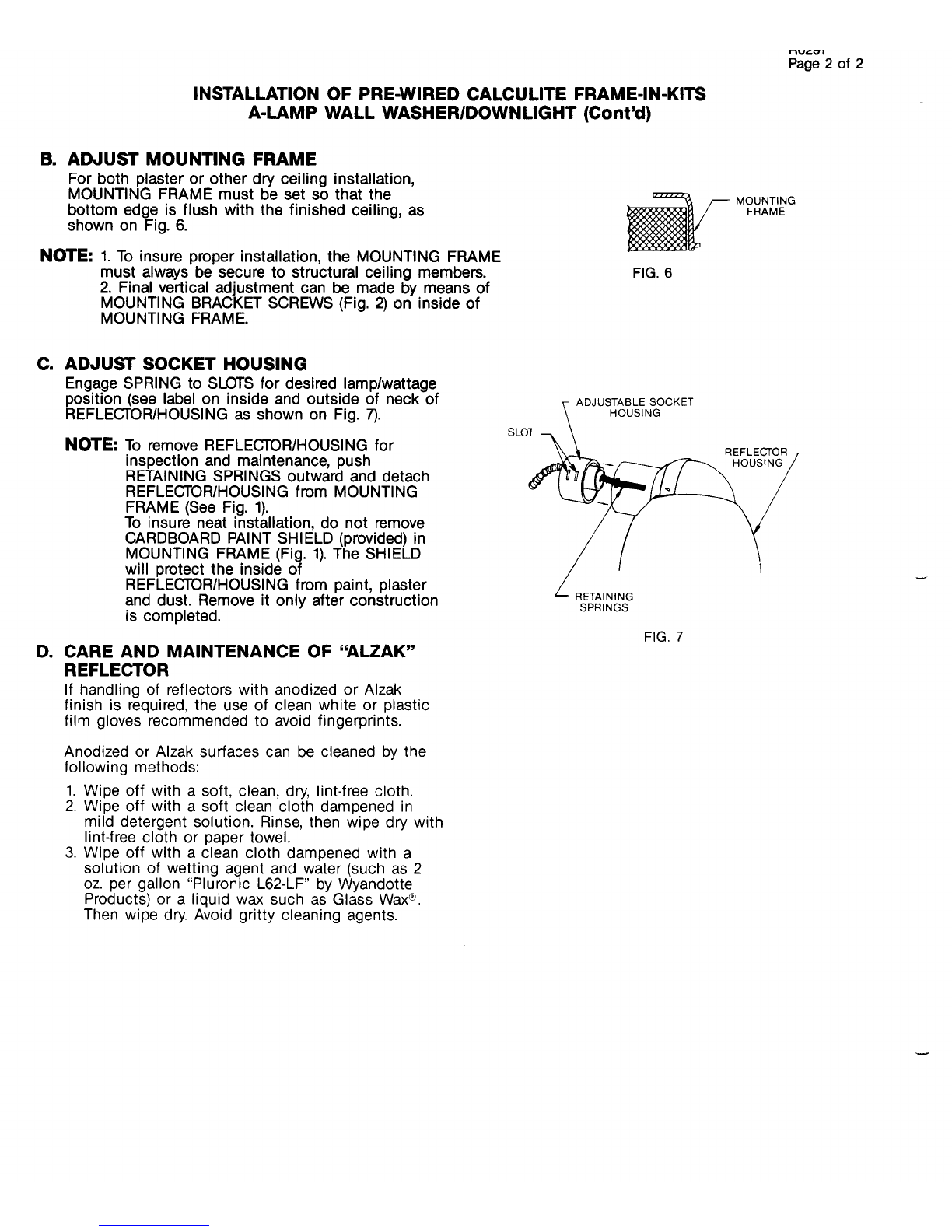

Page 2of 2

INSTALLATION OF PRE-WIRED CALCULITE FRAME-IN-KITS

A-LAMP WALL WASHER/DOWNLIGHT (Cent’d)

B. ADJUST MOUNTING FRAME

For both plaster or other dry ceiling installation,

MOUNTING FRAME must be set so that the

bottom edge is flush with the finished ceiling, as

shown on Fig. 6.

NOTE: 1. To insure proper installation, the MOUNTING FRAME

must always” be” secure to structural ceiling members.

2. Final vertical adjustment can be made by means of

MOUNTING BRACKET SCREWS (Fig. 2) on inside of

MOUNTING FRAME.

FIG. 6

ADJUST SOCKET HOUSING

Engage SPRING to SLOTS for desired lamp/wattage

position (see label on inside and outside of neck of

REFLECTOFUHOUSING as shown on Fig. 7). ADJUSTABLE SOCKET

HOUSING

SLOT

NOTE: To remove REFLE(70R/HOUSING for

inspection and maintenance, push

RETAINING SPRINGS outward and detach

REFLECTOR/HOUSING from MOUNTING

FRAME (See Fig. 1).

To insure neat installation, do not remove

CARDBOARD PAINT SHIELD (provided) in

MOUNTING FRAME (Fig. 1). The SHIELD

will protect the inside of /

REFLECTOR/HOUSING from paint, pIaster

and dust. Remove it only after construction RETAINING

is completed. SPRINGS

FIG. 7

CARE AND MAINTENANCE OF “Al-ZAK”

REFLECTOR

If handling of reflectors with anodized or Alzak

finish is required, the use of clean white or plastic

film gloves recommended to avoid fingerprints.

Anodized or Alzak surfaces can be cleaned by the

following methods:

1. Wipe off with asoft, clean, dry, lint-free cloth.

2. Wipe off with asoft clean cloth dampened in

mild detergent solution. Rinse, then wipe dry with

lint-free cloth or paper towel.

3. Wipe off with aclean cloth dampened with a

solution of wetting agent and water (such as 2

oz. per gallon “Pluronic L62-LF” by Wyandotte

Products) or aliquid wax such as Glass Wax@.

Then wipe dry. Avoid gritty cleaning agents.
