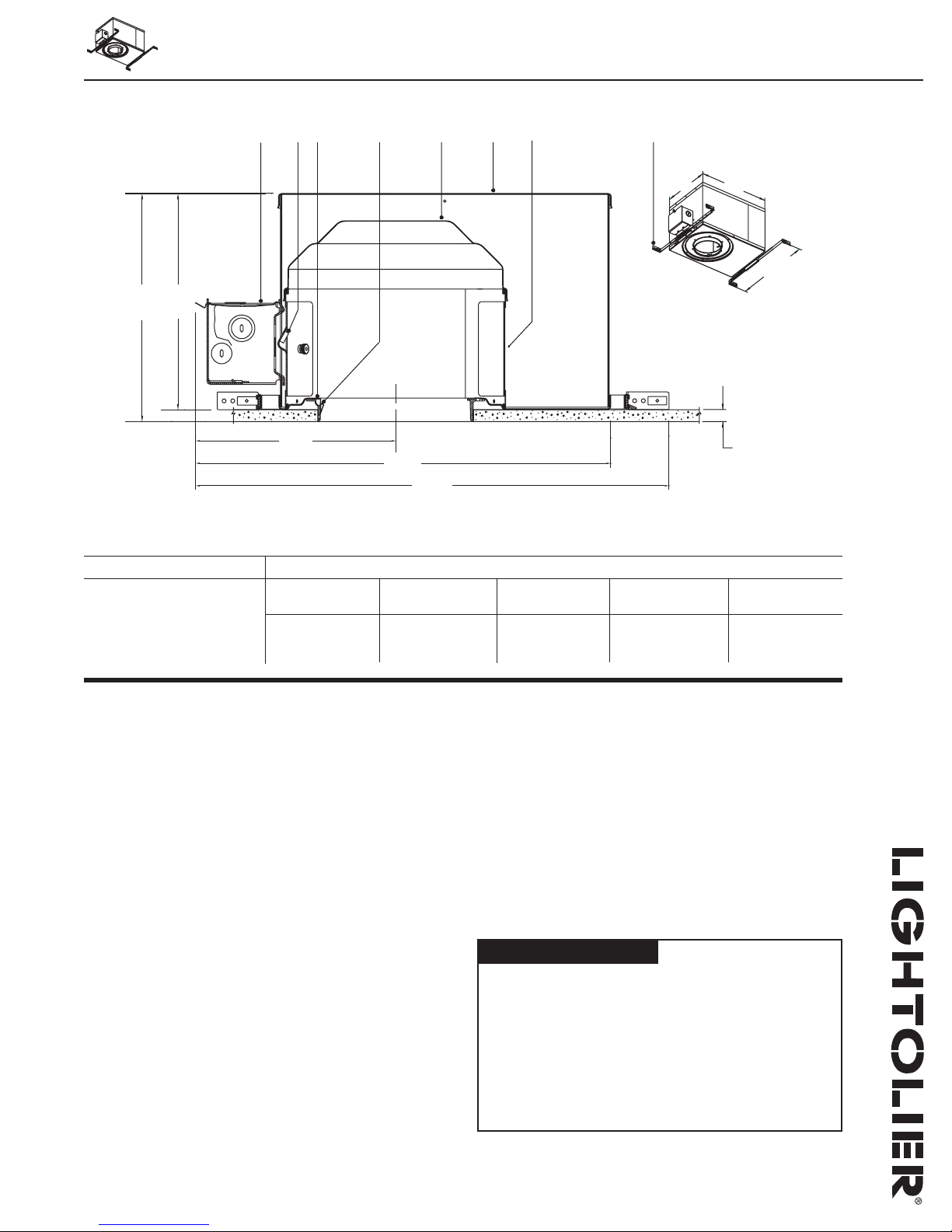

Calculite®Evolution Recessed Downlighting C6AIC

Page 1 of 1 6" Aperture Incandescent 120V IC AirSeal® Frame-In Kit

*9 3/4" min. is for

up to 1/2" thick ceiling.

included)

(mounting bars

Adjustment

13 3/4" to 24"

14 1/4"

10"

5124367 8

9 1/4"

10 1/4" max.

9 3/4" min.*

17 3/4"

20 1/4"

8 1/2" 1" Max. Ceiling Thk.

Ceiling Cutout: 6 11/16" Dia.

Frame-In Kit Reflector Trim

C6AIC Open Open Adjustable Open Lensed

Downlight Downlight Accent

Wall Washer/Downlight

Wall Washer

C6AD C6P30D C6P30A C6AW C6P30L

100W A19, MB19 75W PAR30 75W PAR30 100W A19, MB19 50W PAR30

100W BT15 (Short Neck) (Short Neck) 100W BT15 (Short Neck)

Features

1. Outer Housing: Raw aluminum 0.036" (18 ga.) allows for heat dissipation.

Top and bottom cover: aluminum 0.050" (16 ga.). Top cover removable for

top access.

2. Housing: Steel, 0.03" (22 ga.). Top Cover: Aluminum, 0.04" (14 ga.). Matte

black finish. AirSeal® housing minimizes air leakage to less than 2CFM at

1.57 PSF (or 75pa) in accordance with ASTM E283, which complies with

Model Energy Code and Washington State Energy Code and reduces heat

loss and condensation in ceiling.

3. Mounting Frame: Die-cast aluminum for dry or plaster ceilings. Locks into

position along length of mounting bars with locking screws.

4. Retaining Springs: Precision-tooled steel springs secure reflector trim to

mounting frame for quick, tool-less installation.

5. Mounting Bars: Galvanized steel, 0.06" (16 ga.). Bars pivot for easy

installation and wire-in below ceiling line. Bars extend to accommodate

16" to 24" O.C. joist spacing. Integral self-tapping screws for secure to

wood or metal construction. Built-in tabs for locking to T-bars without the

need of accessories.

6. Snap-In Connectors: Keyed to accept power and socket harnesses

which are provided with reflector trim.

7. Junction Box: Galvanized steel .063" (14 ga.). UL listed for maximum of

4 No. 12 AWG 90°C through branch circuit conductors. Accessible from

inside and outside of fixture. Outside J-Box door is hinged for maximum

opening. Snap-in plug is provided on inside cover for quick connection to

power harness.

8. Thermal Protector: Meets NEC and UL requirements.

9. Reflector Trim: Compatible reflector trims are listed above. See separate

reflector trim specification sheets for complete catalog numbers and

details.

Options & Accessories

Chicago Plenum Consult Factory

Labels

cULus Listed (suitable for damp locations), I.B.E.W.

Complies with air Leakage requirements stated in the Model Energy Code, the

Washington State Energy Code and Title 24.
