Lightolier QVE2GPFOS2FT Manuale utente

ALTER ELEGANCE

2’ X 2’ RECESSED DIRECT/INDIRECT FLUORESCENT

2 LAMP, TT5 BI-TUBE, 3 1/2” DEEP

MICROPERFORATED MESH LAMP SHIELD,

STATIC

Efficiency 44%.

Only 3 1/2'' deep.

Swing down microperforated lamp shield for

easy relamping and maintenance.

Alter soft white film on inside of mesh conceals

lamp image providing balance between

reflected and direct light.

Fully recessed luminaire and lamp

compartment.

95% Reflective Alter soft white paint finish.

Specular interior reflector.

One piece body for easy installation.

Easy access to ballast through lamp

compartment.

Fits standard T-Grid ceilings.

Optional acrylic drop-down visual element.

MOUNTING METHODS/FEATURES DIMENSIONS

FIXTURE TYPE

JOB INFORMATION:

VOLTS

L10-70

QVE2GPFOS2FT

Swing down optical system for

easy relamping and maintenance

Microperforated mesh lamp shields

Also available with solid opaque swing-down

lamp shield

Ceiling compatibility

Suited to standard exposed T-grid

ceilings Suited to standard exposed Slot T-grid ceilings

2 x 40W

Genlyte Thomas Company

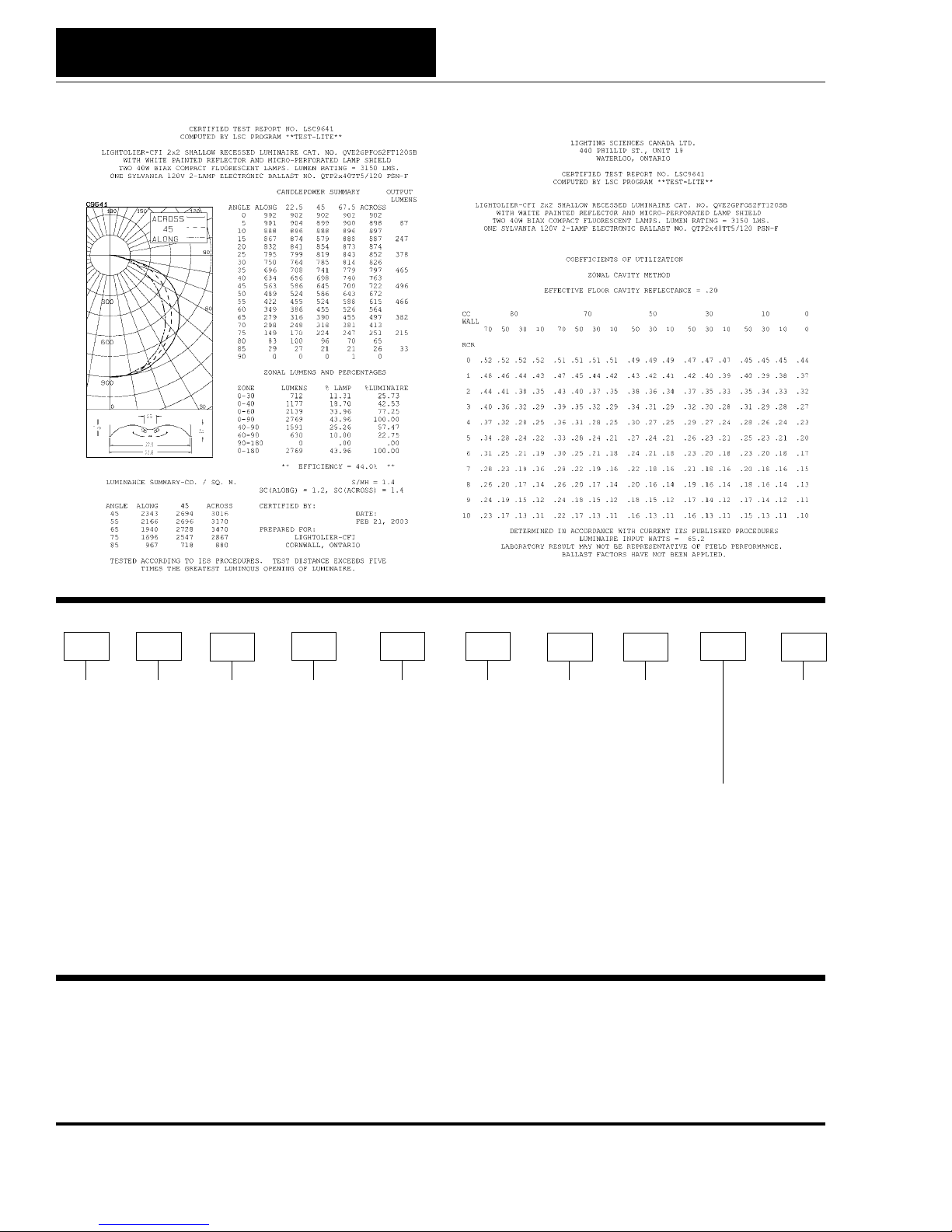

ORDERING INFORMATION Explanation of Catalogue Number Example: QVE2GPFOS2FT120SB

SPECIFICATIONS

MATERIALS: One piece chassis constructed from die formed 20 gauge

cold rolled steel. Reflectors - 95% reflectance baked white acrylic matte

paint finish. Specular aluminum interior reflector. Soft white acrylic film on

inside of lamp shield conceals lamp image.

FINISH: Chassis exterior - phosphate undercoating, baked white acrylic

matte paint finish.

ELECTRICAL: Rapid start HPF, thermally protected class “P” ballast (Bi-tube

type). If K.Os are within 3” of ballast use wire suitable for at least 90C.

LABELS: Listed by CSA, UL

QVE2GPFOS2FT

QVE

ALTER

ELEGANCE

FIXTURE

WIDTH

CEILING

TYPE

LAMP

SHIELD

LAMP

QUANTITY

LAMP/FIXTURE

LENGTH

120

VOLTAGE

120,277

347

OPTIONS

Standard exposed

T-grid ceilings

(NOMINAL 24”)

FT = TT5

Bi-tube

R =Radio Interface Filter

O =Emergency Lighting

System (for Canada)

N =Emergency Lighting

System (for U.S.)

Recessed direct

indirect soft light

optical system

PF =Micro-

perforated

SD =Solid

BALLAST TYPE

BE =50W Electronic TT5 RS

SR =40W Electronic TT5 RS

BX =40W Magnetic TT5 RS

PB =40W TT5 PowerSpec Dimming*

PC =50/55W TT5 PowerSpec Dimming*

SB =40W Genetic Electronic TT5

*Not available in 347V.

CLEAR POLISHED

ACRYLIC DROP

DOWN VISUAL ELEMENT

OS =Open slot (no acrylic)

OP =One Piece (no center slot)

GC =Clear acrylic

GG =Clear acrylic / Green projected color face

GB =Clear acrylic / Blue projected color face

GR = Clear acrylic / Red projected color face

We reserve the right to change, materials and finish in any way that will not alter installed appearance or reduce function and performance.

ALTER ELEGANCE

2’ X 2’ RECESSED DIRECT/INDIRECT FLUORESCENT

OS 2 FT

2’

Genlyte Thomas Company

631 Airport Road, Fall River, MA 02720 - Tel. (508) 679-8131

C.F.I. Division of Canlyte, Inc.

525 Education Road, Cornwall, Ontario

Canada K6H 6C7 - (613) 938-6221
